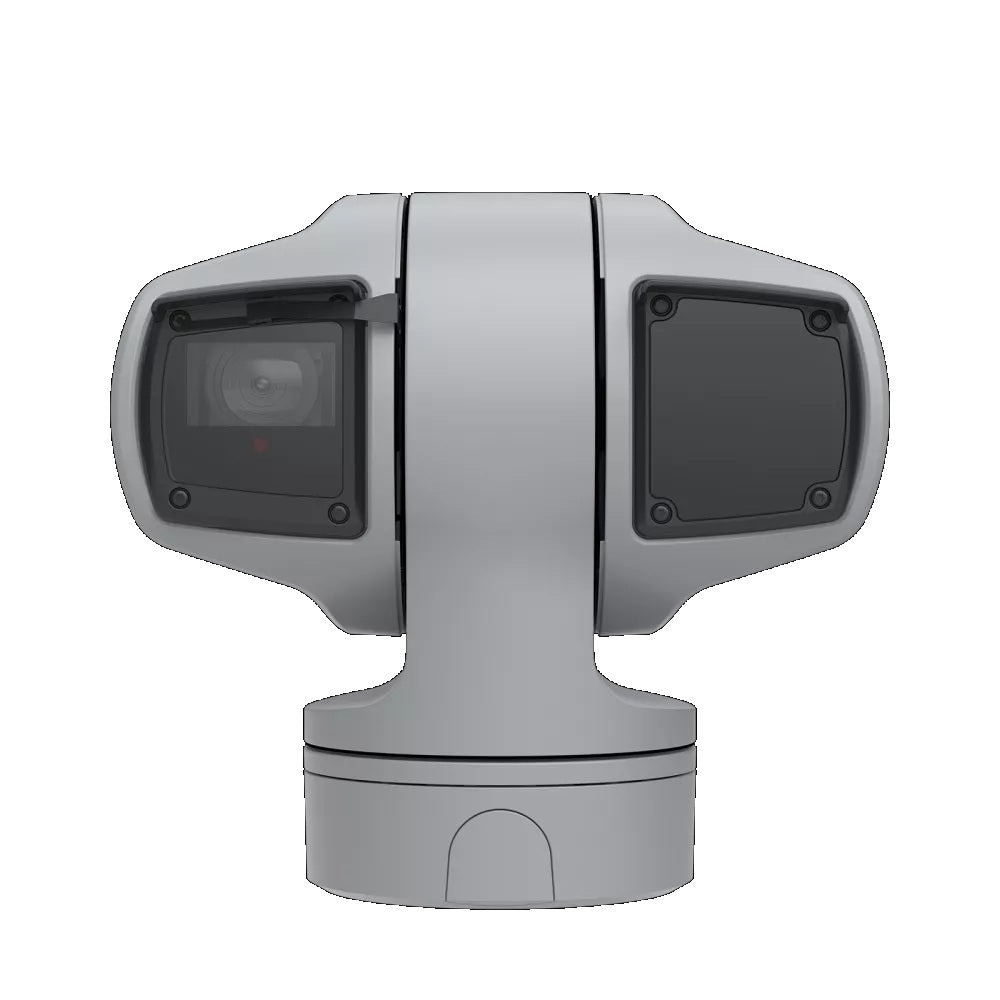

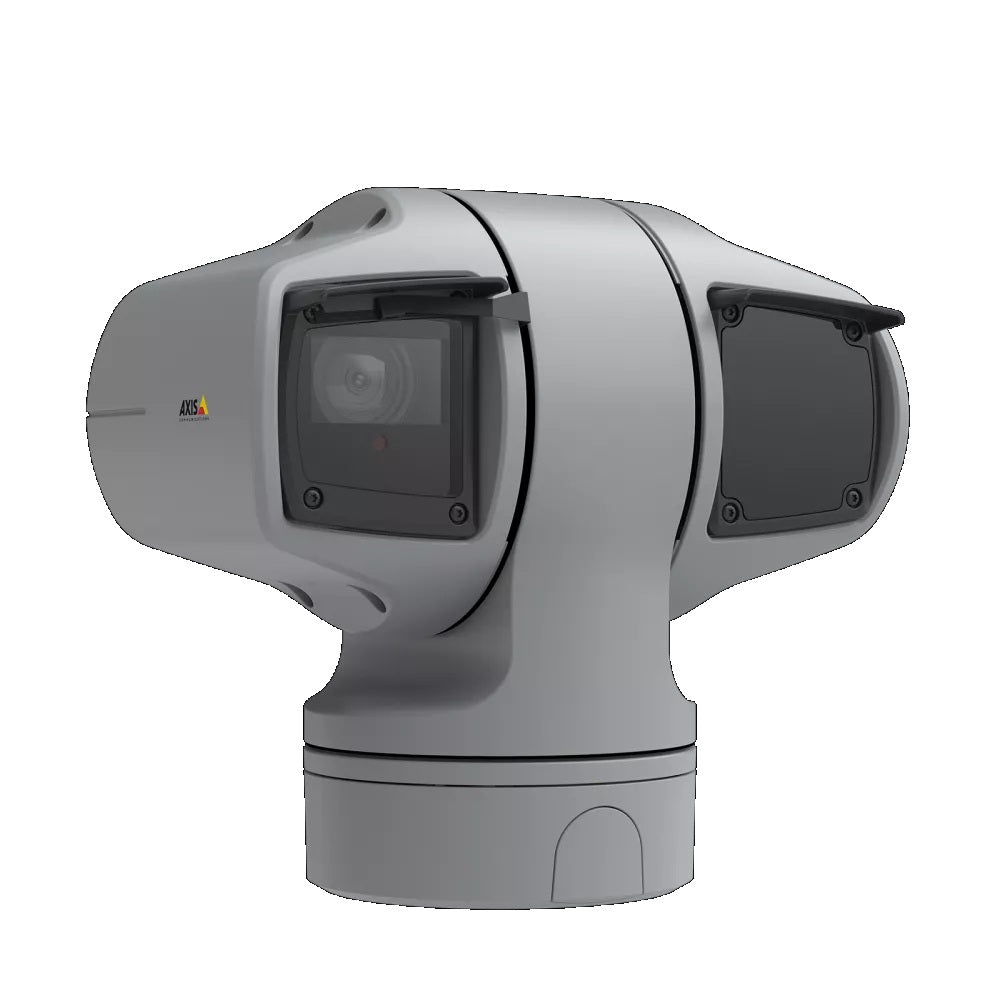

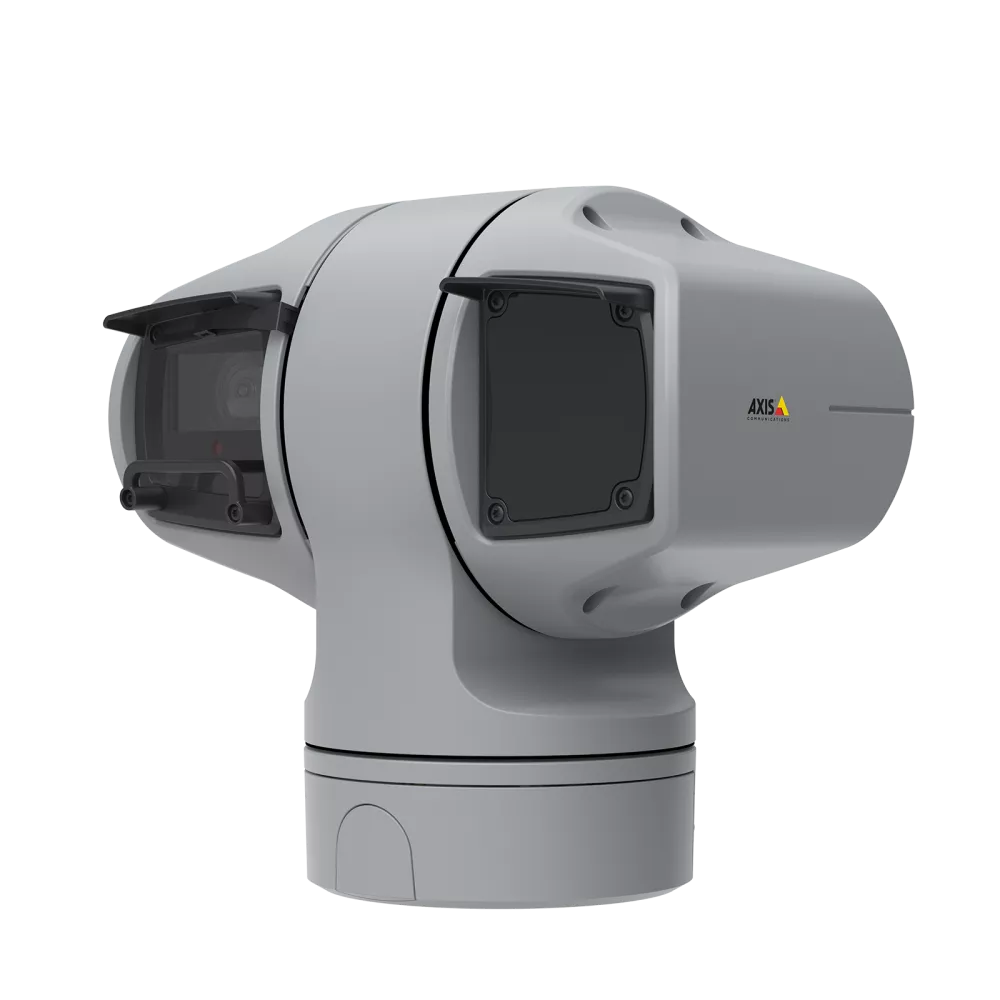

AXIS Q6225-LE PTZ 31x optical zoom Heavy-duty PTZ camera with long-range IR 02316-301

Model: Q6225-LE

Who This Is For

When long-range identification across wide open spaces is the priority, fixed cameras simply cannot cover the ground. The AXIS Q6225-LE is built for sites where a single camera position needs to actively follow movement across hundreds of metres - ports, logistics yards, correctional facilities, critical infrastructure perimeters, and large commercial campuses. The 31x optical zoom means operators can pull in detail at distance without relying on digital crop, and the long-range IR illumination supports night-time tracking well beyond what a standard PTZ delivers. The heavy-duty housing handles the kind of environmental punishment that rules out lighter-grade equipment. Installers specifying this camera are typically working to a brief that demands active operator control or automated tracking, not just passive recording - and where the cost of missing an incident is high enough to justify a premium PTZ investment.

What This Camera Actually Does

Who Buys This Model

• Port and logistics operators: Monitoring long vehicle approaches, container yards, and perimeter fences where 31x optical zoom allows vessel or plate identification from a single elevated camera position.
• Critical infrastructure managers: Water treatment, power generation, and communications sites requiring IK10-rated vandal resistance and continuous pan for uninterrupted perimeter patrol from unmanned positions.
• Correctional and detention facility security teams: Applications where active PTZ control and long-range IR are required to track movement across large open exercise yards or external perimeters after dark.
• Mining and resources site security: Remote sites with wide open approaches and limited camera positions benefit from a single Q6225-LE covering ground that would otherwise require 4 or more fixed cameras, with NEMA 4X housing handling harsh dust and moisture conditions.
• Security integrators specifying manned monitoring centres: Operators need a PTZ that responds to alarm triggers from analytics and allows immediate zoom-in for incident verification - the on-camera AXIS Object Analytics feeds directly into this workflow.

Honest Assessment

The Q6225-LE does long-range outdoor PTZ coverage genuinely well. The combination of 31x optical zoom with IR illumination that adjusts its beam angle to match the zoom position is a practical advantage on large sites - you get usable night-time imagery at distance, not just a bright wash over the foreground. The IK10 and IP66/67 housing is appropriate for exposed industrial and coastal installs where lighter-grade PTZ cameras deteriorate within a season. AXIS Object Analytics running on-camera keeps alert quality high without requiring a separate analytics server. What this camera will not do is serve as a cost-effective solution for smaller residential or small commercial sites - the power requirements (802.3bt PoE++ or 24 VAC/VDC) demand appropriate infrastructure, and the investment is only justified where wide-area active monitoring or long-range identification is genuinely required. It is available through Security Australia as part of the Axis PTZ range.

Before You Buy

Quick Fit Check

• Good match if: You need to actively track movement across a large open area at night and require IR illumination that performs at the same range as the optical zoom - ports, logistics yards, open perimeters.
• Good match if: Your site demands IK10 vandal resistance and NEMA 4X corrosion protection because the camera will be in a location subject to physical attack, coastal salt air, or industrial chemical exposure.
• You may need a different model if: Your primary requirement is wide-area overview from a fixed position rather than active tracking - a multi-sensor panoramic camera or fisheye model would deliver broader simultaneous coverage without the PTZ blind-spot risk that occurs while the camera is pointed elsewhere.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 31x optical zoom with long-range IR illumination in a housing rated for both physical attack (IK10) and corrosive outdoor environments (NEMA 4X), with on-camera analytics to reduce false alarms at unmanned sites.
• You may need a different model if: Your site requires simultaneous 270-360 degree overview without any blind spot risk - a multi-sensor panoramic camera maintains full-scene coverage at all times whereas a PTZ only covers the direction it is currently pointed, which creates a coverage gap during active tracking.
• Pairs well with: An 802.3bt-capable PoE++ managed switch or dedicated PTZ power supply, a VMS platform with PTZ joystick control and alarm-triggered preset positioning, and perimeter detection sensors (radar or fence intrusion) to trigger automated camera slew to alarm zones.

Common Questions

1. Does the Q6225-LE work on a standard PoE switch?

   No. The Q6225-LE requires IEEE 802.3bt PoE++ delivering up to 90W - a standard 802.3af switch (15.4W) or 802.3at switch (30W) will not provide sufficient power to operate the camera. You need either an 802.3bt-capable switch port or a dedicated 802.3bt midspan injector at the mounting location. Alternatively, the camera supports 24 VAC or 24-28 VDC local power supply if running cable to a switch is not practical.

2. What is the optical zoom ratio and how far can it realistically identify a person?

   The Q6225-LE delivers 31x optical zoom. Practical identification range depends on mounting height, angle, and lighting conditions, but the long-range IR and 31x zoom combination is designed for identification-grade detail at distances well beyond the 10-30m range typical of standard PTZ models. The zoom range is matched by the IR beam - as the lens zooms in, the illuminator narrows its beam to concentrate light on the target rather than wasting output across a wide scene.

3. Will this camera create a blind spot while it is actively tracking a target?

   Yes. This is an inherent characteristic of all PTZ cameras. While the Q6225-LE is zoomed in on a specific target or following a moving object, other areas of the site are not being monitored by that camera. For sites where simultaneous full-area coverage is a requirement, a multi-sensor panoramic camera or additional fixed cameras should supplement the PTZ rather than replace overview coverage entirely.

4. How does AXIS Object Analytics reduce false alarms compared to standard motion detection?

   Standard motion detection triggers on any pixel change - wind-blown foliage, lighting shifts, insects, and rain all generate alerts. AXIS Object Analytics running on the camera's processor classifies detected movement as human or vehicle before issuing an alarm. Only objects matching those classifications generate an alert event, which substantially reduces the volume of false triggers reaching operators or monitoring stations, particularly on large open sites with significant environmental movement.

5. Does the Q6225-LE support auto-tracking, and how does it behave when it loses a target?

   Yes, the Q6225-LE supports auto-tracking. When a detected object moves through the frame, the camera follows it using the PTZ drive. If the camera loses the tracked object - for example, the target moves behind an obstruction or exits the zoom field - the camera will return to a configured home position or resume the active guard tour after a defined timeout period. Auto-tracking behaviour including sensitivity and return-to-home timing is configurable through the camera's web interface or via AXIS Camera Station.

6. Is the Q6225-LE compatible with third-party VMS platforms?

   Yes. The Q6225-LE supports ONVIF Profile S, Profile G, and Profile T, which provides integration with the majority of commercial VMS platforms including Milestone, Genetec, Avigilon, and others. Full PTZ control including preset positions, guard tours, and alarm-triggered positioning is available through ONVIF-compliant VMS software. Native integration with AXIS Camera Station provides the most complete feature access. The camera is stocked by Security Australia and is part of the broader Axis network camera ecosystem.

7. How many preset positions does the Q6225-LE support, and can they be triggered by external alarms?

   The Q6225-LE supports a high number of configurable preset positions (up to 256 presets). Presets can be triggered by external alarm inputs, VMS events, or on-camera analytics triggers. This means an integration with a perimeter radar system, fence sensor, or access control event can automatically slew the camera to the relevant zone and zoom to a preset focal length without requiring operator action - a common requirement on remotely monitored industrial and critical infrastructure sites.
