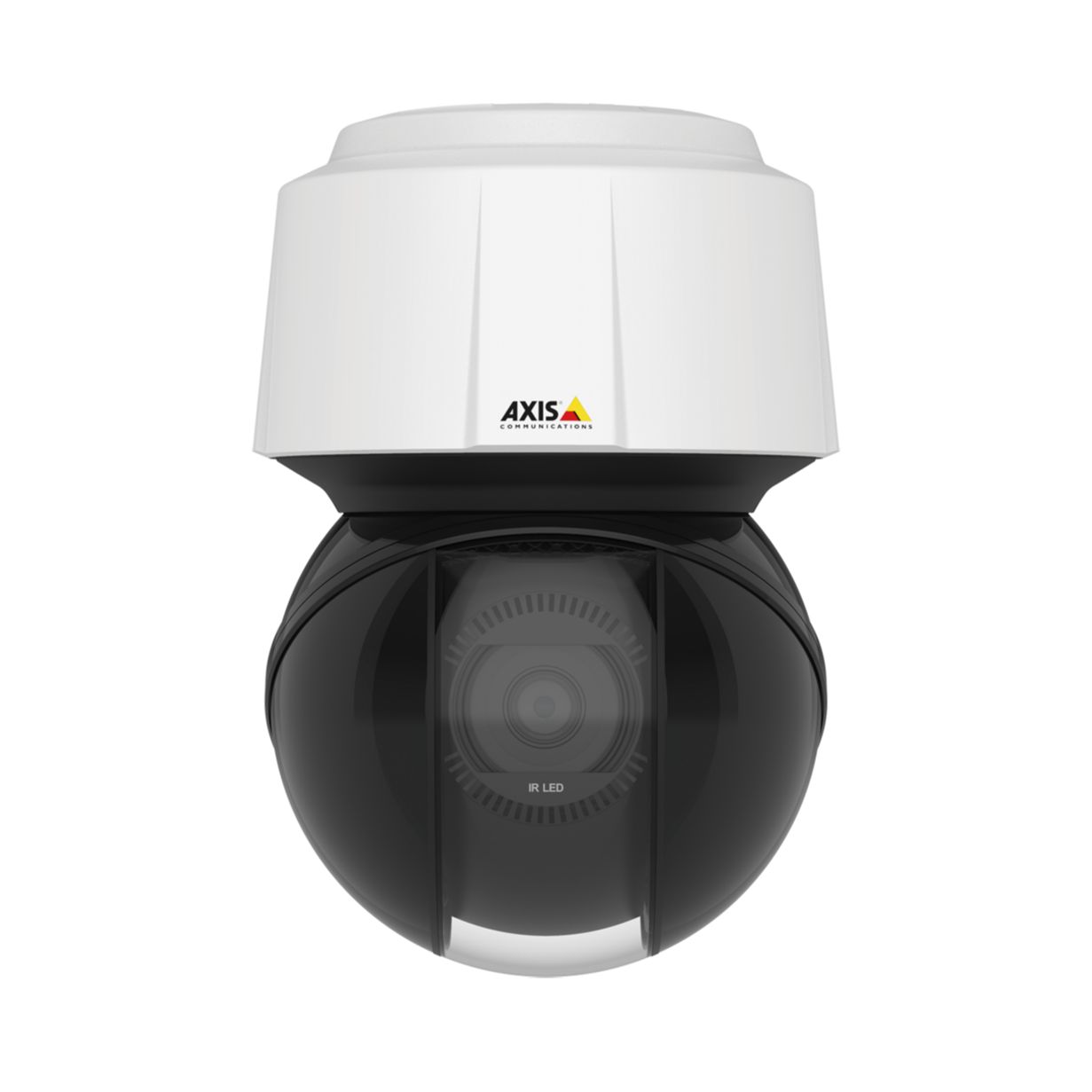

Axis Q6135-LE 2MP PTZ Camera, H.264/65, 32x Zoom, 50HZ, WDR, IP66, NEMA 4X & NEMA TS2 01958-006

Model: AXIS Q6135-LE

Who This Is For

When covering a large outdoor perimeter from a single camera position is the priority, the Axis Q6135-LE is built for that task. Designed for demanding outdoor environments, this 2MP PTZ suits security integrators and facilities managers specifying coverage for industrial compounds, logistics facilities, transport infrastructure, and large commercial car parks where fixed cameras would require multiple units to achieve the same coverage. The 32x optical zoom allows operators to move between wide situational awareness and tight detail capture without any degradation in image quality. The IP66, NEMA 4X, and NEMA TS2 ratings mean the housing handles rain, dust, and the kind of vibration and temperature swings present on traffic infrastructure and exposed rooftop installations. For sites running 24-hour operations where image clarity at long distances matters, the Q6135-LE is a purpose-built outdoor PTZ worth serious consideration.

What This Camera Actually Does

Who Buys This Model

• Security integrators on transport and infrastructure projects: The NEMA TS2 rating is a specific requirement for road, rail, and traffic management tenders - this is one of the few PTZ cameras carrying that certification.
• Facilities managers at industrial and logistics sites: A single Q6135-LE covering a large yard or loading area replaces multiple fixed cameras, reducing cabling, pole costs, and NVR channel allocation.
• Port and maritime operators: The NEMA 4X corrosion rating suits salt-air environments where standard outdoor cameras degrade quickly. Long-range zoom supports vessel monitoring at distance.
• Local councils and traffic management authorities: The combination of 32x zoom, NEMA TS2 vibration tolerance, and IP66 weatherproofing makes this a practical choice for pole-mounted intersection and public space monitoring.
• Large campus security teams: Universities, hospitals, and stadium operators specifying operator-controlled PTZ coverage over open grounds, car parks, and entry plazas where manual patrol and auto-tracking are both in use.

Honest Assessment

The Q6135-LE does long-range outdoor PTZ coverage well. The 32x optical zoom, combined with WDR and a weatherproof housing rated to IP66, NEMA 4X, and NEMA TS2, puts it in a category suited to infrastructure-grade deployment rather than residential or light commercial use. The dual compression support for H.264 and H.265 is practical for managing storage costs on a camera that runs continuous or guard-tour duty around the clock. What the Q6135-LE will not do is provide the blanket static coverage that a bank of fixed turrets or multi-sensor panoramic cameras delivers - a PTZ covers one direction at a time, and gaps occur when the camera is pointed elsewhere. For sites needing simultaneous full-perimeter coverage with no blind-spot windows, a multi-sensor camera or additional fixed units should be part of the design. Available through Security Australia, this model is suited to professional installation and VMS-connected monitoring environments rather than standalone DIY setups.

Before You Buy

Quick Fit Check

• Good match if: Your site is a transport corridor, port, industrial compound, or large open yard where a single PTZ with 32x optical zoom replaces multiple fixed camera positions and NEMA TS2 vibration tolerance is a project requirement.
• Good match if: You need an outdoor PTZ in a coastal or chemically exposed environment where NEMA 4X corrosion resistance is required and standard IP66-only housings have failed or are not specified.
• You may need a different model if: Your priority is simultaneous 360-degree perimeter coverage with no coverage gaps - a multi-sensor panoramic camera type would be more suitable for that scenario, and options are available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires a single outdoor PTZ with 32x optical zoom, NEMA TS2 vibration tolerance, and NEMA 4X corrosion resistance for infrastructure-grade or coastal deployment where standard IP66 cameras are not specified or have proven inadequate.
• You may need a different model if: You need simultaneous all-direction coverage with no blind-spot windows - a multi-sensor panoramic camera type provides fixed 180-degree or 360-degree coverage that a PTZ cannot replicate, and those options are available on securityaustralia.com.au.
• Pairs well with: A compatible PoE+ managed switch with VLAN support for bandwidth segmentation, and a professional VMS platform capable of PTZ guard tour scheduling, preset management, and event-triggered PTZ positioning.

Common Questions

1. Does the Q6135-LE work on a standard PoE switch?

   No. The Q6135-LE requires PoE+ (IEEE 802.3at) - a standard 802.3af PoE port will not supply enough power to run the PTZ drive mechanism, zoom motor, and IR illuminator simultaneously. Before ordering, confirm your switch, NVR built-in PoE, or midspan injector is rated to at least 30W per port. Many NVR-integrated PoE ports are 802.3af only, making an external PoE+ injector at the camera location necessary in those setups.

2. Will this camera work on a third-party VMS platform?

   Yes, in most cases. The Q6135-LE supports ONVIF Profile S for general integration with third-party video management systems. However, full PTZ functionality - including guard tour programming, preset recall, and event-triggered positioning - may vary depending on your VMS version's Axis driver support. For best results, verify PTZ control depth in your VMS compatibility list before deployment rather than relying on basic ONVIF PTZ support alone.

3. What does NEMA TS2 actually mean for this installation?

   NEMA TS2 is a transport-specific rating covering mechanical shock, vibration, humidity, and temperature cycling beyond what standard IP ratings address. It is a requirement on many Australian state road authority and public transport infrastructure tenders. For the Q6135-LE, it means the housing and internal components have been tested to withstand the sustained vibration levels generated by road traffic on gantries and poles - a condition that causes early failure in cameras carrying only an IP rating.

4. Does the 32x optical zoom affect image quality at maximum zoom?

   No, optical zoom does not degrade image quality the way digital zoom does. The 32x optical zoom on the Q6135-LE uses the lens mechanism to magnify the scene before it reaches the sensor, so the full 2MP resolution is maintained at all zoom positions. Digital zoom - which crops and upscales a portion of the sensor - reduces effective resolution as it increases. At 32x optical, you are still capturing a full-resolution 1080p image of a distant scene rather than an artificially enlarged crop.

5. Does this camera cover all directions at the same time?

   No. A PTZ camera covers one direction at a time and moves between positions either under operator control or on a programmed guard tour. There is always a coverage gap in the directions the camera is not currently pointing. This is an inherent characteristic of all PTZ cameras. For applications where simultaneous coverage of all approaches without gaps is the requirement, a multi-sensor panoramic camera type is the more appropriate solution. The Q6135-LE is suited to sites where long-range detail at a specific location or patrol-style coverage is the priority.

6. How does H.265 compression affect storage requirements on a continuous-recording PTZ?

   H.265 typically reduces file size by approximately 50% compared with H.264 at the same image quality setting. On a PTZ running 24-hour continuous recording this is a significant saving - a camera that would generate 50GB per day under H.264 may produce around 25GB under H.265, directly halving NVR storage requirements or doubling the retention period on the same drive capacity. The trade-off is that H.265 decoding requires more processing from the NVR - confirm your recorder's H.265 channel capacity matches the number of cameras before switching compression formats.

7. What are the pan and tilt limits on the Q6135-LE, and does it support continuous 360-degree pan?

   Yes, the Q6135-LE supports continuous 360-degree pan rotation with no mechanical stop, meaning operators can pan indefinitely in either direction without the camera hitting a limit and reversing. Tilt range covers from near-horizontal down to directly below the camera, making it practical for pole-top and elevated wall mounting where you need both distant horizon coverage and close ground-level coverage beneath the mount point. This continuous pan capability is important for guard tour programming across large open sites.

8. Is the Q6135-LE suitable for a self-installed setup?

   No, not in most cases. This is a professional-grade PTZ requiring PoE+ infrastructure, VMS configuration for guard tours and presets, and physical installation on poles, gantries, or rooftops typically involving elevated access equipment. The camera is supplied by Security Australia for professional integrators and facilities teams with the networking and VMS infrastructure already in place. A self-contained kit with simpler fixed cameras and a local NVR would be a more suitable path for a self-managed installation without an integrator involved.

Downloads & Resources

No downloads available for this product.
