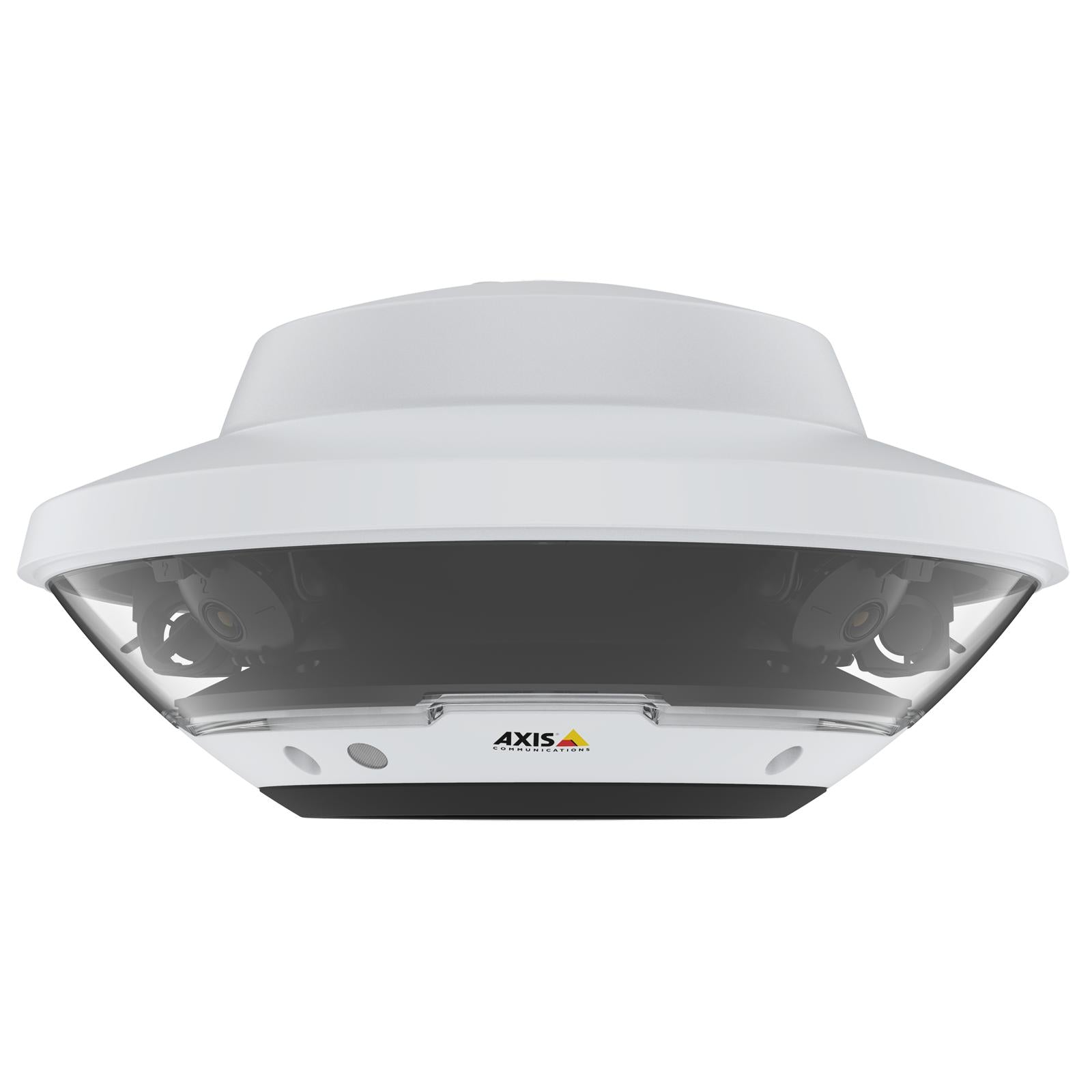

Axis Q6100-E Network Camera, 4x 5MP Sensors, 50HZ, H.264, WDR, IP66, IK10 01710-001

Model: AXIS Q6100-E

Who This Is For

Property managers specifying camera positions for large open areas - car parks, plazas, rooftops, transport hubs, or perimeter zones - where a conventional single-sensor camera simply cannot deliver the field of view needed without multiple separate installations. The Axis Q6100-E is a 4-sensor, 360-degree outdoor panoramic camera built specifically to replace the coverage that would otherwise require 4 individual cameras, their cabling runs, and 4 separate mounting points. Each of the 4 sensors captures at 5MP, giving 20MP of total resolution across a full 360-degree horizontal sweep. The IP66 weatherproofing and IK10 impact rating make it suited to exposed rooftop and pole-top installations where the camera is in the open and accessible from ground level. If your planning challenge is wide-area coverage with fewer camera positions and a single network connection, this model is built around that requirement.

What This Camera Actually Does

Who Buys This Model

• Large car park operators: A single Q6100-E mounted on a central pole or rooftop edge delivers a complete 360-degree view of the surrounding zone, removing blind spots that result from multiple single-sensor cameras with gaps between their fields of view.
• Transport and logistics facilities: Depot yards, intermodal terminals, and freight hubs where activity happens across a full surround area benefit from the 4-sensor layout - one camera position covers what 4 individual cameras could not without overlapping fields and additional poles.
• Municipal and council surveillance teams: Town squares, public plazas, and pedestrian areas where a single visible camera unit needs to monitor all directions simultaneously without multiple wall or pole mounts that would complicate permit and planning approvals.
• Security integrators managing NVR channel budgets: Where a project has a fixed channel count and a wide-area location to cover, a single Q6100-E presenting as 4 channels delivers the coverage of a multi-camera deployment without consuming 4 separate cable runs and mounting positions.

Honest Assessment

The Q6100-E does one specific job well: delivering full 360-degree outdoor coverage from a single mounting point at a resolution that remains usable across the entire panorama. The 4-sensor design avoids the distortion and resolution compromise inherent in single-lens fisheye cameras, and the IK10/IP66 housing means it can be installed in genuinely exposed positions. For wide-area situational awareness - understanding what is happening across an entire zone at a given moment - it is an appropriate tool. Where it will not perform as well is in scenarios requiring identification-level detail at distance. The 5MP per sensor is distributed across a wide field, and at the outer edges of the coverage radius, subject identification at long range is limited. If a specific approach, entry point, or narrow corridor needs positive identification of individuals, a dedicated fixed lens or varifocal camera directed at that zone will return better results than relying on the panoramic image alone. The Q6100-E is available through Security Australia and is best used as an overview layer paired with targeted fixed cameras at key points.

Before You Buy

Quick Fit Check

• Good match if: You need full 360-degree outdoor coverage from a single pole or ceiling position and your installation site has an IP66-rated mounting location with a PoE+ capable network feed.
• Good match if: Your project is cable-run limited and you need to cover an entire surround zone without running 4 separate cables - the Q6100-E delivers 4 independent sensor streams over a single Cat5e or Cat6 run.
• You may need a different model if: Your primary requirement is subject identification at a specific entry point or along a defined approach - a fixed varifocal or long-range bullet camera directed at that single point will return more useful identification detail than a panoramic camera can at extended range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project requires 360-degree outdoor coverage from a single mounting point and you need the image quality of individual multi-megapixel sensors rather than the distortion and resolution loss of a single fisheye lens.
• You may need a different model if: Your primary goal is positive identification of individuals at a specific gate, entry, or approach corridor - a targeted fixed or varifocal camera with its full resolution concentrated on a narrow field of view will deliver more usable identification detail at distance.
• Pairs well with: Fixed varifocal or bullet cameras directed at specific entry and exit points, used alongside the Q6100-E as an overview layer - the panoramic provides situational awareness while the fixed cameras cover identification zones.

Common Questions

1. Does this camera work with a standard PoE switch?

   No. The Q6100-E requires IEEE 802.3at PoE+ (30W per port), not standard IEEE 802.3af PoE (15.4W). Running 4 simultaneous 5MP sensors exceeds what a standard PoE port can supply. Before cabling, confirm your network switch or PoE injector is rated for 802.3at. Using an undersized power source will result in the camera failing to boot or shutting down under load.

2. Will this camera work with my existing NVR or VMS?

   It depends on your VMS. The Q6100-E presents as a multi-sensor device delivering 4 individual streams from a single IP address. Most enterprise-grade VMS platforms handle this natively, but some entry-level NVR firmware treats each stream as a separate camera channel and may not display the panoramic stitched view without specific multi-sensor support. Confirm your recording platform supports Axis multi-sensor cameras before purchasing. Security Australia can assist with compatibility questions.

3. How does the 4-sensor design compare to a fisheye camera for image quality?

   The 4-sensor design delivers meaningfully better image quality than a single fisheye lens. A fisheye camera achieves 360-degree coverage by using extreme wide-angle optics on a single sensor, which compresses and distorts the image, particularly at the edges. The Q6100-E uses 4 separate sensors each looking outward at a narrower angle, so each sensor captures its portion of the scene with far less optical distortion. The result is a panoramic image that retains more usable detail across the full sweep compared to a dewarped fisheye output.

4. What does DORI performance look like on a 360-degree multi-sensor camera?

   DORI performance on the Q6100-E must be understood in terms of the full 360-degree panoramic sweep being divided across 4 sensors. Detection range - identifying that a person or vehicle is present in the scene - is achievable across a reasonable outdoor zone. Observation distance, where general behaviour can be assessed, is more limited. Recognition and identification at distance are constrained by the fact that each sensor's resolution is spread across its wide angular coverage zone. For applications where identification-level DORI performance is required at a defined distance, a dedicated fixed camera directed at that specific zone will outperform the panoramic camera at that distance.

5. Does the Q6100-E record in colour at night or does it switch to black and white?

   The Q6100-E does not have built-in IR illumination. In low-light or no-light conditions without external lighting, image quality will degrade. This camera is designed for installations where ambient or supplemental lighting is present at night - car parks with overhead lights, well-lit public areas, or sites with external floodlights. If your site has no ambient lighting after dark and colour night image quality is critical, a camera with built-in IR or a full-colour low-light sensor would be more appropriate for that application.

6. Is the Q6100-E suitable for installation in direct coastal or harsh environment conditions?

   Yes, with appropriate mounting. The IP66 rating confirms the housing seals against heavy rain and water ingress, and IK10 confirms it withstands significant physical impact. For coastal environments with salt air, confirm the mounting bracket and cabling gland materials are also rated for marine-grade conditions. The camera housing itself is rated for outdoor exposure, but the longevity of any installation in a highly corrosive environment also depends on the mounting hardware and cabling terminations used.

Downloads & Resources

No downloads available for this product.
