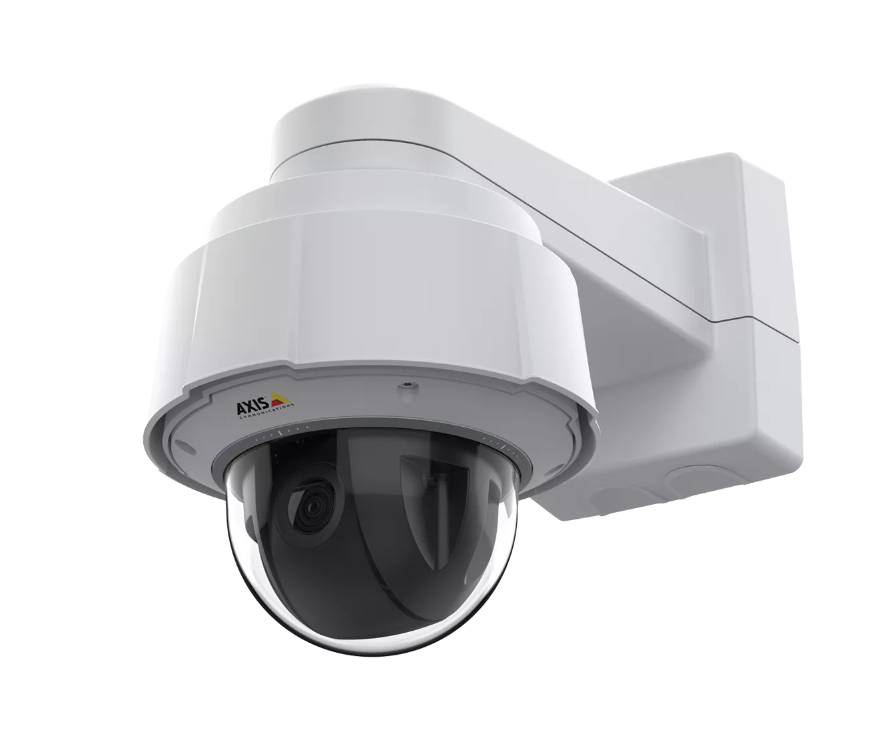

Axis Q6078-E PTZ Outdoor-ready PTZ with UHD 4K Camera 02147-006

Model: Axis Q6078-E

Who This Is For

For security integrators and facility managers who need to cover large outdoor areas without deploying a grid of fixed cameras, the Axis Q6078-E is a serious wide-area PTZ built around 4K UHD resolution and 32x optical zoom. It suits situations where a single camera position must handle both broad situational overview and tight forensic detail on demand - think perimeter fence lines at utilities sites, open-air car parks, stadium surrounds, ports, and large commercial campuses. The Q6078-E is outdoor-rated to IP66 and IK10, handles temperatures from -40°C to 65°C, and carries AXIS Object Analytics with a built-in deep learning processing unit, so it can run on-camera classification without leaning on server resources. If the brief involves covering long approaches, tracking movement across open ground, and pulling usable identification-grade imagery from distance, this is the category of camera the brief calls for.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Utilities, water treatment, and energy sites where perimeter surveillance must cover long fence lines from a limited number of camera positions, and where on-camera object classification reduces nuisance alarms in unmanned monitoring scenarios.
• Port and Logistics Facility Managers: Open yards, container storage areas, and vehicle marshalling zones where 32x optical zoom allows a single position to monitor distant activity and auto-tracking follows vehicles or personnel without operator input.
• Stadia and Large Venue Operators: Outdoor precinct coverage where a PTZ needs to pan across wide crowd movement zones and zoom to individual subjects for identification while withstanding the environmental exposure of an uncovered outdoor installation.
• Security Integrators on Government and Defence Projects: Projects where IK10 impact resistance, IP66 ingress protection, and the Axis ACAP application ecosystem are specified as baseline requirements alongside a documented deep learning analytics platform.
• Large Commercial Campus Security Teams: Multi-building campuses where consolidating perimeter coverage to fewer PTZ positions reduces infrastructure cost while the 4K resolution retains enough pixel density at zoom-out to cover broad areas without losing identification-grade detail when zoomed in.

Honest Assessment

The Q6078-E does two things particularly well: it covers large outdoor areas with a single camera position at a resolution that actually supports identification at distance, and it runs meaningful on-camera analytics that hold up in real outdoor conditions. The combination of 4K, 32x optical zoom, DLPU-driven object classification, and auto-tracking is a genuinely capable package for perimeter and wide-area applications where fixed cameras would require significant cabling and mounting infrastructure to match coverage. The IP66/IK10 rating and extreme temperature range mean the housing suits the harshest Australian outdoor environments without compromise. What it will not do is replace multiple fixed cameras in a scene where simultaneous multi-angle coverage of a fixed area is required - a PTZ is one view at a time, and if your brief demands continuous simultaneous coverage of 4 entry points, a multi-camera fixed arrangement is the more appropriate solution. This is a high-specification, professional-grade product available through Security Australia and is best specified as part of a planned system with appropriate VMS support for PTZ presets and analytics event management.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a large open perimeter or yard from a single mounting position and require identification-grade imagery at distance - the 4K sensor combined with 32x optical zoom supports that use case directly.
• Good match if: Your site requires on-camera object classification to reduce false alarms without server-side processing - the built-in DLPU running AXIS Object Analytics handles human and vehicle classification at the edge.
• You may need a different model if: Your brief requires simultaneous, continuous multi-angle coverage of a fixed zone - a multi-sensor panoramic camera or a set of fixed turret or bullet cameras will provide always-on simultaneous views that a single PTZ cannot match.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4K identification detail at distance from a single outdoor-rated camera position, with on-camera deep learning analytics and auto-tracking for wide-area or perimeter coverage.
• You may need a different model if: Your requirement is simultaneous continuous coverage of multiple fixed zones - a multi-sensor panoramic camera provides always-on 270° or 360° coverage that a single PTZ cannot replicate; explore the panoramic camera range at Security Australia for that use case.
• Pairs well with: A compatible VMS platform with full VAPIX PTZ integration and ACAP event support, plus a PoE+ managed switch with sufficient power budget per port for reliable continuous PTZ operation.

Common Questions

1. Does the Q6078-E work with a standard PoE switch?

   No. The Q6078-E requires IEEE 802.3at PoE+, which delivers up to 30W per port. Standard 802.3af PoE switches are rated to 15.4W and will not supply enough power to operate the camera correctly. Before purchasing, confirm that every switch port the camera will connect to is PoE+ rated. If your existing switch is standard PoE, a PoE+ midspan injector at each camera drop is the straightforward solution.

2. Will this camera work in extreme Australian outdoor temperatures?

   Yes. The Q6078-E is rated to operate from -40°C to 65°C. That upper limit covers the sustained ambient temperatures recorded in Australian outback and industrial environments. The IP66 rating also covers dust ingress, which is relevant for mining and arid-region deployments where particulate exposure would compromise a standard outdoor housing over time.

3. What is the pan and tilt range on the Q6078-E?

   The Q6078-E pans 360° continuously and tilts from -20° to 90°. The 360° continuous pan means there is no mechanical end-stop, so the camera can sweep a full circle without reversing direction. The tilt range covers straight down (90°) through to slightly above horizontal (-20°), which suits elevated pole or rooftop mounting where the camera needs to look down at ground level subjects without hitting a mechanical limit.

4. How does the auto-tracking behave, and does it require server-side processing?

   No server processing is required. Auto-tracking runs on the camera's built-in deep learning processing unit alongside AXIS Object Analytics. When a classified object - human or vehicle - enters a defined trigger zone, the camera locks onto and follows the subject automatically using pan, tilt, and zoom. The tracking is object-class specific, meaning it will not chase a flag or tree branch. Configuration is done through the camera's web interface or a compatible VMS. When the tracked subject leaves the scene or the tracking timeout expires, the camera returns to its defined home preset position.

5. What DORI distances should I plan for with 32x optical zoom at 4K?

   At maximum zoom, the 32x optical reach combined with the 4K sensor produces substantial identification-range distances, but the practical DORI figures depend on the specific lens focal length at each zoom position and the physical height of the subject. For planning purposes, detection of a person-sized subject is possible at several hundred metres at wide zoom, while identification-grade resolution - typically defined as 250 pixels per metre - requires zooming in as the subject distance increases. For formal camera positioning calculations on critical infrastructure or government projects, use Axis's Camera Selection Tool or JVSG to map identification distances against mounting height and required coverage arc for your specific scenario.

6. How much storage does a 4K PTZ like the Q6078-E actually consume?

   More than a 1080p camera, but significantly less than a 4K camera without smart compression. Axis Zipstream dynamically reduces bitrate during scenes with low forensic value - static backgrounds, no movement - while preserving full bitrate on objects of interest. Exact consumption depends on scene activity, retention period, and the Zipstream strength setting. For a 30-day retention target, running Zipstream at medium or higher strength on H.265 can reduce storage compared to fixed-bitrate H.265 by a meaningful margin. Calculate storage requirements using Axis's online bandwidth and storage calculator with your specific frame rate, Zipstream setting, and scene activity estimate before finalising NAS or server capacity.

7. Does the Q6078-E support third-party VMS platforms or only Axis software?

   Yes, it supports third-party VMS platforms. The Q6078-E communicates via ONVIF Profile S and Profile T, and full PTZ control including presets and auto-tracking event triggers is accessible via Axis VAPIX. Most enterprise-grade VMS platforms - Milestone, Genetec, Avigilon, and others - support VAPIX integration for Axis PTZ cameras. The depth of PTZ feature access varies by VMS vendor; confirm with your VMS provider whether ACAP application event handling and AXIS Object Analytics alert integration are supported in your specific version before deployment.
