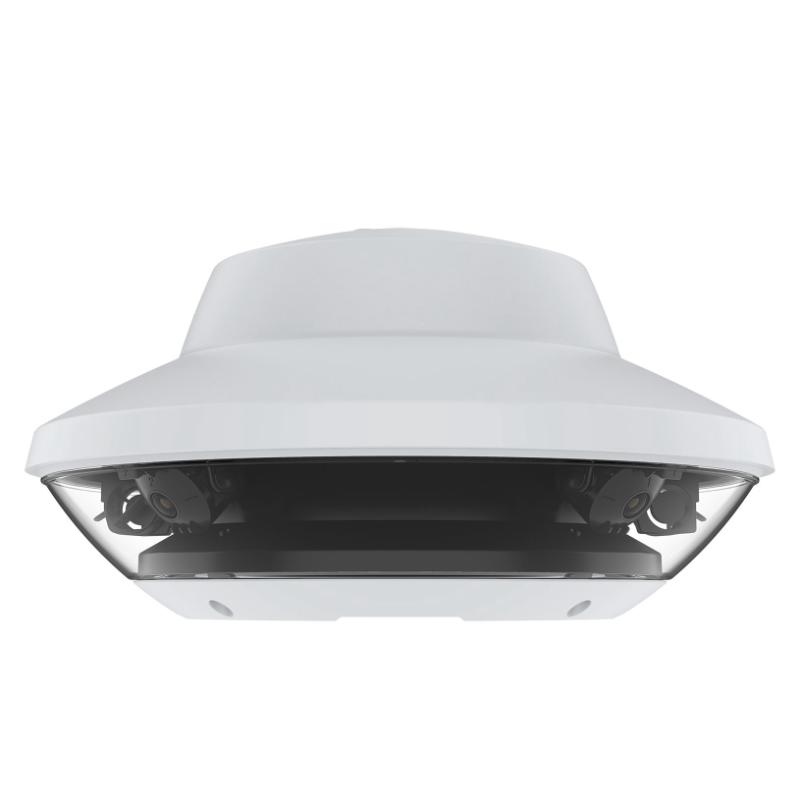

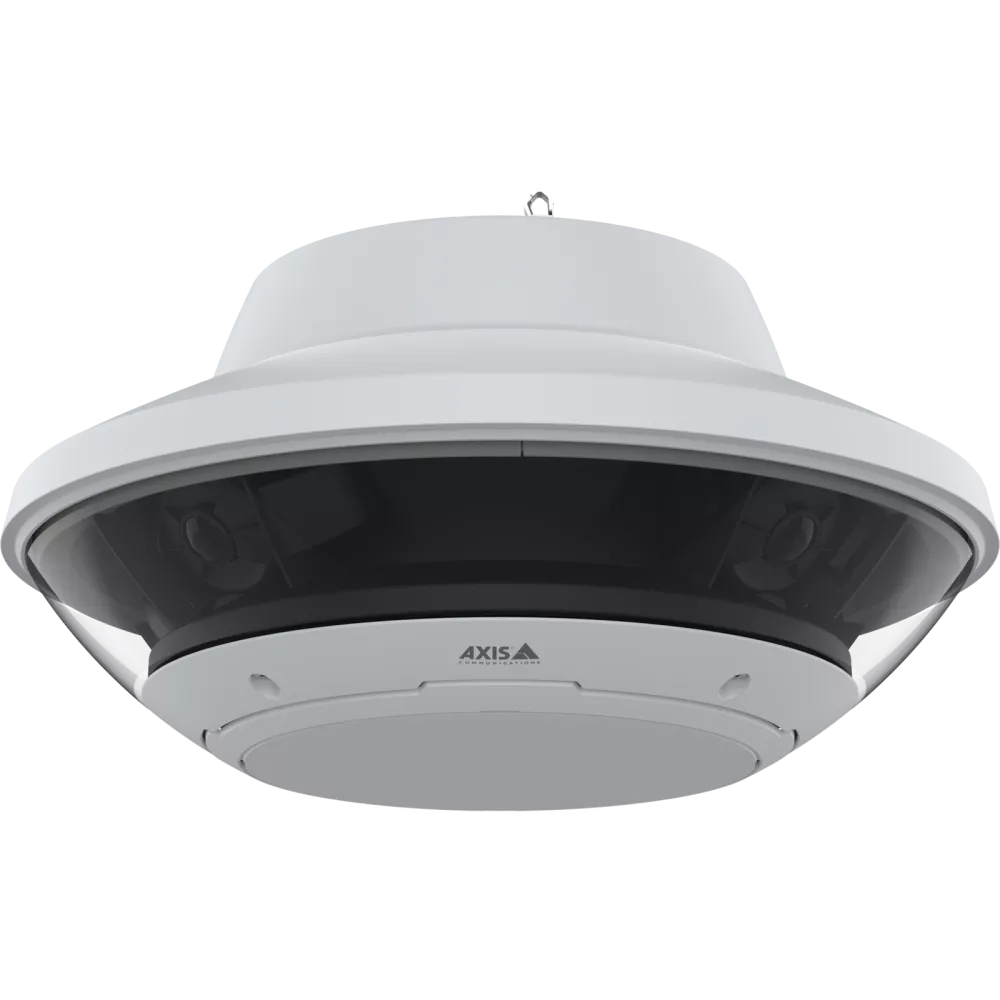

AXIS Q6020-E 360° Outdoor Panoramic Multi-Sensor Camera with DLPU & AI Analytics

Model: Q6020-E

Who This Is For

For security integrators and site managers who need unbroken 360° outdoor coverage from a single camera position, the AXIS Q6020-E is a multi-sensor panoramic camera built for wide-area monitoring with on-board AI analytics powered by a dedicated Deep Learning Processing Unit. It suits large open-area installations where running cabling for multiple single-sensor cameras is impractical - car parks, forecourts, building perimeters, logistics yards, and public spaces. The on-board DLPU means AI-based analytics such as object classification and intrusion detection run directly on the camera without relying on server-side processing, keeping latency low and reducing infrastructure overhead. This is a camera specified by integrators who need coverage planning efficiency, genuine panoramic situational awareness, and analytics that work at the edge rather than as an afterthought.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Large Commercial Projects: Integrators specifying car parks, logistics facilities, or campus perimeters where reducing camera count without sacrificing coverage is a key project brief - the Q6020-E's 360° multi-sensor design directly addresses that requirement.
• Local Government and Precinct Managers: Public space monitoring where a single pole or building corner mount needs to cover all approach directions simultaneously, and where on-board AI analytics reduce the operator burden in a control room environment.
• Transport and Logistics Site Operators: Warehouses, distribution yards, and loading dock areas where wide-area situational awareness across a large flat space is required and running multiple cable drops is a practical constraint.
• Facilities Managers Upgrading Aging Systems: Sites currently running multiple older cameras on a single building corner looking to consolidate channels, reduce maintenance points, and gain edge-based AI analytics without adding server infrastructure.

Honest Assessment

The AXIS Q6020-E does its best work as a coverage consolidation tool. The 360° multi-sensor design genuinely reduces camera counts on wide-area sites, and the on-board DLPU means AI analytics run at the edge without requiring a dedicated analytics server - that is a real operational advantage on mid-sized sites. Zipstream compression keeps storage requirements manageable for what would otherwise be a high-bitrate panoramic stream, and ACAP extensibility means the platform can grow with changing site requirements. Available through Security Australia, it suits integrators who need to justify camera count reduction to clients with specific ROI expectations. Where this camera does not serve as well: it is not a long-range narrow-scene camera, so if identification at distance down a single corridor or driveway approach is the primary requirement, a fixed lens or motorised zoom camera will outperform it. Similarly, if budget is the primary driver on a small site with 3 or fewer coverage zones, individual turret or bullet cameras will cost less to deploy and maintain.

Before You Buy

Quick Fit Check

• Good match if: You need unobstructed 360° outdoor coverage from a single mounting point - a car park centre column, a building corner, or a forecourt pole - where running 3 or 4 separate camera drops is impractical or cost-prohibitive.
• Good match if: Your site requires edge-based AI analytics without a dedicated analytics server, and the DLPU's ability to run classification and detection locally is a specific project requirement.
• You may need a different model if: Your primary requirement is long-range identification down a single narrow approach - a PTZ camera with optical zoom or a fixed telephoto lens camera will give you far greater reach and detail at distance than any panoramic multi-sensor design.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need complete 360° outdoor coverage from a single mounting point with on-board DLPU-driven AI analytics that function independently of a central analytics server.
• You may need a different model if: Your primary requirement is long-range identification down a single corridor or approach path - a PTZ camera with optical zoom or a fixed telephoto lens camera will provide significantly greater identification distance than a wide-area panoramic design.
• Pairs well with: A PTZ camera positioned at the same location as a "slew to cue" companion - the Q6020-E provides the wide panoramic overview to detect events, and the PTZ zooms in for identification detail, a common pairing on larger site deployments.

Common Questions

1. Does the Q6020-E require a standard PoE switch or something more powerful?

   It requires PoE+ (IEEE 802.3at), not standard PoE. Standard 802.3af switches deliver a maximum of 15.4W per port, which is insufficient to simultaneously power the multi-sensor array and the DLPU. Confirm your switch, injector, or midspan device is rated for 802.3at before deploying. This is the most frequent installation issue on first panoramic camera deployments.

2. Will this camera work with my existing VMS platform?

   Yes, in most cases. The Q6020-E supports ONVIF Profile S and Profile G, which covers the majority of enterprise and mid-market VMS platforms. However, confirm with your VMS vendor how multi-sensor panoramic cameras are licensed - some platforms count each sensor stream as a separate channel, which affects your licence cost calculation before purchase.

3. How does the DLPU differ from standard camera analytics, and does it need a separate server?

   No separate server is required. The DLPU is a dedicated deep learning processor built into the Q6020-E itself, designed specifically to run AI-based analytics on-camera. Unlike standard motion detection or basic pixel-change analytics, DLPU-driven analytics can classify object types and detect specific behaviours with significantly lower false alarm rates. Processing happens locally on the camera, which reduces network traffic, eliminates server latency, and means analytics continue functioning during any temporary connectivity interruption to a central system.

4. What does the ACAP platform mean for future analytics requirements?

   It means the camera's analytics capability is not fixed at purchase. AXIS Camera Application Platform (ACAP) allows third-party and Axis-developed applications to be installed and run directly on the camera's processor. As site requirements change - adding people counting, loitering detection, or specific AI applications - these can be deployed to the Q6020-E without replacing the camera hardware.

5. How should I think about DORI distances for a 360° panoramic camera like this?

   Panoramic cameras trade identification range for coverage breadth. DORI (Detection, Observation, Recognition, Identification) distances for the Q6020-E will be shorter than a narrow fixed-lens camera covering the same scene, because the image resolution is spread across 360° of scene rather than concentrated on a narrow field of view. The Q6020-E is optimised for Detection and Observation across wide areas - not for Identification at long range. For applications requiring licence plate or facial identification at distance, a dedicated fixed or PTZ camera positioned at chokepoints is the appropriate complement. The panoramic camera provides situational awareness; the directed camera provides identification detail. This pairing approach is stocked by Security Australia and represents best practice on larger commercial sites.

6. Does the Q6020-E have on-board storage for edge recording?

   Yes, via ONVIF Profile G support, which includes on-camera storage event management. Check the current Axis product specification for the supported SD card capacity. Edge recording is useful as a resilience layer - if connectivity to a central NVR or VMS is lost, local recording continues on the camera's storage, ensuring no gap in evidence.

7. Will Zipstream actually reduce storage on a multi-sensor panoramic stream?

   Yes, and the impact is meaningful for panoramic cameras. A 360° multi-sensor camera generates a high-bitrate combined stream by default. Zipstream dynamically reduces the bitrate in areas of the frame with no activity while preserving full detail in regions containing motion or detected objects. On wide-area outdoor scenes with large portions of relatively static background, Zipstream can deliver significant storage and bandwidth savings compared to standard H.264 encoding at a fixed quality level.
