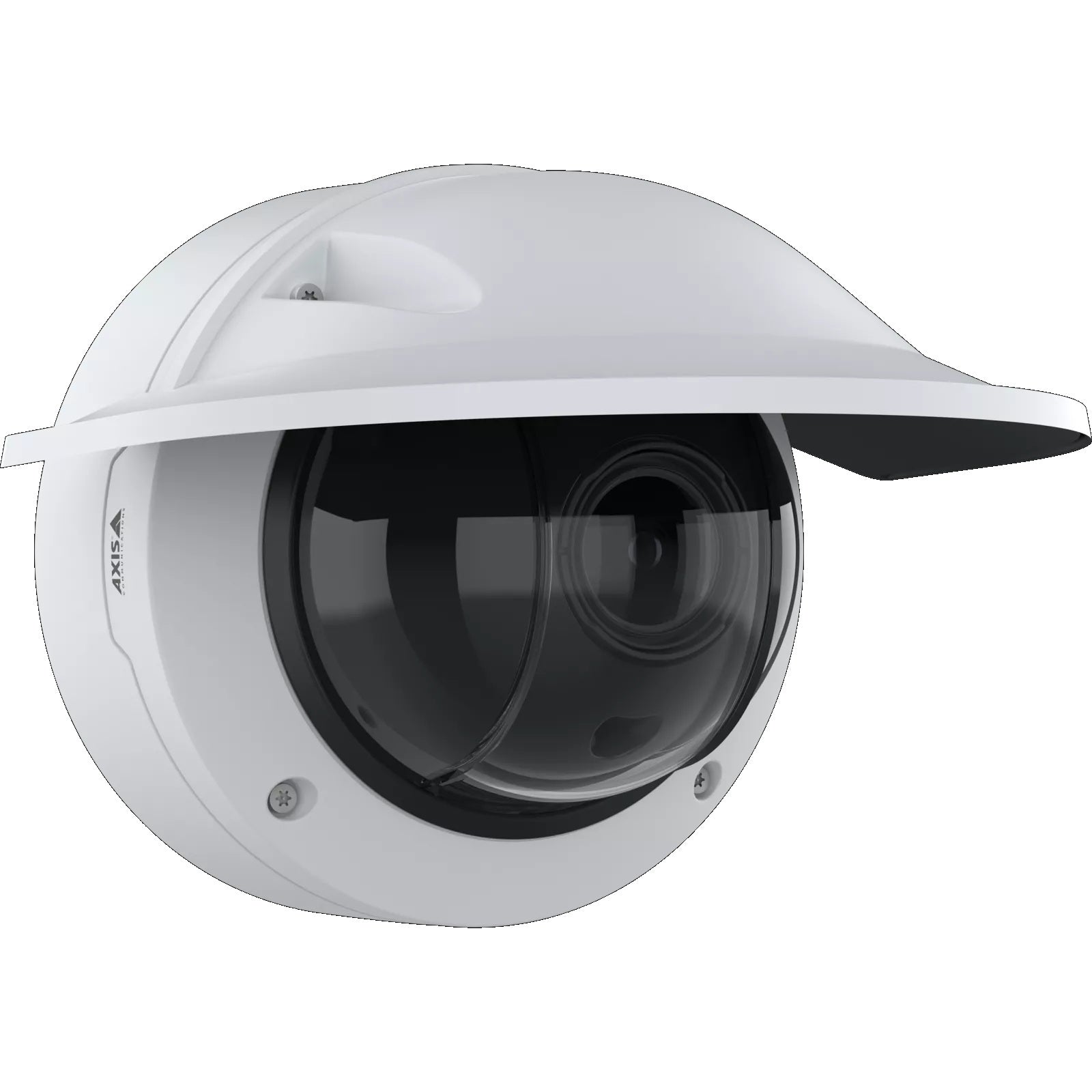

AXIS Q3556-LVE 4MP AI-Powered Dome Camera with Varifocal Lens, Lightfinder 2.0, Forensic WDR, OptimizedIR, IP66/IK10 Rating

Model: Q3556-LVE

Who This Is For

For security integrators and facilities managers who need a single outdoor dome camera to handle variable lighting, wide dynamic range, and intelligent scene analysis without deploying multiple devices across a site. The AXIS Q3556-LVE is built around environments where lighting conditions shift unpredictably - covered carparks with strong ambient transitions, building perimeters mixing direct sunlight and shadow, or entry points lit by vehicle headlights at night. The varifocal lens means installers can dial in the field of view on the wall rather than swapping lenses, while Lightfinder 2.0 and OptimizedIR keep image quality useful in low-light conditions. The IK10-rated housing handles deliberate physical interference, making it appropriate for exposed mounting positions that lower-rated domes cannot occupy. AI-powered analytics run on the camera itself, reducing the processing load on the recorder and enabling smarter event filtering from day one.

What This Camera Actually Does

Who Buys This Model

• Commercial Property Integrators: Specifying cameras for building perimeters, covered carparks, and entry points where Forensic WDR is needed to handle backlit and high-contrast scenes without losing facial or vehicle detail.
• Education and Campus Security Teams: Deploying on external walkways, building entries, and recreational areas where IK10 resistance matters because the camera is within reach of students and the mounting position cannot be elevated beyond access.
• Retail Centre and Precinct Managers: Installing at service entries and loading areas where variable lighting across day and night shifts requires both Lightfinder 2.0 and WDR in the same unit, and where AI classification reduces time spent reviewing irrelevant motion events.
• Local Government and Council Facilities: Covering outdoor public infrastructure, transit hubs, and open areas where vandal resistance and weather rating are procurement requirements and on-camera analytics reduce the need for centralised server-based VMS analytics licensing.

Honest Assessment

The Q3556-LVE does several things at a confirmed technical level that lower-tier outdoor domes do not. The combination of Forensic WDR, Lightfinder 2.0, and OptimizedIR means it handles shifting light conditions without requiring separate configuration for day and night modes. The IK10 housing is a genuine differentiator for exposed positions, and on-camera AI classification cuts the load on downstream recording infrastructure. The varifocal lens reduces install-time guesswork when coverage distances are not yet locked in. Where this camera is not the right answer: sites requiring very long-range IR coverage on open approaches would be better served by a bullet or box camera with a longer throw. Applications needing wide-area coverage from a single device - large carparks or open yards - suit a panoramic or multi-sensor unit rather than a single-channel dome. The Q3556-LVE is available through Security Australia and is best matched to medium-range outdoor positions where image quality and vandal resistance are the primary brief.

Before You Buy

Quick Fit Check

• Good match if: You are mounting in an exposed outdoor position - building corner, undercover carpark entry, or public-access wall - where IK10 impact resistance and IP66 weatherproofing are requirements and the camera needs to be within reach of the installation team without a scissor lift.
• Good match if: The scene involves significant lighting variation across the day - entry points with backlight, carparks with artificial and natural light mixing - where Forensic WDR and Lightfinder 2.0 together produce more consistent and usable image quality than a standard outdoor dome.
• You may need a different model if: Your brief requires wide-area coverage from a single mounting point - for example, a large open carpark or an exposed yard with 180-degree coverage needs. A panoramic or multi-sensor camera category will cover that scenario more efficiently than a single-channel varifocal dome.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need an outdoor dome with confirmed IK10 vandal resistance, Forensic WDR for high-contrast scenes, and on-camera AI analytics that reduce the processing requirement on the recording platform - all in a single varifocal unit.
• You may need a different model if: Your site has long unlit approaches or perimeter fence lines requiring IR throw beyond what a compact dome provides - a bullet or box camera category with a longer IR range is a better match for that scenario.
• Pairs well with: An AXIS-compatible NVR or VMS with ONVIF Profile T support to take full advantage of on-camera AI event metadata, combined with a managed PoE switch sized to the camera's confirmed power draw.

Common Questions

1. Will this camera work in a scene with strong backlight - like a carpark entry facing outside?

   Yes. Forensic WDR is designed specifically for scenes where bright and dark zones exist in the same frame simultaneously. At a carpark boom gate or lobby entry where ambient outdoor light creates strong backlight, Forensic WDR processes the full dynamic range in real time rather than exposing for one zone and losing detail in the other. This is one of the confirmed technical reasons this model is specified for entry-point positions.

2. Does the Q3556-LVE require a separate analytics server to use its AI features?

   No. AI analytics processing runs on the camera itself via AXIS Object Analytics, which is an on-camera application. Classification of people and vehicles, zone-based detection rules, and event triggering are all handled at the edge. This removes the requirement for a dedicated analytics server and reduces the processing load on the connected NVR or VMS.

3. How does OptimizedIR differ from a standard fixed IR emitter?

   OptimizedIR actively adjusts the IR beam angle to track the current zoom position of the varifocal lens. A standard fixed IR emitter has a set beam angle - when a varifocal lens is zoomed in, the IR illumination continues to spread over a wider angle than the lens is seeing, producing an underlit centre with dark edges. OptimizedIR keeps the IR matched to the field of view at any focal length setting, so night-time image quality remains consistent whether the lens is set to wide or telephoto.

4. Is the IK10 rating sufficient for an exposed position at accessible mounting height?

   Yes. IK10 is the highest rating in the IEC 62262 impact protection scale, representing resistance to 20 joules of impact energy. This is the confirmed rating for the Q3556-LVE housing. For positions at head height or within reach on a building exterior, IK10 is the appropriate specification. Cameras rated IK08 or IK09 offer less impact resistance and are not suitable for positions where deliberate physical contact is a realistic risk.

5. Does this camera support PoE, and what cabling is required?

   Yes. The Q3556-LVE is powered via PoE, with a single Cat5e or Cat6 cable carrying both data and power from a compatible PoE switch or injector to the camera. No separate power run is required. Confirm the specific power draw from the AXIS datasheet and match it against the available PoE budget on your switch port before finalising switch hardware - this is particularly relevant when IR is active at full draw.

6. Can footage from this camera be stored locally without a connected NVR?

   Yes. The Q3556-LVE includes a microSD/SDHC/SDXC card slot for edge storage. This allows the camera to record locally to a card, which is useful as a fallback recording method if network connectivity to the NVR is interrupted, or as the primary storage method in standalone single-camera deployments. Edge storage capacity depends on the card size installed and the configured recording quality and frame rate. Security Australia stocks this camera as part of a broader Axis Communications range, and compatible storage and recording products are available on the same platform.

7. Will this camera integrate with a non-Axis NVR or VMS?

   Yes, with ONVIF-compatible systems. The Q3556-LVE supports ONVIF Profile S, Profile G, and Profile T, which are the standard integration profiles recognised by most enterprise and commercial VMS platforms. Basic video streaming, recording, and motion event integration will work across ONVIF-compliant systems. Note that full access to on-camera AI analytics metadata and AXIS Object Analytics event data typically requires either AXIS Camera Station or a third-party VMS with a confirmed Axis integration driver - check your VMS vendor's compatibility list before assuming full analytics passthrough.
