Advanced 4 MP dome with deep learning
With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, the AXIS Q3536-LVE delivers exceptional image quality even in the most challenging weather conditions and environments. The IR-shielded dome prevents IR reflections, ensuring consistently clear and sharp video. Powered by ARTPEC-8, the camera offers advanced features and powerful applications based on deep learning, including preinstalled AXIS Object Analytics for highly nuanced object classification. Housed in a durable metal casing, it includes redundant power, intrusion and shock detection sensors, and robust cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).
Key Features
Code/SKU: AXIS Q3536-LVE
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Lens (AXIS Q3536-LVE 9 mm) | Varifocal, 4.3–8.6 mm, F1.5–2.4 |
| Horizontal Field of View (AXIS Q3536-LVE 9 mm) | 103°–53° |
| Vertical Field of View (AXIS Q3536-LVE 9 mm) | 56°–30° |
| Lens (AXIS Q3536-LVE 29 mm) | Varifocal, 11.3–29.4 mm, F1.7 |
| Horizontal Field of View (AXIS Q3536-LVE 29 mm) | 40°–15° |
| Vertical Field of View (AXIS Q3536-LVE 29 mm) | 22°–9° |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | |
| AXIS Q3536-LVE 9 mm (Color) | 0.06 lux at 50 IRE, F1.5 |
| AXIS Q3536-LVE 9 mm (B/W) | 0 lux at 50 IRE, F1.5 |
| AXIS Q3536-LVE 29 mm (Color) | 0.08 lux at 50 IRE, F1.7 |
| AXIS Q3536-LVE 29 mm (B/W) | 0 lux at 50 IRE, F1.7 |
| Shutter Speed | 1/91000 s to 1 s |
| Camera Angle Adjustment | |
| Pan | ±180° |
| Tilt | -43 to +80° |
| Rotation | ±175° |
| System on Chip (SoC) | |
| Model | ARTPEC-8 |
| Memory | |
| RAM | 2048 MB |
| Flash | 8194 MB |
| Compute Capabilities | |
| Deep Learning Processing Unit (DLPU) | Yes |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | Up to 2688x1512 |
| Frame Rate | With WDR: 25/30 fps with power line frequency 50/60 Hz Without WDR: 50/60 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode |
| Video Streaming Indicator | Yes |
| Multi-view Streaming | Up to 8 individually cropped out view areas |
| Image Settings | Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, electronic image stabilization, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, text and image overlay, dynamic text and image overlay, privacy masks, polygon privacy mask |
| Pan/Tilt/Zoom | |
| Digital PTZ | Yes |
| Optical Zoom | AXIS Q3536-LVE 9 mm: 2x optical zoom AXIS Q3536-LVE 29 mm: 2.6x optical zoom |
| Preset Positions | Yes |
| Guard Tour | Limited guard tour, control queue, on-screen directional indicator Tour recording (max 10, max duration 16 minutes each), guard tour (max 100) |
| Audio | |
| Audio Features | Automatic gain control, speaker pairing |
| Audio Streaming | Two-way, full duplex |
| Audio Encoding | 24bit LPCM, AAC-LC 8/16/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable Bit Rate | Yes |
| Audio Input/Output | External microphone input or line input (balanced or unbalanced), line output, digital audio input Microphone power: Microphone power 5V on tip, ring power 12V on ring, phantom power 12V on tip/ring |
| Network | |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| System Integration | Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. One-click cloud connection (O3C) ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T specification at onvif.org |
| Onscreen Controls | |
| Features | Electronic image stabilization, day/night shift, defogging, wide dynamic range, video streaming indicator, IR illumination, heater, edge-to-edge speaker pairing |
| Event Conditions | |
| Types | Analytics, external input, supervised external input, edge storage events, virtual inputs through API Audio: audio detection, audio clip playing Call: state, state change Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, shock detected, casing open, storage failure, system ready, within operating temperature Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input, manual trigger, virtual input MQTT subscribe MQTT: stateless Scheduled and recurring: schedule Video: tampering, average bitrate degradation, day-night mode, live stream open |
| Event Actions | |
| Types | I/O: toggle I/O once, toggle I/O while the rule is active Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap Calls: end SIP call, make SIP call, answer call MQTT publish Overlay text, external output activation, play audio clip, zoom preset, day/night mode, make call, flash status LED, use lights, set defog mode, send MQTT publish message, set WDR mode |
| Built-in Installation Aids | |
| Features | Leveling assistant, straighten image, image grid, pixel counter |
| Analytics Applications | |
| Included | AXIS Object Analytics, AXIS Scene Metadata, AXIS Live Privacy Shielda, AXIS Video Motion Detection |
| Supported | AXIS Perimeter Defender, AXIS License Plate Verifier Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| AXIS Object Analytics | |
| Object Classes | Humans, vehicles (types: cars, buses, trucks, bikes, other) |
| Scenarios | Line crossing, object in area, time in area, crossline counting, occupancy in area, time in area Up to 10 scenarios |
| Other Features | Triggered objects visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| AXIS Scene Metadata | |
| Object Classes | Humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
| Object Attributes | Vehicle color, upper/lower clothing color, confidence, position |
| Approvals | |
| EMC | CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 |
| Australia/New Zealand | RCM AS/NZS CISPR 32 Class A |
| Canada | ICES-3(A)/NMB-3(A) |
| Japan | VCCI Class A |
| Korea | KS C 9832 Class A, KS C 9835 |
| USA | FCC Part 15 Subpart B Class A |
| Taiwan | Railway: IEC 62236-4 |
| Safety | CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252 |
| Environment | IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, ISO 20653 IP6K9K, IEC/EN 62262 IK10+ (50J), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Network | NIST SP500-267 |
| Cybersecurity | ETSI EN 303 645, FIPS 140 Edge Security: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security | |
| Protocols | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| Documentation | |
| Guides | AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
| General | |
| Casing | IP66-, IP6K9K-, NEMA 4X- and IK10+-rated Polycarbonate hard coated dome Aluminum and plastic casing, polycarbonate (PC) dome, sunshield (PC/ASA) Color: white NCS S 1002-B This product can be repainted For repainting instructions of casing and impact on warranty, contact your Axis partner. |
| Mounting | Mounting bracket with junction box holes (double-gang, single-gang, 4” square, and 4” octagon) ¾” (M25) conduit side entry |
| Sustainability | PVC free |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 9 W, max 23 W 10–28 V DC, typical 9 W, max 24 W |
| Connectors | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE DC input, 3.5 mm mic/line in, 3.5 mm line out Terminal block for two configurable supervised inputs / digital outputs (12 V DC output, max load 50 mA) |
| IR Illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs AXIS Q3536-LVE 9 mm: Range of reach 40 m (130 ft) or more depending on the scene AXIS Q3536-LVE 29 mm: Range of reach 60 m (200 ft) or more depending on the scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com |
| Operating Conditions | -50 °C to 55 °C (-58 °F to 131 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C (-40 °F) |
| Humidity | 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) |
| Dimensions | Height: 124 mm (4.9 in), 184 mm (7.3 in) including weathershield Ø 183 mm (7.2 in) |
| Weight | 2.1 kg (4.6 lb) including weathershield |
| Included Accessories | Installation guide, Windows® decoder 1-user license, drill hole template, terminal block connector for I/O, RESISTORX® L-key, connector guard, cable gasket, conduit adapter, mounting bracket, weathershield |
| Optional Accessories | AXIS T8415 Wireless Installation Tool AXIS Surveillance Cards AXIS TQ3807-E Dome Smoked, AXIS T94M01D Pendant Kit For more accessories, see axis.com |
| Video Management Software | AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners available at axis.com/vms |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

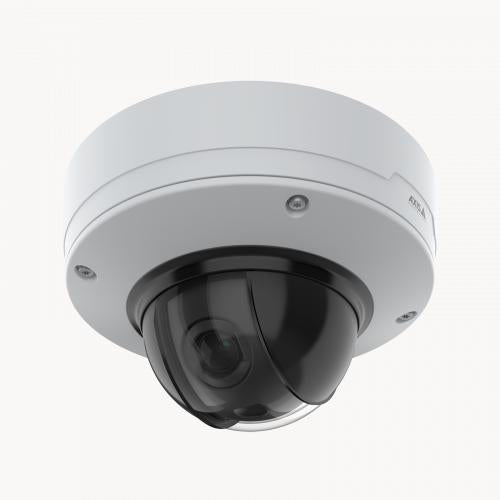

AXIS Q3536-LVE Dome Camera Advanced 4 MP dome with deep learning 11.3-29.4MM
The AXIS Q3536-LVE is a high-performance network camera designed for demanding security environments. It boasts a 4-megapixel resolution, ensuring crisp and detailed images even in challenging conditions. With its advanced Lightfinder 2.0 technology, the camera provides exceptional color images in low-light situations, enhancing visibility and security around the clock. The camera's built-in IR illumination ensures clear, high-quality footage in complete darkness, making it ideal for 24/7 surveillance. Its wide dynamic range (WDR) technology captures both the darkest and brightest areas of a scene, offering a balanced and comprehensive view. The AXIS Q3536-LVE features a robust, weather-resistant design, suitable for both indoor and outdoor installations. Its intelligent analytics capabilities include motion detection, tampering alarms, and intrusion detection, helping to identify and respond to security incidents promptly.
The camera supports Axis' Zipstream technology, which optimizes video compression and reduces bandwidth and storage needs without compromising image quality. With its motorized varifocal lens, the camera offers flexible field of view adjustments for precise monitoring. The AXIS Q3536-LVE is also compatible with various video management systems, allowing seamless integration into existing security infrastructures. Its easy-to-use web interface and remote management capabilities simplify setup and maintenance. The camera's PoE (Power over Ethernet) support streamlines installation by reducing the need for additional power cables. The AXIS Q3536-LVE is engineered to provide reliable performance in extreme temperatures, making it versatile for diverse environments. Its sleek and discreet design blends seamlessly into any setting, providing a professional appearance without drawing unwanted attention. The AXIS Q3536-LVE is an ideal choice for comprehensive surveillance in locations requiring high-definition video quality and advanced features.
Outstanding image quality
AXIS Q3536-LVE offers outstanding image quality and forensic details in 4 MP resolution—even in the harshest weather and environments. Featuring OptimizedIR and an innovative IR-shielded dome, it prevents IR reflections from rain, and snow ensuring consistently clear, sharp images. With Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And electronic image stabilization keeps the picture steady when the camera is subject to vibrations.
Powerful analytics capabilities
Built on ARTPEC-8, this high-performance camera offers advanced analytics based on deep learning on the edge. Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before — on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Robust and secure—inside and out
Enclosed in a metal casing, this robust, IK10+-rated outdoor-ready camera is protected against redirection, defocusing, and impacts. It can withstand temperatures as low as -50 °C and as high as 60 °C (-58 ºF to 140 ºF). Including sensors for intrusion and shock detection it’s also packed with built-in cybersecurity features such as Axis Edge Vault to prevent unauthorized access and safeguard your system. This top-of-the-line camera offers easy installation, maintenance, and operation as well as flexible cable management. It includes a built-in gyro sensor enabling leveling assistant and auto rotation. Furthermore, if there's a power outage, redundant power helps ensure a reliable power supply to safeguard the system.
Features
| Video | |
|---|---|
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | Up to 2688x1512 |
| Frame Rate | With WDR: 25/30 fps with power line frequency 50/60 Hz Without WDR: 50/60 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode |
| Video Streaming Indicator | Yes |
| Multi-view Streaming | Up to 8 individually cropped out view areas |
| Image Settings | Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, electronic image stabilization, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, text and image overlay, dynamic text and image overlay, privacy masks, polygon privacy mask |
| Pan/Tilt/Zoom | |
| Digital PTZ | Yes |
| Optical Zoom | AXIS Q3536-LVE 9 mm: 2x optical zoom AXIS Q3536-LVE 29 mm: 2.6x optical zoom |
| Preset Positions | Yes |
| Guard Tour | Limited guard tour, control queue, on-screen directional indicator Tour recording (max 10, max duration 16 minutes each), guard tour (max 100) |
| Audio | |
| Audio Features | Automatic gain control, speaker pairing |
| Audio Streaming | Two-way, full duplex |
| Audio Encoding | 24bit LPCM, AAC-LC 8/16/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable Bit Rate | Yes |
| Audio Input/Output | External microphone input or line input (balanced or unbalanced), line output, digital audio input Microphone power: Microphone power 5V on tip, ring power 12V on ring, phantom power 12V on tip/ring |
| Network | |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| System Integration | Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. One-click cloud connection (O3C) ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T specification at onvif.org |
