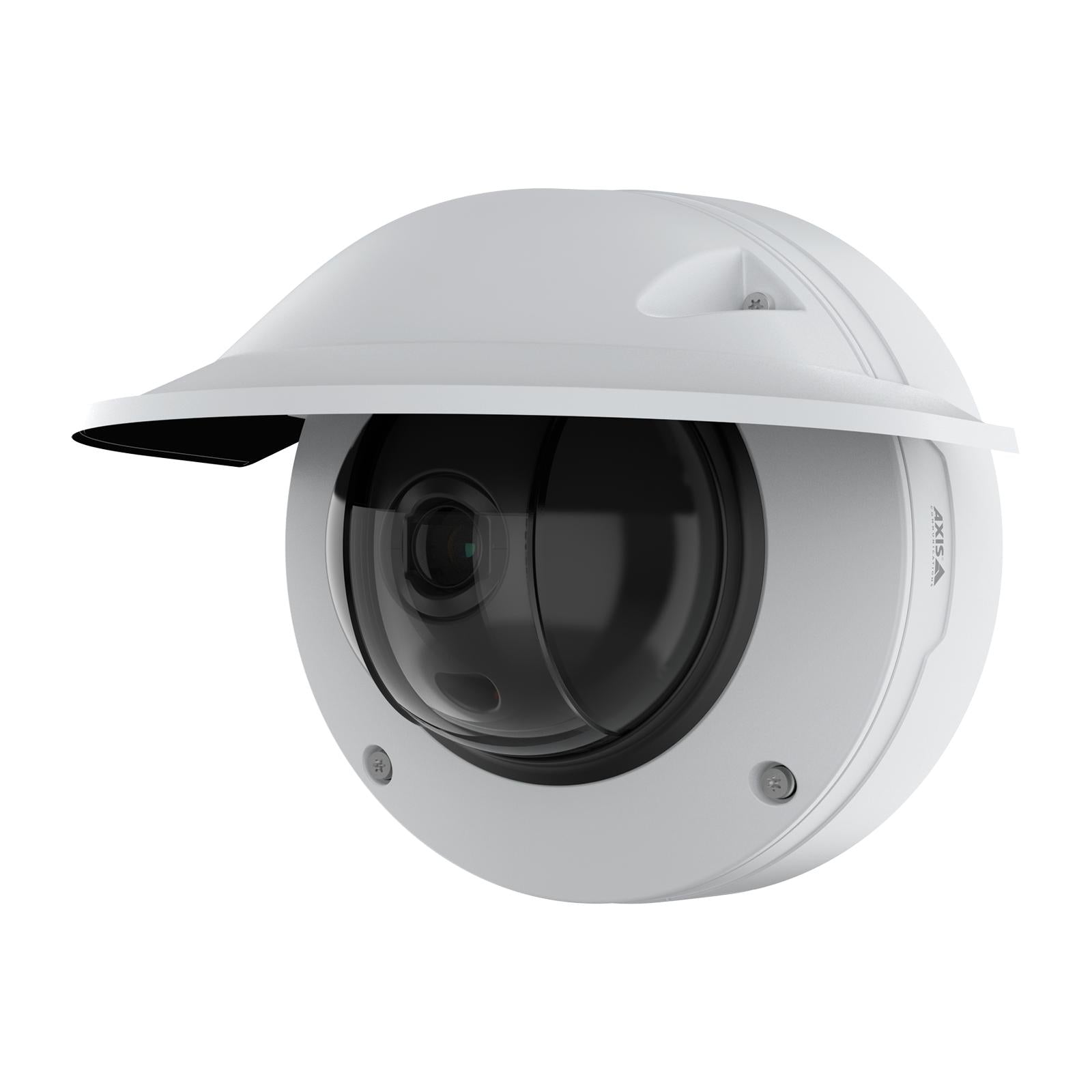

Axis Q3536-LVE 4MP Outdoor Dome Camera, Analytics, IR, IP66, 4-9mm VF Lens 02054-001

Model: AXIS Q3536-LVE

Who This Is For

For installers and security managers who need a professional-grade outdoor dome that can handle demanding environments without sacrificing image quality or analytical capability. The Axis Q3536-LVE is built for sites where camera placement is fixed but coverage requirements vary - car parks, perimeter walls, building facades, and entry corridors where a 4-9mm varifocal lens gives you the flexibility to fine-tune the field of view on-site rather than committing to a fixed focal length at the point of order. The IP66 weatherproofing and IR illumination make this a practical choice for exposed outdoor positions across commercial, education, healthcare, and critical infrastructure sites. If your project requires object classification analytics running natively on the camera rather than at the server, the Q3536-LVE delivers that without additional licensing overhead on most supported VMS platforms.

What This Camera Actually Does

Who Buys This Model

• Commercial property managers: Specifying outdoor dome cameras for car parks, building perimeters, and loading areas where IP66 weatherproofing and varifocal flexibility are required by the site security brief.
• Axis-aligned integrators: Working within existing Axis ecosystems where camera-native AXIS Object Analytics integrates cleanly with AXIS Camera Station or third-party VMS platforms already deployed on-site.
• Education and healthcare facilities: Installing outdoor surveillance at exposed entrance points, pedestrian pathways, or facility perimeters where a low-profile dome housing is preferable to a bullet camera for aesthetic or anti-vandal reasons.
• Critical infrastructure operators: Requiring reliable outdoor imaging in variable Australian conditions - from coastal Queensland humidity to southern states winter exposure - where IP66 sealing and a proven Axis platform reduce maintenance callouts.

Honest Assessment

The Q3536-LVE genuinely earns its position in the Axis fixed dome range. The 4-9mm varifocal lens combined with 4MP resolution gives installers real commissioning flexibility, and on-camera AXIS Object Analytics is a meaningful differentiator - you get human and vehicle classification at the edge without server-side licensing. The IP66 rating is appropriate for genuine outdoor exposure rather than sheltered eave mounting, and the IR performance is consistent across the lens range rather than degrading at wider focal lengths as seen in lower-cost alternatives. Where this camera is not the right fit: if your requirement is capturing licence plate detail at vehicle entry lanes, a dedicated ANPR camera will outperform any general-purpose dome at that task. Equally, if the project demands 180-degree or full perimeter coverage from a single mounting point, a panoramic or multi-sensor camera available through Security Australia will deliver better coverage economics. This is a single-direction, fixed-position camera and should be specified accordingly.

Before You Buy

Quick Fit Check

• Good match if: You need a professional outdoor dome with a configurable field of view - the 4-9mm varifocal lens means one camera SKU covers a wider range of mounting distances and coverage requirements than a fixed-lens equivalent.
• Good match if: Your VMS deployment requires camera-edge analytics to reduce server load or licensing costs - AXIS Object Analytics runs on-device and classifies humans and vehicles without relying on centralised processing.
• You may need a different model if: Wide-area or multi-directional coverage is the primary requirement - a panoramic or multi-sensor camera type will cover more ground from a single conduit run and mounting point, which may be more cost-effective at that scale.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single outdoor dome SKU that covers variable mounting scenarios - the 4-9mm motorised varifocal lens handles both wider pedestrian areas and tighter directional coverage without requiring separate camera models for each application.
• You may need a different model if: Long-range IR distance is the priority - a bullet camera type with extended IR projection will outperform a dome at distances beyond the Q3536-LVE's IR range, particularly on straight approaches, fence lines, or open perimeter paths.
• Pairs well with: A PoE managed switch with sufficient power budget per port, and a compatible NVR or VMS with AXIS Object Analytics event handling to make full use of the on-camera classification output.

Common Questions

1. Does the Q3536-LVE work with third-party VMS platforms, or only Axis software?

   Yes. The Q3536-LVE uses standard ONVIF Profile S and RTSP streams, making it compatible with most major third-party VMS platforms. AXIS Object Analytics events are also accessible via the camera's event system and HTTP notification, though the depth of integration depends on how well your chosen VMS handles Axis event metadata. If you are running AXIS Camera Station, native integration is tightest.

2. Will this camera handle direct rain and outdoor exposure in Australian conditions?

   Yes. The IP66 rating confirms the housing is fully sealed against dust and protected against powerful water jets from any direction - this covers direct rainfall, nearby pressure washing, and coastal humidity. IP66 is appropriate for exposed outdoor mounting rather than sheltered eave positions only.

3. How does AXIS Object Analytics reduce false alarms compared to standard motion detection?

   Standard motion detection triggers on any pixel change - passing headlights, shadows, blowing foliage, or insects near the lens. AXIS Object Analytics classifies detected objects as humans or vehicles before generating an event. This means your VMS only receives an alert when something that matches a person or vehicle shape is detected, substantially reducing nuisance events in outdoor installations where environmental movement is constant.

4. Does the varifocal lens adjust remotely, or does someone need to physically access the camera?

   Remotely. The 4-9mm varifocal lens on the Q3536-LVE is motorised and adjusted via the camera's web interface or a connected VMS during commissioning. There is no manual focus or zoom ring to turn on the housing itself. This is a significant practical advantage for cameras mounted at height or in positions requiring a lift or ladder to access.

5. What H.265 means for storage requirements compared to an older H.264 camera?

   H.265 (HEVC) compresses video at roughly half the bitrate of H.264 at equivalent image quality. For a 4MP camera running continuously, this translates to a meaningful reduction in both storage capacity requirements and network bandwidth. On large deployments with many cameras, the storage saving across the NVR can offset a significant portion of the per-camera cost difference between this model and a lower-specification alternative.

6. Is the Q3536-LVE vandal-rated, and does that cover deliberate impact?

   Yes. The Q3536-LVE carries an IK10 vandal resistance rating, which is the highest classification under the IEC 62262 standard and corresponds to protection against 20 joules of impact force - equivalent to a 5kg object dropped from 400mm. This makes the housing resistant to strikes that would crack or dislodge a non-rated dome. IK10 is the specification stocked by Security Australia for sites where deliberate camera interference is a documented risk.
