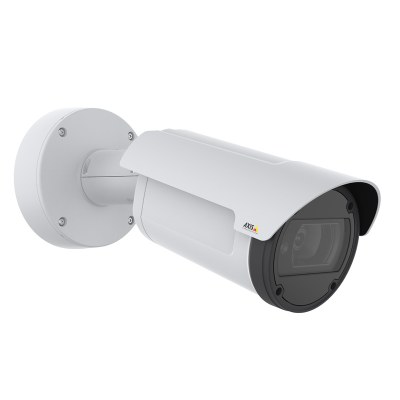

AXIS Q1798-LE 10MP Bullet Camera, H.264/5, PoE, IR, IK08, IP67, 12 - 48mm VF Lens Clearance

Model: Q1798-LE

Who This Is For

When long-range outdoor coverage and high image resolution are the priority, the AXIS Q1798-LE delivers where standard HD bullet cameras fall short. Designed for installers specifying surveillance on large industrial sites, perimeter fencing, logistics yards, and wide open approaches, this 10MP bullet camera pairs a 12-48mm varifocal lens with built-in IR illumination to resolve fine detail at distances that lower-resolution cameras simply cannot match. The IP67-rated housing and IK08 impact resistance make it suitable for exposed locations where weather and opportunistic interference are genuine concerns - think loading dock overhangs, outer fence lines, or facility entry points where a visible, purpose-built camera matters. PoE powering simplifies installation runs, and H.264/H.265 compression keeps storage demands manageable without sacrificing image quality at 10 megapixels.

What This Camera Actually Does

Who Buys This Model

• Industrial site security managers: Specifying perimeter and approach coverage where 10MP resolution allows a single camera to cover a wide entry zone while still delivering usable detail on individuals or vehicles at range.
• Logistics and transport operators: Mounting over loading docks or yard entrances where the varifocal lens can be tuned post-installation to frame exactly the critical zone - truck bays, boom gates, or weighbridge approaches.
• Commercial security integrators: Delivering a high-resolution outdoor bullet to clients who need footage quality that holds up in insurance investigations or police evidentiary review, particularly where camera positions are fixed and repositioning later is impractical.
• Infrastructure and utilities operators: Installing on exposed outdoor structures - water treatment facilities, substations, or remote pump stations - where IP67 weatherproofing and IK08 impact resistance are specification requirements, not optional extras.

Honest Assessment

The Q1798-LE is a serious outdoor bullet that earns its place on installations where resolution genuinely matters - 10MP combined with a 12-48mm varifocal lens means installers can cover long approaches and still extract usable identification detail from the footage. The IP67 and IK08 ratings are not marketing copy; they indicate a housing built for permanent outdoor exposure in demanding environments. H.265 compression manages bandwidth and storage load at a resolution that would otherwise strain a mid-range NVR. Where it will not serve well: tight indoor spaces where a dome or turret provides a more discreet ceiling profile, or applications requiring active pan, tilt, and optical zoom control - for those scenarios, a PTZ camera from the range available through Security Australia would be a better specification. This is a fixed-view camera built for deliberate, long-range outdoor placement.

Before You Buy

Quick Fit Check

• Good match if: You need high-resolution fixed coverage on a long outdoor approach - driveway, fence line, or facility entry - where the 12-48mm varifocal lens can be set during commissioning to frame the scene precisely and the 10MP sensor delivers detail at the distances involved.
• Good match if: The installation site is exposed to weather, dust, or the possibility of physical interference, and your specification requires IP67 weatherproofing and IK08 impact resistance as minimum housing standards.
• You may need a different model if: Your application requires active operator-controlled pan, tilt, and zoom tracking of moving subjects across a wide area - a PTZ camera type is designed for that use case and will outperform any fixed bullet in that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation requires a fixed outdoor bullet with 10MP resolution, a 4x optical zoom varifocal lens for precise scene framing, and a housing rated to IP67 and IK08 for demanding environments.
• You may need a different model if: Your site requires active tracking of subjects across a wide area with operator-controlled pan, tilt, and zoom - a PTZ camera type is built for that function and will serve that scenario far better than any fixed bullet.
• Pairs well with: A high-channel-count NVR with H.265 support and sufficient per-channel resolution headroom (ideally 12MP capable) to handle the Q1798-LE's output without restricting frame rate.

Common Questions

1. Will this camera work on a standard PoE switch or NVR PoE port?

   It depends on the power draw. The Q1798-LE is PoE-powered, but high-resolution cameras with integrated IR illumination can exceed the standard IEEE 802.3af budget of 15.4W per port. Before connecting, check the confirmed power consumption in the AXIS datasheet and verify your switch or NVR PoE port allocation meets that requirement. If it exceeds 15.4W, you will need an 802.3at (PoE+) capable port rated to 30W.

2. Does the 12-48mm varifocal lens need to be set during installation, or can it be adjusted remotely?

   The varifocal adjustment on this lens type is a physical process performed during installation commissioning. The zoom and focus are set manually on-site to frame the required scene, then locked in position. This is not a motorised or remotely adjustable lens - if your application requires remote zoom control, a motorised varifocal or PTZ camera type is the appropriate specification.

3. What does IK08 actually mean in practice for this housing?

   IK08 is an international standard rating for enclosure resistance to mechanical impact, corresponding to protection against 5 joules of impact energy. In practice, this means the Q1798-LE housing is rated to withstand significant accidental contact - a tool strike, debris impact, or moderate deliberate interference - without the enclosure cracking or the camera becoming inoperable. It is not the same as fully vandal-proof, but it substantially exceeds the impact resistance of standard unrated outdoor housings.

4. Will this camera work with non-AXIS NVRs via ONVIF?

   Yes, in most cases. AXIS cameras support ONVIF Profile S, which provides compatibility with a wide range of third-party NVRs and VMS platforms. However, AXIS-specific features - including any advanced analytics or AXIS-native streaming functions - typically require an AXIS-compatible VMS or AXIS Camera Station to function fully. For basic video recording via ONVIF, compatibility with leading third-party recorders is generally confirmed, but always verify your specific NVR model's AXIS Q1798-LE compatibility before finalising the system design.

5. Does the Q1798-LE record in colour at night, or does it switch to black and white IR footage?

   It switches to black and white when using IR illumination in low-light conditions. The built-in IR illuminator produces monochrome footage at night, which is standard for IR-based cameras. If full-colour night footage is a hard requirement for your installation, a camera with white-light illumination or a dedicated full-colour night vision sensor technology would be the appropriate product type to specify instead.

6. How much storage does 10MP H.265 footage actually consume?

   Bitrate and storage consumption vary considerably based on scene complexity, motion frequency, and compression settings. H.265 delivers roughly 50% bitrate reduction compared to H.264 at equivalent quality, which is significant at 10MP. As a practical planning guide, use AXIS's online bandwidth and storage calculator with the confirmed bitrate figures for the Q1798-LE to size your NVR storage accurately for your required retention period. This is available directly on the AXIS Communications website and is specific to this camera model. Security Australia stocks compatible NVR and storage solutions to suit the recorder sizing that comes out of that calculation.

7. Is this camera suitable for coastal or marine environments?

   The IP67 rating confirms full dust ingress protection and protection against temporary water immersion, making it appropriate for exposed coastal installations subject to wind-driven rain, salt air, and humidity. The IK08 housing adds mechanical durability. For heavily corrosive marine environments - boat ramps, jetties, or offshore structures with direct salt spray - verify with AXIS whether a specific corrosion-resistant coating variant exists for this model, as standard housings have limits in prolonged salt-spray exposure regardless of IP rating.
