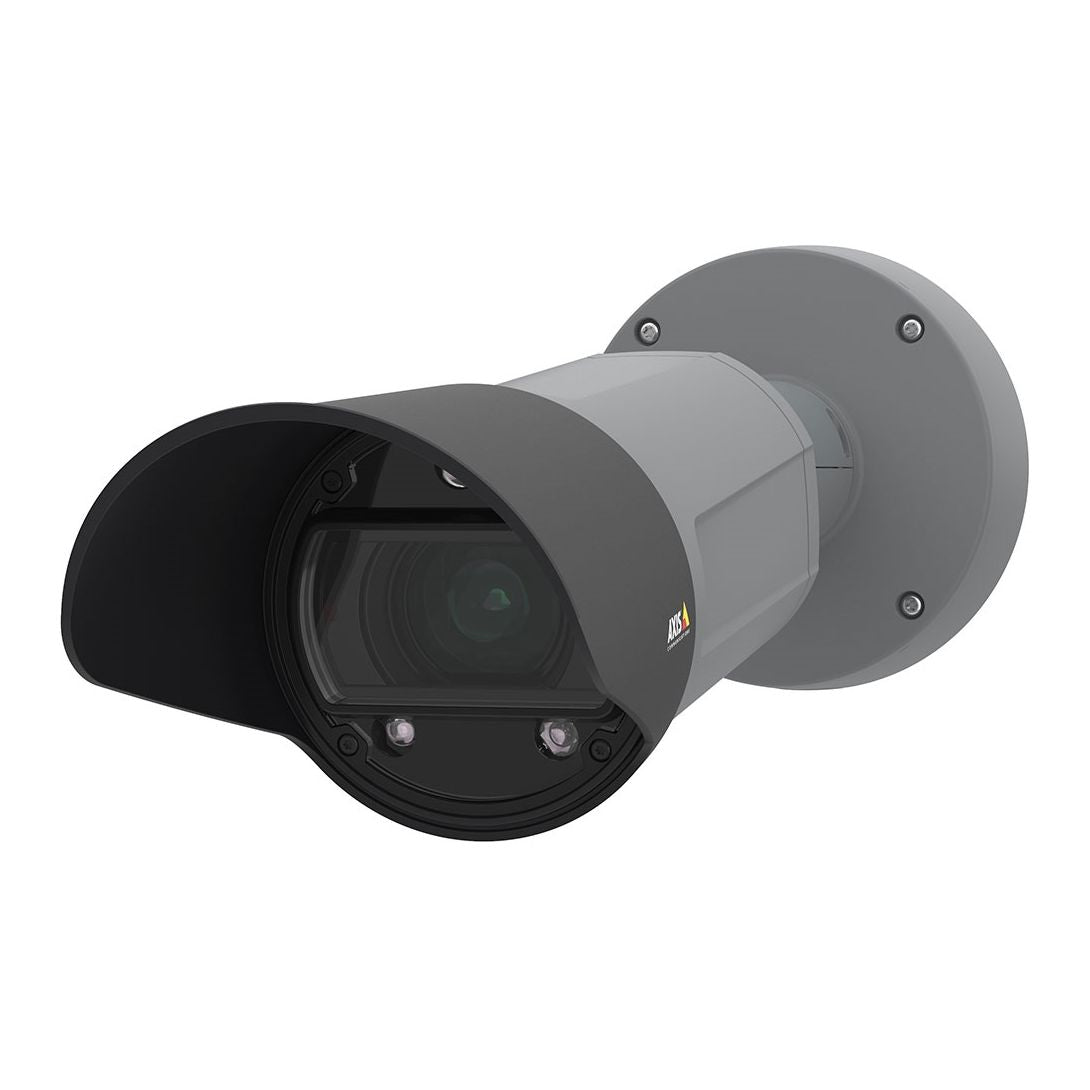

Axis Q1700-LE Bullet Camera, 2MP, 50m IR, IP66, 18 -137mm 01782-001

Model: Q1700-LE

Who This Is For

For installers and security managers who need verified license plate capture at distance rather than general-area coverage, the Axis Q1700-LE is purpose-built for exactly that task. Its 18-137mm motorised varifocal lens gives precise control over the field of view, letting you frame a lane, driveway entry, or car park boom gate with the kind of detail that generic bullet cameras cannot deliver at range. The 50m IR illumination keeps plate capture viable after dark without external lighting, and the IP66-rated housing handles the weather exposure that comes with outdoor mounting on poles, gateposts, or building facades. This is the camera that suits traffic control operators, logistics sites managing vehicle access, and councils or private operators who need defensible plate evidence - not just a record that a vehicle was present.

What This Camera Actually Does

Who Buys This Model

• Car Park Operators: Sites needing reliable plate capture at boom gate entry and exit points, where the motorised zoom allows precise lane framing from a fixed mounting position.
• Logistics and Freight Facilities: Loading dock managers and depot operators who need to log every vehicle entering a yard, including after-hours arrivals in low-light conditions covered by the 50m IR.
• Local Government and Traffic Control: Councils and traffic authorities deploying fixed-point vehicle monitoring on access roads, with the 18-137mm range allowing installation at varying standoff distances.
• Residential Estate and Gated Community Managers: Security managers overseeing controlled-access estates who need a camera that can capture plates at a gatehouse without requiring a separate LPR appliance at every entry point.

Honest Assessment

The Axis Q1700-LE does one thing particularly well: it gives installers meaningful control over the capture zone through a wide motorised zoom range that most fixed-lens or standard varifocal cameras cannot match. The combination of that 18-137mm range with 50m IR and an IP66 enclosure makes it a solid candidate for dedicated plate-capture positions at vehicle access points. It is also ACAP-compatible, which opens the door to running LPR analytics on-device rather than on a separate server. What it will not do is serve as a general-purpose scene camera. The long focal lengths it is designed around produce a very narrow field of view at higher zoom settings, so situational context around the vehicle will be limited. For sites that need both plate detail and a wide scene overview, a second camera covering the broader area is the typical approach. Available through Security Australia, this model suits installations where the plate-capture function is the primary requirement and is specified alongside a VMS or LPR platform.

Before You Buy

Quick Fit Check

• Good match if: You are mounting at a fixed vehicle entry point and need to adjust the capture zone remotely after installation - the motorised 18-137mm zoom handles that without requiring a physical return to the camera.
• Good match if: Your site has no external lighting at the entry point after hours - the 50m built-in IR means the camera continues to capture plate detail in complete darkness without additional infrastructure.
• You may need a different model if: Your requirement is broad-area scene coverage across a car park or yard rather than a defined capture lane - a wide-angle fixed or varifocal camera, or a panoramic model, will serve that use case better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation requires a dedicated plate-capture position with a wide motorised zoom range that can be adjusted remotely to suit varying standoff distances across different sites.
• You may need a different model if: Your priority is wide-area scene awareness rather than narrow-field plate capture - a multi-sensor panoramic or wide-angle fixed camera will cover more ground more effectively.
• Pairs well with: A wide-angle overview camera at the same entry point to provide scene context alongside the plate-detail feed, connected to a VMS or LPR-capable NVR with ACAP support.

Common Questions

1. Will the Q1700-LE capture readable plates at night without external lighting?

   Yes. The built-in IR illumination reaches 50 metres, which covers typical boom gate and entry lane standoff distances in complete darkness. The IR output is aligned with the lens field of view, so plate reflectivity under IR at night is generally sufficient for character extraction when the zoom is correctly set for the capture distance.

2. Does the 18-137mm zoom mean I can adjust the camera after it is mounted?

   Yes. The motorised varifocal lens can be adjusted remotely through the camera's web interface or a compatible VMS without physically accessing the camera head. This is particularly useful when the camera is pole-mounted at height, or when the capture zone needs to be refined after initial commissioning without sending a technician back to site.

3. Does this camera include built-in LPR software, or is that separate?

   The Q1700-LE does not include LPR analytics bundled in the camera firmware, but it does support AXIS Camera Application Platform (ACAP). This means compatible third-party LPR applications can be installed directly on the camera, which avoids the need for a dedicated LPR server at smaller single-lane sites. The specific ACAP application must be sourced and licensed separately.

4. What is the IP66 rating and does it cover Australian outdoor conditions?

   IP66 means the enclosure is rated against total dust ingress and powerful water jets from any direction. That covers rain, road spray, and site hosing in the Australian outdoor environments where vehicle entry cameras are typically deployed. It does not carry an IK impact resistance rating, so for installations where physical contact from vehicles or people is a risk, mount position matters.

5. Does this camera work for free-flow traffic capture at higher vehicle speeds?

   Not ideally. The Q1700-LE is suited to controlled-approach scenarios where vehicles are slowing or stopping - boom gates, gatehouse entries, and access control points. Free-flow LPR at open-road speeds requires cameras with very high shutter speeds and specific IR strobing to freeze motion without blur, which is a different product category. For fixed-approach and low-speed capture, the Q1700-LE is appropriate.

6. How many lanes can one Q1700-LE cover?

   Realistically, one camera covers one lane when used for plate capture. At higher zoom settings the field of view narrows considerably, and attempting to frame 2 lanes in a single shot will reduce per-plate pixel density below usable levels for character recognition. Sites with multiple entry lanes should plan for one Q1700-LE per lane. The Security Australia team can assist with multi-lane planning if your site requires it.

7. What VMS systems is the Q1700-LE compatible with?

   As an Axis ONVIF-compliant camera, the Q1700-LE is compatible with a wide range of video management systems that support the ONVIF Profile S standard. For ACAP application support and full Axis feature access including remote zoom control, a VMS with native Axis driver support provides the most complete integration. Confirm ACAP application compatibility with your chosen VMS before specifying.
