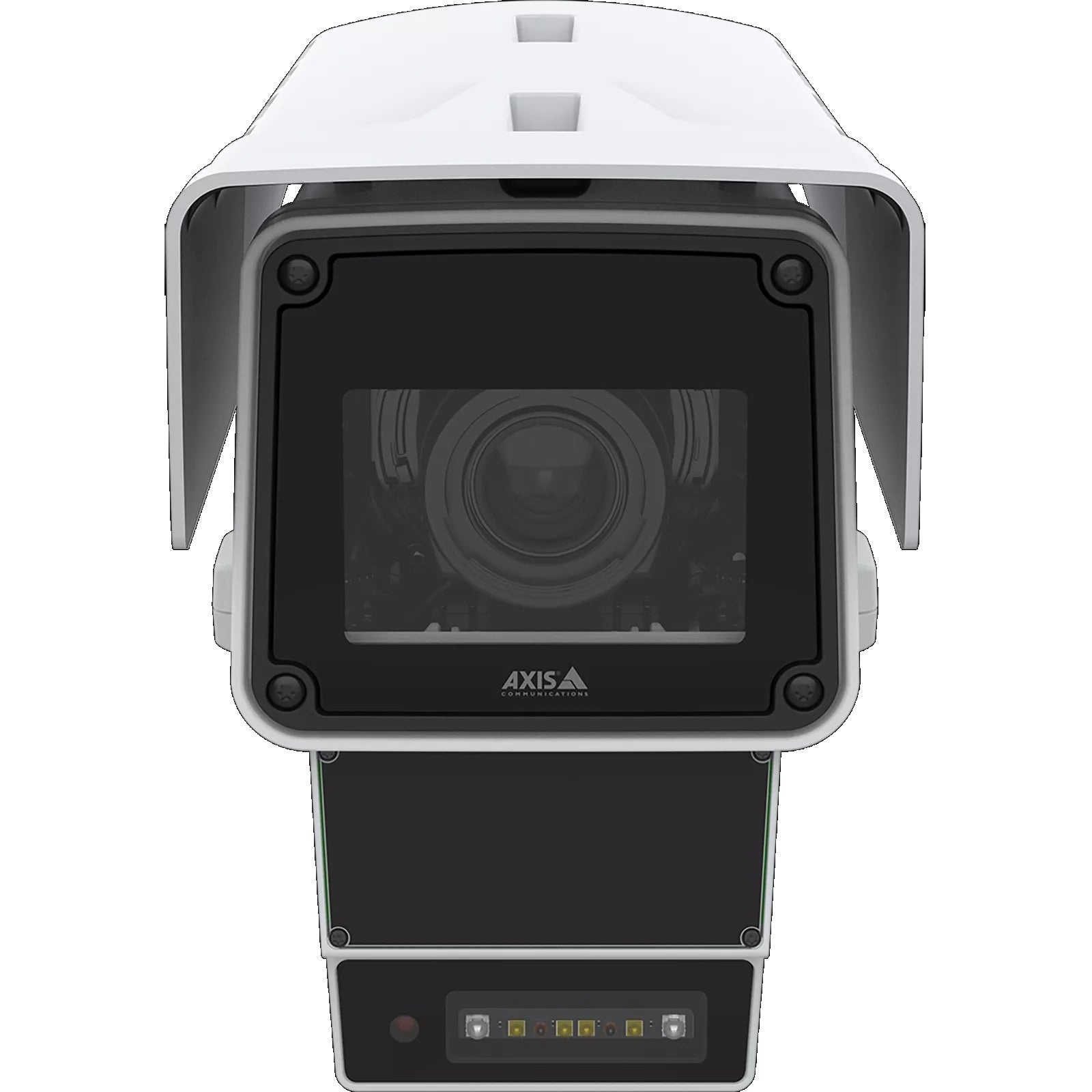

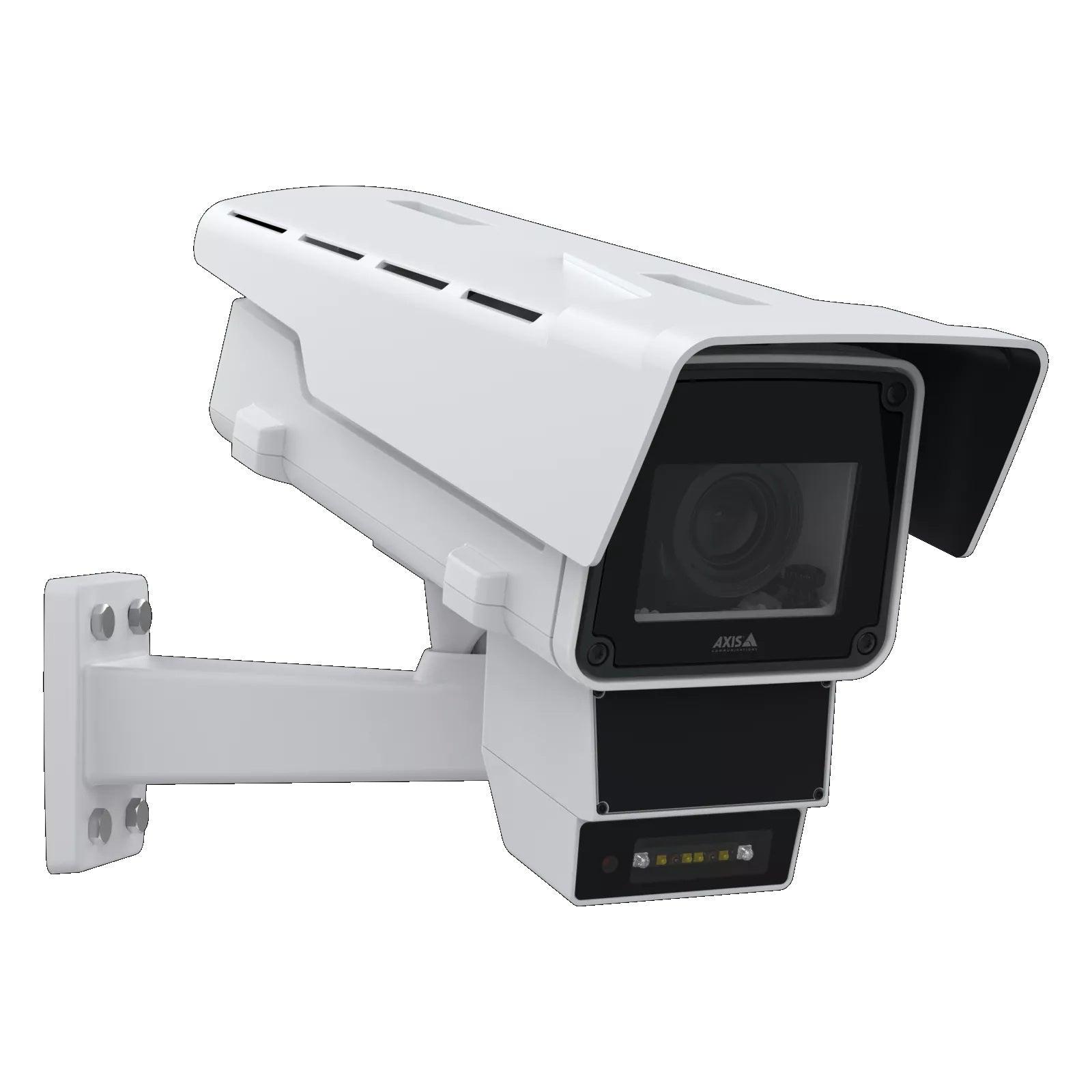

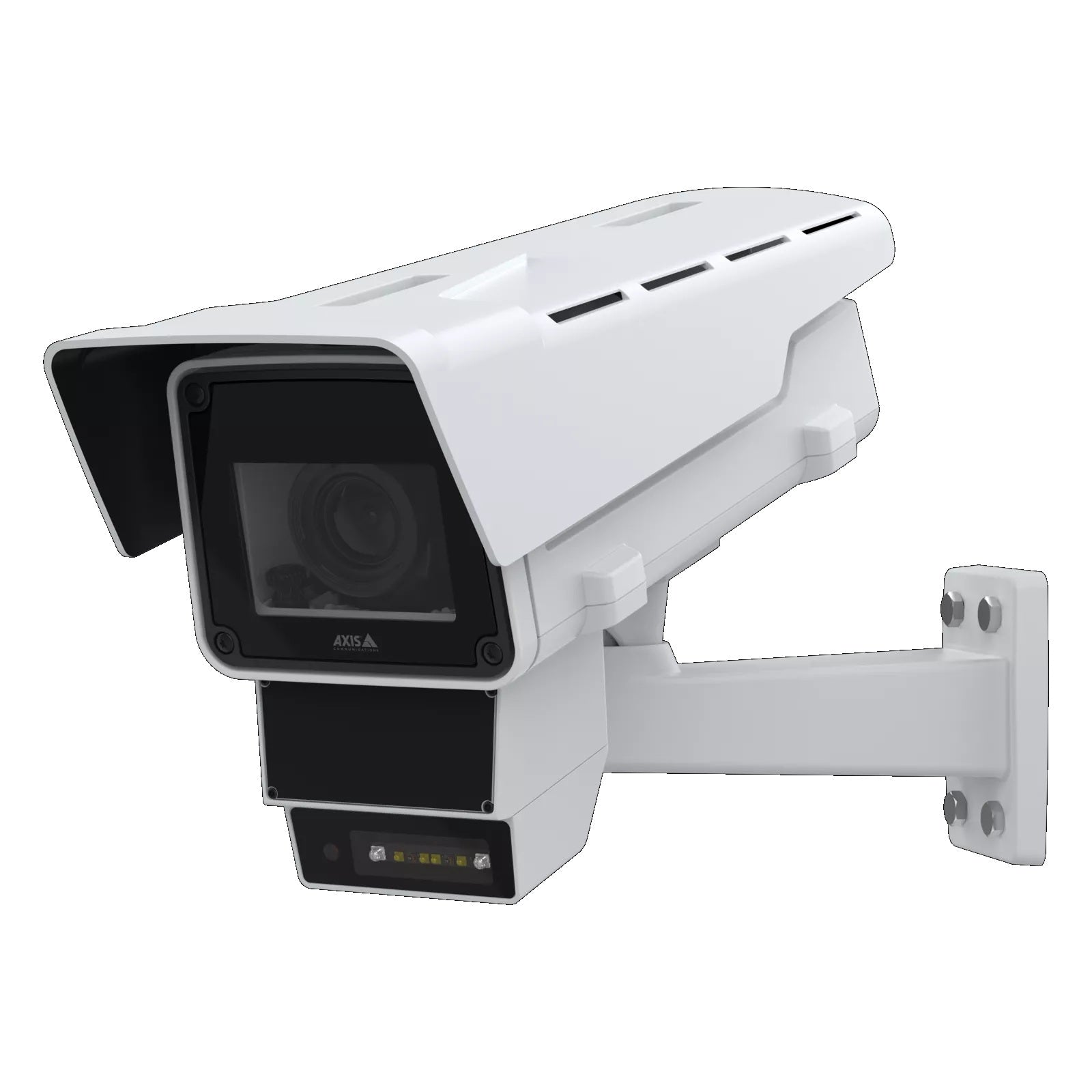

AXIS Q1656-DLE Radar Video Fusion Camera | 02420-001

Model: AXIS Q1656-DLE

Who This Is For

For security integrators and end-users who need to detect and confirm intrusions across large open areas where conventional cameras fall short - perimeter fencing, critical infrastructure sites, ports, energy facilities, and wide-format commercial properties. The AXIS Q1656-DLE combines a built-in radar sensor with a high-resolution optical camera and on-board deep learning to deliver fused detection that works in total darkness, heavy rain, and fog - conditions that defeat standard video analytics alone. Rather than relying on camera pixels to trigger an alert, the radar detects movement first across a broad sweep, then the video channel confirms, classifies, and provides the visual context needed for a response decision. This is a product for sites where false alarm reduction and lighting-independent detection are non-negotiable - not a general-purpose surveillance camera but a purpose-built perimeter intelligence device.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Utilities, water treatment, and energy sites needing perimeter detection that cannot rely on lighting or favourable weather conditions to trigger an alert.
• Port and Logistics Security Teams: Large open yards and wharf perimeters where conventional camera coverage requires dozens of units - radar fusion reduces device count while extending detection range.
• Security Integrators Specifying High-Security Sites: Integrators tendering for sites where the client requires demonstrable false alarm reduction and audit-ready detection evidence fused from two independent sensor types.
• Defence and Government Facility Managers: Sites requiring intrusion detection in complete darkness or adverse weather where optical cameras alone cannot meet the detection standard required.
• Mining and Remote Site Operators: Exposed perimeters with no existing lighting infrastructure, where radar-led detection allows meaningful protection without the cost of lighting upgrades across large areas.

Honest Assessment

The AXIS Q1656-DLE does something a standard camera fundamentally cannot: it detects and tracks objects using radar before the camera even needs to resolve an image. That capability - lighting-independent detection fused with on-board deep learning classification - makes it a genuinely strong fit for perimeter security at sites where high false alarm rates from video-only analytics have previously been a problem. The all-weather radar coverage and edge-based processing reduce both nuisance alerts and the server load required to run analytics centrally. It is available through Security Australia as part of the professional AXIS product range. What it will not do is replace a standard surveillance camera for general monitoring tasks - it is a specialist detection device with a price point and installation complexity to match. Sites needing broad visual coverage of indoor areas, retail environments, or standard car parks will find a conventional camera system better suited to those requirements.

Before You Buy

Quick Fit Check

• Good match if: Your site has a large open perimeter that needs intrusion detection in zero light or adverse weather conditions, and false alarm reduction from radar-video fusion is a project requirement.
• Good match if: You are reducing camera count on a wide-area site - the radar detection range allows broader spacing between installation points than a camera-only detection approach.
• You may need a different model if: Your requirement is general-purpose outdoor surveillance with full-colour night imaging across a residential or small commercial site - a full-colour turret or TiOC-type camera will deliver better visual output at significantly lower cost and complexity.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires perimeter intrusion detection that operates independently of lighting and weather, with on-board deep learning fusion reducing false alarms before any alert reaches an operator.
• You may need a different model if: Your requirement is colour night vision, general outdoor surveillance, or face-level detail capture - a full-colour fixed turret or multi-sensor panoramic camera will serve those needs at lower cost and with simpler commissioning.
• Pairs well with: A VMS platform with AXIS Object Analytics integration for centralised radar track management, and PoE+ managed switches to handle multiple Q1656-DLE units across a perimeter deployment.

Common Questions

1. Does the radar on the Q1656-DLE actually detect objects on its own, or does it need the camera to work?

   Yes - the radar operates independently of the camera. The radar sensor detects and tracks moving objects in complete darkness, heavy rain, dust, and fog without any input from the optical channel. The camera then adds visual confirmation and classification when conditions allow. The two sensors are fused, but the radar detection function does not depend on the camera being able to form a usable image.

2. Will this camera work with my existing PoE switch?

   Only if your switch supports PoE+ (IEEE 802.3at). The Q1656-DLE requires PoE+ to power both the radar and camera simultaneously - a standard 802.3af PoE port will not supply enough power. Check your switch's per-port power budget before ordering. If your current switch is 802.3af only, a PoE+ midspan injector at each camera drop is the straightforward solution.

3. Does this work for perimeter detection at a remote site with no lighting?

   Yes. This is one of the primary use cases for the Q1656-DLE. The radar sensor detects and tracks humans and vehicles without any ambient or artificial light. Where a standard camera would produce a black or noisy image, the radar continues providing positional tracking data. The optical camera records footage when there is sufficient light or IR illumination, but detection does not depend on it.

4. What analytics are available on the Q1656-DLE and do they run on the camera itself?

   Yes, analytics run on the device. The Q1656-DLE runs AXIS Object Analytics natively on the camera's edge processor. This includes line crossing and area intrusion rules tied to radar-confirmed object tracks, with deep learning classification for human and vehicle categories. No separate analytics server is required - detections and alerts are generated and transmitted by the unit itself, reducing the load on central VMS infrastructure.

5. How does radar-video fusion actually reduce false alarms compared to standard motion detection?

   Standard video motion detection triggers on pixel changes - lighting shifts, reflections, moving foliage, insects close to the lens. The Q1656-DLE uses radar as the primary detection layer, which responds to physically moving objects with mass and velocity rather than image changes. The camera then classifies the radar-confirmed target. An alert is only generated when both sensors agree there is a genuine human or vehicle - not when a tree branch moves or a cloud shadow crosses the frame.

6. Is the Q1656-DLE compatible with third-party VMS platforms?

   Yes. The Q1656-DLE supports ONVIF and integrates natively with AXIS Camera Station and AXIS Device Manager. It is also compatible with a range of third-party VMS platforms that support AXIS Object Analytics metadata. For sites using Milestone, Genetec, or similar enterprise VMS software, confirm AXIS integration support with your VMS vendor, as the radar track metadata output requires a compatible integration driver to be utilised alongside standard video streams. Security Australia can advise on compatible platform options.

7. What is the difference between the Q1656-DLE and a standard outdoor bullet camera with IR?

   A standard IR bullet camera illuminates a scene with infrared light and detects motion by comparing image frames - it still depends on its IR LEDs reaching the subject and on the camera sensor forming an image. The Q1656-DLE's radar detects by transmitting and receiving radio frequency signals that reflect off objects - no illumination required, and performance is unaffected by optical range limitations, fog, rain, or darkness. The two product types serve fundamentally different detection requirements, and the Q1656-DLE carries a corresponding price premium over a standard IR camera.
