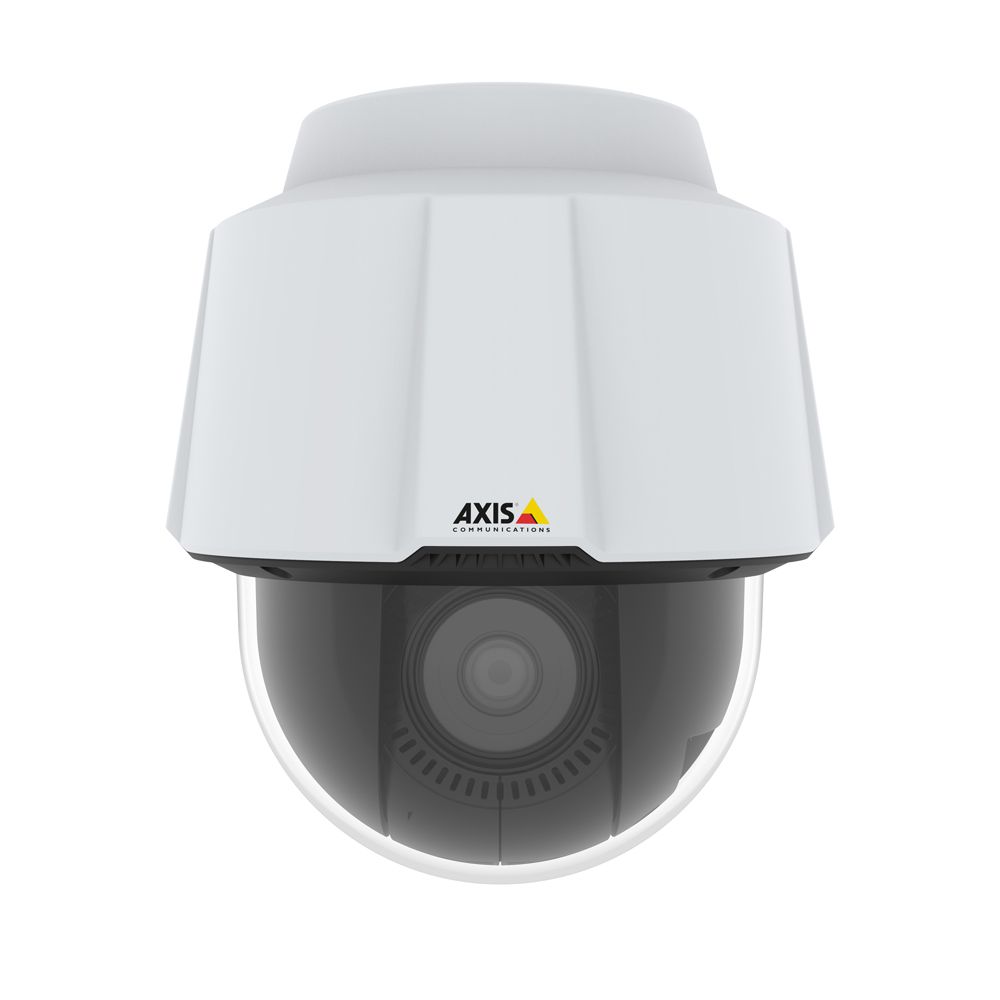

Axis P5655-E PTZ Camera, 1080p, H.265 Zipstream, IP66, 4.3-137.6mm VF Lens 01681-001

Model: Axis P5655-E

Who This Is For

For security managers and integrators who need a single camera to cover large, complex outdoor spaces without compromising image detail at distance, the Axis P5655-E is a purpose-built outdoor PTZ that earns its place on demanding sites. With a 4.3-137.6mm varifocal lens delivering 32x optical zoom, it can identify detail across wide carparks, open yards, and extended perimeters that would otherwise require multiple fixed cameras. The IP66 and NEMA 4X housing handles harsh Australian conditions - rain, dust, and temperature extremes - while the built-in heater and fan extend reliable operation into cold-climate deployments. H.265 Zipstream keeps storage demands in check without sacrificing resolution, and AXIS Object Analytics adds classification-based detection to reduce nuisance alerts. This is not an entry-level PTZ. It is specified by integrators running commercial, industrial, and critical infrastructure projects where coverage flexibility, image quality at range, and system longevity all matter.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Integrators: Specifying PTZ coverage at utilities, water treatment, and transport hubs where IP66/NEMA 4X housing and long-range optical zoom are non-negotiable requirements.
• Industrial Site Security Managers: Covering large open yards, mining facilities, or port precincts where a single motorised camera replaces multiple fixed positions and operator-controlled zoom allows detail verification at distance.
• Commercial Property and Campus Operators: Running VMS-driven guard tours across carparks, building perimeters, or university campuses where preset positions and automated patrol reduce the need for continuous manual monitoring.
• Control Room Integrators: Connecting to Axis Camera Station, Milestone, or Genetec environments where AXIS Object Analytics events drive automated PTZ moves or operator alerts based on confirmed human or vehicle classification.
• Harsh-Climate Deployments: Installing in coastal, alpine, or high-humidity environments where the integrated heater, fan, and corrosion-resistant NEMA 4X rating are required to meet site and compliance specifications.

Honest Assessment

The Axis P5655-E is a strong performer where 32x optical zoom, outdoor durability, and on-camera analytics need to work together in a single unit. The combination of IP66/NEMA 4X housing, integrated climate control, and H.265 Zipstream makes it a legitimate choice for demanding outdoor installations where cheaper PTZ options fail within a few seasons. AXIS Object Analytics adds genuine operational value by reducing false alarm workload, and the 360-degree continuous pan makes it effective for perimeter patrol and event-driven tracking. What it will not do is replace a fixed multi-sensor camera for simultaneous full-area coverage - a PTZ can only look in one direction at a time. It also requires PoE+ (IEEE 802.3at) or 24VAC, so verify your switch or injector before installation. For sites that need both wide-area overview and targeted zoom in the same position, this is available through Security Australia and represents the higher end of the PTZ category in terms of build quality and feature depth.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open area - carpark, yard, or perimeter - where 32x optical zoom lets a single camera verify detail at distances that would need 4 or more fixed cameras to replicate.
• Good match if: Your site runs a VMS or control room setup and you need AXIS Object Analytics to trigger automated preset moves or operator alerts based on classified human or vehicle detections.
• You may need a different model if: You need simultaneous 360-degree or multi-directional coverage with no blind spots - a multi-sensor panoramic camera or fisheye camera covers the full area at once and does not require an operator or automation to direct the view.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 32x optical zoom with IP66/NEMA 4X outdoor durability, integrated climate control, and AXIS Object Analytics in a single PTZ unit for a commercial or industrial site.
• You may need a different model if: Simultaneous all-direction coverage is the priority - a multi-sensor panoramic camera captures every angle at once without requiring operator input or automation to direct the view.
• Pairs well with: A PoE+ managed switch with sufficient per-port power budget, and fixed wide-angle cameras at key entry points so the PTZ can focus on response and zoom duties rather than static overview coverage.

Common Questions

1. Will a standard PoE switch power this camera?

   No. The P5655-E requires IEEE 802.3at PoE+, which delivers up to 30W per port. Standard IEEE 802.3af PoE switches are limited to 15.4W and will not provide sufficient power. Before installation, confirm your switch supports 802.3at on the specific port being used, or plan for a 24VAC power supply if PoE+ is not available at the location.

2. What is the optical zoom ratio and how far can it see usably?

   The P5655-E delivers 32x optical zoom via its 4.3-137.6mm varifocal lens. At maximum zoom, the camera can resolve useful identifying detail - such as a face or vehicle number plate - at distances that vary with lighting conditions and the specific DORI calculation for your deployment. For accurate DORI range planning at your required identification or recognition distance, use Axis's online DORI calculator with the confirmed lens parameters before finalising camera placement.

3. Does this camera support auto-tracking?

   Yes. The P5655-E supports auto-tracking, which automatically follows a moving object across the camera's field of view using on-camera processing. Auto-tracking can be configured to activate on AXIS Object Analytics detections, meaning the camera will only begin tracking objects classified as humans or vehicles rather than responding to every motion trigger - reducing the likelihood of the camera chasing irrelevant movement.

4. Does this work in cold-climate or harsh outdoor environments?

   Yes. The IP66 rating blocks dust and high-pressure water, while NEMA 4X adds corrosion resistance relevant for coastal and chemical-exposure environments. The integrated heater maintains internal temperature in cold climates, and the built-in fan manages heat dissipation in high-temperature installations. This combination makes the P5655-E suitable for alpine, coastal, and industrial outdoor deployments where lower-rated PTZ housings would degrade over time.

5. How does AXIS Object Analytics reduce false alarms compared to standard motion detection?

   Standard motion detection triggers on any pixel change - shadows, foliage, rain, and headlights all generate alerts. AXIS Object Analytics runs a classification step on the camera itself, confirming whether a moving object is a human or vehicle before generating an event. This means alarms and automated PTZ moves are only triggered by confirmed people or vehicles, which materially reduces after-hours nuisance alerts on large sites exposed to wind, weather, and ambient light variation.

6. How many preset positions does the P5655-E support, and can it run automated guard tours?

   Yes, up to 256 preset positions can be configured, and the camera supports guard-tour programming that cycles through presets automatically at set intervals or dwell times. Guard tours can be scheduled to activate at specific times of day - for example, running a full perimeter patrol overnight while returning to a fixed overview position during staffed hours. Preset accuracy on the P5655-E is maintained mechanically, so the camera returns to the same physical position consistently across repeated cycles.

7. Is the P5655-E compatible with third-party VMS platforms?

   Yes. The camera supports ONVIF Profile S, which provides broad compatibility with VMS platforms including Milestone XProtect, Genetec Security Center, and Avigilon Control Center, among others. It also integrates directly with AXIS Camera Station. For PTZ-specific features such as preset recall, guard tours, and auto-tracking triggered by analytics events, deeper integration is typically available through the Axis native driver or the platform's Axis-specific plugin. Stocked by Security Australia, the P5655-E is backed by Axis's Australian warranty and technical support network.
