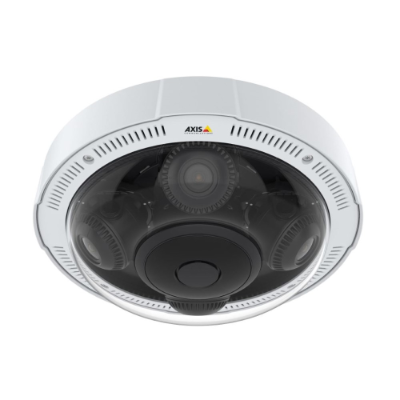

AXIS P3737-PLE 02634-001 4x 5MP Panoramic Camera IR, Zipstream, PoE, IP67, IK09

Model: AXIS P3737-PLE

Who This Is For

For security designers and installers who need to eliminate coverage gaps across wide-area outdoor environments without running cable to multiple camera positions, the AXIS P3737-PLE is built around 4 independent 5MP sensors delivering broad panoramic coverage from a single mounting point. It suits projects where minimising camera count is a hard constraint - carparks, building perimeters, transport hubs, logistics yards, and open industrial sites where a conventional single-sensor camera would require 3 or 4 separate units to cover the same arc. The IP67 weatherproofing and IK09 impact resistance make it appropriate for exposed outdoor installations where the housing will face both the elements and potential interference. Zipstream compression means the combined 20MP data stream is stored and transmitted efficiently, keeping NVR storage and bandwidth requirements manageable without sacrificing recorded detail. If wide-area situational awareness from a single installation point is the brief, this is the camera to evaluate.

What This Camera Actually Does

Who Buys This Model

• Transport and logistics operators: Facilities managers at distribution centres, freight yards, and bus or rail interchanges where a single elevated camera position needs to cover wide approaches, loading areas, or platform zones without installing multiple units at each pole or bracket.
• Municipal and open-area installers: Integrators working on council carparks, public plazas, and pedestrian precincts where minimising the number of visible camera housings is a planning or aesthetic requirement, but full 180-degree coverage of the space is non-negotiable.
• Industrial site security teams: Mining, manufacturing, and utilities sites that need to monitor perimeter fence lines, gate areas, or open yards where a single camera position replacing multiple single-sensor units reduces both hardware cost and ongoing maintenance access requirements.
• Axis VMS users expanding existing infrastructure: Organisations already running AXIS Camera Station or third-party VMS with confirmed Axis VAPIX compatibility who need to add high-resolution panoramic coverage nodes that integrate cleanly into their current management platform.

Honest Assessment

The P3737-PLE does the job of consolidating wide-area panoramic coverage into a single cable run and mounting point better than most comparable multi-sensor options at this resolution. The 4x 5MP configuration means each sensor is covering its own zone at full resolution - you are not stretching a single sensor across a wide field and accepting the resolution degradation that comes with it. Zipstream compression is genuinely useful here because 4 concurrent 5MP streams add up quickly without it. IP67 and IK09 mean the housing is rated for real outdoor and semi-public environments, not just sheltered installs. What this camera will not do is follow a subject or zoom in optically on a specific detail after the fact - it has no PTZ movement or motorised zoom. For situations where operators need to actively track individuals or vehicles across a scene, a PTZ camera is a more appropriate tool. The P3737-PLE is available through Security Australia and suits planning-stage projects where the goal is maximum static panoramic coverage per installation point.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a wide outdoor arc - carpark, perimeter line, or open yard - from a single pole or wall mount, and replacing 3 or 4 single-sensor cameras with one unit is the preferred outcome for your cabling and maintenance budget.
• Good match if: The installation environment is exposed to weather, potential physical contact, or both - IP67 weatherproofing and the confirmed IK09 impact rating mean the housing is specified for outdoor use and accessible mounting heights.
• You may need a different model if: Your monitoring use case requires an operator to actively follow and zoom in on moving subjects in real time - a PTZ camera with optical zoom and auto-tracking will serve that requirement where a fixed multi-sensor panoramic will not.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need to cover a wide outdoor panoramic arc at 5MP per sensor from a single cable and mounting point, with confirmed IP67 and IK09 ratings for exposed outdoor use.
• You may need a different model if: Your application requires active operator control to follow subjects or zoom into detail in real time - a PTZ camera with optical zoom and motorised pan/tilt is a better fit for that monitoring behaviour.
• Pairs well with: A high-channel-count NVR or VMS with sufficient PoE+ switching to handle the power draw, and a dedicated PTZ camera at the same location if operator-controlled zoom coverage of the same area is also required.

Common Questions

1. How many NVR channels does the P3737-PLE consume?

   It consumes 4 channels - one per sensor. The P3737-PLE has 4 independent 5MP image sensors, each producing its own video stream. When adding this camera to your NVR or VMS, allocate 4 channel licences rather than 1. Confirm your recording platform's channel capacity and licensing model before specifying this unit in a system with limited headroom.

2. Does this camera work with standard PoE switches?

   Not necessarily. The P3737-PLE powers 4 sensors and IR illuminators from a single PoE connection, which typically exceeds the 15.4W delivered by standard IEEE 802.3af PoE. Verify your switch or midspan injector supports the camera's actual power draw - PoE+ (IEEE 802.3at, up to 30W) is the more likely requirement. Check the Axis product datasheet for the confirmed power consumption figure before finalising your switching specification.

3. Will this camera work for after-dark outdoor coverage without site lighting?

   Yes. The P3737-PLE has built-in IR illumination, allowing it to capture footage in low-light and no-light conditions without relying on external lighting infrastructure. The effective IR range will depend on scene conditions and lens configuration - refer to the Axis datasheet for the confirmed IR distance for each sensor. For sites with zero ambient light, the IR performance of this model is a key differentiator versus cameras designed only for day use.

4. What does Zipstream actually do for storage on a 4-sensor camera?

   Zipstream reduces the bitrate of each stream in areas of the frame where there is no motion or detail of interest, while preserving full bitrate in regions where it matters. For a camera generating 4 concurrent 5MP streams, this is a meaningful practical benefit - without compression optimisation, the combined storage footprint of 4 high-resolution streams would be substantial. Zipstream allows you to run longer retention periods on the same NVR storage capacity, or reduce the storage specification at design stage.

5. How does a multi-sensor panoramic camera differ from a fisheye camera at the same price point?

   A fisheye camera uses a single sensor with an ultra-wide lens to capture 360 degrees, then applies digital dewarping in software to produce a flat image. Each dewarped zone shares pixels from the same sensor, so effective resolution per zone is lower than the sensor's headline figure. The P3737-PLE uses 4 physically separate 5MP sensors each covering its own zone - there is no pixel-sharing between zones and no dewarping artefacts. The trade-off is that multi-sensor panoramic cameras are typically larger and have a higher power draw than fisheye units. For applications where per-zone resolution matters - such as identifying individuals or reading vehicle detail - the multi-sensor approach is the stronger specification.

6. Is the P3737-PLE suitable for a mounting height under 3 metres in a public area?

   The IK09 impact rating confirms the housing is built to withstand significant mechanical force, which is a meaningful factor at lower mounting heights in public or semi-public environments. IP67 weatherproofing is also confirmed. Whether it is appropriate at a specific height depends on your site risk assessment and local regulations - the hardware specification supports accessible outdoor installation, but mounting height decisions should also account for vandal deterrence, viewing angle, and any applicable codes for your site type. Contact the team at Security Australia if you want to discuss the installation scenario in more detail before ordering.

7. What is the DORI performance of each sensor on the P3737-PLE?

   DORI (Detection, Observation, Recognition, Identification) distances vary per sensor depending on the lens configuration fitted to each of the 4 sensors. The P3737-PLE is available in different lens variants, and the effective DORI range for each zone is determined by the specific lens fitted and the mounting height. For accurate DORI planning across your coverage zones, refer to the Axis DORI calculator using the confirmed lens focal length for your specific unit variant. This is important at the design stage - a sensor configured for wide-area detection will not produce the pixel density needed for facial recognition at the same distance as a narrower lens configuration.
