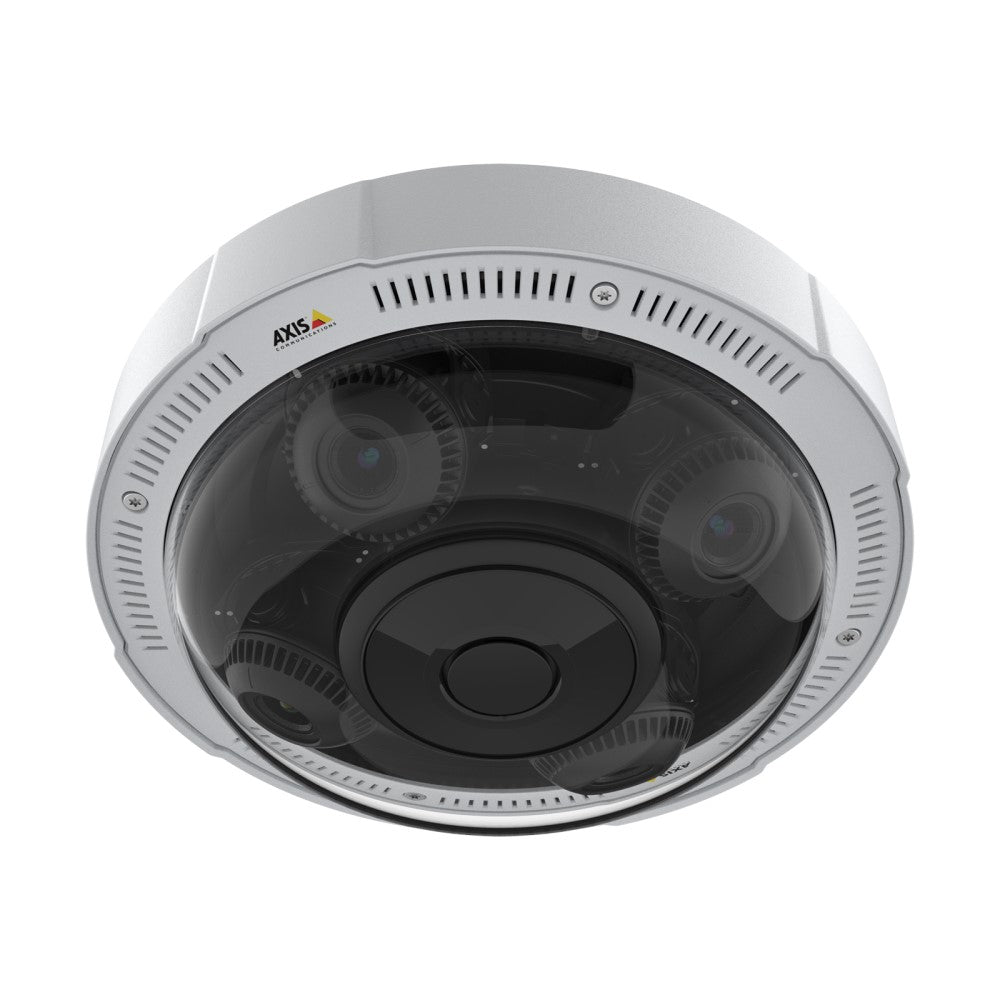

Axis P3735-PLE replaces P3727 4x 2MP Panoramic Camera, 360deg IR, IP67, IK09

Model: AXIS P3735-PLE

Who This Is For

For integrators and security managers who need full 360-degree situational awareness from a single camera position without the blind spots that come from stitching multiple single-lens units together. The Axis P3735-PLE uses 4 individual 2MP sensors to deliver a seamless panoramic view with built-in IR, making it a natural fit for wide-open outdoor spaces - car parks, forecourts, building perimeters, transit hubs, and large retail yards - where a single conventional camera simply cannot cover enough ground. The IK09 impact rating and IP67 weatherproofing mean it holds up to harsh Australian outdoor conditions and deliberate interference alike. Whether you are planning a reduction in camera count across a large site or replacing ageing P3727 units with a current-generation platform, the P3735-PLE is built for installations where coverage efficiency and image accountability across the full 360-degree arc are non-negotiable.

What This Camera Actually Does

Who Buys This Model

• Car Park and Forecourt Operators: A single ceiling or pole-mounted P3735-PLE covers the full 360-degree arc around a parking bay cluster or fuel court, eliminating the overlap planning required when deploying multiple fixed cameras.
• Transport and Transit Facility Managers: Bus depots, rail station concourses, and logistics yards benefit from the complete perimeter view in a single pendant-mount unit, reducing channel count on the NVR and simplifying post-incident review.
• Large Retail and Shopping Centre Security Teams: Covering wide-open floor areas, loading docks, or outdoor food courts where a single camera needs to account for movement in every direction without rotating or missing a sector.
• Integrators Upgrading Axis P3727 Sites: Direct replacement form factor means existing cable infrastructure and mounting brackets can often be reused, keeping upgrade labour costs down while bringing the site onto a current-generation platform.
• Critical Infrastructure and Utilities Operators: IK09 impact resistance and IP67 protection make this appropriate for substations, water treatment facilities, and outdoor plant yards where both environmental exposure and tampering risk are elevated.

Honest Assessment

The P3735-PLE does what multi-sensor panoramic cameras do best: it gives you a true 360-degree view from a single mounting point, with each of its 4 sensors delivering its own 2MP stream so you are not sacrificing resolution to achieve wide coverage. The built-in IR is a genuine advantage on sites where running separate lighting infrastructure is not practical, and the IK09 plus IP67 ratings mean it is a credible choice for exposed outdoor environments across most Australian conditions. Available through Security Australia, it sits at a different price point to conventional single-lens fixed cameras, and that cost needs to be weighed against the channel savings and reduced cabling it delivers at a system level. It is not the right tool where long-distance identification over a narrow corridor or approach is the primary requirement - a fixed lens or motorised zoom camera will outperform it in that scenario. For wide-area general coverage and camera count reduction, however, it is a strong technical fit.

Before You Buy

Quick Fit Check

• Good match if: You need full 360-degree outdoor coverage from a single mounting position and want to reduce the number of cable runs and NVR channels required across the site.
• Good match if: You are replacing Axis P3727 units on an existing site and want to upgrade image quality and IR capability without redesigning camera positions or mounting infrastructure.
• You may need a different model if: Your primary requirement is long-distance identification down a single narrow corridor or driveway approach - a fixed long-range bullet or motorised zoom camera will deliver better identification performance at distance than a multi-sensor panoramic.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need true 360-degree multi-sensor coverage from a single outdoor mounting point with built-in IR and IK09 vandal resistance - and you want to reduce camera count and cable runs across the site.
• You may need a different model if: Your primary use case is long-range identification down a single corridor, driveway, or perimeter fence line - a fixed bullet or PTZ camera with optical zoom will deliver better identification performance at distance than a panoramic multi-sensor unit.
• Pairs well with: A long-range fixed or PTZ camera at key entry and exit points to supplement the 360-degree overview coverage the P3735-PLE provides across the broader area.

Common Questions

1. Does the P3735-PLE require PoE+ or will a standard PoE switch work?

   It requires PoE+ (IEEE 802.3at) - standard PoE (IEEE 802.3af) will not supply sufficient power for 4 active sensors. Before specifying this camera, confirm the switch port or midspan injector you are connecting to is rated for PoE+ output. Using an undersupplied port typically results in the camera failing to boot or operating in a reduced mode.

2. How does the P3735-PLE handle the 360-degree image - is it a single stitched feed or 4 separate streams?

   The 4 sensors produce independent streams that your VMS or NVR receives and can display as either a combined panoramic view or as individual sensor feeds. There is no in-camera stitching that degrades resolution at the seams - each 2MP sensor maintains its own full-resolution output. How your recording platform presents those streams depends on its dewarping and multi-stream display capability, so confirm VMS compatibility before deployment.

3. Does this camera consume 1 NVR channel or 4?

   That depends entirely on your NVR or VMS licensing model. Some platforms license by physical device (1 channel for the whole camera), while others license by individual video stream (potentially 4 channels for 4 sensors). Check your recording platform's documentation before channel planning - misreading this is one of the more common project cost surprises with multi-sensor panoramic cameras.

4. Is the P3735-PLE a direct drop-in replacement for the P3727?

   Yes, it is the designated replacement model for the Axis P3727-PLE. Axis designed the P3735-PLE as the successor unit, and existing P3727 mounting infrastructure is generally compatible. That said, always compare the physical dimensions and cable entry points of both models against your existing installation before committing to a bulk site upgrade, as minor housing changes between generations can occasionally affect bracket compatibility.

5. Will this camera work in complete darkness using IR only?

   Yes. The built-in IR illuminators allow all 4 sensors to produce usable monochrome footage in low or zero ambient light conditions. IR-only performance on a multi-sensor panoramic is more complex than on a single-lens camera because each sensor has its own IR coverage arc - verify the IR distance spec against your actual scene dimensions to ensure adequate illumination across the full 360-degree sweep at your mounting height.

6. What does IK09 actually mean in practice for this camera?

   IK09 means the housing is rated to withstand an impact of 10 joules - roughly equivalent to a 5kg mass dropped from 20cm, or a forceful strike with a blunt object. In practice, it means the dome and enclosure will survive most deliberate vandalism attempts that would shatter a standard dome camera. It does not mean the camera is indestructible, but it is a meaningful step up in tamper resistance for exposed outdoor deployments. The rating is confirmed for the P3735-PLE alongside its IP67 weatherproofing, and both certifications are verified by independent testing standards.

7. What are the DORI distances for each sensor on the P3735-PLE, and what can I realistically identify at distance?

   DORI (Detection, Observation, Recognition, Identification) distances on a multi-sensor panoramic camera are substantially shorter than on a telephoto fixed lens or PTZ, because each 2MP sensor is covering a wide arc of the scene rather than a narrow zoomed field of view. The P3735-PLE is designed for detection and observation across wide areas - not for licence plate or facial identification at distance. For identification-level evidence at range, pair this camera with a fixed long-range lens or PTZ unit covering specific entry and exit points. Consult the Axis product datasheet for published DORI figures specific to the P3735-PLE sensor angle. The full technical datasheet is available through Security Australia on request.
