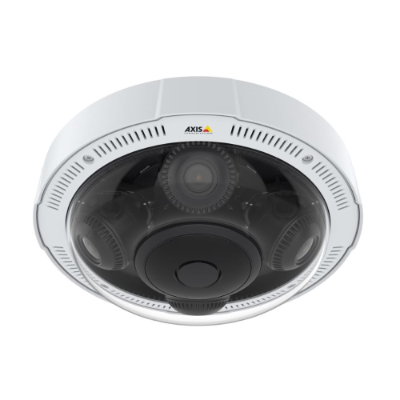

AXIS P3717-PLE 8MP Multi Sensor Camera, 4x1080p, 360deg IR, Zipstream, PoE, IP67, IK09

Model: AXIS P3717-PLE

Who This Is For

For security managers and installers who need complete 360-degree outdoor coverage from a single camera position, the AXIS P3717-PLE is a multi-sensor camera that combines 4 independent 1080p sensors into one weatherproof housing. It suits applications where running cable to multiple discrete locations is impractical - car parks, building perimeters, open plazas, intersections, and large commercial forecourts where a single mounting point needs to watch every direction simultaneously. The P3717-PLE is built for permanent outdoor installation with IP67 weatherproofing and IK09 impact resistance, making it appropriate for exposed poles, rooflines, and exterior wall brackets. Installers specifying wide-area coverage on constrained infrastructure budgets will find the single-cable, single-mounting-point design significantly reduces installation complexity compared to deploying 3 or 4 separate cameras to achieve equivalent coverage.

What This Camera Actually Does

Who Buys This Model

• Commercial Car Park Operators: A single pole-mounted P3717-PLE watches all lanes of traffic flow simultaneously, replacing 3-4 separate cameras that would each require their own cabling run and switch port.
• Council and Public Space Managers: Open plazas, town squares, and pedestrian precincts benefit from the 360-degree coverage at a single mounting point - particularly where heritage or planning constraints limit how many poles or fixtures can be installed.
• Commercial Property and Facilities Teams: Building perimeter monitoring where the camera sits at a corner or roofline position and needs to cover multiple approach directions without a PTZ that requires active operation or preset programming.
• Security Integrators on Infrastructure-Constrained Sites: Sites where conduit has been pre-laid with limited home-runs benefit from a single PoE cable delivering 4 independent video streams rather than requiring separate runs for each coverage direction.

Honest Assessment

The AXIS P3717-PLE does the specific job of simultaneous multi-directional outdoor coverage well. The 4 independent 1080p sensors give you discrete streams from each direction - there is no stitching distortion or single-lens fisheye compromise to manage, and the IR illumination means the coverage holds at night across all 4 views from one housing. Zipstream helps manage what would otherwise be a significant storage load from 4 continuous streams. Where this camera will not serve you: it does not pan, tilt, or zoom, so it cannot follow a subject or investigate a distant detail on operator command. If your site requires active tracking, licence plate capture, or detailed identification at range rather than broad situational awareness across a wide area, a PTZ or a dedicated ANPR camera will serve that purpose better. The P3717-PLE is available through Security Australia and is suited to coverage planning rather than active operator-controlled monitoring.

Before You Buy

Quick Fit Check

• Good match if: You need simultaneous 360-degree outdoor coverage from a single mounting point - such as a car park pole, building corner, or open plaza fixture - and want 4 independent streams rather than a single stitched fisheye image.
• Good match if: Your installation has a single conduit run to a location but requires coverage in multiple directions, and your PoE switch supports 802.3at to power the full 4-sensor array.
• You may need a different model if: Your primary requirement is active operator control - tracking individuals, reading licence plates at distance, or zooming into specific scene details on demand. A PTZ camera is the more appropriate product type for those use cases.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need simultaneous 360-degree outdoor coverage with 4 independent video streams from a single mounting point and a single PoE cable run, where passive wide-area monitoring is the goal rather than active operator tracking.
• You may need a different model if: Your site requires active subject tracking, optical zoom for distant detail, or licence plate capture at range - a PTZ camera is the appropriate product type for operator-controlled or auto-tracking applications.
• Pairs well with: A PoE+ managed switch with sufficient per-port power budget, and a multi-channel NVR or VMS platform licensed for 4 channels per camera deployed.

Common Questions

1. Does this camera work with a standard PoE switch port?

   No. The AXIS P3717-PLE requires IEEE 802.3at PoE+ (up to 30W per port) - a standard 802.3af port at 15.4W will not supply sufficient power for the full 4-sensor array and IR illumination. Before installation, confirm each switch port allocated to this camera is rated for PoE+ and check the switch's total power budget if deploying multiple units.

2. How many NVR channels does one P3717-PLE camera use?

   4 channels. Each of the 4 sensors produces an independent 1080p video stream, and your NVR or VMS must license and allocate a separate channel for each stream. A site deploying 3 x P3717-PLE units requires a minimum 12-channel recording system. Factor this into storage and licensing costs before finalising your system design.

3. Is the image a single stitched panoramic view or 4 separate streams?

   4 separate streams. Unlike a fisheye camera that produces a single circular image requiring software dewarping, the P3717-PLE delivers 4 individual rectilinear 1080p streams - one per sensor. There is no stitching distortion or dewarping processing required. Each stream can be monitored, recorded, and reviewed independently, which simplifies forensic review when you need to isolate a specific direction.

4. Will this camera work for licence plate capture or ANPR?

   No. The P3717-PLE is a wide-area situational awareness camera - its fixed lenses are not optimised for the narrow field of view, high shutter speed, and precise focal distance required for licence plate capture or ANPR. For vehicle entry/exit control or plate logging, a dedicated ANPR camera with appropriate focal length is the correct product type to specify alongside this unit.

5. What does Zipstream actually do to storage requirements on a 4-stream camera?

   Zipstream dynamically reduces bitrate in scene areas with no activity while preserving full detail where motion or relevant objects are detected. On a camera producing 4 continuous streams, this compression is practically significant - uncompressed 4 x 1080p at full bitrate generates substantial storage demand. Zipstream can reduce average bitrate considerably in typical scenes, extending how long footage can be retained on a given NVR storage configuration. The actual reduction depends on scene activity levels.

6. How does the multi-sensor design compare to a fisheye camera for the same 360-degree coverage?

   The multi-sensor approach produces better usable image quality per direction. A fisheye camera captures 360 degrees through a single wide-angle lens and requires software dewarping that introduces image distortion, particularly at the edges of the frame. The P3717-PLE uses 4 individual sensors with conventional rectilinear lenses, each covering a 90-degree quadrant - the result is 4 clear, undistorted 1080p images rather than one dewarped panoramic. The trade-off is channel count: 4 channels vs 1 for a fisheye. Security Australia stocks both camera types, and the right choice depends on your VMS channel budget versus image quality priorities.

7. Is the P3717-PLE suitable for mounting in direct weather exposure on a roofline or pole?

   Yes. IP67 confirms the housing is fully dust-tight and rated for temporary water immersion, making it appropriate for exposed outdoor mounting including rooflines, exterior poles, and open fascia positions. IK09 provides meaningful impact resistance at 10 joules - relevant for accessible mounting heights where deliberate interference is a consideration. The camera is designed for permanent outdoor installation in harsh environments.
