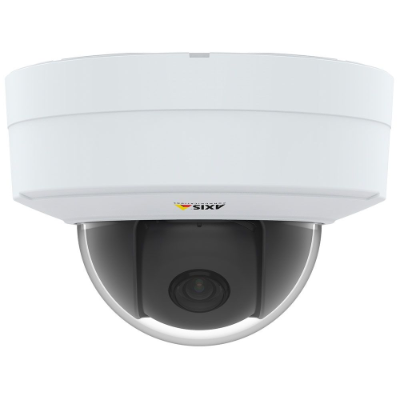

AXIS P3245-V Dome Camera, 1080p, Zipstream, WDR, IK10, 3.4 - 8.9mm VF Lens

Model: AXIS P3245-V

Who This Is For

For system integrators and facilities managers who need a professionally finished indoor dome camera that holds up to deliberate tampering - without overcomplicating the install. The AXIS P3245-V is an IK10-rated fixed dome built for environments where the camera will be within reach: corridors, reception areas, retail floors, stairwells, and multi-tenant common areas. The 3.4-8.9mm varifocal lens gives you genuine flexibility when positioning the camera before you lock it down - useful when exact coverage angles aren't confirmed until you're on-site. Zipstream reduces bandwidth and storage without sacrificing recorded detail, which matters when you're deploying across multiple cameras on a shared NVR or cloud setup. This is not a covert or miniature dome - it's a full-size ceiling unit engineered for durability, consistent 1080p output, and clean integration into Axis ecosystems where scalability and application support are part of the brief.

What This Camera Actually Does

Who Buys This Model

• Commercial fitout integrators: Specifying a consistent indoor dome across multi-floor office or retail builds where IK10 rated housings are required by the security brief and Zipstream reduces NVR storage costs across 16+ camera deployments.
• Education and childcare facility managers: Installing cameras in hallways and common areas where the camera is at or below ceiling height, making vandal resistance an active specification requirement rather than a precaution.
• Healthcare and aged care operators: Running Axis VMS or AXIS Camera Station across a managed network, where ACAP support allows analytics like people counting or loitering detection to run directly on the camera without additional server hardware.
• Retail loss prevention teams: Deploying at store entry/exit points or high-value product areas where WDR handles the backlight from shopfront glass, and the varifocal lens allows fine-tuning of coverage on-site during the fit-out phase.

Honest Assessment

The AXIS P3245-V does several things genuinely well: the IK10 rating is one of the stronger physical protection levels available in a ceiling dome at this form factor, Zipstream delivers real reductions in storage overhead that are measurable across large deployments, and the varifocal lens removes the guesswork from coverage planning when installs are confirmed late. WDR performance handles the contrast challenges typical of mixed indoor/outdoor-facing scenes without requiring dual-camera setups. What this camera will not do is provide usable footage in unlit or poorly lit environments without adequate existing lighting - it does not carry built-in IR illuminators, so night-time performance depends entirely on ambient or supplementary lighting. It is also not the right choice where extreme long-range identification is required. For outdoor or perimeter applications, a bullet or turret camera with IR illumination would be more appropriate. Available through Security Australia, the P3245-V is best positioned as a precision indoor unit on professionally managed Axis systems.

Before You Buy

Quick Fit Check

• Good match if: You are installing in a corridor, lobby, or retail floor where the camera will be within physical reach of the public and IK10 impact resistance is specified by the security consultant or building code requirement.
• Good match if: You are running an Axis VMS environment and want to deploy ACAP analytics - such as people counting or object detection - directly on the camera to reduce reliance on server-side processing.
• You may need a different model if: The installation includes areas that are unlit after hours or where darkness monitoring is required - a fixed dome with built-in IR illumination, or a full-colour camera with low-light capability, would be the more suitable product type for those positions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a fully IK10-rated indoor dome with a varifocal lens and native ACAP analytics support on an Axis-managed network, where Zipstream reducing long-term storage overhead is a genuine project requirement.
• You may need a different model if: Monitoring extends to poorly lit or unlit indoor zones after hours - a fixed dome with integrated IR illumination would be the more appropriate product type for those positions, removing the dependency on ambient lighting conditions.
• Pairs well with: A PoE network switch with IEEE 802.3af support and an Axis-compatible NVR or VMS platform such as AXIS Camera Station for centralised recording, health monitoring, and analytics management.

Common Questions

1. Does the AXIS P3245-V work in the dark or low-light areas?

   No - not without supplementary lighting. The P3245-V does not have built-in IR illuminators, so it relies on existing ambient light in the scene. In well-lit indoor environments it performs as a day/night camera with a mechanical IR cut filter, but in genuinely unlit spaces after hours, image quality will degrade. If your install includes dark stairwells, car parks, or unlit storage areas, a dome with integrated IR LEDs would be the appropriate product type for those positions.

2. What does Zipstream actually save in practice?

   Significant bitrate reductions are achievable on typical indoor scenes, though exact savings vary by scene activity. Zipstream works by identifying forensically important content in the frame - motion, faces, objects - and maintaining high quality there while aggressively compressing static background areas. On a quiet office corridor, this can translate to far lower average bitrate compared to a standard H.264 stream at equivalent resolution, directly reducing NVR storage consumption over time.

3. Will this camera work with my existing non-Axis NVR?

   Yes, in most cases. The P3245-V supports ONVIF Profile S, Profile G, and Profile T, which provides broad compatibility with third-party video management software and NVRs that include ONVIF support. Full feature access - including Zipstream storage savings and ACAP analytics - is only available when using Axis-native software such as AXIS Camera Station or compatible Axis VMS partners.

4. What does the IK10 rating mean for an indoor installation?

   IK10 is the highest level of the IEC 62262 impact protection scale, rated to withstand 20 joules of impact energy. In an indoor context this means the dome housing and lens cover can withstand a deliberate strike without shattering or losing coverage. For cameras installed in corridors, stairwells, or areas accessible to the general public, this rating is a meaningful specification - it is not the same as general IP ingress protection, which relates to dust and moisture, not physical force.

5. Does the varifocal lens adjust remotely, or do I need physical access?

   Physical access is required. The 3.4-8.9mm lens on the P3245-V is manually adjusted - zoom and focus are set by hand inside the dome housing during installation. This is not a motorised varifocal lens. Plan for installer time at each camera position during commissioning. If remote optical adjustment is a requirement for your project, a camera with a motorised varifocal or auto-focus lens would be the appropriate product type.

6. What PoE standard does the P3245-V require?

   Standard IEEE 802.3af PoE is sufficient. The P3245-V does not require PoE+ (802.3at), which means it is compatible with any standard PoE switch or NVR with PoE ports. A single Cat5e or Cat6 cable carries both power and data to the camera - no separate power supply or additional cabling is needed for typical installations. Confirm your switch has sufficient per-port power budget when planning a multi-camera deployment. The team at Security Australia can assist with switch selection if required.

7. Can I run analytics applications on the P3245-V without a separate server?

   Yes. The AXIS Camera Application Platform (ACAP) allows analytics apps to be installed and run directly on the camera's onboard processor. This includes Axis-developed applications and qualifying third-party apps covering use cases such as people counting, loitering detection, and queue monitoring. Running analytics at the camera edge reduces the processing load on your central VMS server and can simplify system architecture on multi-camera sites. Check individual ACAP application compatibility with the P3245-V's processor generation before selecting a specific analytics package.
