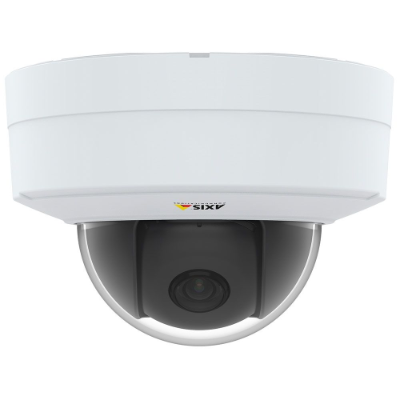

AXIS P3245-V Dome Camera, 1080p, Zipstream, WDR, IK10, 3.4 - 8.9mm VF Lens

The AXIS P3245-V Dome Camera is a high-performance surveillance camera designed for versatile indoor use. It features a 2-megapixel resolution sensor, providing clear and detailed images. With its 1/2.8" progressive scan CMOS sensor, it captures sharp footage even in varying light conditions. The camera supports HDTV 1080p resolution, ensuring high-quality video output. Its motorized varifocal lens allows for easy adjustment of the field of view, ranging from 2.8 to 12 mm. The P3245-V incorporates Axis' Lightfinder technology for enhanced performance in low-light environments. It also includes WDR (Wide Dynamic Range) to handle challenging lighting scenarios with balanced exposure. The camera's built-in digital PTZ (pan-tilt-zoom) functionality offers flexible monitoring without physical movement. It features a vandal-resistant design, making it suitable for areas prone to tampering or vandalism. The camera is equipped with a built-in microphone and speaker for two-way audio communication. It supports Axis' Zipstream technology to optimize bandwidth and storage usage while maintaining high image quality. The camera is compatible with various video management software (VMS) and can be integrated into existing surveillance systems. It supports Power over Ethernet (PoE) for simplified installation. The AXIS P3245-V is equipped with multiple security features, including encryption and user authentication, to safeguard video data. Its compact dome design allows for discreet placement in various indoor environments.

Features

• AXIS P3245-V offers excellent image quality in HDTV 1080p under any light conditions.
• Streamlined, IK10-rated camera for durability.
• Features Forensic WDR for clarity in scenes with both dark and light areas.
• Lightfinder 2.0 delivers life-like colors and sharp video of moving objects.
• Varifocal lens with remote zoom and focus capabilities, eliminating the need for hands-on fine-tuning.
• Enhanced security features ensure the integrity and authenticity of the camera’s firmware.
• Axis Zipstream supports H.264/H.265, significantly reducing bandwidth and storage requirements.

Technical Specifications

Camera
Image Sensor	1/2.8” progressive scan RGB CMOS
Lens	Varifocal, 3.4–8.9 mm, F1.8
Field of View	Horizontal: 100°-36°, Vertical: 53°-20°
Features	Remote zoom and focus, P-Iris control, IR corrected
Day and Night	Automatically removable infrared-cut filter
Minimum Illumination	With Forensic WDR and Lightfinder 2.0: Color: 0.1 lux at 50 IRE, F1.8; B/W: 0.02 lux at 50 IRE, F1.8
Shutter Time	1/66500 s to 2 s
Camera Angle Adjustment	Pan ±180°, Tilt ±75°, Rotation ±175°
Video
Video Compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles; H.265 (MPEG-H Part 2/HEVC) Main Profile; Motion JPEG
Resolution	1920x1080 to 160x90
Frame Rate	With WDR: 25/30 fps (50/60 Hz); Without WDR: 50/60 fps (50/60 Hz)
Video Streaming	Multiple, individually configurable streams in H.264, H.265, and Motion JPEG
Axis Zipstream Technology	For H.264 and H.265; Controllable frame rate and bandwidth
VBR/ABR/MBR	H.264/H.265
Multi-view Streaming	Up to 2 individually cropped out view areas in full frame rate
Image Settings	Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, defogging, Forensic WDR (up to 120 dB), barrel distortion correction, fine tuning of low-light behavior, dynamic text and image overlay, privacy masks, mirroring, rotation (0°, 90°, 180°, 270°), including Corridor Format
Pan/Tilt/Zoom	Digital PTZ, preset positions
Audio
Audio Input/Output	Two-way audio connectivity via optional AXIS T61 Audio and I/O Interfaces with portcast technology
