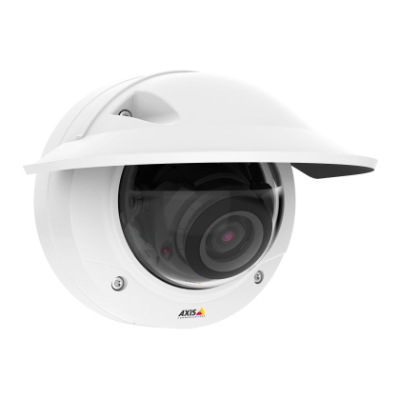

AXIS P3228-LVE 8MP Dome Camera, H.264, Zipstream, IR, 4K, IK10, 3.5-10mm VF Lens

The AXIS P3228–LVE Network Camera is a high-performance surveillance solution designed for various indoor and outdoor environments. Featuring a 4K Ultra HD resolution, it delivers exceptional image clarity and detail, ensuring that every critical element is captured with precision. This camera is equipped with an advanced Lightfinder technology that enhances its performance in low-light conditions, making it ideal for 24/7 surveillance. The built-in Wide Dynamic Range (WDR) ensures that both bright and dark areas of the image are clearly visible, even in challenging lighting conditions. Its rugged design is both weather-resistant and durable, with an IP66 rating that protects against dust and water ingress. The camera’s built-in IR LEDs provide clear, high-quality night vision up to 40 meters, allowing for reliable operation in complete darkness. It features an intelligent video analytics system that helps in detecting motion, tampering, and other critical events, enhancing the security monitoring capabilities.

The AXIS P3228–LVE also supports Power over Ethernet (PoE), simplifying installation by allowing power and data to be transmitted through a single cable. Its remote focus and zoom capabilities facilitate easy adjustment and precise image framing from a distance. With its H.265 video compression technology, it ensures efficient bandwidth usage and storage without compromising on video quality. The camera’s integration with Axis' other network devices and management software provides a comprehensive surveillance solution. Its user-friendly interface and intuitive controls make it accessible for both novice and experienced users. The AXIS P3228–LVE is also equipped with built-in two-way audio, enabling communication and interaction through the camera. Additionally, its ONVIF compliance ensures compatibility with a wide range of third-party surveillance systems. Overall, the AXIS P3228–LVE Network Camera offers a robust and versatile solution for enhancing security across diverse environments.

Features

• The AXIS P3228-LVE is a streamlined, outdoor-ready 4K fixed dome camera with a varifocal lens featuring remote zoom and focus for easy installation.
• It includes Forensic WDR to manage scenes with significant light variations and Lightfinder technology for excellent low-light performance.
• The camera is equipped with built-in IR illumination and OptimizedIR for superior video quality in all lighting conditions.
• Axis Zipstream technology is supported to minimize bandwidth and storage needs.
• It has a vandal-resistant IK10 rating for enhanced durability.

Technical Specifications

Camera
Image Sensor	Progressive scan RGB CMOS 1/2.5”
Lens	Varifocal, 3.5–10 mm, F1.7, Horizontal FOV: 100°-38°, Vertical FOV: 51°–22°, Remote zoom and focus, P-Iris control, IR corrected
Day and Night	Automatically removable infrared-cut filter
Minimum Illumination	Color: 0.19 lux at 50 IRE, F1.7; B/W: 0.04 lux at 50 IRE, F1.7, 0 lux with IR illumination on
Shutter Time	1/62500 s to 2 s
Camera Angle Adjustment	Pan ±180°, tilt -40 to +75°, rotation ±95°
Video
Video Compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles; Motion JPEG
Resolution	3840x2160 to 160x90
Frame Rate	25/30 fps with power line frequency 50/60 Hz
Video Streaming	Multiple, individually configurable streams in H.264 and Motion JPEG; Axis Zipstream technology in H.264, controllable frame rate and bandwidth; VBR/MBR H.264
Multi-view Streaming	8 individually cropped out view areas
Pan/Tilt/Zoom	Digital PTZ, Preset positions
Image Settings	Compression, Color, Brightness, Sharpness, Contrast, Local contrast, White balance, Exposure control, Fine tuning for low light, Forensic WDR, Text and image overlay, Mirroring, Privacy masks, Rotation (0°, 90°, 180°, 270°)
