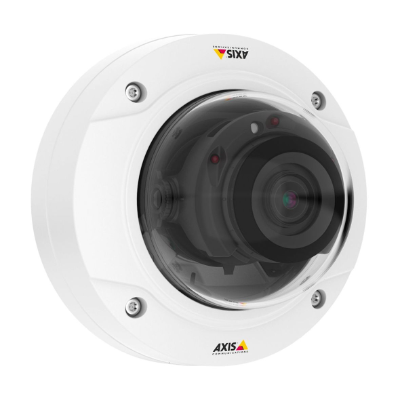

AXIS P3228-LV 8MP Dome Camera, H.264, Zipstream, IR, 4K, PoE, IK8, 3.5-10mm VF Lens

Model: AXIS P3228-LV

Who This Is For

Specifying 4K ceiling-mounted coverage where image detail and bandwidth control both need to deliver is the situation this camera was built for. The AXIS P3228-LV is an 8MP indoor fixed dome suited to environments where licence plate reads, facial identification at reception, or aisle-level retail detail are part of the brief - not just general area coverage. The 3.5-10mm varifocal lens gives installers meaningful focal flexibility at the ceiling, letting them dial in the field of view during commissioning rather than committing to a fixed angle. Zipstream compression keeps storage and bandwidth costs from blowing out at 4K. With IK8 impact resistance confirmed, it handles the corridor and retail floor environments where vandal resistance is a specification requirement. It powers over a single PoE run, keeping cable planning clean. This is a camera for integrators and facilities teams who need verified 4K detail in controlled indoor spaces without overbuilding the network infrastructure around it.

What This Camera Actually Does

Who Buys This Model

• Commercial Integrators: Specifying 4K ceiling cameras for corporate offices, financial branches, or government facilities where evidentiary image quality is a stated requirement and Zipstream is needed to keep the NVR and network budget in check.
• Retail Loss Prevention Teams: Fitting out aisle ends, checkouts, and stock rooms where 8MP resolution allows a single camera to cover a wider zone while still resolving sufficient detail for incident review and staff accountability.
• Facilities Managers: Running multi-floor PoE camera systems in commercial buildings, where IK8 vandal resistance in stairwells and common corridors removes a separate line item from the specification and the varifocal lens reduces SKU count across varied ceiling heights.
• Education and Healthcare Installers: Deploying cameras in hallways, waiting areas, and common spaces where a flush dome profile is preferred for patient and student environments, and where after-hours IR performance matters for security patrols reviewing overnight footage.

Honest Assessment

The AXIS P3228-LV does 4K indoor dome surveillance well. The combination of Zipstream, a varifocal lens, IK8 housing, and IR in a single PoE unit gives integrators a camera that covers a broad set of commercial requirements without needing additional accessories. The image quality at 8MP is a genuine step up from 5MP alternatives when post-incident detail matters. Zipstream keeps storage costs from scaling linearly with the higher resolution, which is a practical advantage on multi-camera installs. This camera is available through Security Australia as part of the AXIS indoor dome range. Where it will not serve well: this is an indoor unit only - if the installation involves external mounting, exposure to weather, or environments requiring IP66 ingress protection, a different camera type is required. It is also a fixed-position dome without pan/tilt capability; wide-area coverage requiring active tracking or PTZ movement needs a different product class entirely.

Before You Buy

Quick Fit Check

• Good match if: You need 4K ceiling coverage in a commercial indoor environment - corridor, retail floor, lobby, or office - where Zipstream compression is important to manage NVR storage across multiple channels.
• Good match if: The installation involves varied ceiling heights or positions requiring different fields of view, and you want a single camera model with a varifocal lens to reduce SKU count across the project.
• You may need a different model if: The installation is external or in a wet/dusty environment - this camera does not carry a weather-resistance rating and an outdoor dome or turret with IP66 protection would be the appropriate product type for those conditions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need confirmed 4K resolution in an indoor fixed dome with varifocal lens flexibility, IK8 vandal resistance, and Zipstream to manage storage across a multi-camera PoE system.
• You may need a different model if: The installation requires outdoor weather protection - an IP66-rated outdoor dome or turret camera is the appropriate product type for any external or semi-exposed mounting position.
• Pairs well with: A PoE network switch and an H.264-compatible NVR or VMS platform with sufficient decoding capacity for 8MP channels - check channel count and decode specifications before finalising your recording system.

Common Questions

1. Will this camera work outdoors or in a semi-exposed area like a covered carpark?

   No. The AXIS P3228-LV is rated for indoor use only and does not carry an IP66 or IP67 ingress protection rating. It should not be installed in environments exposed to rain, condensation, dust ingress, or temperature extremes. For covered carparks or semi-exposed under-eave positions, an outdoor-rated dome with confirmed IP66 protection is the correct product type.

2. Does this camera work with a standard PoE switch, or does it need PoE+?

   Standard IEEE 802.3af PoE is sufficient. The P3228-LV does not require the higher power budget of PoE+ (802.3at), which means it will operate on any standard PoE switch or NVR with 802.3af PoE ports. This is relevant for installers planning switch specifications on multi-camera projects - no uplift to PoE+ infrastructure is needed for this model.

3. How much does Zipstream actually reduce storage compared to standard H.264?

   The reduction depends on scene activity, but AXIS Zipstream is designed to deliver significant bitrate savings in scenes with low-motion areas - which describes most indoor commercial environments. The compression algorithm preserves detail in moving regions of the frame and aggressively reduces data in static areas. The practical outcome is meaningful savings in NVR storage consumption over standard H.264 at the same 8MP resolution, though exact figures vary by scene complexity and configured quality settings.

4. What does IK8 actually mean in practice for this dome housing?

   IK8 means the dome housing is rated to withstand 5 joules of impact force - equivalent to a 1.7kg mass dropped from 300mm or direct contact from a blunt object. It is a confirmed rating for the P3228-LV and covers the dome bubble and housing. For most commercial corridor, stairwell, and retail environments, IK8 is sufficient without any additional armoured enclosure. IK10 would be required if the risk profile involves deliberate heavy-force attack, which is less common in supervised commercial spaces.

5. Will the 3.5-10mm varifocal lens cover a wide entrance area and still give usable facial detail?

   At lower focal lengths around 3.5mm the lens provides a wider angle suited to covering broad entrance zones, while moving toward 10mm narrows the field for greater detail at longer distances. At 8MP, there is more resolution to work with than on a 4MP or 5MP camera, so you can afford a slightly wider angle and still extract usable detail from the recorded image. The correct focal setting for your specific ceiling height and coverage zone should be confirmed during commissioning using the AXIS remote focus tool - this is stocked by Security Australia as part of the AXIS P-series dome range.

6. Does this camera work with third-party NVR and VMS platforms, or only AXIS recording software?

   It works with third-party platforms. The P3228-LV supports ONVIF compliance, which is the standard protocol used by most NVR brands and enterprise VMS platforms for camera integration. It also supports RTSP streaming. AXIS Camera Management and AXIS Video Management Software are the native options, but the camera is not locked to AXIS recording infrastructure. Confirm ONVIF profile support with your chosen NVR vendor if you are integrating into an existing multi-brand system.

Downloads & Resources

No downloads available for this product.
