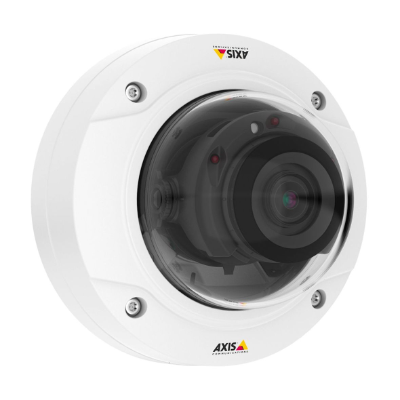

Streamlined 4K fixed dome for any light conditions
The AXIS P3228-LV is a sleek 4K fixed dome camera that boasts a varifocal lens with remote zoom and focus, simplifying installation and eliminating the need for manual adjustments. With Forensic WDR for managing scenes with strong light contrasts, Lightfinder technology for low-light performance, and built-in IR illumination with OptimizedIR, this camera delivers outstanding video quality across various lighting conditions. Additionally, it incorporates Axis Zipstream technology to greatly reduce bandwidth and storage needs.
Key Features
Code/SKU: AXIS P3228-LV
Quick Specs:
| Camera | |
| Image Sensor | Progressive scan RGB CMOS 1/2.5” |
| Lens | Varifocal, 3.5–10 mm, F1.7, Horizontal field of view: 100°-38°, Vertical field of view: 51°–22°, Remote zoom and focus, P-Iris control, IR corrected |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | Color: 0.19 lux at 50 IRE, F1.7; B/W: 0.04 lux at 50 IRE, F1.7, 0 lux with IR illumination on |
| Shutter Time | 1/62500 s to 2 s |
| Camera Angle Adjustment | Pan ±180°, tilt -40 to +75°, rotation ±95° |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles; Motion JPEG |
| Resolution | 3840x2160 to 160x90 |
| Frame Rate | 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG, Axis Zipstream technology, VBR/MBR H.264 |
| Multi-view Streaming | 8 individually cropped out view areas |
| Pan/Tilt/Zoom | Digital PTZ, Preset positions |
| Image Settings | Compression, Color, Brightness, Sharpness, Contrast, Local contrast, White balance, Exposure control, Forensic WDR: up to 120 dB, Text and image overlay, Mirroring, Privacy masks, Rotation: 0°, 90°, 180°, 270° |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP, DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, and more |
| System Integration | |
| API | Open API, VAPIX®, AXIS Camera Application Platform, ONVIF® Profiles S and G |
| Analytics | AXIS Video Motion Detection, Active tampering alarm, AXIS Motion Guard, AXIS Loitering Guard, and more |
| Event Triggers | Analytics, Edge storage events, Virtual inputs |
| Event Actions | Record video, Upload images/videos, Notification, Overlay text, IR illumination on/off |
| Data Streaming | Event data |
| Installation Aids | Remote zoom, Remote focus, Pixel counter |
| General | |
| Casing | IP52-rated, IK08 impact-resistant polycarbonate casing |
| Sustainability | PVC free |
| Memory | 1 GB RAM, 512 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 11.5 W, typical 8.6 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| IR Illumination | OptimizedIR with 850 nm LEDs, Range: 30 m or more |
| Storage | MicroSD/microSDHC/microSDXC card support, NAS support |
| Operating Conditions | 0 °C to 50 °C (32 °F to 122 °F), Humidity 10-85% RH (non-condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals | EMC, Safety, Environment certifications |
| Dimensions | Height: 101 mm (4 in), Diameter: 149 mm (5 7/8 in) |
| Weight | 550 g (1.2 lb) |
| Included Accessories | Installation guide, Windows decoder license, mounting bracket, cable gasket, drill template, connector guard |
| Optional Accessories | AXIS ACI Conduit Brackets, AXIS T94K01L Recessed Mount Kit, AXIS Skin Cover, AXIS Mounts |
| Video Management Software | AXIS Companion, AXIS Camera Station, and software from Axis’ Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
AXIS P3228-LV 8MP Dome Camera, H.264, Zipstream, IR, 4K, PoE, IK8, 3.5-10mm VF Lens
The AXIS P3228–LV Network Camera is a high-performance surveillance solution designed to provide exceptional image quality and reliability. It features a 5 MP resolution that ensures clear and detailed video footage, ideal for various security applications. With its advanced Lightfinder technology, the camera excels in low-light conditions, capturing vibrant colors and sharp details even in challenging environments. The camera is equipped with built-in infrared (IR) illumination, enhancing its ability to deliver high-quality images in total darkness. Its compact and discreet design makes it suitable for both indoor and outdoor use, seamlessly blending into any setting. The AXIS P3228–LV includes Axis' Zipstream technology, which optimizes bandwidth and storage efficiency without compromising image quality. It supports multiple streaming formats, allowing for flexible integration with different security systems. The camera's robust construction ensures durability and resistance to harsh weather conditions, making it a reliable choice for various installations.
Additionally, the camera offers advanced analytics features, such as motion detection and tampering alarms, to enhance security monitoring. With its easy installation process and user-friendly interface, the AXIS P3228–LV simplifies setup and operation. It is compatible with Axis' extensive range of accessories, allowing for further customization and optimization. The camera supports Power over Ethernet (PoE), which simplifies cabling and reduces installation costs. Its built-in edge storage capabilities ensure that footage is securely stored even in the event of network interruptions. The AXIS P3228–LV is also designed with cybersecurity in mind, featuring robust encryption and authentication mechanisms to protect against unauthorized access. This network camera is an excellent choice for organizations seeking a reliable, high-quality surveillance solution with advanced features and easy integration.
Features
| Camera | |
| Image Sensor | Progressive scan RGB CMOS 1/2.5” |
| Lens | Varifocal, 3.5–10 mm, F1.7, Horizontal field of view: 100°-38°, Vertical field of view: 51°–22°, Remote zoom and focus, P-Iris control, IR corrected |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | Color: 0.19 lux at 50 IRE, F1.7; B/W: 0.04 lux at 50 IRE, F1.7, 0 lux with IR illumination on |
| Shutter Time | 1/62500 s to 2 s |
| Camera Angle Adjustment | Pan ±180°, tilt -40 to +75°, rotation ±95° |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles; Motion JPEG |
| Resolution | 3840x2160 to 160x90 |
| Frame Rate | 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG, Axis Zipstream technology, VBR/MBR H.264 |
| Multi-view Streaming | 8 individually cropped out view areas |
| Pan/Tilt/Zoom | Digital PTZ, Preset positions |
| Image Settings | Compression, Color, Brightness, Sharpness, Contrast, Local contrast, White balance, Exposure control, Forensic WDR: up to 120 dB, Text and image overlay, Mirroring, Privacy masks, Rotation: 0°, 90°, 180°, 270° |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP, DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, and more |
