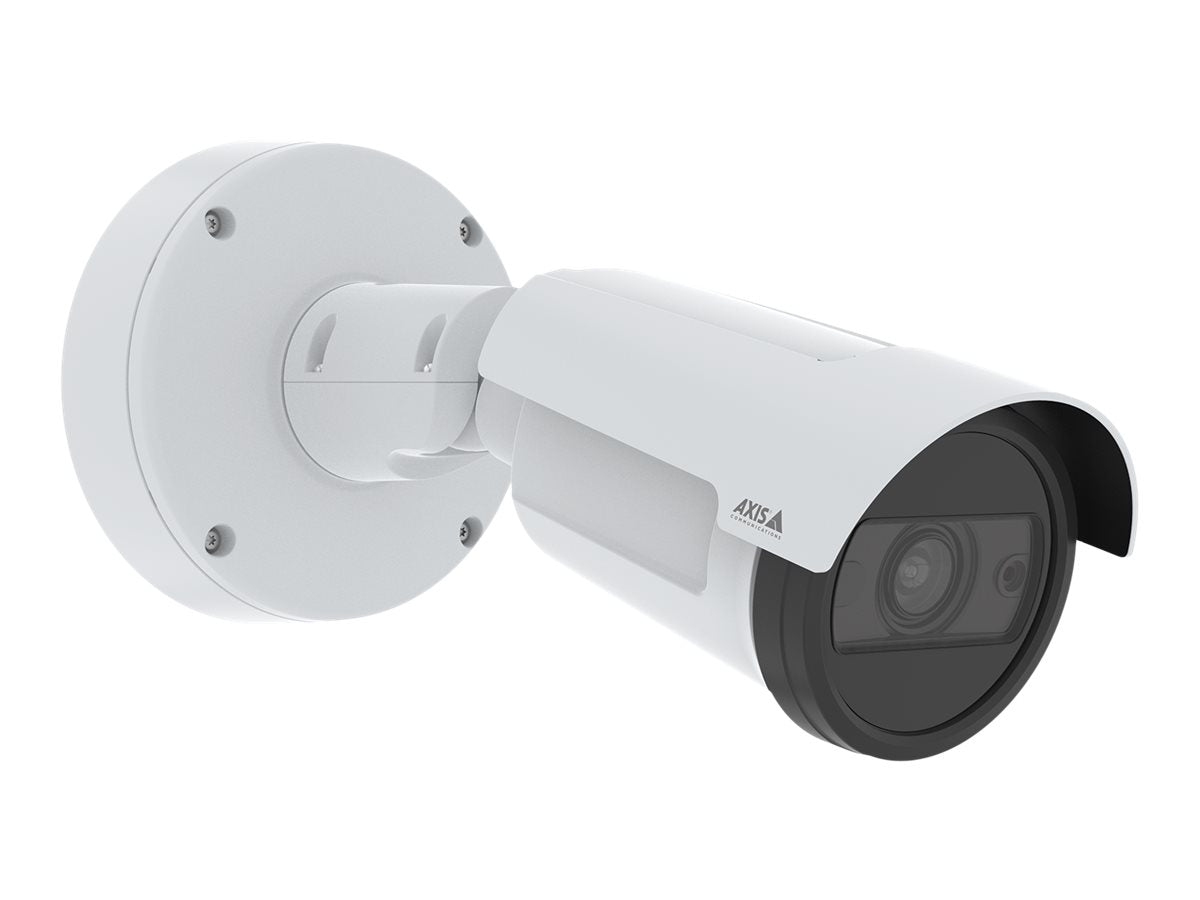

Axis P1468-LE 4K (8MP) Fixed Bullet, 6-13MM VF Lens DLPU, WDR, LIGHTFINDER 02342-001

Model: P1468-LE

Who This Is For

Security integrators specifying perimeter and long-approach coverage on industrial, logistics, or critical infrastructure sites will find the Axis P1468-LE built for exactly these demands. The 4K 8MP sensor paired with a 6-13mm varifocal lens lets installers dial in the field of view on-site to match the actual approach distance - whether that is a loading dock entrance, a fenced yard perimeter, or a vehicle gate lane. LIGHTFINDER 2.0 handles the low-ambient-light conditions common on unlit industrial sites, while Forensic WDR at up to 120dB keeps headlights and background glare from washing out vehicle detail. The onboard Deep Learning Processing Unit runs AXIS Object Analytics locally, classifying humans and vehicles without relying on server-side processing. For integrators who need a future-proof 4K outdoor bullet with on-camera intelligence and a hardened IP66/IP67, NEMA 4X, IK10 housing, the P1468-LE is a serious specification-grade option.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Integrators: Specifying perimeter cameras for water treatment facilities, energy sites, and transport hubs where IK10 housing and NEMA 4X certification are mandatory project requirements.
• Logistics and Freight Operators: Covering vehicle gate entries and loading dock approaches where 4K resolution and 120dB WDR deliver usable plate and driver detail even with truck headlights facing the camera.
• Mining and Industrial Site Managers: Installing on external compounds in remote or harsh-climate locations where the -40°C to 60°C operating range and dust/water resistance eliminate the need for additional enclosures.
• Security System Designers Reducing Server Load: Deploying on-camera AXIS Object Analytics via the DLPU to reduce reliance on VMS-side analytics processing, keeping alert pipelines clean without upgrading server infrastructure.
• Local Government and Utilities: Covering external yards, pump stations, and unmanned facilities where long-term durability and reliable low-light performance matter more than upfront cost savings.

Honest Assessment

The P1468-LE does several things at a genuinely high level. The combination of 4K resolution, LIGHTFINDER 2.0, and 120dB Forensic WDR in a single outdoor bullet is specification-grade, and the onboard DLPU running AXIS Object Analytics is a real differentiator for sites that need local edge processing rather than server-dependent analytics. The IK10 and IP66/67 housing is built for long-term outdoor deployment without compromise. Where the P1468-LE is not the right tool: it is a fixed-direction camera, so wide-area scanning or active tracking requires a PTZ positioned alongside it. At 4K, bandwidth and storage demands are significantly higher than a 2MP or 4MP equivalent - storage planning is essential before deployment. It operates on IEEE 802.3bt PoE++, so verify your switch ports and budget before ordering. This camera is available through Security Australia and suits integrators and end users who need proven performance rather than the lowest entry price.

Before You Buy

Quick Fit Check

• Good match if: You are covering a fixed outdoor approach, gate entry, or perimeter zone where 4K detail, on-camera object classification, and a hardened IK10 housing are required and your switch infrastructure supports IEEE 802.3bt PoE++.
• Good match if: Your site has challenging lighting - strong backlight, vehicle headlights, or minimal ambient light - where the 120dB Forensic WDR and LIGHTFINDER 2.0 will produce usable footage where standard cameras fail.
• You may need a different model if: Your application requires active wide-area scanning, optical zoom during an event, or continuous pan and tilt tracking - a PTZ camera from the Axis range would be more appropriate for those coverage requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4K resolution, on-camera deep learning object classification, and a fully hardened IK10/IP67 housing in a single outdoor bullet - particularly where edge analytics must operate independently of server infrastructure.
• You may need a different model if: Your application requires active pan, tilt, or optical zoom tracking - a PTZ camera provides those capabilities where a fixed-direction bullet cannot follow movement across a wide area.
• Pairs well with: IEEE 802.3bt-capable PoE++ managed switches, a compatible AXIS or third-party VMS with ONVIF support, and an edge NAS or NVR with adequate storage provisioned for 4K H.265 streams.

Common Questions

1. What are the PoE requirements for the P1468-LE?

   The P1468-LE runs on IEEE 802.3af/802.3at Type 1 Class 3 PoE, drawing typically 7.7 W and a maximum of 12.95 W, so a standard PoE switch port is sufficient. No PoE+ or PoE++ upgrade is required. The camera also accepts a DC input if a local supply is preferred at the mounting point.

2. Will this camera handle direct headlight glare from approaching vehicles at night?

   Yes. The 120dB Forensic Capture WDR is specifically rated for high-contrast scenes including direct light sources. When a vehicle approaches with headlights facing the camera, the WDR processing manages the bright source while retaining visible detail in the surrounding darker areas of the frame - which is critical for vehicle and driver identification in gate entry scenarios.

3. What does DLPU mean and does it affect how I set up the camera?

   DLPU stands for Deep Learning Processing Unit - it is a dedicated hardware chip on the camera's circuit board that runs AI inference locally. In practical terms, it allows AXIS Object Analytics to classify objects as humans or vehicles in real time on the camera itself, without requiring the NVR or a server to perform that processing. During setup, AXIS Object Analytics is configured through the camera's web interface or your VMS, and classification-based triggers are defined there.

4. How much storage does a 4K stream from this camera actually use?

   It depends on compression settings and recording mode. Using H.265 with motion-triggered recording at typical outdoor scene complexity, a single P1468-LE stream might consume roughly 30-80GB per day depending on activity levels and bitrate configuration. Continuous full-bitrate recording at 4K uses significantly more. Security Australia recommends calculating storage at the design stage using Axis's bandwidth and storage calculator tool before specifying your NVR or NAS capacity.

5. Is the varifocal lens motorised or manually adjusted?

   The 6-13mm lens on the P1468-LE is motorised. Focus and zoom are adjusted remotely through the camera's web interface during commissioning, so the installer does not need physical access to the lens housing after mounting. This is particularly useful when the camera is installed at height or in a position that is difficult to reach with a ladder once cabling is complete.

6. Does the P1468-LE work in extreme Australian temperatures?

   Yes. The operating range is -40°C to 60°C, which covers both alpine and outback deployment environments without supplementary heating or cooling. The IP67 rating means the housing also withstands water immersion, and NEMA 4X covers corrosion resistance relevant to coastal or industrial chemical environments.

7. Does the P1468-LE support third-party VMS platforms?

   Yes. The P1468-LE supports ONVIF Profile S and Profile T, making it compatible with the major VMS platforms including Milestone XProtect, Genetec Security Center, Avigilon Control Center, and others. AXIS Object Analytics metadata can be consumed by VMS platforms that support ONVIF metadata streams or Axis VAPIX event integration. Check your VMS vendor's compatibility list for specific version support.

Downloads & Resources

• Axis P1468-LE User Manual
• Axis P1468-LE Datasheet
• Axis P1468-LE Product Page - Axis Communications
