AXIS P1265 MKII 2MP Indoor Modular Pinhole Camera, DLPU, WDR

Model: AXIS P1265 Mk II

Who This Is For

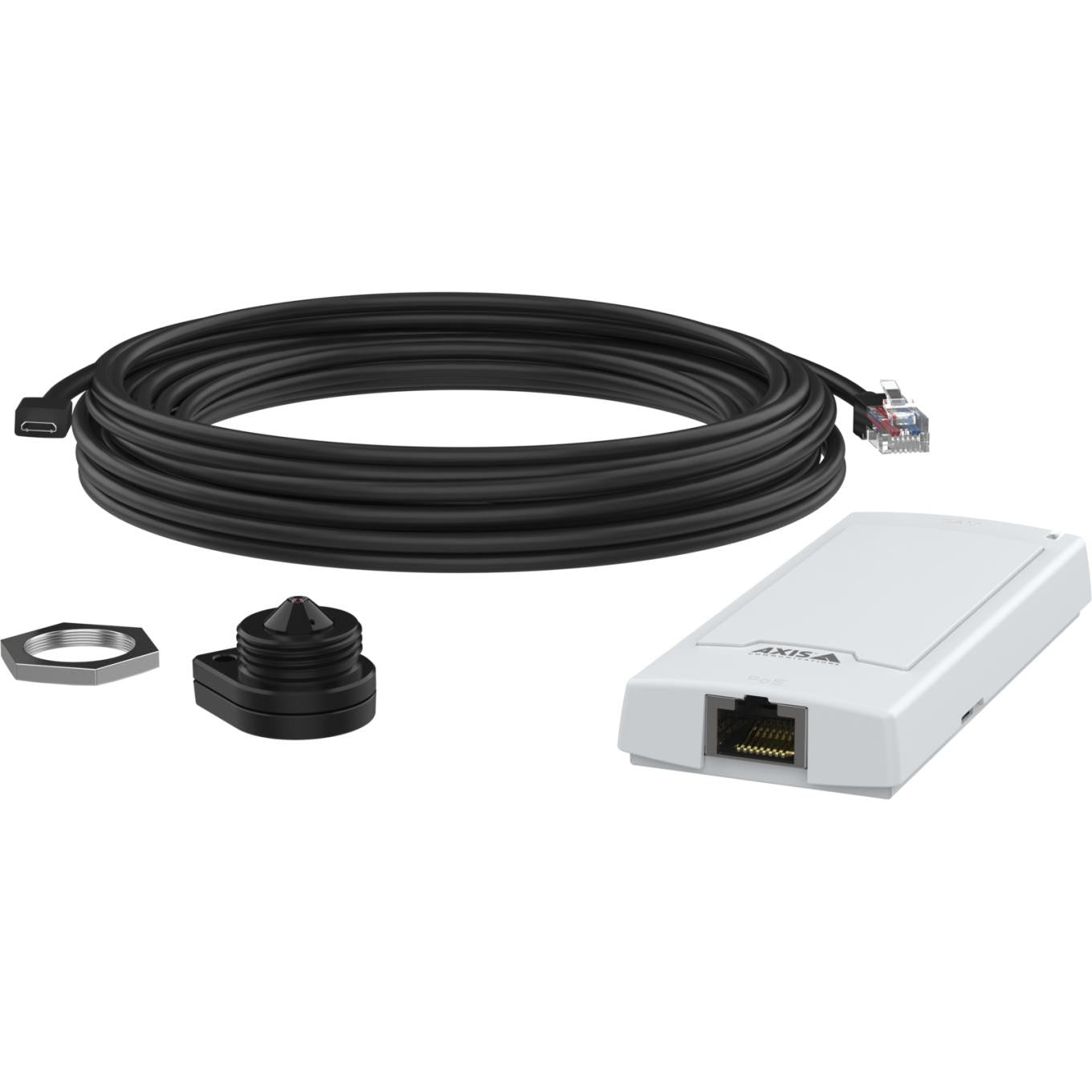

When covert installation without any visible camera housing is the priority, the AXIS P1265 MKII is the product security consultants reach for. Its modular design separates the pinhole sensor unit from the main processing unit, meaning the sensor can be concealed behind a ceiling tile, a wall panel, or a custom fascia with only a pinhole-sized opening visible - or nothing visible at all. This makes it well suited to retail loss prevention environments, corporate reception areas, interview rooms, bank branches, and any space where overt camera placement would alter behaviour or compromise investigation integrity. The DLPU on board enables deep learning-based analytics to run locally without cloud dependency, and WDR handles the mixed lighting conditions common in lobbies and showrooms. Installers specifying discreet fixed surveillance for sensitive commercial or government interiors will find the P1265 MKII a purpose-built fit for that brief.

What This Camera Actually Does

Who Buys This Model

• Retail Loss Prevention Teams: Conceal sensors in ceiling panels or display fixtures to monitor till areas and high-value bays without alerting staff or customers to coverage zones during an active investigation.
• Corporate Security Managers: Specify the P1265 MKII for reception desks, executive floors, and boardrooms where overt camera hardware would be considered intrusive or aesthetically unacceptable.
• Bank and Financial Branch Integrators: Install pinhole sensors behind countertop fascias or ceiling tiles to maintain full-frame face capture at teller positions without the compliance and perception issues of visible dome cameras.
• Government and Secure Facility Installers: Use the modular design in interview rooms, evidence storage areas, and access corridors where camera hardware must be concealed from view for operational security reasons.

Honest Assessment

The AXIS P1265 MKII does one thing other camera formats cannot: it disappears into an environment entirely. The modular pinhole design gives installers genuine flexibility in concealment, and 2MP resolution with WDR means the footage captured is actually useful rather than just present. On-device DLPU adds analytics capability that would normally require a separate server. This is a well-engineered product for a specific, defined use case - available through Security Australia as part of the Axis Communications range.

Where it will not serve well: this is an indoor-only camera with no IR illumination, so it depends entirely on ambient lighting. It is not designed for general-purpose outdoor installation, long-range coverage, or perimeter monitoring. If the requirement is wide-area coverage, a multi-sensor or PTZ camera will cover more ground per unit. The modular installation also requires more planning and cable routing time than a standard dome or turret, so labour costs on larger deployments should be factored into the project budget.

Before You Buy

Quick Fit Check

• Good match if: You are installing in a finished commercial interior where no visible camera hardware is acceptable and you have ceiling or wall cavity access to route the modular sensor cable.
• Good match if: The site requires on-device analytics processing without cloud dependency, and the DLPU capability needs to run at the edge on a camera that cannot be seen.
• You may need a different model if: The installation is outdoors, in a low-light environment without reliable ambient lighting, or requires wide-area or long-range coverage - a fixed dome, bullet, or multi-sensor camera type would be more suitable for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The installation requires a fully concealed camera with no visible housing, and the environment has consistent ambient lighting throughout operating hours.
• You may need a different model if: Coverage needs to extend across a wide area, into low-light conditions, or outdoors - a fixed dome, turret, or multi-sensor camera type will serve those scenarios better and is worth comparing on the Security Australia site.
• Pairs well with: A compatible Axis NVR or VMS platform that can receive and manage the on-device analytics events generated by the DLPU, along with a PoE switch sized to the number of modular units being deployed.

Common Questions

1. Will this camera work if the room is dark or the lights are turned off?

   No. The P1265 MKII has no built-in IR illumination and relies entirely on ambient light in the scene. If the installation environment has periods of complete or near-complete darkness - such as a retail store after closing - the camera will not produce usable footage during those periods. This is an indoor daylight and artificial-light camera; supplementary lighting or a different camera type with IR is required for low-light scenarios.

2. Does this camera work for covert surveillance in a finished ceiling without drilling a large hole?

   Yes. The pinhole lens aperture is designed to require only a very small opening in a ceiling tile or panel - far smaller than a dome or turret housing. The modular design routes the sensor cable through the cavity to the main unit, which mounts out of sight. This makes it practical for use in finished commercial ceilings where a full cutout for a dome housing is not acceptable or not structurally possible.

3. What does the DLPU actually do, and does it require a cloud connection?

   No cloud connection is required. The DLPU (Deep Learning Processing Unit) is a dedicated on-device processor built into the P1265 MKII that runs deep learning-based analytics locally on the camera itself. This means object classification and detection events are processed at the edge, with results passed to a connected NVR or VMS. It reduces dependency on server processing and suits installations in network-restricted or air-gapped environments where sending video off-site is not permitted.

4. How does WDR help in a lobby or retail environment?

   WDR (Wide Dynamic Range) allows the camera to capture both bright and dark areas of a scene simultaneously without one overexposing the other. In a lobby with glazed windows, for example, the camera can expose correctly for a person standing near the bright entrance while also retaining detail in the shadowed interior behind them. Without WDR, the bright zone would wash out or the dark zone would become unreadable. For the face-capture use cases the P1265 MKII is typically specified for, this is a meaningful practical difference in footage quality.

5. Is the AXIS P1265 MKII legal to use for covert surveillance in Australia?

   That is a legal compliance question that goes beyond the scope of a product specification. Covert surveillance laws in Australia vary by state and territory and by the type of premises, the purpose of surveillance, and whether employees or the public are being monitored. Before deploying any covert camera, the responsible party should obtain independent legal advice specific to their jurisdiction and use case. The camera itself is a standard commercial product stocked by Security Australia - how and where it is deployed is the responsibility of the operator and installer.

6. Does this camera support PoE power?

   Yes. The AXIS P1265 MKII is powered via PoE, meaning a single network cable carries both data and power to the main unit. No separate power supply is required at the camera end. Standard PoE infrastructure - a PoE switch or PoE injector - is sufficient. This simplifies installation particularly in finished ceiling environments where running a separate power circuit alongside the network cable would be difficult or cost-prohibitive.
