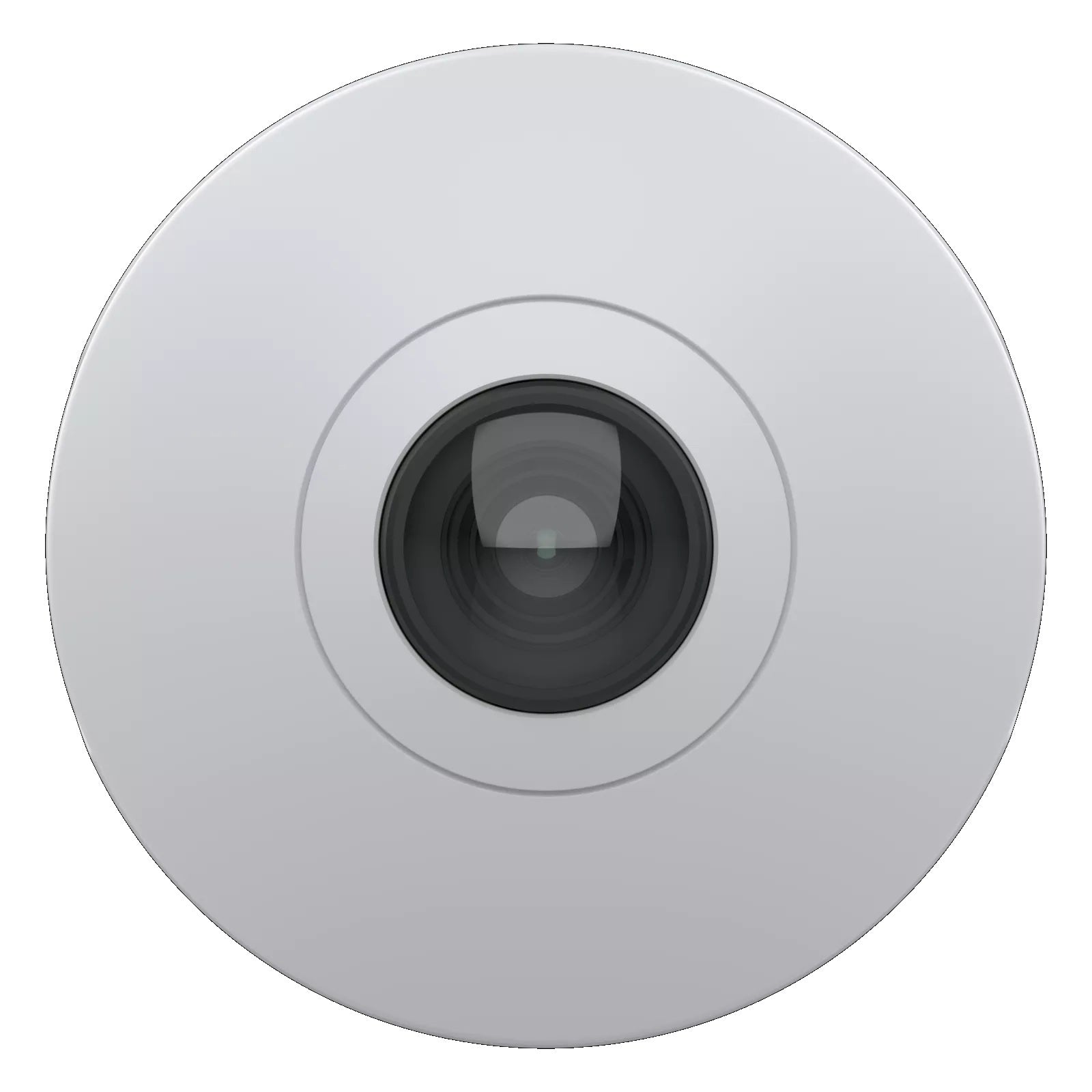

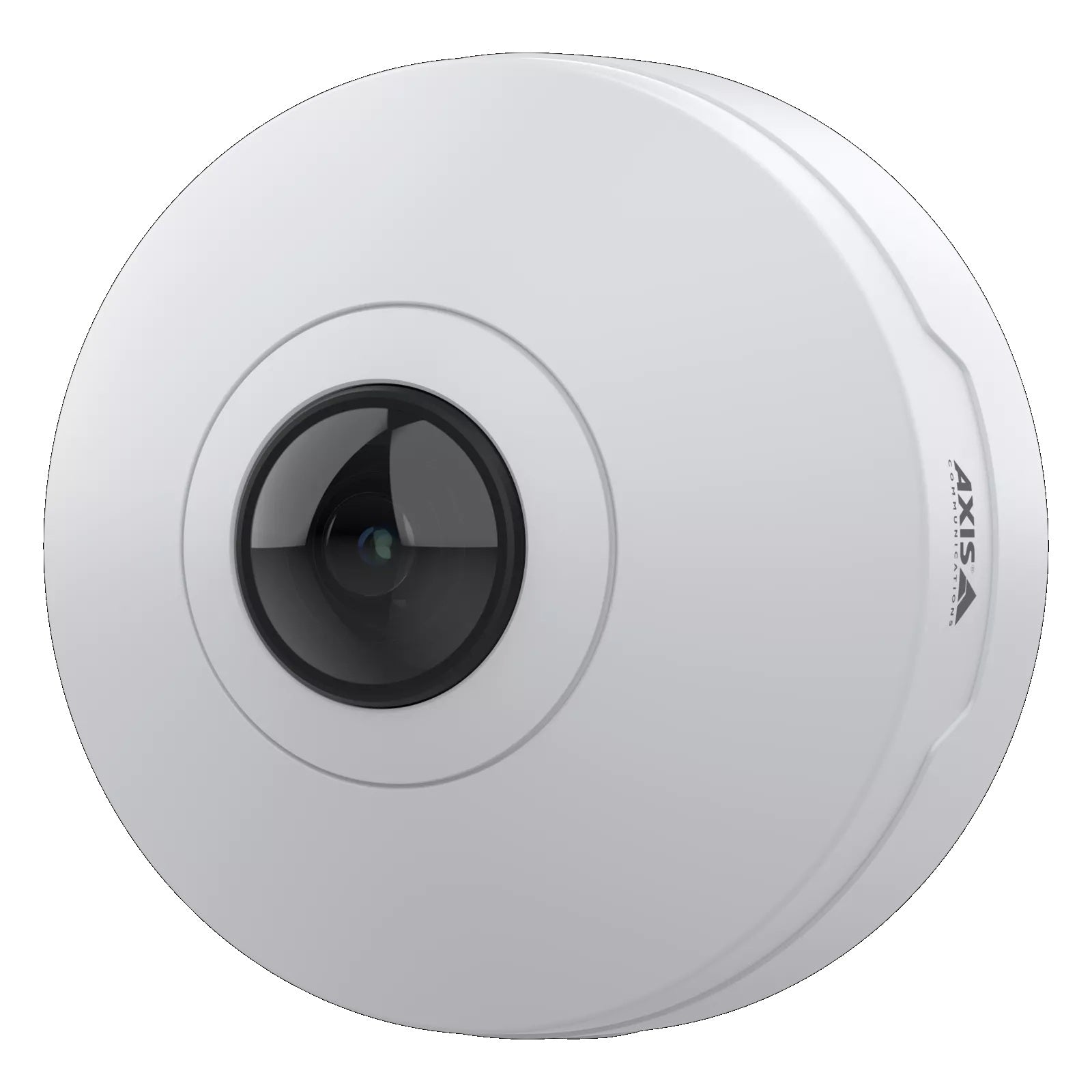

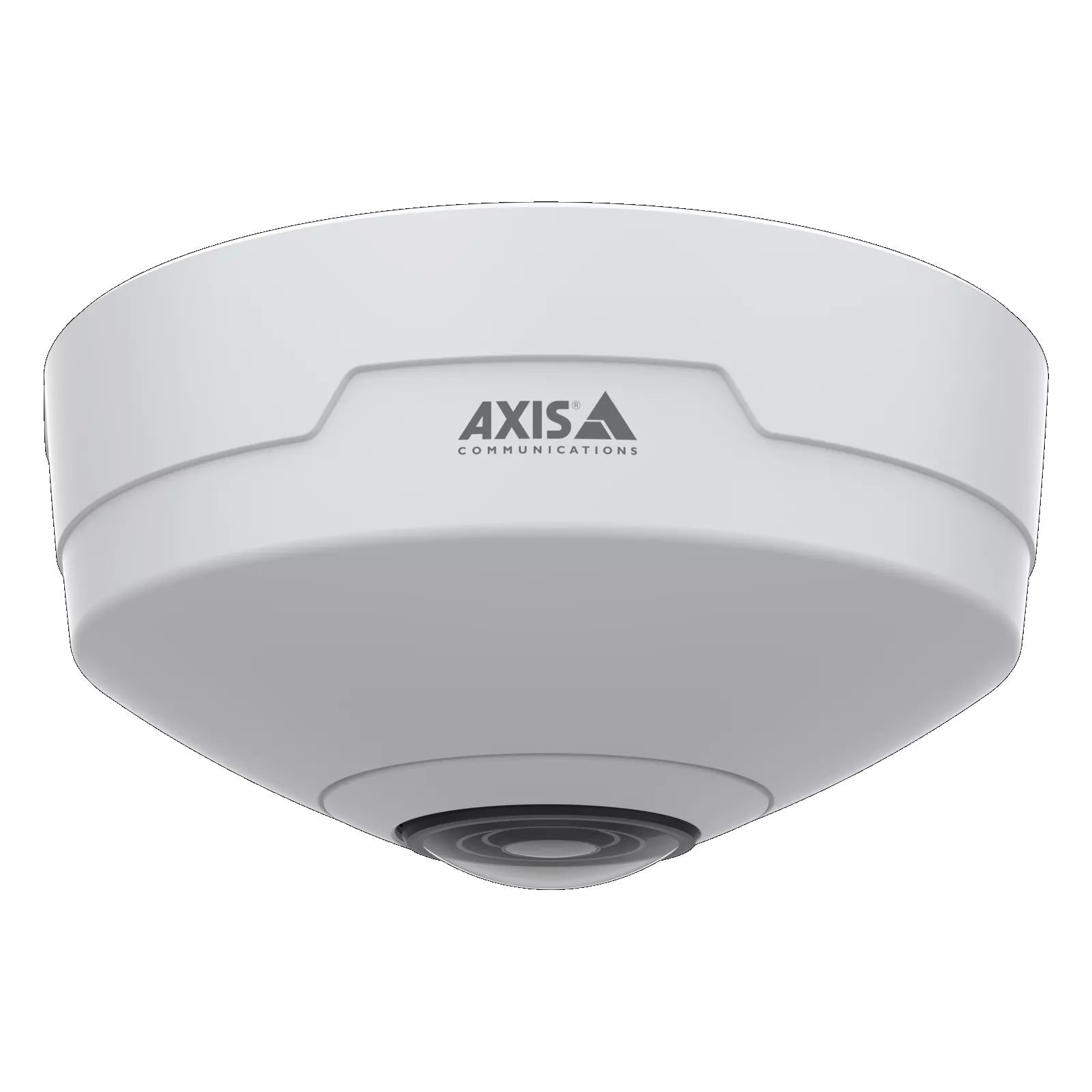

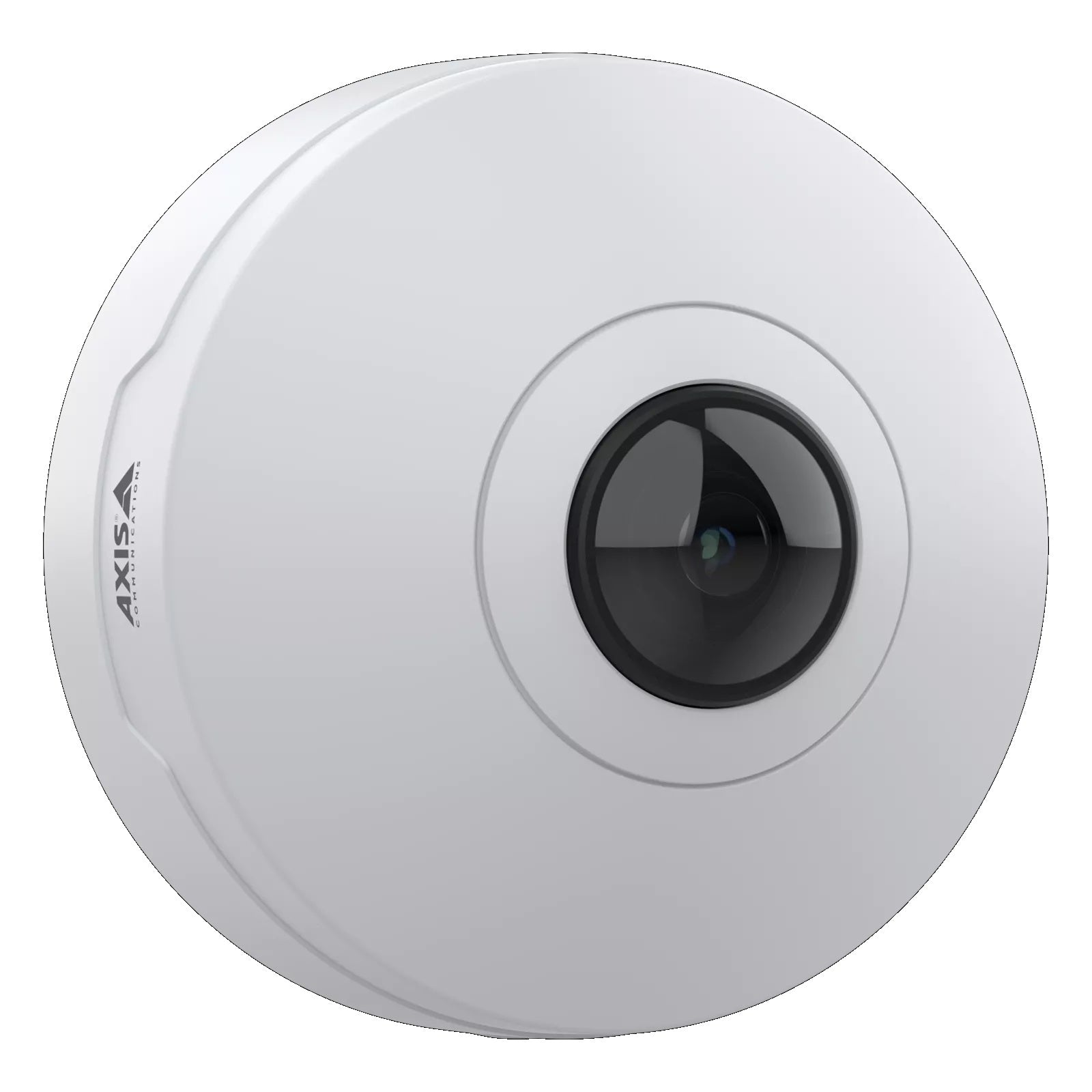

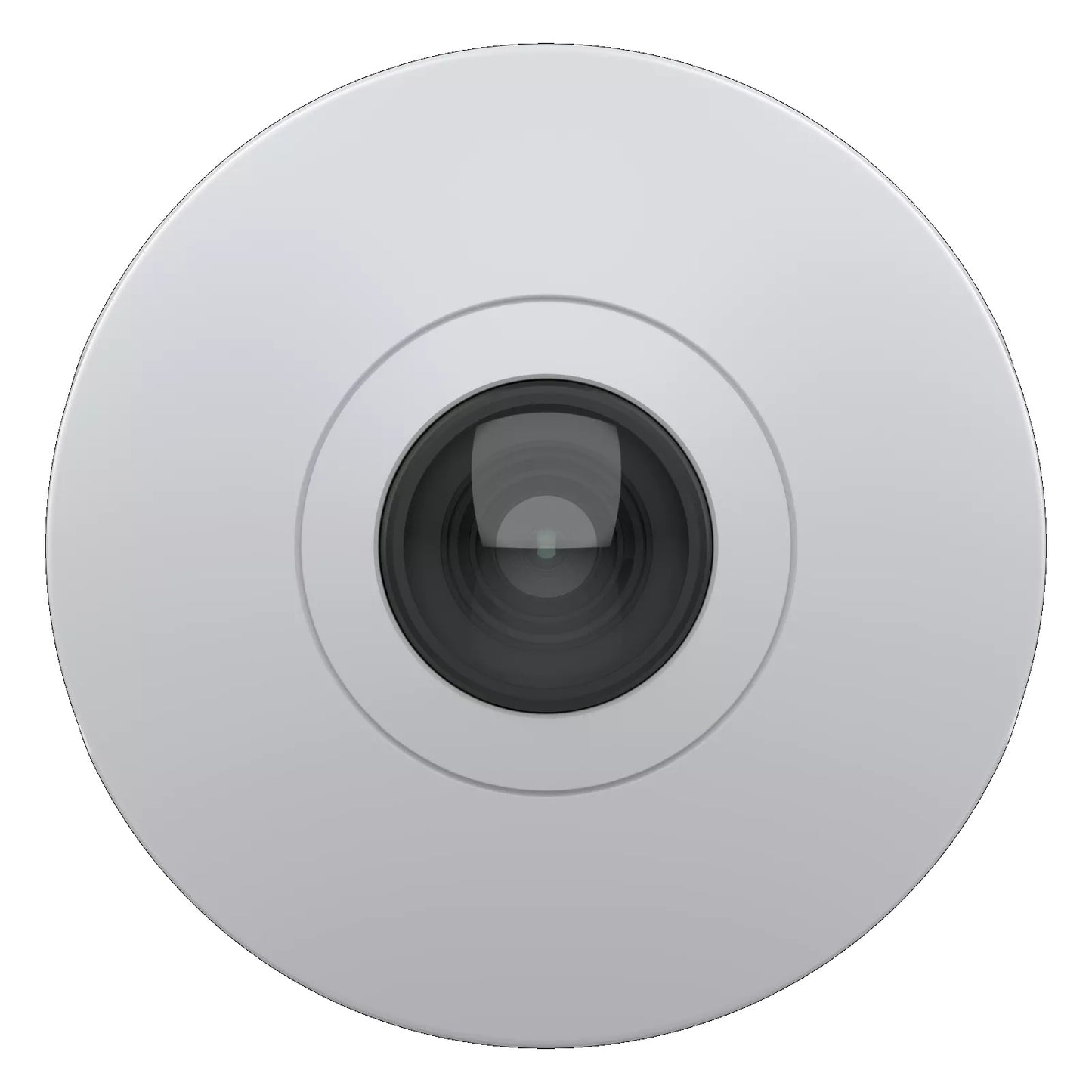

AXIS M4328-P 12MP Indoor Panoramic Camera with 360° Overview, Deep Learning Analytics, Forensic WDR, Built-in Microphone

Model: M4328-P

Who This Is For

Security managers specifying indoor overviews for large open-plan spaces - open-plan offices, retail floors, transport concourses, or multi-entry lobbies - know that covering the whole room with individual fixed cameras is rarely cost-effective. The AXIS M4328-P is built for exactly this scenario. Its single ceiling-mounted 12MP sensor captures a full 360-degree view, and on-camera deep learning analytics process that image without needing an external server. One camera position replaces several, installation labour drops, and the forensic WDR engine keeps detail usable even when bright windows and dark interior zones appear in the same frame. The built-in microphone adds an audio record to every scene. This is a product for buyers who have already decided a panoramic fisheye is the right approach and now need to confirm whether the M4328-P has the resolution, analytics capability, and dewarping flexibility their application actually demands.

What This Camera Actually Does

Who Buys This Model

• Open-Plan Office IT/Facilities Teams: Covering large floor plates from a single ceiling drop point, keeping cable runs and camera count low while deep learning analytics flag after-hours intrusions without requiring a dedicated analytics server.
• Retail Loss Prevention Managers: Monitoring the full sales floor from one overhead position, then using dewarped corridor views for specific aisle oversight and the audio record to support incident documentation.
• Transport and Venue Operators: Covering concourse entries, ticketing halls, or waiting areas where standard cameras would require 3-4 positions to match the same coverage footprint, and where Forensic WDR handles mixed daylight and artificial lighting.
• System Integrators on AXIS VMS Deployments: Installers already running AXIS Camera Station or AXIS Camera Station Pro who need a panoramic node that delivers on-camera analytics and dewarped streams natively without additional licensing overhead.

Honest Assessment

The M4328-P does its best work where a single overhead mount needs to cover a wide open area and the buyer wants analytics that run without depending on a server. The 12MP sensor gives the panorama enough resolution that dewarped regions remain useful for review, and Forensic WDR keeps the image honest in the mixed-lighting interiors where fisheye cameras are most commonly deployed. On-device deep learning is a genuine operational advantage for sites where server infrastructure is limited. What the M4328-P will not do: it has no IR illumination, so low-light performance depends entirely on available ambient light - if the space goes dark, you need supplementary lighting. It is also an indoor-rated unit, so outdoor or exposed undercover applications require a different housing. For sites needing perimeter line detail or long-distance identification at a specific point rather than wide-area overview, a higher-resolution fixed or multi-sensor camera stocked by Security Australia would serve better.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open-plan indoor space from a single ceiling position and need on-camera deep learning analytics to classify people and vehicles without routing the load to a separate server.
• Good match if: Your site has mixed or high-contrast lighting - glass facades, skylights, or bright display lighting beside dark aisles - where Forensic WDR is needed to keep both zones usable in a single fisheye frame.
• You may need a different model if: Your application is outdoors or in a partially exposed area, or if the space goes dark overnight - a multi-sensor panoramic camera with weatherproof housing and built-in IR illumination would be a better fit for those conditions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single ceiling mount to deliver full 360-degree indoor coverage with on-camera deep learning analytics and the flexibility to present dewarped corridor or quad views to your VMS without server-side processing.
• You may need a different model if: Your site is outdoors or has zero ambient light overnight - a weatherproof multi-sensor panoramic camera with built-in IR illumination is the appropriate product type for those conditions.
• Pairs well with: A compatible PoE network switch for clean single-cable installation, and an AXIS-native or ONVIF-compliant NVR that supports fisheye dewarping to get the full benefit of the multiple view modes.

Common Questions

1. Does the M4328-P work in low-light or dark environments?

   No. The M4328-P has no built-in IR illumination, so it depends entirely on ambient light to produce a usable image. In well-lit commercial interiors it performs well, and Forensic WDR handles mixed lighting conditions effectively. However, if the monitored space goes fully dark after hours, you will need supplementary lighting at the ceiling level or a different camera type with integrated IR or low-light sensor technology.

2. Will this camera work with my existing NVR or VMS?

   It depends on your platform's fisheye support. The M4328-P streams standard H.264 and H.265 video and is ONVIF-compatible, so most NVRs will receive the raw fisheye stream without issue. However, to access dewarped panorama, quad, or corridor views, your VMS needs to support AXIS fisheye dewarping natively or via a certified driver. Confirm this with your VMS vendor before installation if dewarped views are a requirement for your operators.

3. What does the deep learning analytics actually detect on-camera?

   AXIS Object Analytics running on the built-in DLPU classifies humans and vehicles. It supports scenario types including line crossing, area intrusion, and occupancy in defined zones. Because the processing happens on-device, detection events and metadata are generated without routing video to an analytics server - the camera sends alarm triggers and object data directly to your VMS or edge recorder. This is confirmed functionality, not an optional add-on requiring a separate licence for basic scenarios.

4. How does the 360-degree fisheye dewarping work - what views can operators actually see?

   The M4328-P captures a single circular fisheye image from the ceiling. That raw image is then corrected by the camera or VMS into usable perspectives. Available modes include a full 360-degree panoramic strip, a quad view splitting the circle into 4 directional regions, individual dewarped views for each direction, and AXIS Corridor Format portrait streams for long narrow spaces. Operators can switch between these views in supported VMS platforms without changing any physical camera setting. The raw fisheye stream is also always available for forensic review if a wider context is needed.

5. What DORI distances should I expect from the 12MP fisheye sensor?

   DORI performance on a fisheye camera is fundamentally different from a directional fixed camera. Because the 12MP pixel budget is distributed across the full 360-degree circle, the effective pixel density at any given point in the scene is significantly lower than a 12MP camera pointed at a narrow field. Detection and observation ranges are the practical working distances for this camera type. Recognition and identification - the distances where face detail is usable - are much shorter than a fixed camera of equivalent resolution. The M4328-P is specified as an overview and area-monitoring device; for identification-grade coverage at a specific doorway or entry point, a dedicated fixed camera at that position remains the correct approach. Available through Security Australia, fixed cameras can be paired with the M4328-P to combine wide-area awareness with targeted identification coverage.

6. Does the M4328-P require PoE+ or standard PoE?

   Standard PoE (IEEE 802.3af) is sufficient. The M4328-P does not require PoE+ (802.3at), which means it is compatible with a wider range of standard PoE switches without needing to confirm per-port wattage budgets beyond the standard 15.4W allocation. A single Cat5e or Cat6 cable to a standard PoE switch port carries both power and data, keeping the installation clean with no local power supply required at the ceiling.

7. Can this camera be used outdoors?

   No. The M4328-P is rated for indoor installation. It is not weatherproof and is not designed for exposure to rain, dust, or temperature extremes typical of Australian outdoor environments. For outdoor panoramic coverage - building perimeters, car parks, or exposed walkways - a weatherproof panoramic or multi-sensor camera with an appropriate IP rating is the correct product type.

Downloads & Resources

No downloads available for this product.
