6 MP dome with 360° view and deep learning
This discreet mini dome camera, equipped with a 6 MP sensor, provides exceptional image quality and offers a comprehensive 180° or 360° view. It features a stereographic lens and Sharpdome 360 technology for enhanced sharpness at the edges of the image. Built-in IR illumination with individually controllable LEDs ensures clear, reflection-free footage and excellent image quality even in low light or total darkness. The camera's deep learning processing unit supports advanced analytics, including AXIS Object Analytics, which can detect and classify humans, vehicles, and vehicle types. Additionally, Axis Edge Vault protects your device ID and simplifies the authorization of Axis devices on your network.
Key Features
Code/SKU: AXIS M4317-PLVE
Quick Specs:
| Category | Details |
|---|---|
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Lens | - Focal Length: 1.1 mm, F2.2 - Horizontal FOV: 182° - Vertical FOV: 182° - Fixed Iris, IR Corrected, Fixed Focus |
| Day and Night | Automatic IR-cut filter |
| Minimum Illumination | - Color: 0.16 lux at 50 IRE, F2.2 - B/W: 0.03 lux at 50 IRE, F2.2 - 0 lux with IR Illumination on |
| Shutter Speed | 1/33500 s to 0.2 s |
| Camera Angle Adjustment | Digital Roll: ± 180° |
| System on Chip (SoC) | Model ARTPEC-8 |
| Memory | - 2048 MB RAM - 8192 MB Flash |
| Compute Capabilities | Deep Learning Processing Unit (DLPU) |
| Category | Details |
|---|---|
| Video Compression | - H.264 (Baseline, Main, High Profiles) - H.265 (Main Profile) - Motion JPEG |
| Resolution Overview | - 2160x2160 to 160x160 - Panorama: 2560x1440 to 192x72 - Double Panorama: 2560x1920 to 384x288 - Quad View: 2560x1920 to 384x288 |
| View Area | - 1-4: 1920x1440 to 256x144 - Corner Right and Left: 2368x1184 to 192x72 - Double Corner: 2016x2016 to 384x288 - Corridor: 2560x1920 to 256x144 |
| Frame Rate | - 360° Overview (No WDR): 50/60 fps @ 50/60 Hz - 360° Overview and 4 Dewarped Views (With WDR): Up to 25/30 fps @ 50/60 Hz |
| Video Streaming | Multiple, Individually Configurable Streams in H.264, H.265, Motion JPEG Axis Zipstream Technology in H.264 and H.265 Controllable Frame Rate and Bandwidth |
| WDR | Forensic WDR: Up to 120 dB depending on scene |
| Noise Reduction | - Spatial Filter (2D Noise Reduction) - Temporal Filter (3D Noise Reduction) |
| Image Settings | Saturation, Contrast, Brightness, Sharpness, Local Contrast, Tone Mapping, White Balance, Day/Night Threshold, Exposure Mode, Exposure Zones, Compression, Mirroring, Dynamic Text and Image Overlay, Polygon Privacy Mask |
| Image Processing | Axis Zipstream, Forensic WDR, Lightfinder, OptimizedIR |
| Pan/Tilt/Zoom | Digital PTZ of View Areas, Digital PT of Panorama, Corner, Corridor, and Quad Views, Preset Positions, Guard Tours |
| Category | Details |
|---|---|
| Audio Features | Network Speaker Pairing Audio Features through Portcast Technology: Two-way Audio Connectivity, Voice Enhancer |
| Category | Details |
|---|---|
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local Address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| System Integration | - Open API for Software Integration (VAPIX®, Metadata, AXIS Camera Application Platform (ACAP)) - ONVIF® Profile G, M, S, and T - SIP for VoIP Systems |
| Video Management Systems | Compatible with AXIS Companion, AXIS Camera Station, VMS from Axis’ Application Development Partners |
| Onscreen Controls | Privacy Masks |
| Category | Details |
|---|---|
| Event Conditions | - Device Status: Above/Below Operating Temperature, Casing Open, IP Address Removed, Live Stream Active, Network Lost, New IP Address, System Ready, Within Operating Temperature - Edge Storage: Recording Ongoing, Storage Disruption, Storage Health Issues Detected - I/O: Digital Input/Output Active, Manual Trigger, Virtual Input Active - MQTT: Stateless - Scheduled and Recurring: Schedule - Video: Average Bitrate Degradation, Day-Night Mode, Tampering |
| Event Actions | - Day-Night Mode: Use while Rule Active - I/O: Toggle Once, Toggle While Rule Active - Illumination: Use Lights, Use Lights While Rule Active - Images: FTP, HTTP, HTTPS, SFTP, Email, Network Share - MQTT: Publish - Notification: HTTP, HTTPS, TCP, Email - Overlay Text: Use, Use While Rule Active - Recordings: Record Video, Record Video While Rule Active - SNMP Trap Messages: Send, Send While Rule Active - Status LED: Flash, Flash While Rule Active - Video Clips: FTP, HTTP, HTTPS, SFTP, Email, Network Share - WDR Mode: Set, Set While Rule Active |
| Category | Details |
|---|---|
| Built-in Installation Aids | Pixel Counter, Level Grid, Digital Roll |
| Analytics | - Included: AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, Active Tampering Alarm - Supported: AXIS People Counter - Object Classes: Humans, Vehicles (Cars, Buses, Trucks, Bikes) - Scenarios: Line Crossing, Object in Area, Crossline Counting, Occupancy in Area - Up to 10 Scenarios - ONVIF Motion Alarm Event - Polygon Include/Exclude Areas |
| AXIS Scene Metadata | - Object Classes: Humans, Faces, Vehicles (Cars, Buses, Trucks, Bikes) - Object Attributes: Vehicle Color, Confidence, Position |
| Category | Details |
|---|---|
| Product Markings | CSA, UL/cUL, BIS, UKCA, CE, KC |
| Supply Chain | TAA Compliant |
| EMC | - EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61547 - Australia/New Zealand: RCM AS/NZS CISPR 32 Class A - Canada: ICES-3(A)/NMB-3(A) - Japan: VCCI Class A - Korea: KS C 9835, KS C 9832 Class A - USA: FCC Part 15 Subpart B Class A - Railway: IEC 62236-4 |
| Safety | - IEC/EN/UL 62368-1 ed. 3 - CAN/CSA C22.2 No. 62368-1 ed. 3 - IEC/EN 62471 Risk Group Exempt - UN ECE R118 - IS 13252 |
| Environment | - IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 - IEC/EN 62262 IK10 - IEC/EN 60529 IP66 - ISO 4892-2 - NEMA 250 Type 4X - NEMA TS 2 (2.2.7-2.2.9) - ISO 21207 (Method B) |
| Network | NIST SP500-267 |
| Cybersecurity | - ETSI EN 303 645 - Edge Security: Signed OS, Brute Force Delay Protection, Digest Authentication, OAuth 2.0 RFC6749 OpenID Authorization Code Flow - Hardware: Axis Edge Vault Cybersecurity Platform, Secure Element (CC EAL 6+), System-on-Chip Security (TEE), Axis Device ID, Secure Keystore, Signed Video, Secure Boot, Encrypted Filesystem (AES-XTS-Plain64 256bit) - Network Security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, Host-Based Firewall |
| Documentation | - AXIS OS Hardening Guide - Axis Vulnerability Management Policy - Axis Security Development Model - AXIS OS Software Bill of Material (SBOM) |
| Category | Details |
|---|---|
| Casing | IP66, NEMA 4X, IK10-Rated Polycarbonate Hard-Coated Dome Aluminum Color: White NCS S 1002-B Repaintable Skin Cover Accessory |
| Mounting | - Mounting Bracket with Junction Box Holes (Double-Gang, Single-Gang, 4” Octagon) - ¼”-20 UNC Tripod Screw Thread |
| Power | - Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 - Typical: 5.7 W, Max: 12.95 W |
| Connectors | - Network: Shielded RJ45 10BASE-T/100BASE-TX PoE - I/O: Terminal Block for 1 Supervised Alarm Input and 1 Output (12 VDC Output, Max Load 25 mA) - Audio: Audio and I/O Connectivity via Portcast Technology |
| IR Illumination | OptimizedIR with Power-Efficient, Long-Life 850 nm IR LEDs Range of Reach: 20 m (65.6 ft) depending on the Scene |
| Storage | - Support for microSD/microSDHC/microSDXC Card - Recording to Network-Attached Storage (NAS) - For SD Card and NAS Recommendations see axis.com |
| Operating Conditions | - Temperature: -40 °C to 50 °C (-40 °F to 122 °F) - Start-Up Temperature: -30 °C - Humidity: 10-100% RH (Condensing) |
| Storage Conditions | - Temperature: -40 °C to 65 °C (-40 °F to 149 °F) - Humidity: 5-95% RH (Non-Condensing) |
| Dimensions | - Height: 70 mm (2.7 in) - Diameter: 149 mm (5.9 in) - Effective Projected Area (EPA): 0.0076 m² (0.025 ft²) |
| Weight | 860 g (1.9 lb) |
| Box Content | - Camera - Installation Guide - Terminal Block Connector - Connector Guard - Cable Gaskets - Cable Hole Lid - Owner Authentication Key |
| Optional Accessories | - AXIS T8415 Wireless Installation Tool - AXIS T94T02D Pendant Kit - AXIS TM3814 Skin Cover Black - AXIS TM3204 Recessed Mount - AXIS TM3206 Recessed Mount - AXIS Mounts and Cabinets - AXIS Surveillance Cards - For More Accessories, Visit axis.com |
| System Tools | - AXIS Site Designer - AXIS Device Manager - Product Selector - Accessory Selector - Lens Calculator |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

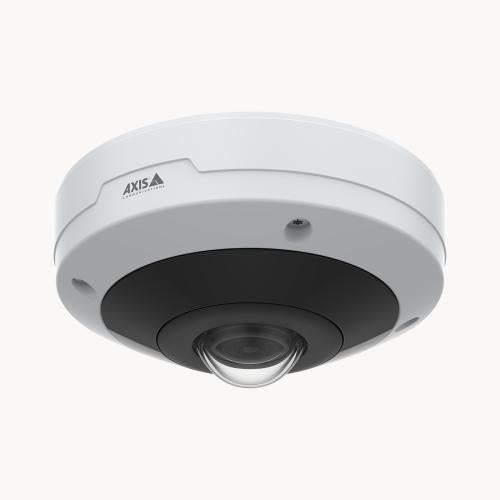

AXIS M4317-PLVE Panoramic Camera 6 MP dome with 360° view and deep learning
The AXIS M4317-PLVE Panoramic Camera is a cutting-edge surveillance solution designed for comprehensive coverage in a variety of settings. It features a 4K resolution sensor, delivering exceptional image clarity and detail. With its 180-degree panoramic view, this camera ensures wide-area surveillance with minimal blind spots. The integrated 4K sensor allows for detailed and accurate monitoring, even in challenging lighting conditions. Its built-in Lightfinder technology enhances color images in low light, while the WDR (Wide Dynamic Range) feature manages complex lighting scenarios, ensuring balanced image quality. The AXIS M4317-PLVE is equipped with edge storage capabilities, enabling local recording directly on the camera. This model supports Power over Ethernet (PoE) for streamlined installation, eliminating the need for separate power supplies. It includes built-in IR illumination for effective night-time surveillance, providing clear images even in complete darkness. The camera’s compact design makes it suitable for various installation environments, including indoor and outdoor applications. Its weatherproof casing (IP66-rated) ensures durability and reliability in harsh weather conditions. The AXIS M4317-PLVE supports remote access and control through Axis' user-friendly software, enhancing operational convenience. It is also compatible with Axis' Camera Application Platform (ACAP), allowing for customization with additional applications. This camera includes intelligent analytics features such as motion detection and line crossing detection, enhancing security monitoring capabilities. The device's tamper detection alerts users to potential vandalism or tampering attempts. It offers high flexibility in mounting options, including wall and ceiling installations. Overall, the AXIS M4317-PLVE Panoramic Camera is a versatile, high-performance solution designed to meet the demanding needs of modern surveillance systems.
Sharp images
Featuring a stereographic lens and Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 6 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. Plus, Lightfinder ensures lifelike colors in low light. With day/night functionality and built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage and excellent image quality even in low light or complete darkness. Furthermore, AXIS M4317-PLVE supports digital PTZ views as well as dewarped views such as panorama, quad, corner, and corridor.
Deep learning on the edge
This high-performance camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before—on the edge. Additionally, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify humans, vehicles, and types of vehicles—all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Secure and easy
Built on ARTPEC-8, AXIS M4317-PLVE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This discreet, compact mini dome blends seamlessly into any environment. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements.
Features
Panoramic View: Offers a 180° panoramic view, providing comprehensive coverage of large areas with a single camera.
High Resolution: Equipped with a 6 MP sensor for high-resolution image capture, ensuring clear and detailed video footage.
Wide Dynamic Range (WDR): Features WDR technology to handle challenging lighting conditions and ensure clear visibility in both bright and dark areas of the scene.
Optimized for Low Light: Includes Lightfinder technology, allowing the camera to deliver high-quality color images even in low-light conditions.
Built-in IR Illumination: Integrated IR LEDs provide up to 20 meters (65.6 feet) of illumination for clear night-time surveillance.
Weatherproof Design: Rated IP66 and NEMA 4X, making it suitable for use in harsh outdoor environments.
H.265 Compression: Supports H.265 video compression to reduce bandwidth and storage requirements without compromising video quality.
Edge Storage: Features onboard storage for local recording and redundancy in case of network disruptions.
Flexible Installation: Includes various mounting options and supports Power over Ethernet (PoE) for easy installation and reduced cabling.
Edge Analytics: Equipped with built-in analytics, such as motion detection, to enhance surveillance capabilities.
Remote Management: Compatible with AXIS Camera Station and other third-party video management software for easy monitoring and control.
Tamper Detection: Alerts users if the camera is being tampered with or obstructed, ensuring the integrity of the surveillance system.
| Category | Details |
|---|---|
| Video Compression | - H.264 (Baseline, Main, High Profiles) - H.265 (Main Profile) - Motion JPEG |
| Resolution Overview | - 2160x2160 to 160x160 - Panorama: 2560x1440 to 192x72 - Double Panorama: 2560x1920 to 384x288 - Quad View: 2560x1920 to 384x288 |
| View Area | - 1-4: 1920x1440 to 256x144 - Corner Right and Left: 2368x1184 to 192x72 - Double Corner: 2016x2016 to 384x288 - Corridor: 2560x1920 to 256x144 |
| Frame Rate | - 360° Overview (No WDR): 50/60 fps @ 50/60 Hz - 360° Overview and 4 Dewarped Views (With WDR): Up to 25/30 fps @ 50/60 Hz |
| Video Streaming | Multiple, Individually Configurable Streams in H.264, H.265, Motion JPEG Axis Zipstream Technology in H.264 and H.265 Controllable Frame Rate and Bandwidth |
| WDR | Forensic WDR: Up to 120 dB depending on scene |
| Noise Reduction | - Spatial Filter (2D Noise Reduction) - Temporal Filter (3D Noise Reduction) |
| Image Settings | Saturation, Contrast, Brightness, Sharpness, Local Contrast, Tone Mapping, White Balance, Day/Night Threshold, Exposure Mode, Exposure Zones, Compression, Mirroring, Dynamic Text and Image Overlay, Polygon Privacy Mask |
| Image Processing | Axis Zipstream, Forensic WDR, Lightfinder, OptimizedIR |
| Pan/Tilt/Zoom | Digital PTZ of View Areas, Digital PT of Panorama, Corner, Corridor, and Quad Views, Preset Positions, Guard Tours |
| Category | Details |
|---|---|
| Audio Features | Network Speaker Pairing Audio Features through Portcast Technology: Two-way Audio Connectivity, Voice Enhancer |
| Category | Details |
|---|---|
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local Address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| System Integration | - Open API for Software Integration (VAPIX®, Metadata, AXIS Camera Application Platform (ACAP)) - ONVIF® Profile G, M, S, and T - SIP for VoIP Systems |
| Video Management Systems | Compatible with AXIS Companion, AXIS Camera Station, VMS from Axis’ Application Development Partners |
| Onscreen Controls | Privacy Masks |
