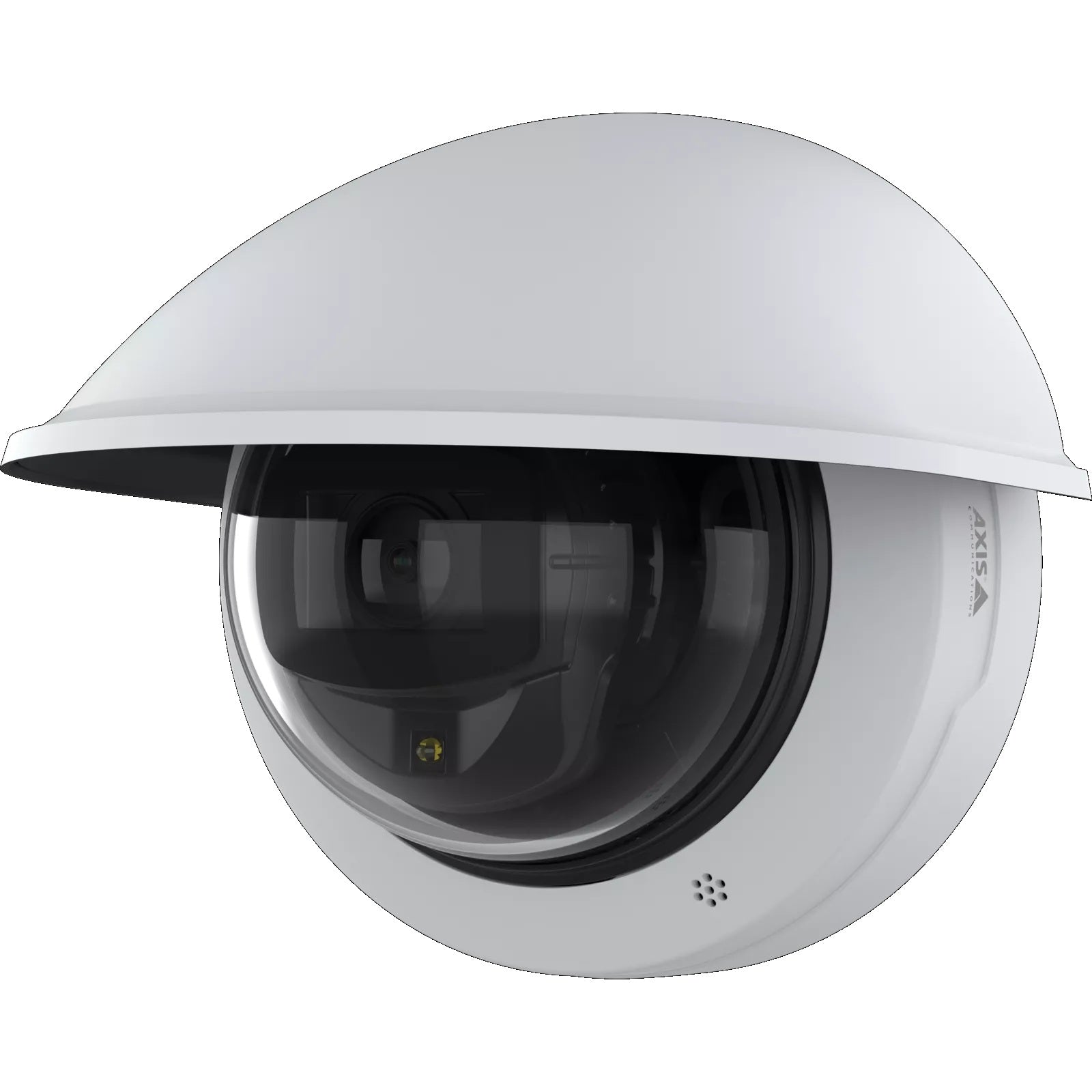

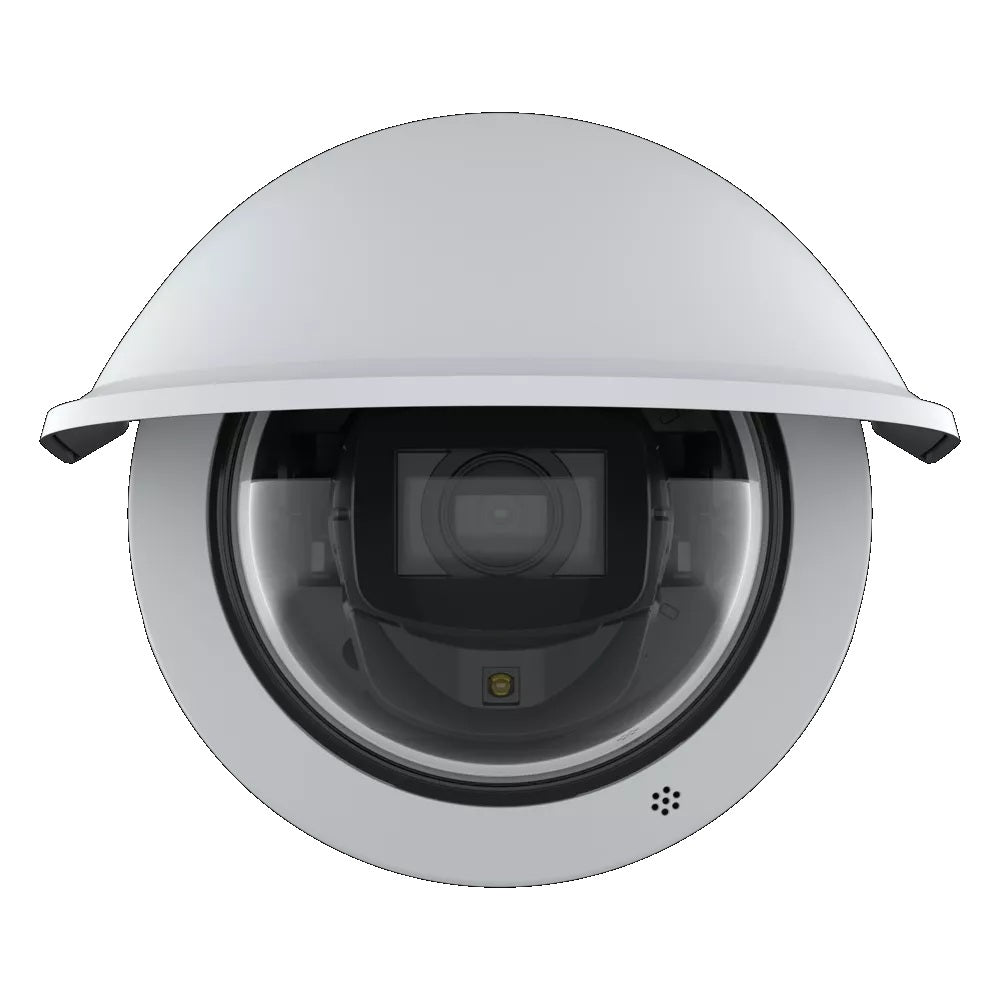

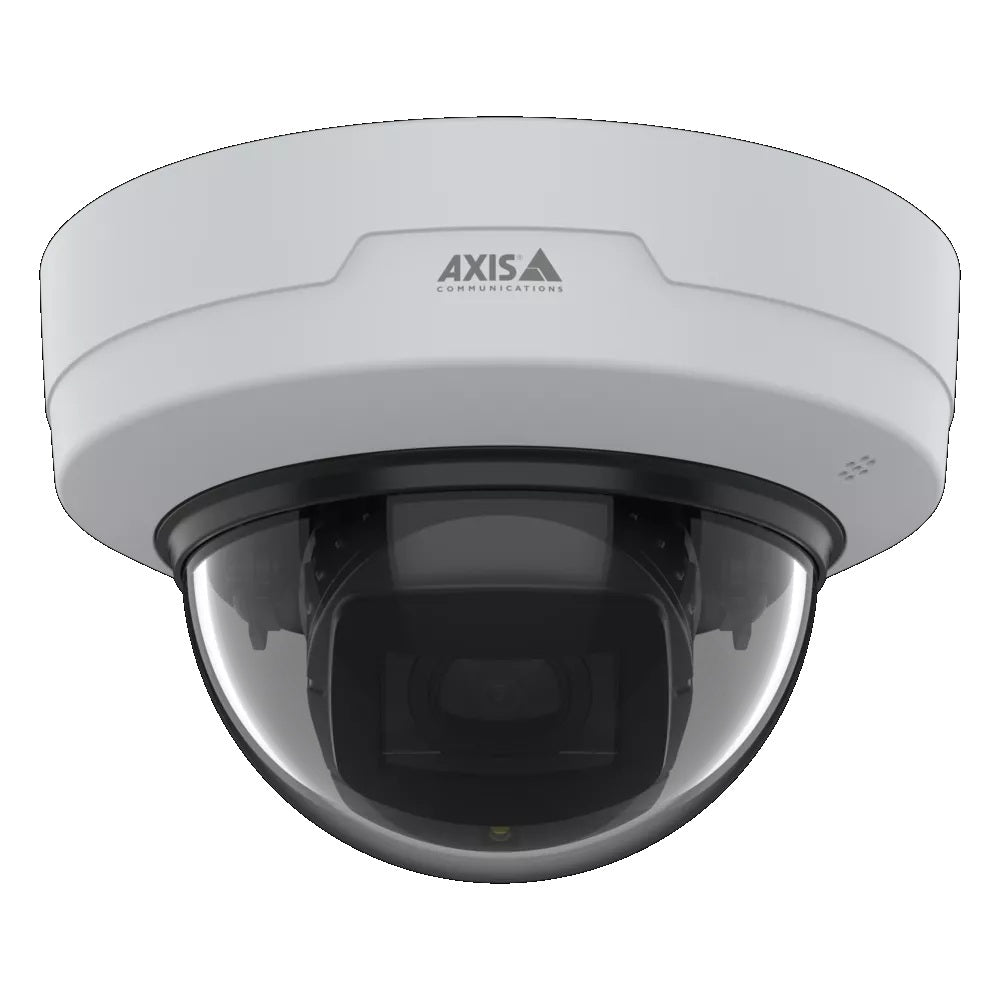

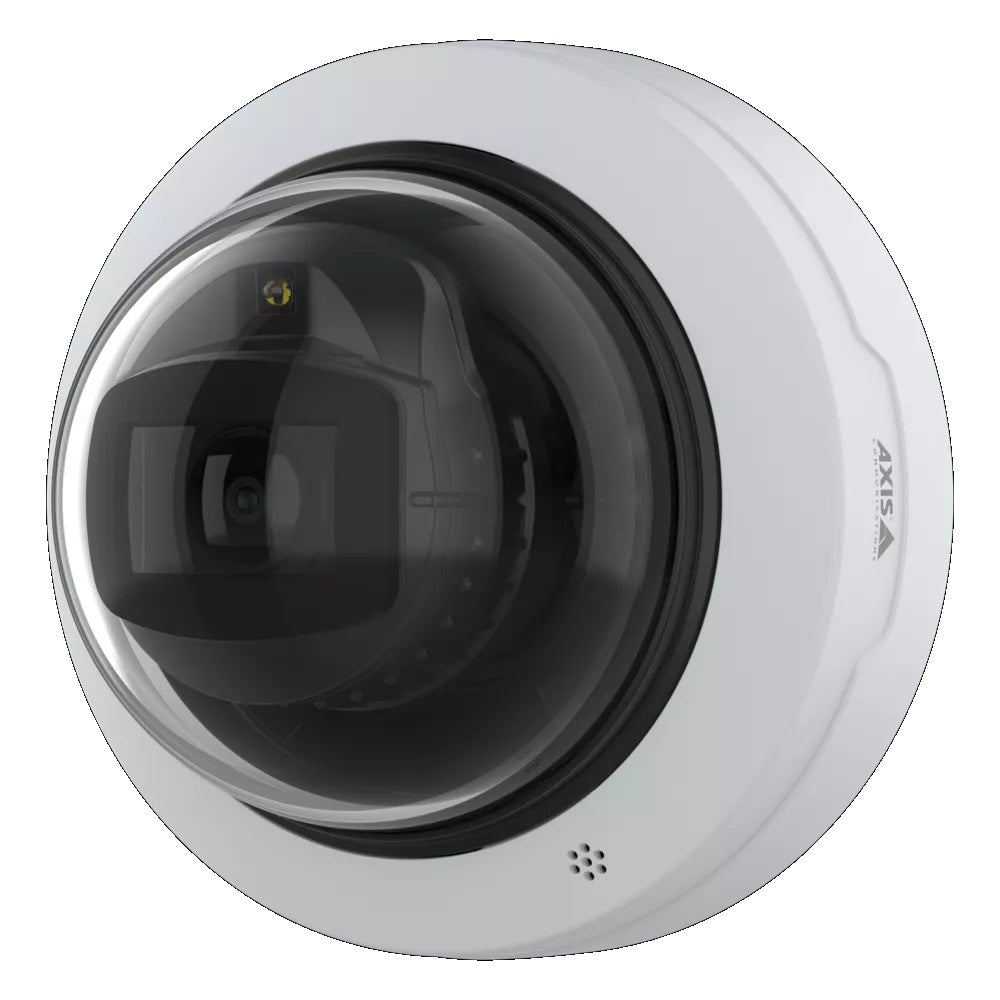

AXIS M4225-LVE 2MP AI-Powered Dome Camera with Varifocal Lens, Lightfinder 2.0, Forensic WDR, OptimizedIR, IP66/IK10 Rating

Model: M4225-LVE

Who This Is For

Property managers specifying surveillance for outdoor areas that demand both image quality and analytical accuracy will find the AXIS M4225-LVE a well-matched option. This is a 2MP outdoor dome camera built around a varifocal lens, giving installers the flexibility to dial in the precise field of view at commissioning without repositioning the mount. Lightfinder 2.0 handles genuinely low ambient light, while Forensic WDR manages scenes with strong contrast - think covered carpark entries, building facades, or retail loading zones where headlights and shadows coexist in the same frame. The IK10 vandal resistance and IP66 weatherproofing make it suited to semi-exposed locations such as building eaves, external stairwells, and pedestrian entrances. The on-board AI analytics layer adds classification-based detection that reduces nuisance alerts without requiring a separate analytics server.

What This Camera Actually Does

Who Buys This Model

• Commercial Property Installers: Specifying a single dome SKU across varied positions - car park entries, stairwells, and external walkways - where the varifocal lens removes the need to stock multiple fixed-lens variants for each angle requirement.
• Facility Managers at Strata or Mixed-Use Buildings: Needing IK10-rated cameras in semi-public areas such as basement car parks and ground-floor corridors where deliberate or incidental physical contact with the dome housing is a realistic scenario.
• Security Integrators on Axis VMS Projects: Deploying cameras into an existing AXIS Camera Station or AXIS Companion environment where on-board AI analytics feed directly into the platform's event management without requiring a third-party analytics appliance.
• Retail Centre or Campus Security Teams: Requiring reliable low-light footage at perimeter entrances and covered loading areas where Lightfinder 2.0 and Forensic WDR together handle the difficult mixed-lighting conditions common to those environments.

Honest Assessment

The M4225-LVE does three things genuinely well: it handles difficult light with Forensic WDR and Lightfinder 2.0 in combination; the varifocal lens and matched OptimizedIR mean a single SKU covers a broad range of installation positions without compromise; and on-board AI analytics reduce the operational burden of managing nuisance alerts on busy sites. IK10 and IP66 ratings give it outdoor and semi-vandal-exposed credibility that standard commercial domes often lack. Where it will not serve you: if you need wide-area coverage from a single camera position, a multi-sensor panoramic or PTZ camera will do more work per mounting point. If the priority is maximum resolution for forensic facial detail at distance, a higher-megapixel fixed camera on that specific position is a better match. The M4225-LVE is part of the Security Australia range and suits projects where flexibility across positions, honest low-light performance, and edge analytics are the primary drivers.

Before You Buy

Quick Fit Check

• Good match if: You are installing across multiple positions with varying field-of-view requirements and want one SKU to cover them all - the varifocal lens means a single model can serve a wide foyer and a narrow access corridor from the same stock order.
• Good match if: The site has challenging mixed lighting - covered car parks, glazed building entries, or external areas with both strong ambient light and dark corners - where Forensic WDR and Lightfinder 2.0 together justify the specification over a standard 2MP dome.
• You may need a different model if: Your primary requirement is covering a large open area - a car park forecourt, schoolyard, or warehouse floor - from as few mounting points as possible. A multi-sensor panoramic camera or PTZ will deliver better coverage geometry per installed unit for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single varifocal outdoor dome SKU that combines genuine low-light performance, on-board AI analytics, and IK10 vandal resistance across multiple installation positions without managing separate fixed-lens variants.
• You may need a different model if: Coverage area per camera point is the primary concern - a multi-sensor panoramic dome or PTZ camera will monitor significantly larger zones from a single mounting position and may reduce total camera count on large open sites.
• Pairs well with: A PoE network switch with sufficient budget for IEEE 802.3af per port, and an Axis-compatible NVR or VMS platform that can surface the on-board AI event metadata for rule-based alerting.

Common Questions

1. Does this camera work on a standard PoE switch, or does it need PoE+?

   Standard PoE (IEEE 802.3af) is sufficient for the M4225-LVE. You do not need a PoE+ switch. A single Cat5e or Cat6 cable to each camera carries both power and data, which simplifies cabling runs and means no separate power supply is required at the camera end.

2. Will the AI analytics work without an external analytics server?

   Yes. The deep learning analytics on the M4225-LVE run directly on the camera's processor at the edge. Human and vehicle classification events are generated by the camera itself and can be passed to any compatible VMS or NVR without requiring a dedicated analytics appliance. Confirm your firmware version and any licensing requirements before deployment.

3. How does Forensic WDR differ from standard WDR on cheaper dome cameras?

   Forensic WDR is Axis's implementation of multi-exposure WDR, designed to retain detail across both highlights and shadows within a single frame in a way that is suitable for evidentiary review. Standard WDR on budget cameras often over-processes the image, introducing artefacts or motion blur in the blended zones - which is a problem when you need to identify a face or read a plate in a high-contrast entry scene.

4. Does this camera work with non-Axis NVRs and VMS platforms?

   Yes, in most cases. The M4225-LVE uses standard ONVIF and RTSP protocols, which are compatible with the majority of third-party NVRs and VMS platforms. However, to access on-board AI analytics events and metadata within your VMS, the platform needs to support Axis ACAP application events or the AXIS VAPIX API. Basic video recording works on any ONVIF-compliant recorder.

5. Is the IK10 rating sufficient for an area with a realistic vandalism risk?

   IK10 is the highest rating in the IEC 62262 standard, covering resistance to 20 joules of impact - equivalent to a 5kg mass dropped from 400mm. For the majority of commercial vandalism scenarios involving fists, kicks, or blunt objects, IK10 provides meaningful protection. It will not withstand a sustained attack with a heavy tool. In very high-risk environments, consider a recessed dome mount or camera positioning that limits accessibility.

6. Will OptimizedIR cause overexposure when a subject is close to the camera?

   No, that is specifically what OptimizedIR is designed to prevent. The IR illuminator adjusts its intensity and beam angle based on the varifocal lens position and the distance of objects detected in the scene. When a subject is close to the dome, the IR output is reduced and the beam widened to avoid the blown-out "white-face" effect common on cameras with fixed-output IR. The result is a more evenly exposed image across the usable IR range. Installers available through Security Australia can advise on optimal mounting height for your specific IR range requirements.
