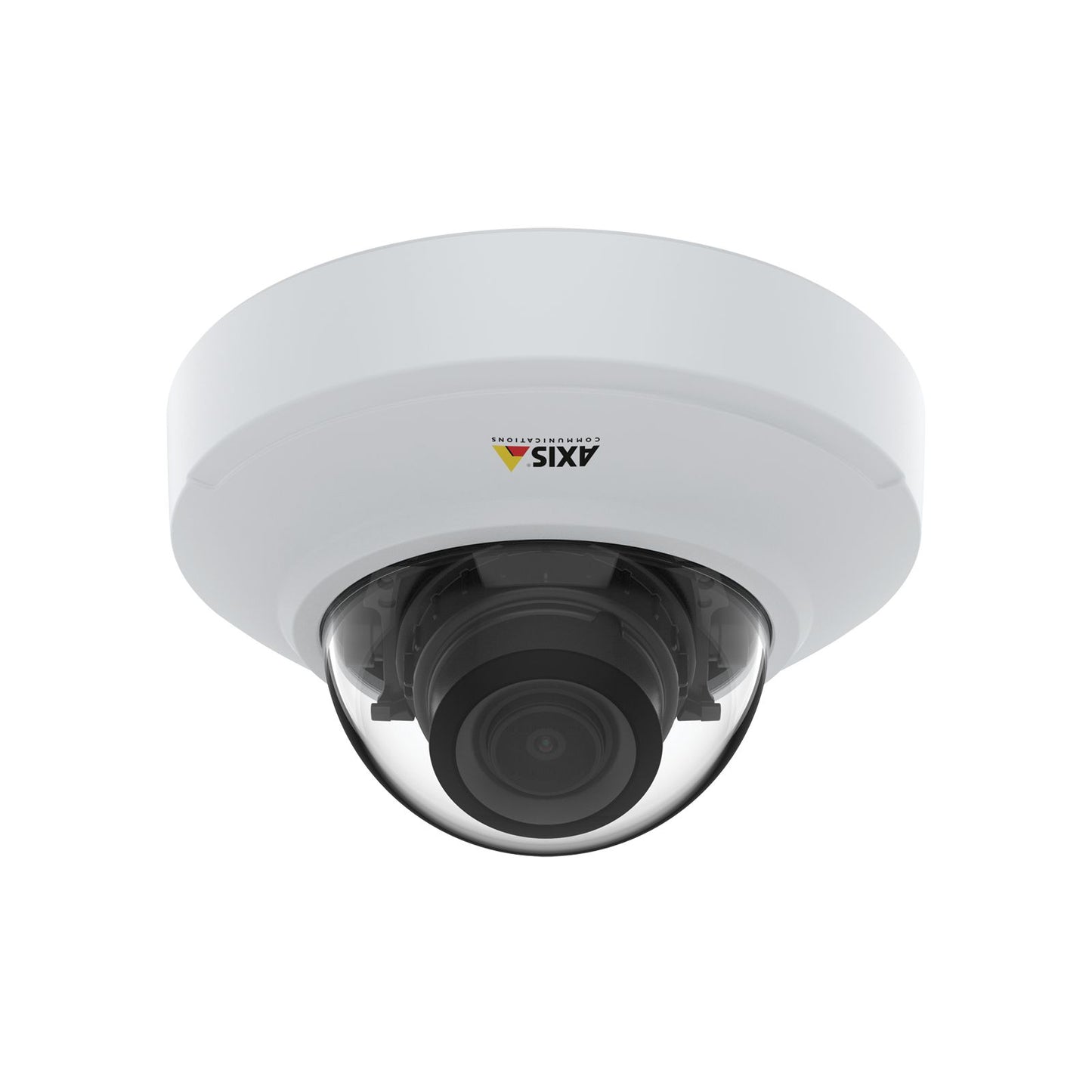

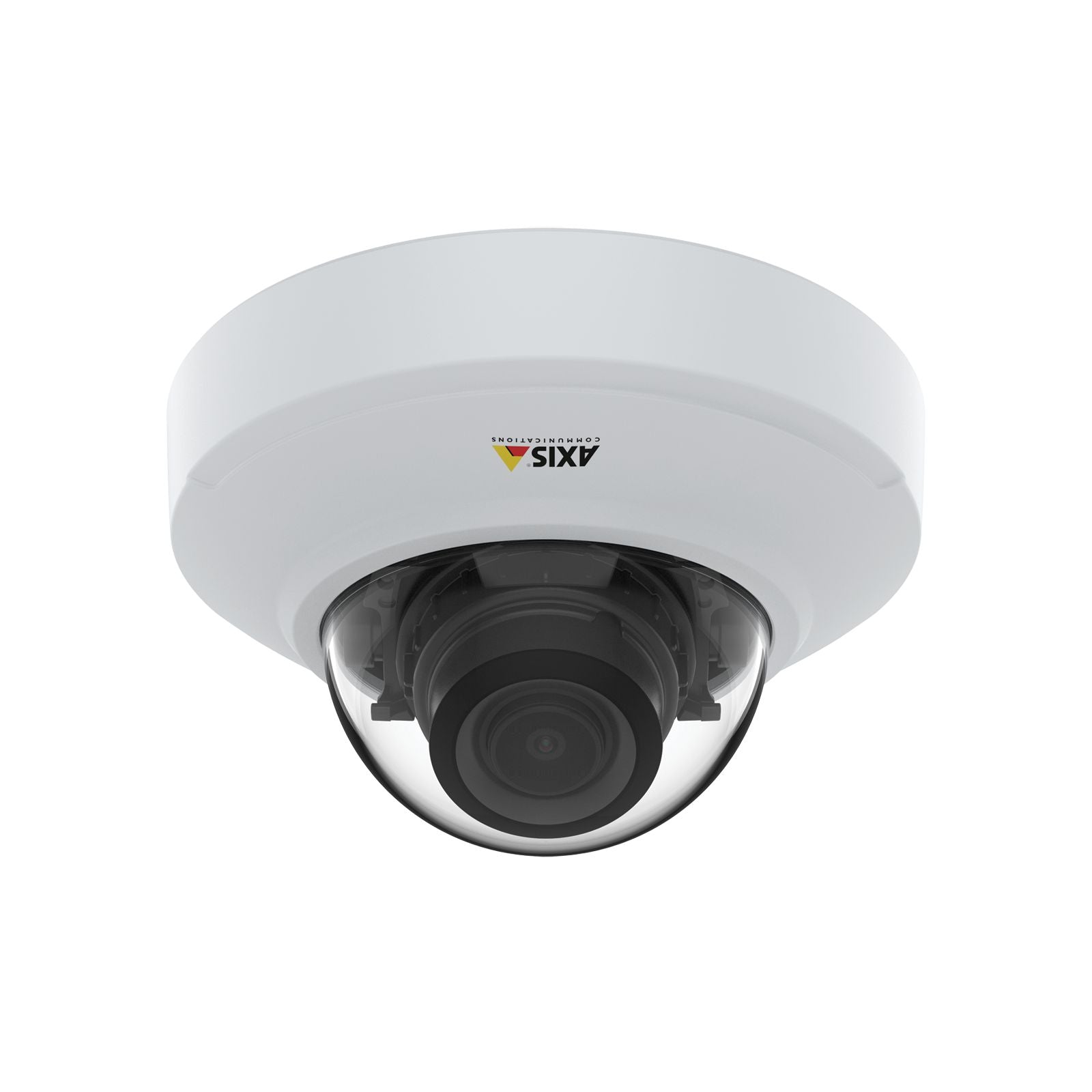

Axis M4216-V 4MP Indoor Mini Dome Camera, H.265, WDR, HDMI, 3-6mm, VF Lens 02112-001

Model: Axis M4216-V

Who This Is For

For installers specifying indoor ceiling cameras where image quality, discreet form factor, and flexible focal coverage all need to land in one unit, the Axis M4216-V sits in a category that is harder to fill than it looks. The 3-6mm varifocal lens lets you dial in framing on-site without swapping optics - useful in offices, retail spaces, reception areas, and corporate corridors where ceiling heights vary and you won't get a second visit to re-aim. The HDMI output is a standout feature for boardrooms, control rooms, or reception displays where live video needs to feed directly to a local monitor without additional decoders. At 4MP with H.265 compression and Wide Dynamic Range, this camera suits environments that mix strong window light with darker interior zones - a combination that trips up lower-spec sensors. The mini dome housing keeps the footprint clean on finished ceilings where aesthetics are part of the specification.

What This Camera Actually Does

Who Buys This Model

• Corporate IT and Facilities Teams: Specifying ceiling cameras for open-plan offices where the varifocal lens covers varying desk layouts without a fixed-focal compromise, and the mini dome profile does not disrupt ceiling aesthetics.
• AV Integrators Working on Boardrooms and Control Rooms: The HDMI output removes the need for a separate decoder when feeding live camera video to a boardroom display or operations monitor, simplifying the AV-security integration.
• Retail Loss Prevention Installers: Ceiling-mounted coverage over till points and entry areas where 4MP detail is needed for facial and transactional review, and WDR handles the high-contrast lighting of glass-fronted shopfronts.
• Healthcare and Childcare Facility Managers: Indoor environments where a discreet, non-threatening camera profile is required on finished ceilings, and where H.265 keeps storage demands manageable across multi-camera installations.

Honest Assessment

The Axis M4216-V does several things well in a single housing. The combination of a varifocal lens, 4MP sensor, WDR, and H.265 gives installers a genuinely flexible indoor camera that handles mixed-lighting environments and variable room sizes without camera swaps. The HDMI output is a legitimate differentiator - being able to feed a local display directly from the camera is useful in specific integration scenarios that a standard IP dome cannot accommodate without extra hardware. The mini dome profile suits client-facing commercial interiors where camera aesthetics are part of the brief. What the M4216-V will not do is perform in low-light or dark indoor environments without supplementary lighting - there is no IR illuminator in this housing. It is also an indoor-only unit, so any external or semi-exposed position requires a different camera type. If wide-area or multi-floor coverage is the goal, a panoramic or multi-sensor camera available through Security Australia would cover more ground with fewer mounting points.

Before You Buy

Quick Fit Check

• Good match if: You are ceiling-mounting in a commercial interior with mixed natural and artificial lighting, and need 4MP detail with WDR to handle the contrast between bright windows and darker interior zones.
• Good match if: Your installation includes a local monitor or display in a boardroom, control room, or reception area and you want to feed live video directly via HDMI without adding a decoder to the rack.
• You may need a different model if: The space goes dark after hours with no supplementary lighting - a dome camera with a built-in IR illuminator would be a more suitable camera type for that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 4MP varifocal indoor dome with HDMI output for direct monitor connection - a combination that is not standard across typical IP dome cameras in this form factor.
• You may need a different model if: The installation space goes fully dark after hours - a dome camera with a built-in IR illuminator is a more appropriate camera type for environments without guaranteed ambient lighting.
• Pairs well with: A compatible H.265 NVR with sufficient channel capacity, or an Axis-compatible video management system for multi-camera management and event-based recording across the installation.

Common Questions

1. Does the Axis M4216-V work in complete darkness?

   No. The M4216-V has no built-in IR illuminator, so it requires ambient light to produce a usable image. In spaces that go fully dark - after-hours corridors, server rooms, or storage areas with lights-off policies - you would need either supplementary lighting in the space or a different camera model with built-in night vision capability.

2. What does the HDMI output on the M4216-V actually allow me to do?

   It lets you connect the camera directly to a local HDMI-equipped monitor or display without a separate decoder. This is useful when you want a dedicated screen showing a specific camera view - a reception monitor, a boardroom display, or a control room screen - independently of or alongside the network recording stream. The HDMI output and network stream can operate simultaneously.

3. Will this camera work for a retail till point where I need to identify faces clearly?

   Yes, subject to correct lens adjustment. At 4MP resolution with the 3-6mm varifocal lens tightened toward the 6mm end, you can bring a till zone into a tighter frame with enough pixel density for facial review at close to medium range. WDR also helps manage the contrast from overhead lighting or nearby windows that commonly affect till point footage.

4. Is the M4216-V suitable for outdoor installation?

   No. The M4216-V is rated for indoor use only. It is not designed to withstand moisture, dust, or temperature extremes associated with outdoor or semi-exposed positions. For external coverage, a weatherproofed turret, bullet, or dome camera with an appropriate IP rating is the correct product type.

5. How much does H.265 compression actually reduce my storage use compared to H.264?

   H.265 typically reduces bitrate by approximately 50% compared to H.264 at equivalent image quality. For a 4MP camera recording continuously across a multi-camera NVR installation, that reduction has a meaningful impact on storage capacity and retention period. If your NVR and VMS support H.265 decoding - which most current-generation systems do - this camera's compression is directly relevant to your storage planning.

6. Does the varifocal lens on the M4216-V adjust manually or motorised?

   The 3-6mm lens on the M4216-V is a manual varifocal. Focal length and focus are adjusted physically during installation. This is standard for this camera type and is sufficient for most fixed indoor ceiling positions - you set the lens once during commissioning and it remains fixed. If you need remotely adjustable or motorised zoom after installation, a camera with a motorised varifocal lens is the appropriate product type. The full range of Axis indoor cameras is available through Security Australia.
