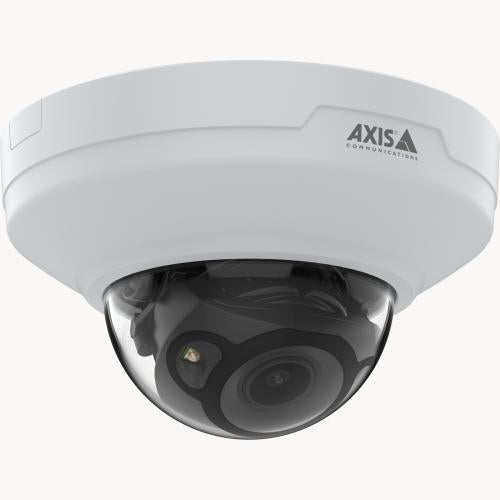

AXIS M4216-V 4MP Indoor Mini Dome Camera

Model: AXIS M4216-V

Who This Is For

For installers and facility managers who need a low-profile 4MP dome that blends into commercial ceilings without drawing attention, the AXIS M4216-V is a compact, fixed-lens indoor camera built for offices, retail floors, corridors, and reception areas where image quality and discreet form factor both matter. The mini dome housing keeps the installation clean and unobtrusive, while 4MP resolution delivers enough detail to reliably identify faces and read signage across a standard room. IK08 vandal resistance adds a layer of durability appropriate for semi-public areas such as hotel lobbies, building foyers, and shared workspaces where the camera may be within reach. AXIS Object Analytics runs directly on the camera, enabling rule-based detection without a separate analytics server - useful for sites that want smarter alerting from fewer devices and a tidier overall system design.

What This Camera Actually Does

Who Buys This Model

• Commercial Fitout Installers: Specifying ceiling-mount cameras across open-plan offices or corporate floors where a tidy, low-profile dome is required and 4MP detail is needed for ID-quality footage.
• Retail Loss Prevention Teams: Deploying cameras across sales floors and stockrooms where AXIS Object Analytics can flag after-hours intrusion or loitering without generating constant false alerts from shelf movement.
• Hotel and Hospitality Operators: Covering lobbies, lift foyers, and corridors where IK08 resistance is appropriate and the compact dome form factor avoids the institutional look of a bullet or large dome.
• Healthcare and Aged Care Facilities: Installing in reception areas and access corridors where discreet imaging, WDR for mixed lighting, and edge analytics reduce the demand on a central server or VMS.
• IT and Security Integrators on AXIS-Standard Sites: Adding to an existing AXIS ecosystem using AXIS Camera Station or a compatible VMS, where ONVIF compliance and Zipstream bring direct operational value.

Honest Assessment

The AXIS M4216-V does the core indoor dome job well: 4MP resolution, a clean ceiling profile, IK08 impact resistance, and on-camera AXIS Object Analytics in a compact form factor that suits commercial interiors. Zipstream makes meaningful storage savings in real deployments, and WDR handles the mixed-light scenes that trip up lesser cameras in lobbies and retail environments. Where this camera has clear limits: it is an indoor-only device with IP42 ingress protection, so it is not suited to covered outdoor positions or areas exposed to moisture. It also uses a fixed lens, so scenes requiring optical zoom or adjustable field of view will need a varifocal or PTZ model instead. There is no built-in speaker, so audio announcements or two-way communication require a separate device. For straightforward indoor commercial surveillance with a preference for the AXIS platform, this model - available through Security Australia - covers a lot of ground without overcomplicating the installation.

Before You Buy

Quick Fit Check

• Good match if: You are covering an indoor commercial space - office, retail, or lobby - and need 4MP identification-quality imaging from a compact ceiling dome that runs on standard PoE.
• Good match if: Your site uses AXIS Camera Station or an ONVIF-compatible VMS and you want on-camera AXIS Object Analytics to reduce false alert volume without adding a separate analytics appliance.
• You may need a different model if: The installation position is outdoors, in a covered carport, or anywhere subject to moisture or dust - an outdoor-rated dome or turret camera with IP66 or higher will be the more appropriate product type for those environments.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a compact, ceiling-mounted 4MP indoor dome with on-camera AXIS Object Analytics and IK08 vandal resistance - and your VMS is already AXIS or ONVIF-based.
• You may need a different model if: Coverage extends outdoors, into a covered car park, or any area exposed to weather - an IP66-rated outdoor dome or turret camera will be the appropriate product type for those positions.
• Pairs well with: A compatible PoE NVR or AXIS Camera Station server, a managed PoE switch sized to the channel count, and microSD cards for per-camera edge storage redundancy.

Common Questions

1. Does the AXIS M4216-V work with non-AXIS NVRs and VMS platforms?

   Yes. The M4216-V is ONVIF-compatible, so it integrates with any VMS or NVR that supports the ONVIF standard. AXIS Camera Station provides the deepest feature integration including full access to Object Analytics event rules, but the camera will stream video and basic motion events to most commercial VMS platforms without issue.

2. Will this camera work in a covered outdoor position such as a verandah or carport?

   No, not reliably. The M4216-V carries an IP42 ingress rating, which protects against solid objects larger than 1mm and vertically falling water only. It is not rated for rain splash, condensation, or humid outdoor conditions. A covered external position exposed to wind-driven rain or temperature extremes requires a camera with at least IP66 rating.

3. Does this camera support two-way audio?

   No. The M4216-V includes a built-in microphone for audio capture, but there is no built-in speaker. Incoming audio from a VMS operator cannot be broadcast through the camera itself. If two-way communication at the camera position is required, a separate audio device or an intercom system is needed.

4. What does AXIS Object Analytics actually do differently from standard motion detection?

   It classifies what triggered the alert. Standard motion detection flags any pixel change - a shadow, a light change, a swinging sign. Object Analytics identifies whether the moving object is a human or a vehicle, and only triggers rules based on that classification. You can set a line-crossing rule that fires only when a person crosses a boundary, not when a trolley rolls past or a door swings open.

5. How much does Zipstream actually reduce storage compared to standard H.264?

   Results vary by scene, but AXIS reports typical reductions of 50% or more in low-activity environments when Zipstream is enabled alongside H.265. In a quiet corridor or after-hours office, where most frames contain no significant motion, the savings are most pronounced. High-activity scenes such as a busy retail checkout will see less reduction as Zipstream preserves detail during movement.

6. Does the M4216-V require a PoE+ switch or will standard PoE work?

   Standard PoE is sufficient. The M4216-V is powered by IEEE 802.3af, which is standard PoE delivering up to 15.4W per port. PoE+ ports (802.3at) will also work but are not required. A single Cat5e or Cat6 cable to each camera handles both power and data - no separate power supply or cabling run is needed.

7. Can third-party applications be installed on the M4216-V?

   Yes. The camera supports the AXIS Camera Application Platform (ACAP), which allows certified third-party applications to run directly on the camera's processor. This includes additional analytics, specialised detection tools, or integrations developed by AXIS partners - available through Security Australia and the broader AXIS ecosystem. Only ACAP-certified apps designed for this hardware generation are compatible.
