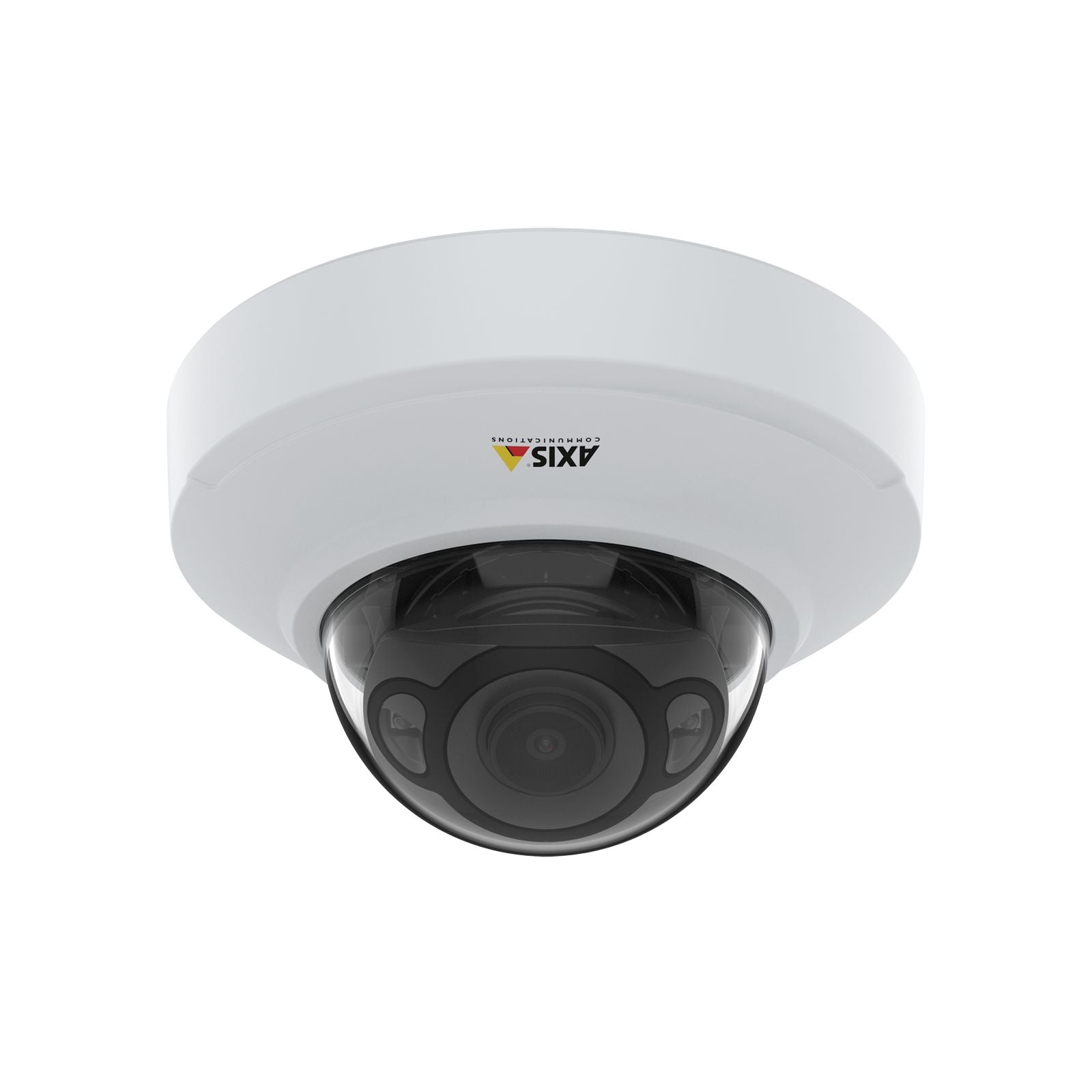

Axis M4216-LV 4MP Indoor Mini Dome Camera, H.265, WDR, IR, PoE, 3-6mm, VF Lens 02113-001

Model: AXIS M4216-LV

Who This Is For

When a clean ceiling profile and precise coverage adjustment are the priority, the Axis M4216-LV earns its place on the shortlist. Designed for indoor fixed installations - think office corridors, retail floors, reception areas, and childcare centres - this 4MP mini dome combines a 3-6mm varifocal lens with IK08 vandal resistance in a compact housing that sits flush against the ceiling without drawing attention. The varifocal lens lets installers dial in the field of view during commissioning rather than committing to a fixed angle, which is particularly useful in rooms where furniture layout or checkout counter positions dictate what actually needs to be in frame. PoE simplifies the cable run to a single Cat5e or Cat6 connection, and AXIS Object Analytics comes built in, giving facilities teams a smarter detection layer without paying for a separate analytics licence.

What This Camera Actually Does

Who Buys This Model

• Commercial integrators: Specifying Axis ecosystem deployments in office fitouts where H.265 bandwidth targets, ONVIF compliance, and onboard analytics need to be confirmed at the camera level rather than managed upstream.
• Retail loss prevention teams: Covering checkouts and fitting room corridors where Forensic WDR handles the contrast between overhead downlights and shaded floor areas, and where the IK08 dome resists opportunistic tampering.
• Childcare and school facility managers: Installing ceiling cameras in supervised rooms where a discreet low-profile dome is preferred over a visible bullet, and where the varifocal lens allows coverage to be tuned without visible repositioning.
• Property managers and strata coordinators: Fitting out common areas, lifts, and lobbies in residential buildings where single-cable PoE runs reduce install cost and a compact ceiling mount blends into the finished space.

Honest Assessment

The M4216-LV does its best work in structured indoor environments where image quality, bandwidth efficiency, and onboard intelligence all need to be addressed from a single camera position. The combination of 4MP Forensic WDR, Lightfinder 2.0, H.265 compression, and AXIS Object Analytics in a compact IK08 dome represents a well-considered package for commercial and institutional deployments. The varifocal lens is a genuine installation advantage over fixed-lens alternatives in the same class. Where this camera is not the answer: it is rated IP42 and designed exclusively for indoor use, so any external or weather-exposed position needs a different product. The 10-metre IR range is appropriate for most interior spaces but will not suit large warehouses or long open halls where distances exceed that threshold. For those applications, available through Security Australia, a longer-range IR camera or a wider-coverage PTZ would be the more appropriate choice.

Before You Buy

Quick Fit Check

• Good match if: You are mounting in a finished indoor ceiling - office, retail, childcare, or lobby - where precise field-of-view adjustment from the same mount point matters and the 3-6mm varifocal lens lets you tune coverage without repositioning.
• Good match if: Your NVR or VMS deployment is already Axis-based and onboard AXIS Object Analytics will replace or reduce dependency on server-side analytics licences.
• You may need a different model if: The mounting location is outdoors or exposed to weather - this camera is rated IP42 for indoor use only, and a weather-rated turret or bullet camera from the range would be the appropriate product type instead.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 4MP varifocal indoor dome with onboard object analytics, IK08 impact resistance, and H.265 compression in a compact ceiling-mount profile - particularly in Axis ecosystem deployments.
• You may need a different model if: Coverage distances exceed 10 metres, the mounting location is exposed to weather, or you need active deterrence with strobe and audio warnings - a full-colour turret or outdoor-rated bullet camera would be the more suitable product type.
• Pairs well with: An ONVIF-compatible NVR with multi-channel PoE switching and H.265 decoding, or an Axis recording solution such as AXIS Camera Station for organisations already standardised on the Axis platform.

Common Questions

1. Can the M4216-LV be installed outdoors?

   No. The M4216-LV is rated IP42, which covers protection against solid objects larger than 1mm and dripping water in a vertical direction only - it is not rated for rain, dust, or humidity exposure at outdoor levels. For any eave, soffit, or exterior wall position, an outdoor-rated camera with a minimum IP66 rating is required instead.

2. Does this camera work with non-Axis NVRs?

   Yes. The M4216-LV supports ONVIF Profile S and G, which means it is compatible with the majority of third-party NVRs and video management systems that support ONVIF. Note that AXIS Object Analytics events and Axis-specific metadata may not be fully accessible in non-Axis VMS platforms - confirm your NVR's Axis integration level before specifying if analytics event handling is a requirement.

3. Will this camera record locally if the network goes down?

   Yes. The M4216-LV includes a microSD/microSDXC card slot supporting cards up to 512GB. Edge recording can be configured to capture continuously or on event, meaning footage is retained on the card even during a network or NVR outage. This is particularly useful for remote sites or locations with less-than-stable network infrastructure.

4. Does the varifocal lens on the M4216-LV have motorised adjustment?

   No. The 3-6mm varifocal is manually adjusted - both zoom and focus are set physically during installation. There is no remote or motorised zoom capability. This is standard for fixed mini dome cameras in this class and is not a limitation in most indoor ceiling-mount applications, but it does mean physical ceiling access is required if the field of view needs to be changed after commissioning.

5. What does AXIS Object Analytics actually detect, and does it require a licence?

   AXIS Object Analytics detects and classifies moving objects as people or vehicles and can trigger events based on conditions including line crossing, zone entry, and loitering. No additional licence is required - it is included with the camera firmware. The analytics run on the camera's onboard processor, so no separate analytics server or software subscription is needed. Configuration is done through the camera's web interface or AXIS Camera Station.

6. Does the M4216-LV have two-way audio?

   No. The M4216-LV includes a built-in microphone for audio capture, but there is no built-in speaker. One-way audio recording is supported, but two-way communication requires an external speaker connected to a compatible audio output device. If active voice-down or intercom capability is needed at the camera position, a camera model with both microphone and speaker built in would be required.

7. What PoE standard does this camera require, and will it work with budget PoE switches?

   The M4216-LV draws power via IEEE 802.3af (PoE Class 3), which is the standard PoE specification supported by the vast majority of PoE switches and injectors on the market. It does not require PoE+ (802.3at). If you are purchasing a switch specifically for this deployment, Security Australia stocks compatible PoE switching options - confirm per-port power budgets when mixing with other PoE devices on the same switch to avoid negotiation conflicts.
