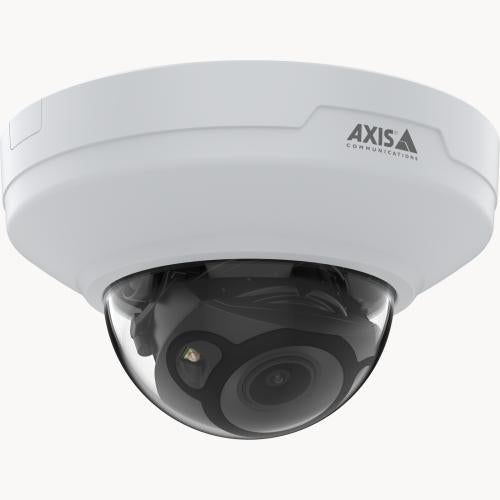

AXIS M4216-LV 4MP Indoor Mini Dome Camera
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Built as a compact indoor mini dome for retail, office, and public space surveillance, the AXIS M4216-LV delivers 4MP resolution with a varifocal motorised lens that can be remotely zoomed and auto-focused without a site visit. Lightfinder and 110dB WDR keep images clear across difficult lighting conditions, while Axis Edge Vault adds a hardware-based cybersecurity layer to protect device integrity. Note: audio features require the optional AXIS T61 Audio and I/O Interface via portcast technology.
Why This Model
- Remote zoom and auto focus: The motorised varifocal lens can be adjusted remotely after installation, eliminating the need to revisit site to sharpen or reframe the field of view.
- 110dB WDR with Lightfinder: Handles scenes with extreme contrast - entrances, windows, and mixed-light retail floors - without blowing out highlights or losing shadow detail.
- HDMI output and deep learning analytics: The built-in HDMI port lets you push live video to a public display for deterrence, while on-device DLPU enables object analytics and loitering detection without a separate server.
| Camera | |
|---|---|
| Image Sensor | 1/2.7” progressive scan RGB CMOS |
| Lens | Varifocal, 3–6 mm, F1.9 - 2.7 |
| Field of View | Horizontal: 100°–45° Vertical: 72°–34° |
| Focus and Zoom | Remote focus and zoom, fixed iris |
| Day and Night Functionality | Automatic IR-cut filter |
| Minimum Illumination | With Lightfinder: Color: 0.18 lux at 50 IRE F2.0 B/W: 0.03 lux at 50 IRE F2.0, 0 lux when IR illumination is on |
| Shutter Speed | 1/37500 s to 1/5 s |
| Camera Angle Adjustment | Pan ±180°, tilt -40 to +65°, rotation ±105° Can be directed in any direction and see the wall/ceiling |
| System on Chip (SoC) | |
| Model | CV25 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Compute Capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main and High Profiles Motion JPEG |
| Resolution | 2304x1728 to 320x240 |
| Frame Rate | Up to 25/30 fps with power line frequency 50/60 Hz in H.264 and H.265a |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/MBR H.264/H.265 Low latency mode |
| HDMI Output | HDMI 1080p (16:9) @25/30 Hz refresh rate HDMI 720p (16:9) @50/60 Hz refresh rate |
| Multi-view Streaming | Up to 2 individually cropped out view areas in full frame rate |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR: up to 110 dB depending on scene, text and image overlay, mirroring of images, privacy mask Rotation: 0°, 90°, 180°, 270°, including Corridor Format Pan/Tilt/Zoom Digital PTZ |
| Audio | |
| Audio Input/Output | Audio features through portcast technology: two-way audio connectivity, voice enhancer |
| Network | |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, HDMI, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| System Integration | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. |
| Event Conditions | Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, system ready, within operating temperature Edge storage: recording ongoing, storage disruption I/O: manual trigger, virtual input, digital input via AXIS T61 Audio and I/O Interfaces with portcast technology MQTT subscribe Scheduled and recurring: scheduled event Video: live stream open |
| Event Actions | MQTT publish Notification: email, HTTP, HTTPS, TCP and SNMP trap Overlay text, zoom preset, day/night mode Pre- and post-alarm video or image buffering for recording or upload Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email External output activation via AXIS T61 Audio and I/O Interfaces with portcast technology |
| Built-in Installation Aids | |
| Installation Aids | Remote zoom, remote focus |
| Analytics Applications | |
| Included | AXIS Live Privacy Shield, AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, AXIS Face Detector |
| Supported | AXIS People Counter AXIS Queue Monitor Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Scenarios: line crossing, object in area, crossline counting, occupancy in area, time in area Up to 10 scenarios Other features: triggered objects visualized with color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| AXIS Scene Metadata | Object classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates Object attributes: vehicle color, upper/lower clothing color, confidence, position |
| Approvals | |
| EMC | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: CISPR 24, CISPR 35, RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KC KN32 Class A, KC KN35 USA: FCC Part 15 Subpart B Class A |
| Safety | IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IS 13252 IEC 62471 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-6 IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Network | NIST SP500-267 |
| Cybersecurity | ETSI EN 303 645 Software: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform, Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| Documentation | AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
| General | |
| Casing | IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate and aluminum casing with hard-coated dome Encapsulated electronics Color: white NCS S 1002-B For repainting instructions of casing and impact on warranty, contact your Axis partner. |
| Sustainability | PVC free, BFR/CFR free, 43% recycled plastics |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 5 W, max 9.7 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE HDMI type D Audio: Audio and I/O connectivity via portcast technology |
| IR Illumination | OptimizedIR with power-efficient, long-life 855 nm IR LEDs Range of reach 20 m (65.6 ft) or more depending on the scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com |
| Operating Conditions | 0 °C to 45 °C (32 °F to 113 °F) Humidity 10–85% RH (non-condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing) |
| Dimensions | Height: 71 mm (2.8 in) ø 121 mm (4.76 in) |
| Weight | 375 g (0.83 lb) |
| Included Accessories | |
| Installation guide, Windows® decoder 1-user license | |
| Optional Accessories | |
| AXIS TM3207 Recessed Mount AXIS T94C01L Recessed Mount AXIS T94C01U Universal Mount AXIS T94C01M J-Box/Gang Box Plate AXIS M42 Casing A Black 4P AXIS M42 Smoked Dome A 4P AXIS T91A33 Lighting Track Mount AXIS T91A23 Tile Grid Ceiling Mount AXIS TM3101 Pendant Wall Mount AXIS Surveillance Cards For more accessories, see axis.com | |
| Video Management Software | |
| AXIS Companion, AXIS Camera Station and video management software from Axis Application Development Partners. For more information, see axis.com/vms | |
| Languages | |
| English, German, French, Spanish, Italian, Russian, Japanese, Korean, Portuguese, Simplified Chinese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
AXIS M4216-LV 4MP Indoor Mini Dome Camera
Model: AXIS M4216-LV
Who This Is For
For integrators and facilities managers who need a low-profile indoor dome that can be tuned precisely to its environment after installation, the AXIS M4216-LV is built around that exact requirement. Its varifocal lens with remote zoom and autofocus means the field of view can be adjusted from the VMS or web interface without a technician returning to the ceiling - a practical advantage in retail, corporate offices, healthcare corridors, and childcare centres where access is disruptive. The 4MP sensor with Lightfinder and up to 110 dB WDR handles the mixed lighting common in these spaces, and the IK08-rated housing resists opportunistic tampering. A deep learning processing unit on board enables AXIS Object Analytics without offloading to a server, making this a strong choice for sites where loitering detection or forensic search is required alongside a clean, discreet ceiling profile.
What This Camera Actually Does
Remote Zoom and Autofocus
The varifocal lens can be zoomed and focused remotely after installation, so the coverage area can be refined from a laptop without anyone returning to the ceiling. Useful on retail floors and office environments where access timing is limited.
Lightfinder and 110 dB WDR
Lightfinder maintains colour imaging at very low light levels, while the wide dynamic range up to 110 dB prevents washout near windows or bright signage. Both features operate simultaneously, which matters in mixed-light retail and hospitality spaces.
On-Board Deep Learning Analytics
The built-in DLPU runs AXIS Object Analytics locally, including time-in-area detection for loitering scenarios. Processing happens on the camera itself, so analytic events trigger without dependency on a separate analytics server.
HDMI Output for Public Display
A built-in HDMI port outputs live video at 1080p directly to a monitor. Combined with AXIS Face Detector, this enables a live deterrence display at a store entrance or reception - visible to people entering the space without requiring a separate display encoder.
OptimizedIR Night Coverage
Built-in IR illumination with Axis OptimizedIR provides effective coverage in complete darkness. The IR intensity adapts to the zoom position to avoid overexposure at the centre of the frame as the lens is adjusted.
Axis Edge Vault Cybersecurity
Edge Vault provides hardware-based protection for the device identity and cryptographic keys. It simplifies authorisation on managed networks and is relevant for corporate or government sites with strict cybersecurity policies around network-connected devices.
Who Buys This Model
- Retail loss prevention teams: The HDMI port combined with AXIS Face Detector enables a live deterrence monitor at store entry - a direct application for shops that want visible detection without a dedicated display server.
- Corporate IT and facilities teams: Axis Edge Vault and ONVIF Profile compliance make this a manageable choice for multi-site corporate rollouts where cybersecurity policy governs device authorisation on the network.
- Healthcare and childcare facility managers: The IK08-rated, repaintable housing allows the camera to match interior decor while maintaining resistance to incidental impact - relevant in spaces where aesthetics and hygiene standards both matter.
- Integrators running Axis VMS environments: Remote zoom and autofocus via AXIS Camera Station or compatible VMS eliminates return site visits for lens tuning, which is a measurable labour saving on multi-camera installs.
- Sites requiring loitering detection without a server: The on-board DLPU runs AXIS Object Analytics including time-in-area rules locally, which suits smaller sites that need intelligent alerts without investing in a dedicated analytics appliance.
Honest Assessment
The AXIS M4216-LV performs well where flexible post-installation tuning is a priority. The remote varifocal lens genuinely reduces return visits, the DLPU handles analytics locally without server dependency, and the HDMI output is a practical differentiator for deterrence display applications. The 4MP sensor with Lightfinder and 110 dB WDR handles challenging indoor lighting better than most cameras in this form factor. The IK08 rating provides meaningful tamper resistance for public-facing indoor locations. Where this camera will not serve as well: it carries no built-in speaker or microphone - audio requires the separately purchased AXIS T61 Series via portcast, which adds cost and planning. It is also an indoor-only camera and is not rated for exterior installation. Sites needing wide outdoor coverage, built-in audio without additional modules, or full-colour night imaging would be better served by a different product type available through Security Australia.
Before You Buy
Lens Tuning Note: Remote zoom and autofocus via the web interface or VMS works well, but the varifocal range is wide - confirm your intended coverage area and mounting height before finalising camera count. At wider zoom settings the IR illumination spreads accordingly, but at tighter zoom positions the effective IR distance increases. Run the remote focus tool after any lens adjustment to ensure the image is sharp at your chosen focal length.
Audio and I/O Planning: This camera has no built-in microphone or speaker. Two-way audio and physical I/O connections require the AXIS T61 Audio and I/O Interface series, connected via the camera's portcast technology. If audio or alarm input/output is part of your design, budget for and plan the T61 modules separately before installation commences.
Quick Fit Check
- Good match if: You are installing across a retail or office environment where lens tuning will happen post-handover and remote zoom/autofocus from the VMS saves a return site visit per camera.
- Good match if: Your site requires loitering detection or forensic search analytics without a dedicated server, and the on-board DLPU running AXIS Object Analytics locally is sufficient for the alarm volume expected.
- You may need a different model if: Your installation is outdoors, requires built-in two-way audio without additional modules, or demands full-colour night imaging - a TiOC-style outdoor turret or a camera with an integrated speaker and microphone would be a better fit for those requirements.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: Your project requires post-installation remote lens tuning, on-board deep learning analytics without a server, and a discreet IK08-rated ceiling profile with an HDMI output for deterrence display.
- You may need a different model if: The installation is outdoors or requires integrated two-way audio without additional modules - an outdoor turret or a camera with a built-in speaker and microphone would cover those requirements more cleanly.
- Pairs well with: An Axis-compatible NVR or VMS for remote lens management and centralised analytics review; AXIS T61 Audio and I/O Interface modules where audio or alarm I/O is required at this camera position.
Common Questions
-
Does this camera have a built-in microphone and speaker for two-way audio?
No. The AXIS M4216-LV has no built-in microphone or speaker. Two-way audio is available through portcast technology, but it requires a separately purchased AXIS T61 Audio and I/O Interface connected to the camera. If two-way audio is part of your design requirement, budget for the T61 module and plan the cable routing to it before installation. -
Will this camera work outdoors?
No. The AXIS M4216-LV is designed for indoor installation only and carries no IP weather rating for outdoor use. For covered eaves, external walls, or any location exposed to rain or moisture, a camera with an appropriate IP66 or IP67 rating would be the correct product type. -
Can the lens be adjusted remotely after the camera is mounted on the ceiling?
Yes. The varifocal lens supports remote zoom and autofocus via the camera's web interface or a compatible VMS. This means the field of view can be widened, narrowed, or refocused from a laptop after the physical installation is complete - no technician needs to return to the ceiling mount to make optical adjustments. -
What compression formats does this camera support and how does Zipstream affect storage?
The camera supports H.265 (Main and High profiles), H.264 (Main and High profiles), and Motion JPEG. Axis Zipstream operates within H.264 and H.265 streams and dynamically reduces the bitrate in areas of the frame with low activity, while preserving quality in regions where motion or detail is present. In practice, Zipstream can significantly reduce storage consumption compared to standard H.265 encoding at equivalent image quality settings - the actual saving depends on scene activity levels. -
Does the HDMI output work at the same time as the network stream?
Yes. The HDMI output operates independently of the network video stream. The camera can simultaneously deliver up to 1080p via HDMI to a local display and stream H.264 or H.265 video over the network to a VMS or NVR. The HDMI output runs at 1080p at 25/30 Hz or 720p at 50/60 Hz refresh rates. -
How does the remote zoom interact with the OptimizedIR illumination when the lens is adjusted?
Axis OptimizedIR automatically adjusts the IR illumination intensity and spread in response to the current zoom position. When the lens is set to a wider angle, the IR field widens to match the broader coverage area. When zoomed in to a tighter field of view, the IR narrows and intensifies to reach further without overexposing the centre of the frame. This means the IR performance remains appropriately matched to the optics regardless of where the varifocal lens is set - useful when final zoom positions are confirmed remotely post-installation. The AXIS M4216-LV is part of the Security Australia range and the technical specifications above reflect confirmed Axis documentation. -
What ONVIF profiles does this camera support, and does that affect which VMS I can use?
The camera is ONVIF Profile G, Profile M, Profile S, and Profile T compliant. Profile S covers basic video streaming and PTZ control. Profile G adds on-camera recording and playback. Profile T adds H.264/H.265 streaming and metadata. Profile M adds analytics metadata. This broad compliance means the camera can integrate with any VMS that supports these profiles, not only Axis software - though full feature access including remote lens control and AXIS Object Analytics events typically requires an Axis-native integration or VAPIX-based connection.
