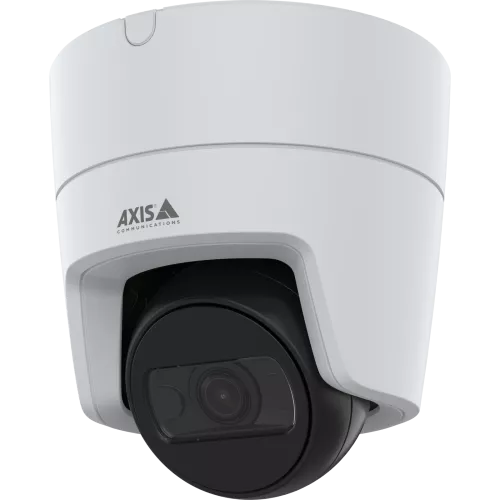

AXIS M3125-LVE Dome Outdoor Flateye Camera, H.265, IR, Zipstream, IK08, 2.8mm Lens 02916-001

Model: AXIS M3125-LVE

Who This Is For

For installers and facility managers who need a compact, weatherproof dome that holds up in outdoor environments without drawing attention to itself, the AXIS M3125-LVE is built for exactly that brief. Its flat-eye dome profile sits flush and unobtrusive on soffits, eaves, and exterior walls, while the IK08-rated housing resists interference in semi-public spaces such as building entrances, car park stairwells, and retail loading zones. The fixed 2.8mm lens gives a wide field of view suited to close-to-medium range coverage, H.265 with Zipstream keeps storage and bandwidth consumption low on constrained networks, and the IR illumination means usable footage after dark without additional lighting infrastructure. This is the camera specified when the brief calls for a tidy, capable outdoor dome that integrates cleanly into an existing Axis ecosystem or a standalone PoE deployment.

What This Camera Actually Does

Who Buys This Model

• Commercial Property Managers: Specifying outdoor dome coverage for building entrances, fire exits, and car park stairwells where IK08 impact resistance and IP66 sealing justify the install without additional enclosure cost.
• Axis Ecosystem Integrators: Adding outdoor positions to an existing AXIS Camera Station or third-party VMS deployment where native AXIS Object Analytics integration and consistent firmware management are priorities.
• Retail Strip and Small Commercial Sites: Installing a low-profile outdoor dome above a shopfront or rear access door where the flat-eye profile avoids the visual bulk of a bullet camera and Zipstream reduces NVR storage pressure on smaller systems.
• Education and Childcare Facility Managers: Deploying cameras at external entry points and covered walkways where the vandal-resistant housing addresses duty-of-care requirements and the wide 2.8mm field of view covers broad pedestrian zones from a single ceiling or soffit mount.

Honest Assessment

The AXIS M3125-LVE does the fundamentals well for an outdoor fixed dome: weatherproof, vandal-resistant, H.265 efficient, and IR-capable in a housing that installs cleanly on standard surface or pendant mounts. The Zipstream implementation is genuinely effective at reducing storage consumption on multi-camera systems, and AXIS Object Analytics adds on-camera intelligence that most competing cameras at this price tier push to the NVR or cloud instead. The fixed 2.8mm lens keeps commissioning straightforward with no focus adjustment required. What this camera will not do is cover long-distance approaches - if your monitoring requirement extends beyond 10 to 15 metres, a varifocal or bullet-format camera will serve the scene better. It also does not provide colour-at-night capability; the IR output produces monochrome footage in low light. Security Australia stocks this model for projects where a compact, capable outdoor dome with Axis ecosystem compatibility is the brief.

Before You Buy

Quick Fit Check

• Good match if: You are mounting on an outdoor soffit or eave at a building entrance or car park stairwell and need a vandal-resistant dome that is IP66 weather-sealed without an additional enclosure.
• Good match if: You are running an Axis-based VMS and want on-camera AXIS Object Analytics with H.265 Zipstream to reduce bandwidth and storage load across a multi-camera deployment.
• You may need a different model if: Your scene requires coverage beyond 15 metres or identification-level detail at distance - a varifocal bullet or motorised-zoom camera available on securityaustralia.com.au will be a better fit for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a confirmed IK08 outdoor dome with H.265 Zipstream and on-camera AXIS Object Analytics, particularly where Axis VMS ecosystem integration or ONVIF compatibility with existing infrastructure is a requirement.
• You may need a different model if: Your application demands colour footage in very low light or complete darkness - a full-colour or starlight outdoor turret camera will produce better night-time image quality than IR-only illumination.
• Pairs well with: An IEEE 802.3af PoE switch and a network video recorder running AXIS Camera Station or an ONVIF-compliant VMS platform for full analytics and remote management capability.

Common Questions

1. Does this camera need a special PoE switch or will a standard switch work?

   A standard IEEE 802.3af PoE switch is all that is required. The M3125-LVE does not require PoE+ (802.3at), so any 802.3af-capable switch port will power and connect the camera over a single Cat5e or Cat6 cable run. No separate power supply or injector is needed.

2. Will the M3125-LVE work in heavy rain or direct water spray?

   Yes. The IP66 rating confirms the housing is fully sealed against dust and direct high-pressure water jets. It is suitable for exposed outdoor mounting positions including under eaves, on exterior walls, and in covered car park structures without requiring an additional weatherproof enclosure.

3. What does IK08 actually mean in a real install?

   IK08 means the dome housing has been tested to withstand a 5-joule impact force - broadly equivalent to a firm deliberate strike. In practical terms it provides meaningful resistance against opportunistic tampering and accidental knocks in semi-public locations, though it is not designed to withstand repeated heavy tool-force impacts.

4. Does Zipstream actually reduce storage or is it just a marketing term?

   Yes, it produces a measurable reduction in average bitrate and storage consumption. Axis Zipstream dynamically lowers the data rate during periods of low scene activity - overnight idle periods, empty corridors, and static scenes - while preserving full detail when motion or scene change is detected. Independent testing has shown average bitrate reductions of 50% or more on suitable scenes compared to standard H.264 encoding.

5. Will this camera work with a non-Axis NVR or VMS?

   Yes. The M3125-LVE supports ONVIF Profile S, Profile G, and Profile T, which provides compatibility with the majority of third-party VMS and NVR platforms that accept ONVIF streams. Full AXIS Object Analytics functionality and Zipstream optimisation are best accessed through AXIS Camera Station or Axis-compatible VMS integrations, but basic streaming and recording will work across ONVIF-compliant systems.

6. Does this camera produce colour footage at night or only black and white?

   Night footage is monochrome. The M3125-LVE uses IR illumination, which produces greyscale images in low-light and zero-light conditions. It does not have full-colour night capability. If colour identification at night is a requirement for your application - such as identifying clothing colour or vehicle colour in complete darkness - a full-colour outdoor camera available through Security Australia would be the appropriate choice.

7. How does AXIS Object Analytics reduce false alerts compared to standard motion detection?

   Standard motion detection triggers on any pixel change in the scene - wind-blown foliage, passing headlights, and insects crossing the lens are common false trigger sources. AXIS Object Analytics runs on the camera processor and classifies moving objects as humans or vehicles before triggering an event. This means only relevant detections generate alerts, significantly reducing the volume of notifications that require operator review on a live or remote-monitored system.
