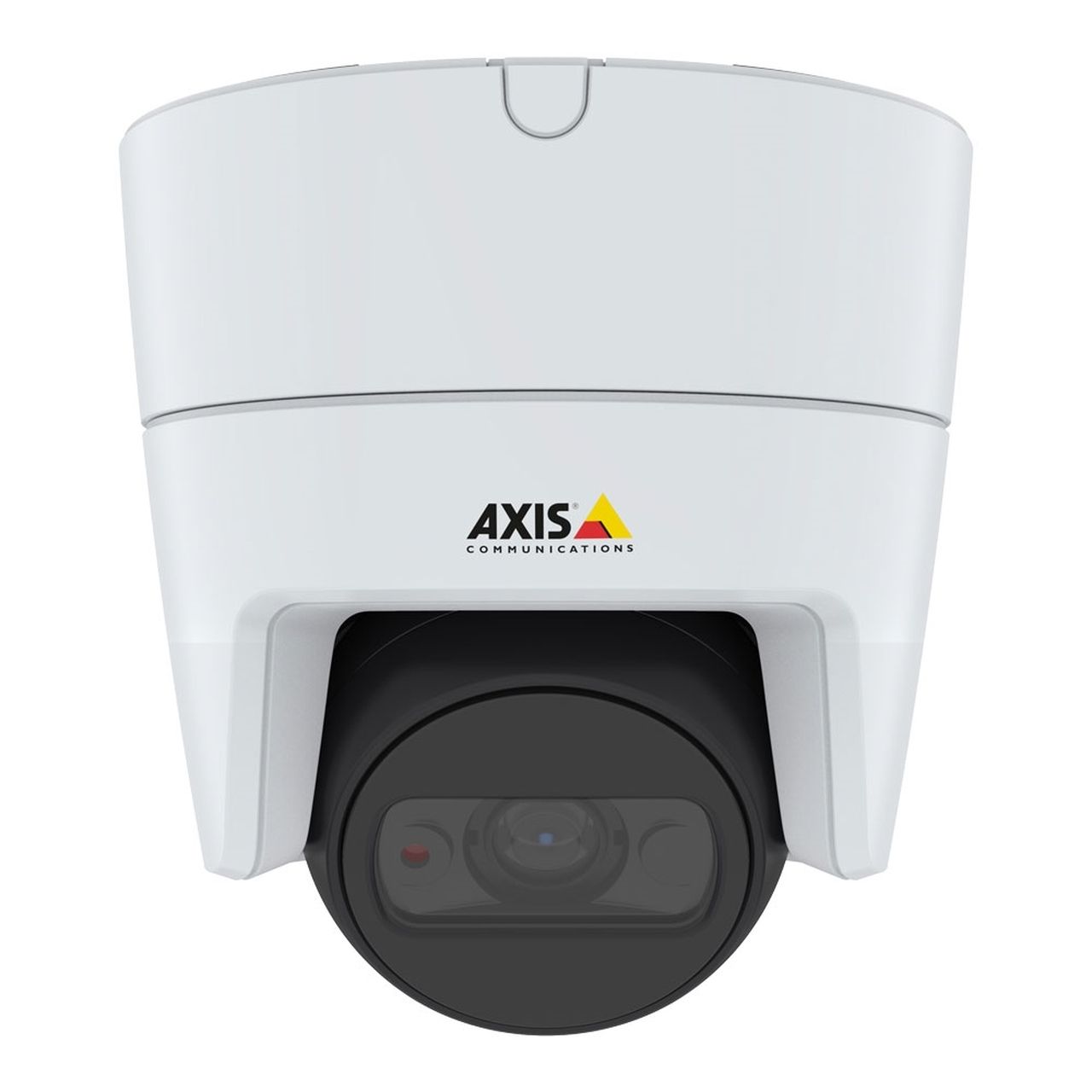

Axis M3116-LVE 4MP Outdoor Flateye Camera, H.265, IR, Zipstream, IK08, 2.4mm Lens 01605-001

Model: AXIS M3116-LVE

Who This Is For

When a low-profile outdoor housing and wide-angle coverage are the priority, the Axis M3116-LVE sits in a category that few fixed cameras occupy convincingly. Its flat-eye form factor keeps the camera close to the mounting surface - no protruding dome bubble, no housing that invites water pooling or vandal leverage. The 2.4mm fixed lens delivers a broad field of view suited to entrances, car parks, reception facades, and building perimeters where the goal is to capture as much of a scene as possible from a single position. At 4MP, that wide frame still holds enough detail to identify individuals and read vehicle plates in favourable conditions. IK08 impact resistance and IP66 weatherproofing make it practical for exposed outdoor positions. This is a camera for installers specifying a tidy, durable outdoor solution on commercial buildings, aged care facilities, schools, and multi-tenancy residential sites where aesthetics and resilience both matter.

What This Camera Actually Does

Who Buys This Model

• Commercial Installers on Facade Projects: The flat-eye housing integrates cleanly against rendered or tiled building exteriors where a protruding dome would look out of place or become a mounting liability.
• School and Aged Care Facility Managers: IK08 impact resistance and a sealed IP66 body meet the durability requirements for high-traffic entry points, outdoor corridors, and semi-exposed covered walkways.
• Multi-Tenancy Residential Developments: The 2.4mm wide-angle lens covers lobby entries, lift lobbies, and car park lanes from a single fixed position, keeping camera counts and cabling costs lower on large floor plans.
• IT and Network Managers Running Axis VMS Environments: Native AXIS Camera Station and AXIS Video Hosting System integration makes the M3116-LVE a straightforward addition to an existing Axis ecosystem without compatibility workarounds.

Honest Assessment

The M3116-LVE handles wide-area outdoor coverage well. The combination of 4MP resolution, a 2.4mm lens, IK08 impact resistance, IP66 weatherproofing, and H.265 with Zipstream makes it a genuinely capable fixed camera for sites that need robust hardware and manageable storage overhead. The flat-eye design is a genuine structural advantage in exposed or high-traffic positions - not just an aesthetic decision. Where this camera will not serve you well is in applications requiring optical zoom, long-range narrow corridor coverage, or PTZ tracking of moving subjects. The fixed 2.4mm lens is wide by design, which means it loses pixel density over distance - if licence plate capture or facial detail at 20 metres or beyond is a core requirement, a camera with a longer focal length or motorised zoom will be more appropriate. The M3116-LVE is available through Security Australia and suits sites where scene coverage width and housing durability are the primary design constraints.

Before You Buy

Quick Fit Check

• Good match if: You are covering a wide entrance, lobby, or outdoor courtyard where a broad field of view is more useful than a narrow telephoto shot - the 2.4mm lens and 4MP sensor are designed specifically for this coverage pattern.
• Good match if: The installation is in a location prone to impact or tampering and a standard dome housing feels inadequate - IK08 is a confirmed mechanical rating on this unit, not a marketing claim.
• You may need a different model if: Your primary requirement is long-range detail capture, licence plate recognition at distance, or active PTZ tracking - a bullet camera with a longer focal length or a PTZ unit from the Security Australia range will be more appropriate for those use cases.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a wide-angle outdoor camera with confirmed IK08 impact resistance, a low-profile flush-mount form factor, and H.265 Zipstream compression for storage efficiency - the M3116-LVE delivers all three in a single unit.
• You may need a different model if: Your coverage requirement involves a long approach, a narrow lane, or the need to resolve detail beyond 10-12 metres - a bullet camera or varifocal turret camera with a longer focal length will give you the reach this 2.4mm fixed lens cannot.
• Pairs well with: An ONVIF-compatible NVR or an Axis-native NVR/VMS for full Zipstream and analytics integration - and a PoE switch sized to the total camera count on site.

Common Questions

1. Does the M3116-LVE work with non-Axis NVRs and VMS platforms?

   Yes. The M3116-LVE supports ONVIF Profile S, Profile G, and Profile T, which gives it broad compatibility with third-party NVRs and VMS platforms that implement the ONVIF standard. However, Zipstream bandwidth savings and any Axis-specific analytics will only function fully when the camera is connected to AXIS Camera Station or another Axis-native management platform. On a third-party NVR, you will get standard H.265 streams without the dynamic bitrate reduction that Zipstream provides.

2. Will this camera capture usable detail for identifying people at 15 metres?

   It depends on lighting and scene conditions, but the 2.4mm lens is a wide-angle optic that distributes 4MP across a broad frame. At 15 metres, a standing person will occupy a relatively small portion of the image. The camera is well suited to scene overview and presence detection at that distance, but for recognition-level detail at 15 metres or beyond, a camera with a 6mm or longer focal length will concentrate more pixels on the subject.

3. Does the IK08 rating mean it is fully vandal-proof?

   No - IK08 means the housing withstands a 5 joule impact, which is a sustained and significant blow. It is not indestructible, and no camera housing is. IK08 is a standardised European rating that defines resistance to a specific mechanical force. It is meaningful in the context of opportunistic tampering or accidental impact, but a determined attack with tools will defeat it. The rating is most relevant for reducing damage from everyday misuse, ball strikes, or bump contact in public areas.

4. How much does Axis Zipstream actually reduce storage compared to standard H.265?

   Axis states that Zipstream can reduce average bitrate by up to 50% or more compared to standard H.265 on typical scenes with significant periods of low activity. The actual saving depends heavily on scene content - a busy intersection saves less than a quiet overnight car park. Zipstream works by dynamically reducing bitrate in static areas of the frame while maintaining full quality in regions of motion or detected interest, rather than applying a fixed compression level across the entire stream.

5. Does this camera require PoE+ or will a standard PoE port work?

   Standard 802.3af PoE is sufficient. The M3116-LVE is a Class 3 device, which draws under 15.4W - well within what any 802.3af port delivers. You do not need a PoE+ (802.3at) switch or injector. This keeps the camera compatible with a wide range of existing network infrastructure and NVRs with built-in PoE ports.

6. Is the M3116-LVE suitable for coastal or high-humidity outdoor environments?

   Yes, within the operating limits of the IP66 rating. IP66 covers full dust sealing and protection against powerful water jets, which addresses rain, high humidity, and condensation. The aluminium housing resists corrosion better than plastic alternatives. If the site is in a direct ocean spray zone with constant salt mist exposure, confirm with your installer whether additional corrosion protection measures are warranted for brackets and fixings - the camera body itself is rated for outdoor use in Australian conditions. The M3116-LVE is stocked by Security Australia and is covered by the standard Axis warranty.
