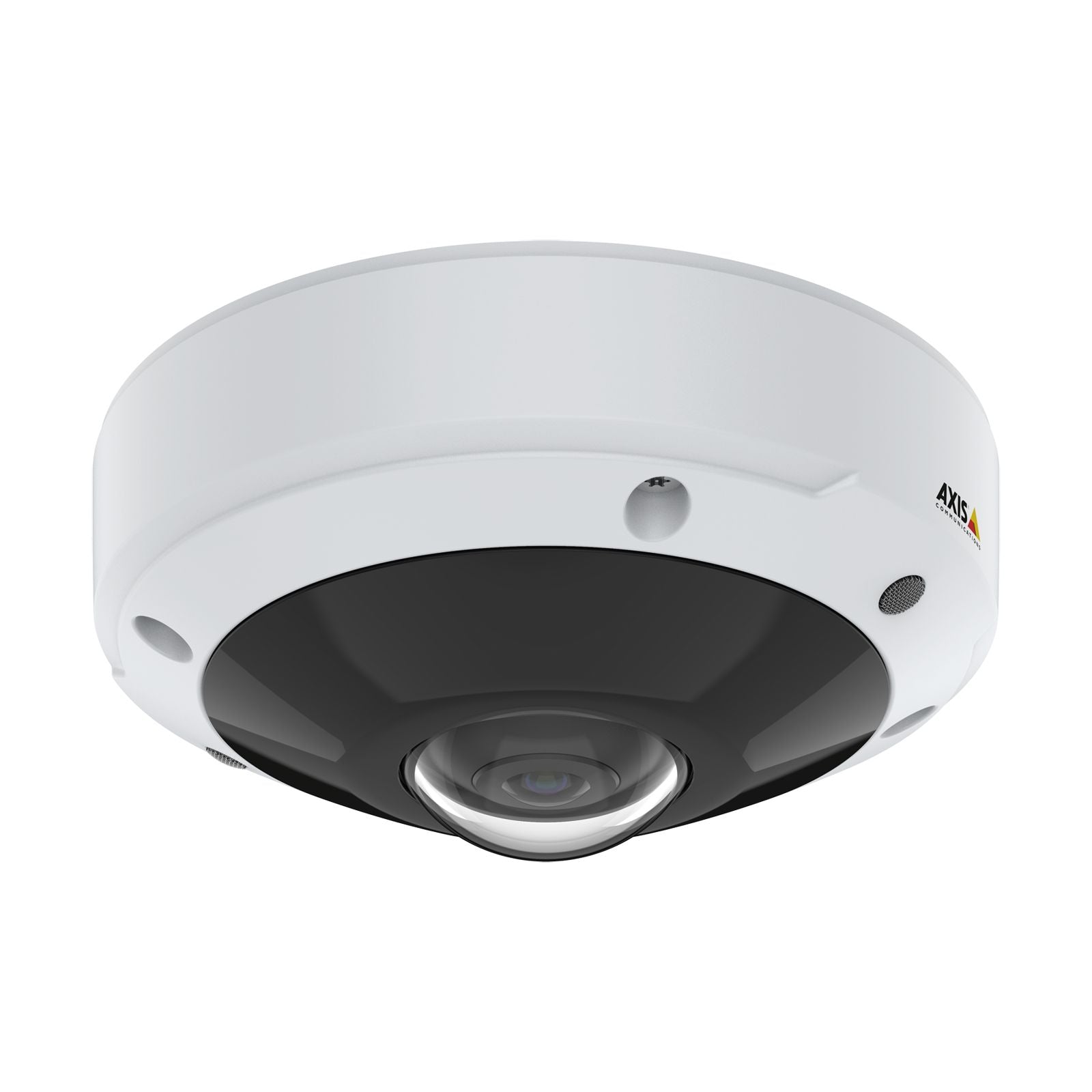

Axis M3077-PLVE 6MP Mini Dome Camera, H.264, PoE, 1.56mm, 180/360 Fxed Lens 02018-001

Model: AXIS M3077-PLVE

Who This Is For

For security designers and integrators who need to cover an entire open-plan floor, reception area, or retail space from a single ceiling-mount point, the Axis M3077-PLVE delivers full 360-degree panoramic coverage at 6MP resolution from a compact mini dome housing. The fixed 1.56mm fisheye lens captures a complete circular view overhead, which can then be dewarped into flat panoramic, quad, or corridor views through a compatible VMS - eliminating the blind spots that come from stitching together multiple standard cameras. This makes it particularly well-suited to environments where cable runs are limited, ceiling access is constrained, or where minimising the number of visible camera positions is a priority. Open-plan offices, hotel lobbies, university common areas, and retail showrooms are natural fits. If you are comparing single-sensor panoramic options at this resolution class, the M3077-PLVE is worth examining closely before specifying multiple standard dome units.

What This Camera Actually Does

Who Buys This Model

• Systems Integrators on Commercial Fitouts: Specifying open-plan offices, co-working spaces, or hotel lobbies where a single ceiling-drop replaces 3-4 standard dome positions and the client wants a minimal camera footprint.
• Retail Loss Prevention Managers: Covering sales floors or checkout areas from one central ceiling point, using the 360-degree view to eliminate the angular gaps that allow shoplifting blind spots between fixed cameras.
• University and Education Facility Managers: Monitoring common areas, libraries, and corridors where a single unobtrusive mini dome needs to capture the full room without students or staff being aware of specific coverage angles.
• IT and Physical Security Teams Running Axis Camera Station: Already operating an Axis VMS environment where fisheye dewarping, virtual PTZ views, and ONVIF Profile S/G/T integration are handled natively - adding the M3077-PLVE without third-party software overhead.

Honest Assessment

The M3077-PLVE does one thing particularly well: it eliminates blind spots in enclosed indoor spaces without requiring multiple camera runs. The 6MP fisheye sensor delivers enough native resolution that dewarped regions remain useful for post-incident review in rooms up to approximately 8-10 metres in diameter. Axis Zipstream meaningfully reduces the storage burden of a continuous high-resolution stream, and the compact mini dome housing suits ceiling installations where a larger camera would be intrusive. This is a camera available through Security Australia that rewards proper VMS planning - dewarping quality and virtual PTZ usability depend entirely on the software handling the stream. It will not perform in low-light environments the way a dedicated low-lux or IR-equipped camera does - there is no built-in infrared illumination, making it suitable only for spaces with consistent artificial lighting. It is also not a substitute for a motorised PTZ where operators need live directional tracking across a large outdoor area. For those use cases, a different camera type is the right answer.

Before You Buy

Quick Fit Check

• Good match if: You need full 360-degree indoor room coverage from a single ceiling-mount point and your VMS supports Axis fisheye dewarping - this camera eliminates angular gaps that multiple fixed domes still leave.
• Good match if: Cable runs are limited or ceiling access is difficult - one PoE drop powers and connects the M3077-PLVE, replacing what would otherwise require 3-4 separate camera installations.
• You may need a different model if: Your coverage area is outdoors, requires IR night vision, or spans long distances where a bullet or turret camera with dedicated IR illumination and a narrower telephoto lens would resolve usable detail at range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full 360-degree indoor room coverage from one ceiling-mount point with 6MP resolution and your VMS handles fisheye dewarping - this eliminates the angular blind spots and additional cable runs that come with specifying multiple standard domes for the same space.
• You may need a different model if: Your site requires outdoor installation, night vision in low or zero ambient light, or long-distance coverage along a fence line or approach - a bullet or turret camera with built-in IR illumination is a more appropriate product type for those scenarios.
• Pairs well with: A PoE network switch with sufficient per-port wattage, an ONVIF-compatible NVR or VMS with native fisheye dewarping support, and a microSD card for onboard edge recording redundancy.

Common Questions

1. Does this camera work with any NVR or does it need Axis-specific software?

   It works with any ONVIF-compatible NVR or VMS, but fisheye dewarping quality varies by platform. The M3077-PLVE is ONVIF Profile S, G, and T compliant, so it will connect and stream to most modern NVRs without issue. However, the quality of panoramic dewarping, virtual PTZ views, and quad-split display depends on whether your specific VMS includes a fisheye dewarping module. Axis Camera Station handles it natively. Third-party platforms such as Milestone, Genetec, and others support it, but confirm your licence tier includes fisheye dewarping before installation.

2. Will this camera work in a room where the lights are turned off overnight?

   No. The M3077-PLVE has no built-in IR illumination and is rated IP42 for indoor use only. It relies entirely on ambient artificial lighting to produce a usable image. In low-light or dark conditions, image quality degrades significantly. If the monitored space has periods without lighting, you will need to either maintain a minimum light level overnight or specify a camera with dedicated IR illumination for after-hours coverage.

3. How does the fisheye dewarping work and what view modes are available?

   The camera itself streams the raw circular fisheye image - all dewarping is performed by the VMS or viewing client software. Depending on your platform, available view modes typically include: full 360-degree panoramic (a wide flat band showing the entire room), quad-split (4 directional sectors), virtual PTZ (a digitally zoomed and panned region of the original frame), and corridor format (a tall narrow view suited to elongated spaces). The dewarped output is a processed interpretation of the original 6MP frame, so detail in any given view region is drawn from that native resolution. Wider virtual views include more of the room but at lower effective pixels-per-metre; tighter virtual PTZ views resolve more detail across a smaller zone.

4. What DORI distances should I expect from this camera in a typical room?

   DORI distances for a 360-degree fisheye are substantially shorter than for a directional camera of equivalent megapixel count, because the 6MP sensor is distributing resolution across the full horizontal circle rather than a narrow angle. For the M3077-PLVE at 6MP with a 1.56mm lens, practical identification-grade detail (enough to recognise a known individual) is realistic within approximately 3-5 metres of the camera in a ceiling-centre mount position. Detection and observation at room scale - enough to confirm presence and movement - extends across a typical 8-10 metre room. For spaces requiring identification at greater distances, a higher-resolution fisheye or a combination of directional cameras would be more appropriate.

5. Does the M3077-PLVE support edge recording, and how much storage can it hold locally?

   Yes. The camera includes an onboard microSD/SDHC/SDXC card slot supporting cards up to 512GB. This allows local recording directly on the camera, independent of any NVR or network recording server. Edge storage can be used as a primary recording method in bandwidth-constrained locations, as a failover when the network path to the NVR is interrupted, or as an additional redundant copy alongside central NVR recording. The card is not included - you will need to source a compatible microSD card separately. Security Australia stocks this camera as part of a broader range of Axis edge-storage-capable units.

6. What PoE switch specification does this camera require?

   Standard IEEE 802.3af PoE is sufficient. The M3077-PLVE draws a maximum of 6.5W, which falls well within the 15.4W budget of a standard 802.3af port. You do not need a PoE+ (802.3at) switch for this camera. A single Cat5e or Cat6 cable run to the ceiling mount carries both power and data simultaneously. Maximum recommended cable run for PoE over Cat5e/Cat6 is 100 metres from switch port to camera.
