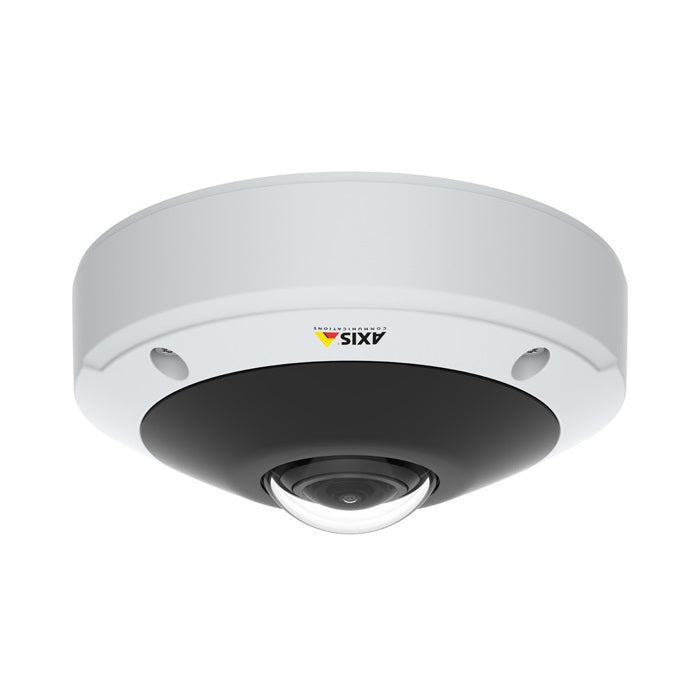

AXIS M3058-PLVE 12MP Fixed Dome Camera, H.264, WDR, PoE, Zipstream, 1.2mm, 360deg Lens

Model: AXIS M3058-PLVE

Who This Is For

When eliminating blind spots from a single ceiling mount is the priority, the AXIS M3058-PLVE is the camera specifiers reach for. Designed for commercial and institutional environments - think open-plan offices, hotel lobbies, retail floors, transport hubs, and school common areas - this 12MP fisheye dome delivers a full 360-degree overview from one fixed position. Installers working on sites where running cable to multiple camera positions is cost-prohibitive will find the M3058-PLVE particularly practical: a single PoE drop covers a space that would otherwise require 3 or 4 standard cameras. The IK10 vandal-resistant housing and IP66 weather rating extend its usefulness to covered outdoor areas and entry canopies. Facilities managers specifying CCTV upgrades for wide open spaces, and integrators designing systems where total camera count needs to be minimised without sacrificing coverage, are the typical buyers for this model.

What This Camera Actually Does

Who Buys This Model

• Commercial Integrators: Specifying single-camera coverage for large open areas - hotel lobbies, office reception zones, and open-plan retail floors - where minimising camera count reduces installation cost without leaving gaps.
• Facilities Managers at Education and Healthcare Sites: Installing in corridors, waiting rooms, and common areas where a single IK10-rated ceiling mount covers the full space and resists tampering from occupants.
• Transport and Logistics Operators: Deploying in covered loading areas and depot interiors where the 360-degree view and IR capability handle low-light shifts without requiring multiple fixed cameras at different angles.
• Retail Loss Prevention Teams: Using the quad view and digital PTZ to monitor aisle intersections from a single dome, with the ability to crop and zoom into specific view areas during incident review without a second camera.
• Security Consultants Designing Axis-Ecosystem Systems: Integrating the M3058-PLVE into AXIS Camera Station or third-party VMS platforms that support Axis VAPIX, taking advantage of multi-stream dewarping and analytics capability within an established infrastructure.

Honest Assessment

The AXIS M3058-PLVE does one thing particularly well: it replaces multiple fixed cameras in open spaces with a single 12MP fisheye mount that streams several dewarped views simultaneously. The combination of Forensic WDR up to 120 dB, Lightfinder, and OptimizedIR makes it genuinely capable across a wide range of lighting conditions, and the IK10/IP66 construction means it handles both indoor and covered outdoor installs. Zipstream keeps storage requirements manageable for a sensor of this resolution, and the HDMI output adds flexibility for sites that want a local monitor feed.

Where it will not serve as well: long-distance identification along perimeter fences or car park approaches. The fixed 1.2mm fisheye lens is optimised for wide-area overview, not for reading detail at range - for those applications, a bullet or PTZ camera with optical zoom is more appropriate. If your site requires active pan and tilt tracking of moving subjects, a motorised PTZ would be the better choice. Both types are available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You need to cover an entire open room or lobby from a single ceiling mount point and want simultaneous panorama, corridor, and quad views all streamed at once from one 12MP sensor.
• Good match if: Your site has mixed lighting conditions - such as a reception area with bright exterior windows and darker interior zones - where Forensic WDR up to 120 dB is needed to keep both areas legible in the same frame.
• You may need a different model if: Your primary requirement is identifying subjects or reading detail at distances beyond 15 metres - a bullet or PTZ camera with optical zoom and long-range IR would be more appropriate for perimeter, car park approach, or entrance lane coverage.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need one ceiling-mounted camera to cover an entire room with simultaneous 360-degree overview and multiple dewarped view streams, and your site requires IK10 vandal resistance and IP66 weather protection in the same unit.
• You may need a different model if: Your priority is identifying faces or reading detail at distances over 15 metres - a motorised PTZ camera with optical zoom is better suited to that task, as digital zoom from a fixed fisheye sensor does not improve detail at range.
• Pairs well with: A compatible Axis-supported NVR or VMS platform that handles multi-stream fisheye dewarping natively, and a PoE switch sized for the camera's power draw - single-camera fisheye installs can often consolidate what would otherwise be a 3 or 4 camera NVR channel allocation.

Common Questions

1. Does this camera cover a full 360 degrees from a single mount point?

   Yes. The M3058-PLVE uses a 1.2mm fisheye lens with a 181-degree horizontal and 181-degree vertical field of view, delivering a complete 360-degree overview from a single ceiling position. There are no blind spots within the coverage radius beneath the camera. The raw fisheye image is then dewarped into usable views - panorama, quad, corridor, corner, and up to 4 individually cropped areas - all accessible simultaneously.

2. Will this camera work outdoors?

   Yes, in covered or sheltered outdoor locations. The M3058-PLVE is rated IP66, meaning it is protected against powerful water jets and dust ingress. The IK10 vandal rating adds impact resistance. It is not designed for direct exposure to sustained rain in fully exposed outdoor positions - for uncovered outdoor use, a weatherproof dome or bullet housing rated for that environment would be more appropriate.

3. Can I view multiple dewarped areas at the same time, or do I have to choose one?

   All views can be streamed simultaneously. The camera supports concurrent streaming of the 360-degree overview, dewarped panorama, double panorama, corridor, quad, and corner views, as well as up to 4 individually cropped view areas. When running 4 dewarped view areas plus the 360 overview at maximum resolution, each stream runs at up to 12fps. You do not need to switch between modes - your VMS can display all simultaneously.

4. How does the dewarping work - does it happen in the camera or in the software?

   Both options are available. The M3058-PLVE processes dewarping on-board, delivering pre-dewarped streams (panorama, corridor, quad, view areas) directly from the camera without requiring the VMS to perform the calculation. This reduces the processing load on the server. Some VMS platforms also offer client-side dewarping from the raw fisheye stream if preferred. Confirm your VMS supports Axis VAPIX or ONVIF Profile S to access all dewarped stream modes correctly. The team at Security Australia can advise on VMS compatibility for this model.

5. What is the maximum frame rate with WDR active?

   With WDR active and streaming dewarped views at maximum resolution, the camera runs at up to 12.5fps (50Hz) or 15fps (60Hz). Without WDR, the 360-degree overview alone at up to 2992x2992 achieves 25/30fps. If you are running all dewarped views plus the 360 overview simultaneously at maximum resolution, each stream delivers up to 12fps. For applications where fluid motion is critical - such as monitoring fast-moving machinery or high-traffic turnstiles - plan your WDR and resolution settings accordingly.

6. Does this camera have optical zoom or is it digital only?

   Digital only. The M3058-PLVE uses a fixed 1.2mm fisheye lens with no optical zoom mechanism. Pan, tilt, and zoom of the dewarped view areas is performed digitally within the 12MP sensor image. Zooming into a specific area does not add detail beyond what the sensor initially captured - it crops and enlarges from the full resolution image. For identifying subjects at distance with optical magnification, a PTZ camera with motorised optical zoom is the correct tool.

7. What are the DORI distances for this camera - what can I realistically identify at what range?

   The DORI (Detection, Observation, Recognition, Identification) distances for a fisheye camera differ significantly from a standard fixed lens. Because the 1.2mm lens distributes 12MP across a 360-degree field, pixel density per metre decreases as distance from the camera increases. In practical terms, the M3058-PLVE is optimised for overview and observation at distances typically up to 3-6 metres for recognition-level detail, depending on ceiling height and subject size. Detection of movement in the wider field extends further, but forensic identification of facial features at distances beyond 6-8 metres is not reliable from this lens. For DORI-specific planning on your site, ceiling height and room dimensions should be assessed against the pixel density of each dewarped view area.

8. Does the HDMI output show the dewarped view or the raw fisheye image?

   The HDMI output delivers a 1080p signal at up to 60fps and can be used to display the camera feed directly on a local monitor. The output is configured through the camera's interface and can show any of the available view modes - including dewarped panorama or a view area - rather than being restricted to the raw fisheye circular image. This makes it practical for a reception desk or guard station monitor without requiring a separate VMS workstation.
