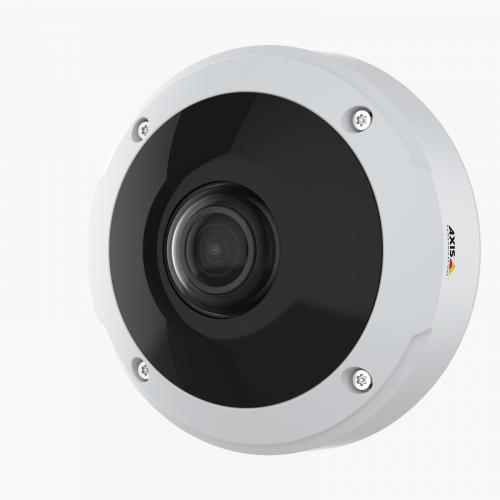

6 MP outdoor-ready dome with 360° panoramic view
Equipped with Axis’ Lightfinder 2.0 technology, this camera delivers exceptional image quality even in low-light conditions. The camera’s built-in IR illumination ensures clear night-time video surveillance. It supports remote zoom and focus adjustments for precise image framing. Its rugged, vandal-resistant casing is suitable for outdoor use, with an IP66 and IK10 rating providing robust protection against environmental elements and physical impacts. The camera is powered over Ethernet (PoE), simplifying installation and reducing the need for additional power supplies. With integrated analytics, including motion detection and people counting, it enhances security and operational insights.
Key Features
Code/SKU: AXIS M3057-PLVE
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Lens | 1.56 mm, F2.0 |
| Field of View | Horizontal: 183° Vertical: 183° |
| Features | Fixed iris, fixed focus, IR corrected Automatically removable infrared-cut filter |
| Minimum Illumination | Color: 0.16 lux at 50 IRE, F2.0 B/W: 0.03 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| Shutter Speed | 1/16000 s to 1 s |
| Camera Angle Adjustment | Digital roll: ± 180° |
| System on Chip (SoC) | Model ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | Overview: 2016x2016 to 160x160 Panorama: 2560x1440 to 192x72 Double Panorama: 2560x1920 to 384x288 Quad view: 2560x1920 to 384x288 View area 1–4: 1920x1440 to 256x144 Corner right/left: 2368x1184 to 384x288 Double corner: 2016x2016 to 384x288 Corridor: 2560x1920 to 256x144 |
| Frame Rate | 360° overview only: up to 2016x2016 without WDR: 50/60 fps @ 50/60 Hz 360° overview and dewarped views: up to max resolution with WDR: up to 25/30 fps @ 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode |
| Multi-view Streaming | 360° overview, dewarped panorama, corridor, corner left/right and quad views Up to 4 individually cropped out and dewarped view areas All different views can be streamed simultaneously When streaming 4 dewarped view areas and one 360° overview in max resolution: up to 19 fps per stream |
| Image Settings | Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, dynamic text and image overlay, mirroring, digital roll, polygon privacy masks |
| Pan/Tilt/Zoom | Digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views Preset positions, guard tours |
| Network | |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| System Integration | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, ONVIF® Profile T specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| Onscreen Controls | Day/night shift, Wide dynamic range, Video streaming indicator, IR illumination |
| Event Conditions | Analytics, edge storage events, virtual inputs through API, supervised external inputs, open casing MQTT subscribe |
| Event Actions | Record video: SD card and network share MQTT publish Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text, external output activation, zoom preset, day/night mode |
| Built-in Installation Aids | Pixel counter, digital roll, repositioning of quad views, digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views |
| Analytics Applications | Included: AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm Supported: AXIS People Counter, AXIS Occupancy Estimator, AXIS Queue Monitor Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| Cybersecurity | Edge Security: Software: Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform, Secure element (CC EAL 6+), secure keystore, secure boot Network Security: IEEE 802.1X (EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering Documentation: AXIS OS Hardening Guide, Axis Vulnerability Management Policy, Axis Security Development Model, AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
| General Specifications | |
| Casing | IP66-, NEMA 4X- and IK10-rated Polycarbonate hard coated dome Aluminum Color: white NCS S 1002-B For repainting instructions of skin cover or casing and impact on warranty, contact your Axis partner |
| Sustainability | PVC free |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 8.0 W, max 11.9 W |
| Connectors | Shielded RJ45 10BASE-T/100BASE-TX PoE Terminal block for 1 alarm input and 1 output (12 V DC output, max. load 25 mA) |
| IR Illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 20 m (66 ft) or more depending on scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com |
| Operating Conditions | -40 °C to 50 °C (-40 °F to 122 °F) Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) Maximum temperature (intermittent): 55 °C (131 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Humidity: 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 5–95% RH (non-condensing) |
| Approvals | EMC: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, EN 50121-4, IEC 62236-4 Safety: IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471, IS 13252 Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Network: NIST SP500-267 |
| Dimensions | Height: 66 mm (2.5 in) ø 149 mm (5.8 in) |
| Weight | 700 g (1.5 lb) |
| Included Accessories | Installation guide, Windows® decoder 1-user license, drill hole template, cable gaskets, connector guard, I/O connector, RESISTORX® TR20 bit, mounting bracket, cable hole lid, view protector |
| Optional Accessories | AXIS T94T02D Pendant kit with weathershield AXIS Surveillance Cards AXIS TM3808-E Skin Cover Black AXIS Mounts & Cabinets AXIS T6101 Audio and I/O Interface AXIS T6112 Audio and I/O Interface AXIS T94SO2L Recessed Mount Kit For more accessories, see axis.com |
| Video Management Software | AXIS Device Manager, AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners available at axis.com/vms |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
AXIS M3057-PLVE Mk II Network Camera 6 MP outdoor-ready dome with 360° panoramic view
The AXIS M3057-PLVE Mk II Network Camera offers high-resolution 6 MP imaging with a wide 180-degree field of view, making it ideal for covering large areas with a single camera. It features a compact design, allowing for discreet installation in various environments. Equipped with Axis’ Lightfinder 2.0 technology, this camera delivers exceptional image quality even in low-light conditions. The camera’s built-in IR illumination ensures clear night-time video surveillance. It supports remote zoom and focus adjustments for precise image framing. Its rugged, vandal-resistant casing is suitable for outdoor use, with an IP66 and IK10 rating providing robust protection against environmental elements and physical impacts.
The camera is powered over Ethernet (PoE), simplifying installation and reducing the need for additional power supplies. With integrated analytics, including motion detection and people counting, it enhances security and operational insights. It supports Axis’ Zipstream technology, which optimizes video compression to reduce bandwidth and storage requirements without compromising quality. The AXIS M3057-PLVE Mk II also integrates seamlessly with other Axis network products, providing a cohesive security solution. Its advanced image processing features, such as WDR (Wide Dynamic Range), ensure clear video in challenging lighting conditions. This model offers flexible mounting options, accommodating various installation scenarios. The camera’s user-friendly interface and remote management capabilities facilitate easy setup and operation. Designed for both indoor and outdoor use, it ensures reliable performance in diverse environments.
Features
| Camera | |
|---|---|
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Lens | 1.56 mm, F2.0 |
| Field of View |
Horizontal: 183° Vertical: 183° |
| Features | Fixed iris, fixed focus, IR corrected Automatically removable infrared-cut filter |
| Minimum Illumination |
Color: 0.16 lux at 50 IRE, F2.0 B/W: 0.03 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| Shutter Speed | 1/16000 s to 1 s |
| Camera Angle Adjustment | Digital roll: ± 180° |
| System on Chip (SoC) | Model ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution |
Overview: 2016x2016 to 160x160 Panorama: 2560x1440 to 192x72 Double Panorama: 2560x1920 to 384x288 Quad view: 2560x1920 to 384x288 View area 1–4: 1920x1440 to 256x144 Corner right/left: 2368x1184 to 384x288 Double corner: 2016x2016 to 384x288 Corridor: 2560x1920 to 256x144 |
| Frame Rate |
360° overview only: up to 2016x2016 without WDR: 50/60 fps @ 50/60 Hz 360° overview and dewarped views: up to max resolution with WDR: up to 25/30 fps @ 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode |
| Multi-view Streaming | 360° overview, dewarped panorama, corridor, corner left/right and quad views Up to 4 individually cropped out and dewarped view areas All different views can be streamed simultaneously When streaming 4 dewarped view areas and one 360° overview in max resolution: up to 19 fps per stream |
| Image Settings | Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, dynamic text and image overlay, mirroring, digital roll, polygon privacy masks |
| Pan/Tilt/Zoom | Digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views Preset positions, guard tours |
