6 MP panoramic onboard camera
Specifically designed for onboard surveillance, this rugged panoramic camera adheres to transportation industry standards such as EN 50155 and EN 45545-2. It features a 6 MP sensor that provides a comprehensive 180° or 360° overview. This compact mini dome also offers dewarped views including panorama, quad, corner, and corridor views directly from the camera. Equipped with Lightfinder, Forensic WDR, and OptimizedIR, it ensures exceptional image quality in various lighting conditions. Additionally, the camera includes built-in cybersecurity features to protect your system, such as Axis Edge Vault, which secures your Axis device ID and facilitates the authorization of Axis devices on your network.
Key Features
Code/SKU: AXIS M3057-PLR
Quick Specs:
Camera
| Category | Details |
|---|---|
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Lens | 1.56 mm, F2.0 |
| Field of View | Horizontal: 183° Vertical: 183° |
| Iris/Focal | Fixed iris, fixed focus, IR corrected |
| Day/Night Mode | Automatically removable infrared-cut filter |
| Minimum Illumination | Color: 0.16 lux at 50 IRE, F2.0 B/W: 0.03 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| Shutter Speed | 1/16000 s to 1 s |
| Camera Angle Adjustment | Digital roll: ± 180° |
| System on Chip (SoC) | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
Video
| Category | Details |
|---|---|
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main, High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | Overview: 2016x2016 to 160x160 Panorama: 2560x1440 to 192x72 Double Panorama: 2560x1920 to 384x288 Quad View: 2560x1920 to 384x288 View Area 1-4: 1920x1440 to 256x144 Corner Right/Left: 2368x1184 to 384x288 Double Corner: 2016x2016 to 384x288 Corridor: 2560x1920 to 256x144 |
| Frame Rate | 360° Overview (without WDR): 50/60 fps @ 50/60 Hz 360° Overview and Dewarped Views (with WDR): Up to 25/30 fps @ 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| Multi-view Streaming | 360° overview, dewarped panorama, corridor, corner left/right, and quad views. Up to 4 individually cropped out and dewarped view areas. When streaming 4 dewarped view areas and one 360° overview in max resolution: up to 19 fps per stream. |
| Image Settings | Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, dynamic text and image overlay, mirroring, digital roll, polygon privacy masks |
| Pan/Tilt/Zoom (PTZ) | Digital PTZ Optical zoom Preset positions Limited guard tour Control queue On-screen directional indicator Tour recording (max 10, max duration 16 minutes each) Guard tour (max 100) Adjustable zoom speed |
Network
| Category | Details |
|---|---|
| Security | IP address filtering HTTPS encryption IEEE 802.1x (EAP-TLS) network access control User access log Centralized certificate management |
| Network Protocols | IPv4, IPv6 USGv6 ICMPv4/ICMPv6 HTTP, HTTPS HTTP/2 SSL/TLS QoS Layer 3 DiffServ FTP, SFTP, CIFS/SMB SMTP mDNS (Bonjour) UPnP SNMP v1/v2c/v3 (MIB-II) DNS/DNSv6 DDNS NTP, NTS RTSP, RTCP, RTP, SRTP/RTSPS TCP, UDP IGMP, IGMPv1/v2/v3 DHCPv4/v6 ARP SSH SIP LLDP, CDP MQTT v3.1.1 Secure syslog (RFC 3164/5424, UDP/TCP/TLS) Link-Local address (ZeroConf) |
| System Integration | Open API for software integration, including VAPIX® and AXIS Camera Application Platform One-click cloud connection ONVIF® Profile G, M, S, T SIP for VoIP systems integration |
| Onscreen Controls | Day/night shift Wide dynamic range Video streaming indicator IR illumination |
| Event Conditions | Analytics, edge storage events, virtual inputs through API, supervised external inputs, open casing Device status alerts Edge storage alerts I/O events MQTT subscribe PTZ alerts Scheduled and recurring events Video alerts MQTT publish |
| Event Actions | Calls: answer call, end SIP call, make SIP call Day-night mode Guard tour I/O IR illumination MQTT publish Overlay text Preset positions Recordings WDR mode Upload of images or video clips Notification: email, HTTP, HTTPS, TCP, SNMP trap messages Data streaming: event data |
Built-in Installation Aids
| Category | Details |
|---|---|
| Installation Aids | Pixel counter Digital roll Repositioning of quad views Digital PTZ of view areas Digital PT of panorama, corner, corridor, and double corner views Easy view configuration for live view Guide settings Focus tool for manual focusing Live view with in-camera streaming support Remote camera control Virtual PTZ Active focus assist |
Environmental Conditions
| Category | Details |
|---|---|
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F) Humidity: 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 5–95% RH (non-condensing) |
| Approvals | EMC: RCM AS/NZS CISPR 32 Class A, ECE R10 rev.06, EN 50498, EN 55035, EN 55032 Class A, EN 50121-4, EN 50121-3–2, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9835KS C 9832 Class A, VCCI Class A Safety: CAN/CSA C22.2 No. 62368-1 ed. 3, CAN/CSA-C22.2 No. 60950-22, EN 45545–2, IEC 62471 risk group exempt, IEC/EN/UL 62368-1 ed. 3, UN ECE R118, IS 13252, NFPA 130 Environment: EN 50155:2017 OT2/ST2, IEC 60068-2 series, IEC 60721-3-5 Class 5M3, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10, IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X, NEMA TS 2 Network: NIST SP500-267 Other: IEC/EN 63000:2018 Cybersecurity: ETSI EN 303 645 |
Dimensions
| Category | Details |
|---|---|
| Dimensions | Height: 66 mm (2.5 in) Diameter: 149 mm (5.8 in) |
| Weight | 760 g (1.68 lb) |
Included Accessories
| Category | Details |
|---|---|
| Included Accessories | Installation guide Windows® decoder 1-user license Drill hole template Cable gaskets Connector guard I/O connector RESISTORX® TR20 bit Mounting bracket Cable hole lid View protector |
Optional Accessories
| Category | Details |
|---|---|
| Optional Accessories | AXIS M30 Skin Cover A Black For more accessories, see axis.com |
Video Management Software
| Category | Details |
|---|---|
| Video Management Software | AXIS Device Manager AXIS Companion AXIS Camera Station Video management software from Axis Application Development Partners available at axis.com/vms |
Languages
| Category | Details |
|---|---|
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

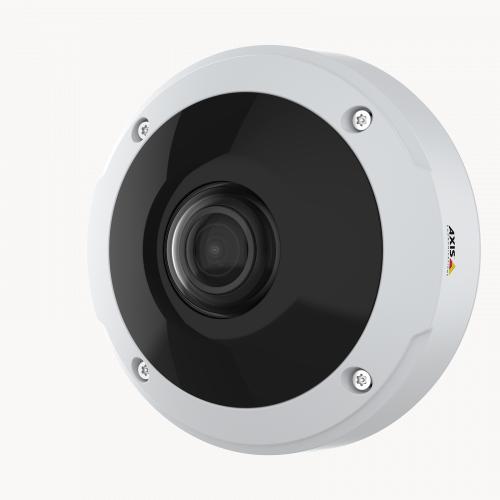

AXIS M3057-PLR Mk II Dome Camera 6 MP onboard dome with 360° panoramic view
The AXIS M3057-PLR Mk II Dome Camera is an advanced surveillance solution designed to offer comprehensive monitoring with its 360° panoramic view. It features a 5 MP resolution, ensuring high image quality and clarity in various lighting conditions. The camera includes Axis' Lightfinder technology, which enhances color images in low-light environments. With its built-in IR LEDs, it provides effective night vision capabilities. The camera is equipped with Axis' Zipstream technology, optimizing bandwidth and storage by reducing the amount of data without compromising image quality. Its compact and discreet design makes it suitable for both indoor and outdoor use. The M3057-PLR Mk II supports remote zoom and focus adjustments, simplifying installation and maintenance. It is also equipped with a built-in microphone for audio monitoring. The camera's robust build and vandal-resistant features ensure durability in challenging environments. Integration with Axis' ACAP (Axis Camera Application Platform) allows for additional customization and application development. The camera supports PoE (Power over Ethernet) for easy installation and reduced cabling. It offers multiple streaming capabilities, including simultaneous H.264 and H.265 compression. The M3057-PLR Mk II includes advanced analytics such as motion detection and people counting. It is compliant with ONVIF standards, ensuring compatibility with a wide range of network video recorders. The camera’s user-friendly interface and Axis' network security features ensure a secure and efficient monitoring experience.
Optimized for the transportation industry
Specifically designed for onboard surveillance, AXIS M3057-PLR Mk II complies with transportation industry standards including EN50155 and EN45545-2. Including an M12 connector, it can withstand vibrations ideal for installation in trains and buses. This ruggedized IK10, IP66/67-rated camera can withstand harsh environments. Plus, an active tampering alarm lets you know if your camera has been tampered with. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
See everything 24/7
This 6 MP panoramic camera offers 360° wide area coverage with just one camera. Ideal for onboard surveillance, you can use one video stream to produce any dewarped views you'd like. It’s possible to stream panorama, quad, corner, and corridor views directly from the camera. And you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously. Including Axis Lightfinder, it ensures sharp color images in low light. Plus, Forensic WDR delivers clarity even when there’s both dark and light areas in the scene. Furthermore, thanks to Axis OptimizedIR it enables surveillance in total darkness.
Built-in cybersecurity features
AXIS M3057-PLR Mk II comes with built-in cybersecurity functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.
Features
| Camera | |
|---|---|
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Lens | 1.56 mm, F2.0 |
| Field of View | Horizontal: 183° Vertical: 183° |
| Iris/Focal | Fixed iris, fixed focus, IR corrected |
| Day/Night Mode | Automatically removable infrared-cut filter |
| Minimum Illumination | Color: 0.16 lux at 50 IRE, F2.0 B/W: 0.03 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| Shutter Speed | 1/16000 s to 1 s |
| Camera Angle Adjustment | Digital roll: ± 180° |
| System on Chip (SoC) | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
