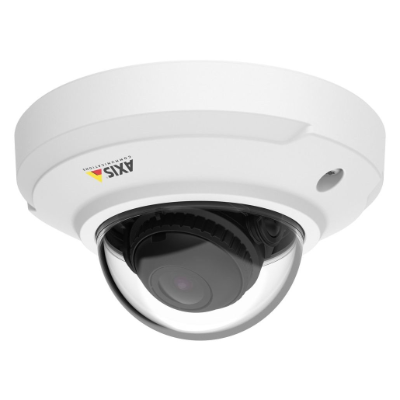

HDTV 1080p fixed mini dome with HDMI
The AXIS M3045-V is an affordable, vandal- and dust-resistant indoor fixed dome camera. It features an integrated RJ45 Ethernet connection with Power over Ethernet (PoE) support. The camera’s Wide Dynamic Range (WDR) technology ensures visibility of details in both dark and bright areas of the scene. With HDMI support, it allows live streaming to an HDTV monitor, making it ideal for public viewing. The factory-focused camera can be mounted on walls or ceilings and offers a 3-axis camera angle adjustment for easy leveling and directional control. Additionally, the AXIS M3045-V supports the Axis Corridor Format for vertically oriented video streams and includes video analytics capabilities such as people counting.
Key Features
Code/SKU: AXIS M3045-V
Quick Specs:
| Camera | |
| Image Sensor | 1/3” progressive scan RGB CMOS |
| Lens | M12 mount, fixed iris, fixed focus |
| Lens Specifications | 2.8 mm, F2.0 |
| Horizontal Field of View | 106° |
| Vertical Field of View | 59° |
| Light Sensitivity | 0.25 lux at 50 IRE F2.0 |
| Shutter Time | 1/32500 s to 1/5 s |
| Camera Angle Adjustment | Pan: ±177°, Tilt: ±69°, Rotation: ±176° Can be directed in any direction and see the wall/ceiling |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, Motion JPEG |
| Resolution | 1920x1080 (1080p) to 320x240 |
| Frame Rate | 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG |
| Axis Zipstream Technology | Controllable frame rate and bandwidth, VBR/MBR H.264 |
| Multi-view Streaming | Up to 2 individually cropped out view areas in full frame rate |
| Pan/Tilt/Zoom | Digital PTZ |
| HDMI Output | HDMI 1080p@25/30 fps (50/60 Hz), HDMI 1080i@50/60 fps (50/60 Hz), HDMI 720p@50/60 fps (50/60 Hz), HDMI 720p@25/30 fps (50/60 Hz) |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, WDR, text and image overlay, mirroring of images, privacy mask |
| Rotation | 0°, 90°, 180°, 270°, including Corridor Format |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI 1.4b, LLDP |
| System Integration | Open API for software integration, including VAPIX® and AXIS Camera Application Platform, AXIS Video Hosting System (AVHS) with One-Click Connection, ONVIF® Profile S and ONVIF® Profile G, specification at onvif.org |
| Analytics | AXIS Video Motion Detection, active tampering alarm AXIS Digital Autotracking, AXIS Fence Guard, AXIS Motion Guard, AXIS Loitering Guard, AXIS People Counter, AXIS Queue Monitor, AXIS Occupancy Estimator, AXIS Direction Detector, AXIS Tailgating Detector, AXIS Random Selector |
| Event Triggers | Analytics, edge storage events |
| Event Actions | File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: email, HTTP, HTTPS and TCP and SNMP trap Video recording to edge storage Send video clip Pre- and post-alarm video buffering Overlay text |
| Data Streaming | Event data |
| Built-in Installation Aids | Pixel counter |
| General | |
| Casing | IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate/ABS casing, Encapsulated electronics, captive screws (Torx® 10), Color: white NCS S 1002-B |
| Sustainability | PVC free, 55% recycled plastics |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 1, Typical 2.6 W, max 3.0 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| Storage | Support for microSD/microSDHC/microSDXC card, Support for SD card encryption, Support for recording to network-attached storage (NAS) |
| Operating Conditions | 0 °C to 45 °C (32 °F to 113 °F) |
| Humidity | 15-85% RH (non-condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals | |
| EMC | EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A and B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35 |
| Safety | IEC/EN/UL 60950-1 |
| Environment | IEC/EN 60529 IP42, IEC/EN 62262 Class IK08, RoHS, WEEE |
| Dimensions | Height: 56 mm (2.2 in), Ø 101 mm (4.0 in) |
| Weight | 170 g (0.38 lb) |
| Included Accessories | Installation Guide, Windows decoder 1-user license, Torx® L-key |
| Optional Accessories | AXIS T94B02D Pendant kit, AXIS T94B02L Recessed mount, AXIS T94B01P Conduit back box, AXIS T94B02M J-Box/Gang box plate, View protection (Black casing, Smoked dome), Axis Mounts, AXIS Surveillance microSDXC™ Card |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
AXIS M3045-V Mini Dome Camera, 1080p, H.264, PoE, Zipstream, 2.8mm Fixed Lens
The AXIS M3045-V is a compact, high-performance network camera designed for versatile surveillance solutions. It boasts a 2 MP resolution that delivers clear, detailed images, making it ideal for monitoring small to medium-sized areas. Equipped with a 3.6 mm lens, it offers a 120-degree field of view, ensuring comprehensive coverage. The camera features Axis' Lightfinder technology, enhancing low-light performance for improved image quality in challenging lighting conditions. With its built-in IR illumination, the M3045-V provides clear, high-quality footage even in complete darkness. The camera's wide dynamic range (WDR) ensures balanced exposure and detail in scenes with both bright and dark areas. Its compact and discreet design allows for easy installation in a variety of settings. The AXIS M3045-V also supports Power over Ethernet (PoE), simplifying setup by reducing the need for separate power supplies. It is equipped with enhanced security features, including encryption and secure boot, to protect against cyber threats. Additionally, the camera is compatible with Axis' range of video management software, offering flexibility in surveillance management and integration.
Features
| Camera | |
| Image Sensor | 1/3” progressive scan RGB CMOS |
| Lens | M12 mount, fixed iris, fixed focus |
| Lens Specifications | 2.8 mm, F2.0 |
| Horizontal Field of View | 106° |
| Vertical Field of View | 59° |
| Light Sensitivity | 0.25 lux at 50 IRE F2.0 |
| Shutter Time | 1/32500 s to 1/5 s |
| Camera Angle Adjustment | Pan: ±177°, Tilt: ±69°, Rotation: ±176° Can be directed in any direction and see the wall/ceiling |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, Motion JPEG |
| Resolution | 1920x1080 (1080p) to 320x240 |
| Frame Rate | 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG |
| Axis Zipstream Technology | Controllable frame rate and bandwidth, VBR/MBR H.264 |
| Multi-view Streaming | Up to 2 individually cropped out view areas in full frame rate |
| Pan/Tilt/Zoom | Digital PTZ |
| HDMI Output | HDMI 1080p@25/30 fps (50/60 Hz), HDMI 1080i@50/60 fps (50/60 Hz), HDMI 720p@50/60 fps (50/60 Hz), HDMI 720p@25/30 fps (50/60 Hz) |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, WDR, text and image overlay, mirroring of images, privacy mask |
| Rotation | 0°, 90°, 180°, 270°, including Corridor Format |
