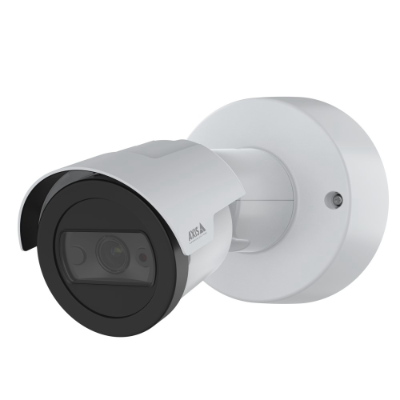

AXIS M2036-LE 4MP Compact Bullet Camera, Analytics, IR, IP67, IK08, 3.2mm Lens

Model: M2036-LE

Who This Is For

For installers and security managers who need wide-area outdoor coverage with on-camera intelligence rather than server-dependent analytics. The AXIS M2036-LE is a compact bullet camera built for external mounting at car parks, building perimeters, retail yards, and logistics sites where a single camera needs to do more than record - it needs to classify what it sees. With a 3.2mm fixed lens delivering a 129-degree field of view and a built-in deep learning processing unit, this camera runs human and vehicle classification directly on the edge, reducing false alerts without needing an analytics server. IK08 impact resistance, IP67 ingress protection, and a -30°C to 50°C operating range make it suitable for exposed installations where conventional cameras struggle. PoE simplifies single-cable deployment, and Axis Zipstream keeps bandwidth and storage consumption in check across multi-camera setups.

What This Camera Actually Does

Who Buys This Model

• Facilities Managers at Commercial Sites: Specifying perimeter cameras for car parks, loading docks, and yard gates where wide-area 4MP coverage and on-camera vehicle classification reduce guard response time without adding server infrastructure.
• Security Integrators on Analytics Projects: Deploying edge-based AXIS Object Analytics across multi-site retail or logistics clients who need human and vehicle classification without licensing per-camera analytics software on a VMS.
• Industrial Site Managers: Installing in exposed environments where the -30°C to 50°C operating range, IK08 impact rating, and IP67 ingress protection are non-negotiable - chemical plants, mining support facilities, and cold-storage yards included.
• IT and Network Teams Handling Bandwidth Budgets: Specifying cameras for multi-camera PoE deployments where Zipstream compression and configurable bitrate control keep network load predictable without sacrificing resolution.

Honest Assessment

The M2036-LE does two things genuinely well: it delivers a wide 129-degree field of view at 4MP with on-camera analytics that actually classify object types rather than just trigger on any motion, and its build quality handles genuinely harsh outdoor conditions that eliminate cheaper alternatives. The 115 dB WDR is one of the stronger ratings in this camera class and makes a measurable difference at entrance and gate positions. Axis Edge Vault provides hardware-level device identity protection that matters for installations with strict cybersecurity requirements.

Where this camera is not the right fit: the 3.2mm fixed lens is wide and short - it will not provide detail at distance beyond its IR range, and there is no optical zoom or motorised lens option in this housing. If the site requires identification-level detail at 15+ metres on a narrow approach, a different bullet or varifocal model will serve better. The camera is available through Security Australia as a single-unit purchase for staged deployments.

Before You Buy

Quick Fit Check

• Good match if: You are covering a wide outdoor zone - a car park, yard, or building front - where a single 4MP wide-angle camera with on-camera human and vehicle classification reduces nuisance alerts compared to standard motion detection.
• Good match if: The installation environment is genuinely harsh - temperature extremes, exposure to weather, or a risk of physical impact - where IP67, IK08, and a -30°C to 50°C operating range are required rather than aspirational.
• You may need a different model if: Your primary requirement is detail at range - a longer-range IR bullet with a varifocal or motorised zoom lens will provide better identification capability on extended approaches and narrow corridors than this fixed wide-angle housing allows.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need on-camera human and vehicle classification in a wide-area outdoor bullet camera that can handle temperature extremes and physical exposure - without adding an analytics server or licensing fees per channel.
• You may need a different model if: Your site requires identification-level detail at distance - a varifocal or motorised zoom bullet camera will give you adjustable focal length and longer effective IR range that a fixed 3.2mm wide-angle housing cannot provide.
• Pairs well with: A PoE switch with IEEE 802.1x support for secure network onboarding, and an Axis-compatible NVR or VMS that can receive and act on AXIS Object Analytics event triggers for automated recording rules or alarm notifications.

Common Questions

1. Does this camera support standard PoE, or does it need PoE+?

   Standard PoE (IEEE 802.3af) is sufficient for the M2036-LE. You do not need a PoE+ switch for this camera. A single Cat5e or Cat6 cable carries both power and data, which keeps installation straightforward - no separate power supply, no conduit for a power run, and no need to upgrade an existing PoE switch infrastructure.

2. Will this camera work with third-party VMS software, or only Axis systems?

   Yes, it works with third-party VMS platforms via ONVIF and standard RTSP streaming. The M2036-LE supports H.264, H.265, and Motion JPEG streams and uses standard network protocols including RTSP, HTTPS, and SNMP. AXIS Object Analytics events can be pushed as HTTP notifications to compatible VMS systems, though full analytics integration depth depends on the specific platform.

3. How does the DLPU-based analytics on the M2036-LE actually differ from standard motion detection?

   The difference is classification, not just detection. Standard motion detection triggers on any pixel change in the frame - shadows, foliage, rain, reflections. The deep learning processing unit in the M2036-LE runs AXIS Object Analytics, which classifies detected objects as humans or vehicles (and further by vehicle type) before generating an alert. This means the camera is processing object shape and movement patterns on-board, so alerts are tied to confirmed object types rather than raw motion events. In practice this produces substantially fewer nuisance alerts on exposed outdoor sites compared to conventional motion zones. No server or cloud processing is required - classification happens entirely at the camera.

4. Does the M2036-LE support two-way audio?

   No - the M2036-LE does not have a built-in microphone or speaker. The camera supports smart pairing with Axis network speakers via Axis edge-to-edge technology, meaning it can trigger a paired external Axis speaker to broadcast audio, but it cannot receive or transmit voice conversations on its own. If two-way audio is a requirement for your site, a camera with both a built-in microphone and speaker is needed, or a separate Axis speaker can be integrated into the system.

5. What does the multi-view streaming feature actually allow me to do?

   It lets you stream up to 2 independently cropped view areas from within the single 4MP frame simultaneously, each at full frame rate. In practice this means you can configure one stream showing the full wide-angle scene and a second stream digitally zoomed into a specific zone - a gate, doorway, or register area - without needing 2 cameras. Each crop is configurable independently, and both run concurrently to the NVR or VMS. This is useful on sites where the wide FOV covers too much for a single focused alarm zone.

6. Is Axis Edge Vault relevant for a standard commercial installation, or is it only for government and critical infrastructure?

   It is relevant for any installation with a managed IT network. Axis Edge Vault provides hardware-based storage of the camera's unique cryptographic device identity, which supports IEEE 802.1x network access control - the same standard used in enterprise and managed networks to authenticate devices before granting network access. For commercial sites on Active Directory-managed networks, or where the IT team requires device certificates for switch port authentication, Edge Vault makes camera onboarding straightforward. It also protects against firmware tampering via signed firmware validation. Stocked by Security Australia, the M2036-LE is positioned as a camera that meets IT security requirements that budget alternatives cannot.
