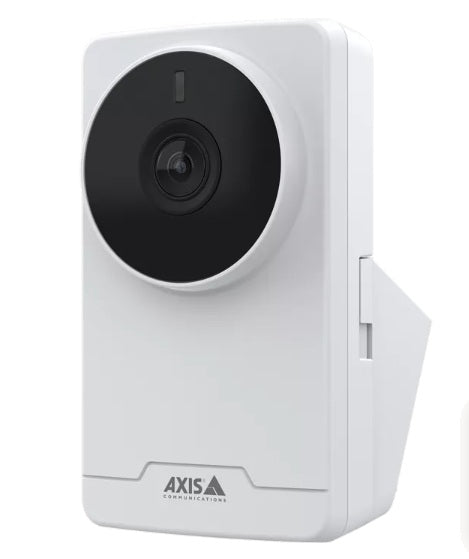

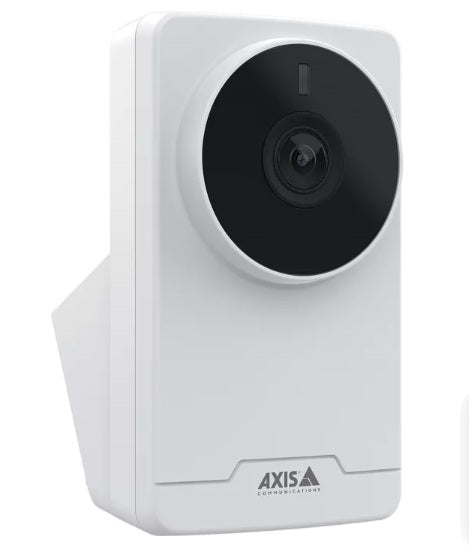

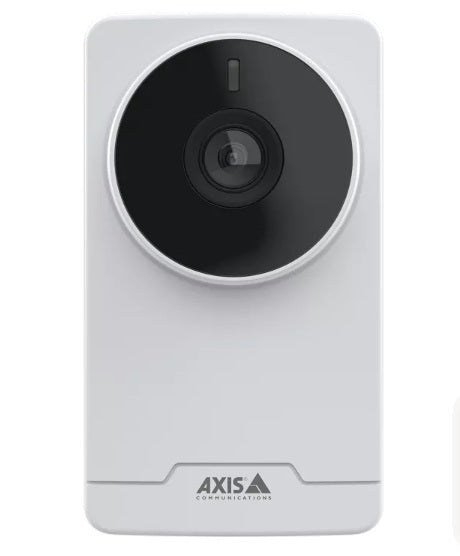

AXIS M1055-L 2MP Indoor Box Camera | 02349-001

Model: M1055-L

Who This Is For

For integrators and IT managers who need a 2MP indoor box camera with flexible lens mounting and a clean HDMI output for local monitoring, the AXIS M1055-L is a purpose-built solution for controlled indoor environments. It suits retail fit-outs where a specific field of view must be dialled in using a CS-mount lens, or corporate and banking environments where a discreet, wall-mounted box form factor integrates cleanly with existing display infrastructure. The M1055-L runs AXIS OS with AXIS Object Analytics built in, making it a capable choice for sites moving toward analytics-driven monitoring rather than passive recording. Its PoE powering keeps the install tidy, and the onboard edge storage option means footage is accessible even if network connectivity drops temporarily. This is a camera for buyers who know exactly what coverage angle they need and want the lens flexibility to achieve it.

What This Camera Actually Does

Who Buys This Model

• Retail Integrators: Specifying cameras for checkout zones or high-value display areas where a varifocal CS-mount lens allows precise coverage of a specific counter or aisle without repositioning the camera body.
• Corporate IT Managers: Deploying a camera at a reception desk or lobby that needs to feed a local monitor via HDMI for front-of-house staff while simultaneously recording to an NVR on the network.
• Banking and Finance Facilities: Where a fixed box camera form factor is preferred for compliance documentation, and AXIS Object Analytics provides line-crossing or area-entry detection at teller windows or vault approaches.
• IT-Led Small Business Deployments: Buyers comfortable managing AXIS OS directly who want onboard edge storage as a failover so recordings are not lost if the NVR or cloud service drops.

Honest Assessment

The M1055-L earns its place in an install where lens choice matters and a local HDMI display is part of the design brief. The CS-mount compatibility genuinely differentiates it from fixed-lens dome and turret cameras, and AXIS Object Analytics running on-camera is a real capability rather than a marketing label - it reduces server processing and handles human and vehicle classification without add-on licences on supported VMS platforms. Forensic WDR is effective in retail and lobby scenes with mixed natural and artificial lighting. Where it has clear limits: there is no built-in IR, so the M1055-L depends entirely on ambient lighting in the scene - it is not suited to spaces that go dark after hours without supplementary lighting. It is also an indoor-only camera with no weather or dust rating, so it cannot be installed in unprotected outdoor positions. If wide-area outdoor coverage or low-light IR performance is the priority, a different camera type will serve better. The M1055-L is available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You need to specify the exact lens focal length to cover a particular counter, display area, or corridor, and a fixed-lens dome or turret camera cannot deliver the right field of view for the scene.
• Good match if: Your installation design includes a local display monitor at the camera location and you want to drive it directly via HDMI without a separate decoder or client workstation.
• You may need a different model if: The monitored space goes dark after hours - a turret or dome camera with built-in IR or full-colour low-light capability will maintain image quality without relying on supplementary lighting.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need CS-mount lens interchangeability to precisely control the field of view, or your install design requires a direct HDMI feed to a local display monitor - neither of which fixed-lens dome or turret cameras provide.
• You may need a different model if: The monitored space has periods of darkness - a dome or turret camera with built-in IR or full-colour low-light capability will maintain usable footage without requiring supplementary lighting infrastructure.
• Pairs well with: A compatible AXIS or ONVIF-compliant NVR with AXIS Object Analytics integration, and a PoE switch sized to the full camera count for the installation.

Common Questions

1. Does the M1055-L come with a lens included?

   No. The AXIS M1055-L is supplied as a camera body only with no CS-mount lens in the box. You need to purchase a compatible CS-mount lens separately. Before ordering, calculate your required field of view using your mounting height and scene width to determine the correct focal length - a lens specified at the wrong focal length cannot be corrected after installation without replacing the lens entirely.

2. Will this camera work in a dark room overnight?

   No. The M1055-L has no built-in infrared illumination and is not a low-light-enhanced model. It depends entirely on available ambient light in the scene. If the monitored space has lighting that switches off after hours, this camera will not produce usable footage in those conditions. A camera with built-in IR or a full-colour low-light sensor is required for scenes that go dark.

3. Does the HDMI output replace the need for a VMS client on a monitor?

   Yes, for a local live view. The HDMI output feeds a direct video signal to a connected monitor without any software client, network login, or decoder device. It shows a live image only - it does not provide playback, event search, or multi-camera layouts. For recorded playback or multi-camera display, a VMS client or NVR screen is still required.

4. What does AXIS Object Analytics actually do on this camera?

   It classifies detected objects as humans or vehicles and triggers configurable events based on rules you set - such as a person entering a defined area or an object crossing a virtual line. Processing runs on the camera itself, so it does not consume server CPU or require a separate analytics licence on supported AXIS-compatible VMS platforms. Rules are configured through the camera's web interface via AXIS OS.

5. Is this camera suitable for outdoor installation?

   No. The M1055-L is an indoor-only camera with no IP weather rating. It cannot be installed in an outdoor position exposed to rain, moisture, dust, or temperature extremes beyond its 0 to 45 degrees C indoor operating range. For outdoor use, a camera with a minimum IP66 rating and appropriate housing is required.

6. What PoE standard does the M1055-L require, and what switch do I need?

   It requires IEEE 802.3af PoE, Class 3 - standard PoE that any 802.3af-capable switch or injector will supply. It does not require PoE+ (802.3at). A single Cat5e or Cat6 cable carries both power and data to the camera. Confirm your switch has enough 802.3af ports for the total number of cameras on the installation before cabling.

7. How does edge storage work if the network goes down?

   When network connectivity to the NVR is interrupted, the M1055-L continues recording to the installed microSD card. Once the connection restores, the camera can be configured to push the locally recorded footage back to the NVR automatically to fill the gap - this is managed through the AXIS OS edge storage and AXIS Witness or compatible VMS settings. The microSD slot supports microSDXC cards; check the AXIS compatibility list for validated card models. The camera is stocked by Security Australia.
