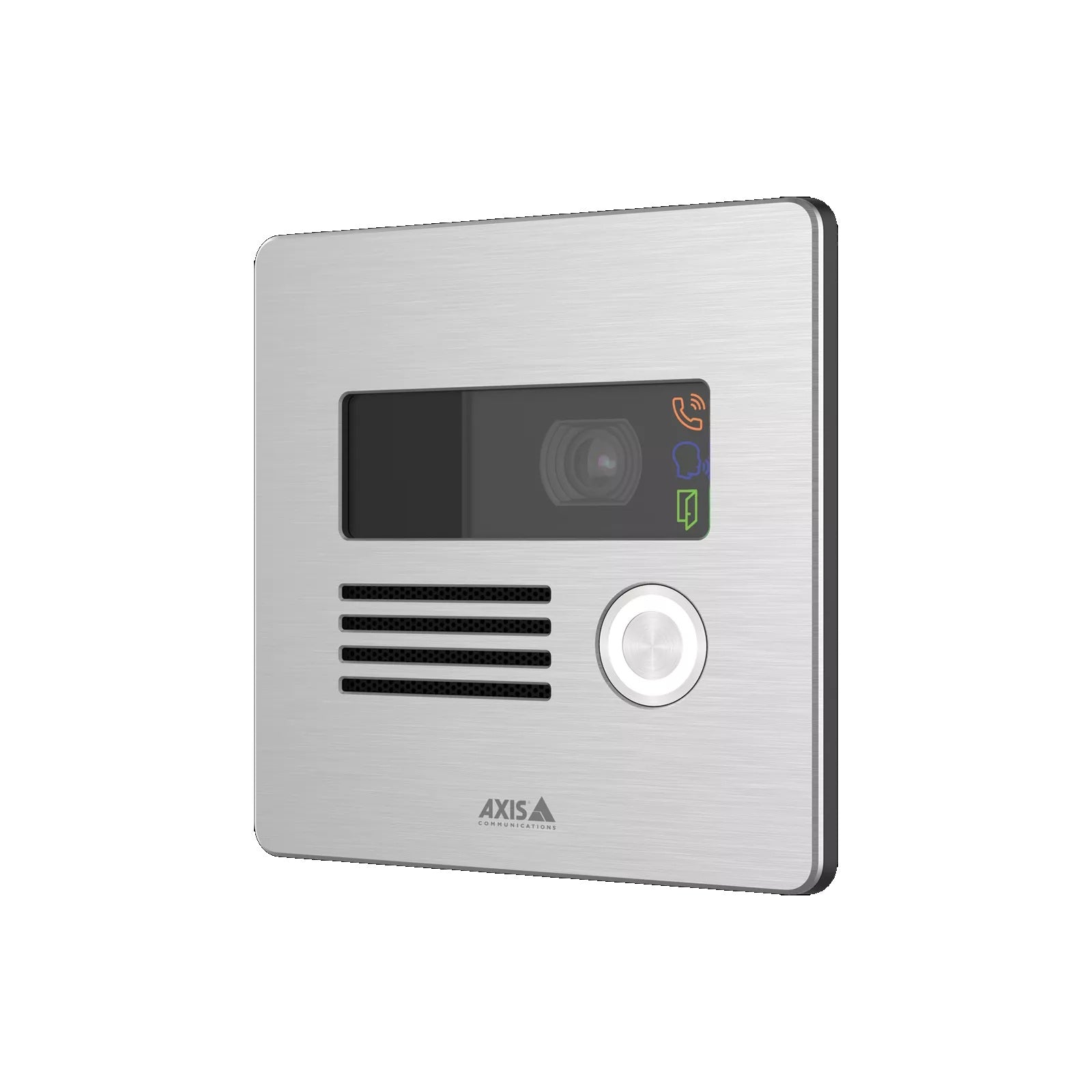

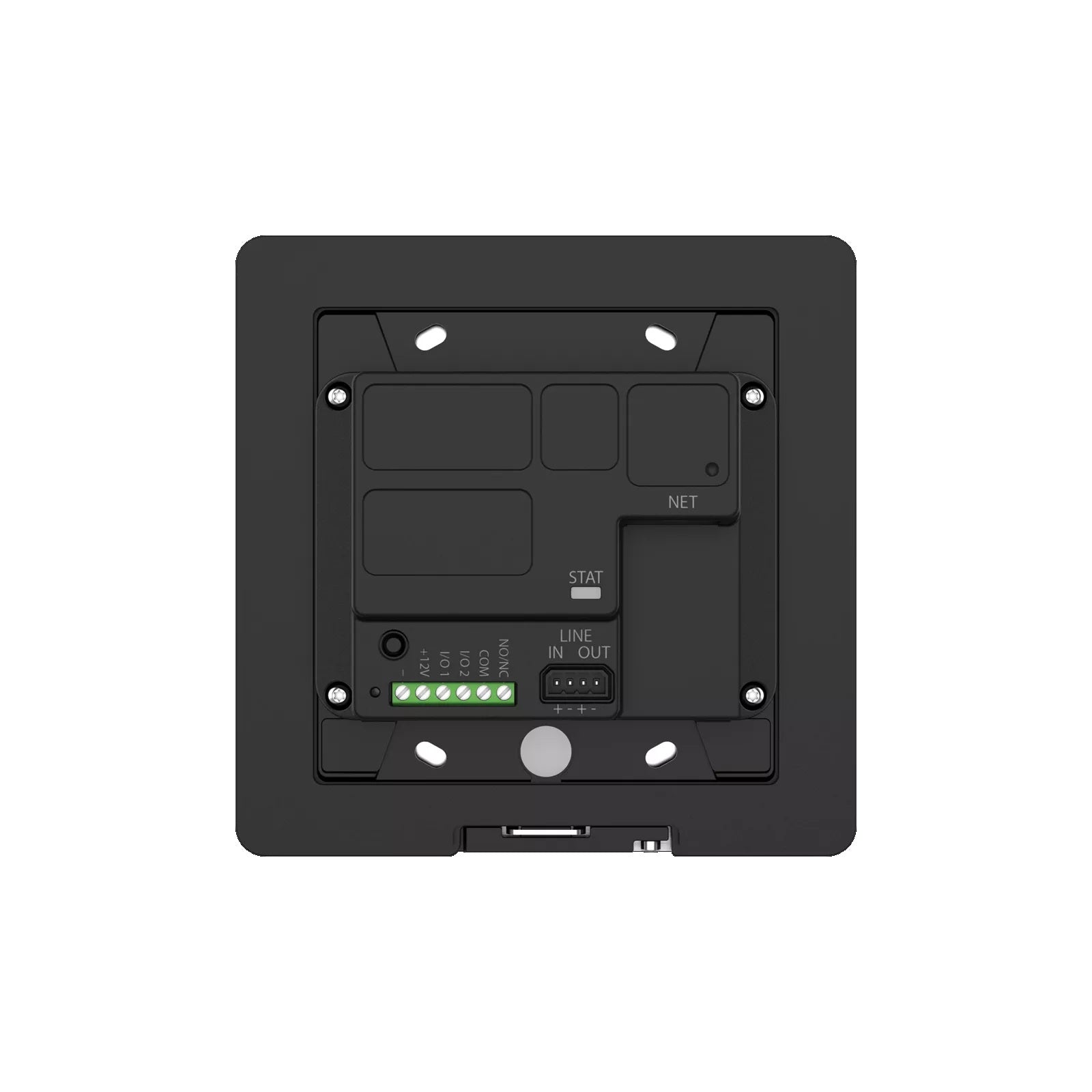

AXIS I8016-LVE Network Video Intercom with 5MP Camera, Invisible IR & SIP Support

Model: I8016-LVE

Who This Is For

For facility managers and installers who need a hardened video intercom that integrates cleanly into an existing SIP telephony or access control environment, the AXIS I8016-LVE delivers door-station functionality without the compromises that come with consumer-grade intercoms. It suits commercial entry points where a covert IR illuminator matters - loading dock pedestrian gates, after-hours building entries, and data centre access corridors where visible red IR glow would indicate camera placement to an intruder. The 5MP sensor captures usable facial detail at the door, while SIP support means calls can be answered on a softphone, desk handset, or mobile app without proprietary hardware. The surface-mount housing suits brick, rendered masonry, and steel door frames equally. If your brief includes integrating visitor management with an IP phone system or an ONVIF-compatible VMS, this is the door station to spec.

What This Intercom Actually Does

Who Buys This Model

• IT and Facilities Managers: Organisations running a hosted PBX or on-premise VoIP system who want door calls handled through existing phone infrastructure rather than adding a proprietary intercom receiver at every desk.
• Security Integrators on Commercial Fitouts: Installers specifying a door station that connects to an ONVIF VMS so door footage is recorded and managed alongside the broader site camera system without a secondary platform.
• Government and Critical Infrastructure Sites: Facilities where covert IR is a specific requirement - the invisible 940nm illuminator provides night-time imaging at the entry without advertising IR camera positions to visitors or threat actors.
• Healthcare and Aged Care Facilities: Entry points that need controlled visitor access with conversation capability, video recording, and the durability to handle constant daily use across a multi-year deployment.
• Multi-Tenant Commercial Buildings: Building managers who need a door station capable of routing calls to different tenants or floors depending on which button is pressed, handled through SIP dial rules rather than dedicated wiring runs.

Honest Assessment

The AXIS I8016-LVE does well in environments where SIP integration, covert IR, and VMS compatibility need to be addressed by a single door station. The 5MP sensor is genuinely useful at entry distances, the 940nm illuminator is a meaningful differentiator on sites where IR concealment matters, and the IK10 housing holds up at high-traffic or high-risk entry points. SIP registration with a PBX is straightforward for an integrator familiar with VoIP, and ONVIF compatibility removes the need to negotiate between separate platforms for door and camera footage. What it will not do is replace a multi-button apartment intercom system with individual tenant handsets - for that, a dedicated IP intercom panel with per-apartment call routing is a more appropriate product type. It also does not include access control relay output in all configurations, so verify wiring requirements if electric strike or magnetic lock integration is part of the brief. The I8016-LVE is part of the Security Australia range and suits commercial and institutional installs rather than residential single-door applications.

Before You Buy

Quick Fit Check

• Good match if: Your site uses a SIP-based phone system and you need door calls to ring directly to desk handsets or mobile softphones without purchasing proprietary intercom receivers.
• Good match if: You are specifying a door station for a site where the IR illuminator must not be visible - the 940nm invisible IR allows night imaging without the red glow that identifies camera and intercom positions.
• You may need a different model if: Your project requires a multi-button apartment or tenancy panel with individual apartment call routing - a dedicated multi-tenant IP intercom panel from the Security Australia range will better suit that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a SIP-compatible door station with invisible IR and 5MP imaging that integrates into an existing VoIP phone system and ONVIF VMS without proprietary receivers or separate recording infrastructure.
• You may need a different model if: Your project is a residential apartment building requiring individual tenant call routing and handset-per-unit functionality - a multi-tenant IP intercom panel is the more appropriate product type for that application.
• Pairs well with: An ONVIF-compatible NVR or enterprise VMS platform to record door footage centrally, and a PoE network switch that provides 802.3af power at the intercom cable run.

Common Questions

1. Does the I8016-LVE work with any SIP phone system, or only AXIS hardware?

   It works with any standards-compliant SIP platform. The I8016-LVE registers as a standard SIP endpoint, which means it is compatible with 3CX, Cisco Unified Communications Manager, Yealink PBX, Avaya, and most hosted VoIP providers that allow third-party SIP device registration. No AXIS-specific call handling hardware is required at the receiving end.

2. Will this camera record footage to an NVR, or is it call-only?

   Yes, it records video. The I8016-LVE streams video via ONVIF Profile S, G, and T, which means it can be added to the majority of enterprise and mid-market VMS and NVR platforms as a standard IP camera alongside your other site cameras. It is not call-only - the 5MP stream is available for continuous or event-triggered recording independently of whether a call is active.

3. Why does invisible IR matter - what is the practical difference from standard IR?

   Standard 850nm IR emitters produce a faint but visible red glow at the front of the camera or intercom unit when active in low light. The I8016-LVE uses 940nm IR, which is outside the range visible to the human eye. At night, there is no visual indicator that the unit is illuminating or recording. On government, critical infrastructure, and high-security commercial sites where concealing camera positions is part of the security specification, this is a meaningful difference rather than a minor detail.

4. Does the I8016-LVE need a separate power supply at the door?

   No. It is powered by IEEE 802.3af PoE, so a single Cat5e or Cat6 cable from a PoE switch or PoE injector delivers both data and power to the unit. No additional power point, transformer, or separate power run is required at the door - this is one of the key practical installation advantages on sites where running a power circuit to a door frame is complicated or costly.

5. What does IK10 actually mean for a door station in daily use?

   IK10 is the highest classification in the IEC 62262 impact protection standard, representing resistance to a 20 joule impact - roughly equivalent to a 5kg object dropped from 40cm. For a door station at a commercial or institutional entry point, this means the housing is built to withstand deliberate physical abuse, attempted tampering, and the routine knocks and contact that occur at a busy entry over a multi-year deployment. It is not decorative toughness - IK10 is a tested and certified result.

6. Can the I8016-LVE be managed alongside other AXIS cameras through a single interface?

   Yes. The I8016-LVE is supported by AXIS Device Manager and AXIS Camera Management, which means firmware updates, configuration, and monitoring can be handled through the same tools used for the rest of an AXIS camera deployment. For mixed-brand sites, the ONVIF compliance means it also integrates into third-party VMS platforms. The team at Security Australia can advise on VMS compatibility for your specific platform if needed.

7. Does the I8016-LVE handle wide dynamic range conditions at building entries?

   Yes. The I8016-LVE includes wide dynamic range capability, which is directly relevant at door stations where the camera faces a bright outdoor environment while the visitor stands in a shaded or transitional lighting zone. WDR allows the camera to balance the bright background against the foreground subject, maintaining usable facial detail in the frame rather than producing a silhouette against an overexposed sky or car park.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for runs over 50m or in environments with high electrical interference.
• Max Cable Run: 100m per IEEE 802.3 standard for PoE and data over a single Cat5e/Cat6 run.
• PoE Notes: IEEE 802.3af compliant - a standard PoE switch port or single-port PoE injector is sufficient. PoE+ is not required. Confirm the switch port is not at budget capacity before installing.
• Wiring Tips: Route the cable away from mains power conduits to avoid electrical interference affecting audio quality on SIP calls. Where cable must pass through a door frame or external wall, use a cable gland or conduit entry rated to maintain the IP66 seal at the unit's entry point. Label the cable at the switch end with door location and VLAN assignment before patching.

Downloads & Resources

No downloads available for this product.
