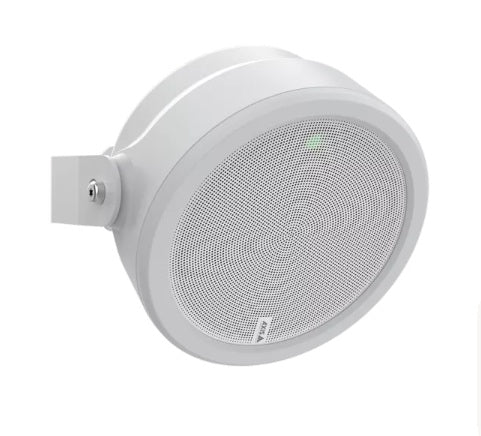

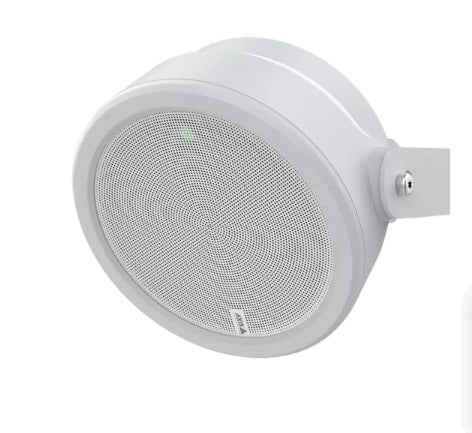

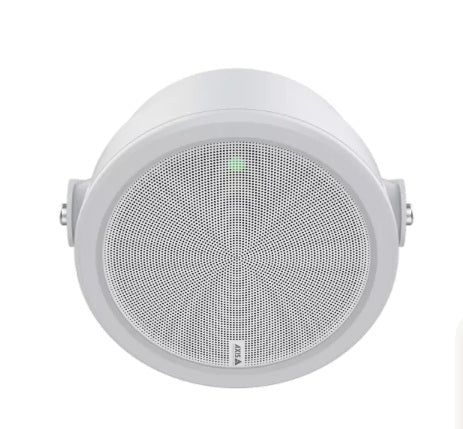

AXIS C1610-VE Outdoor Sound Projector | 02380-001

Model: AXIS C1610-VE

Who This Is For

For integrators and facility managers who need weatherproof audio coverage at outdoor locations where a standard indoor speaker simply won't hold up - car parks, building perimeters, loading areas, school grounds, and retail forecourts. The AXIS C1610-VE Outdoor Sound Projector is designed to deliver clear, directed audio in exposed environments, handling everything from background music and scheduled announcements to live voice-down deterrence through a connected VMS or audio management platform. It suits sites running Axis Camera Station or AXIS Audio Manager where unified video and audio management from a single interface is the goal, and installers who want a PoE-powered device that avoids a separate power run to each speaker position.

What This Product Actually Does

Who Buys This Model

• Security Integrators on Axis Platforms: Sites already running Axis Camera Station or AXIS Audio Manager where adding managed outdoor audio to an existing Axis ecosystem avoids introducing a second vendor's platform.
• Retail and Hospitality Operators: Forecourts, drive-throughs, outdoor dining areas, and car parks where scheduled background music, trading hour announcements, and live staff communication are all needed from one managed device.
• School and Campus Facilities Teams: Outdoor grounds, sports fields, and covered walkways requiring both bell/PA scheduling and the ability for staff to address zones live during an incident without running separate PA cable infrastructure.
• Industrial and Logistics Sites: Loading docks and yard perimeters where safety announcements, truck call-ups, and deterrence voice-downs need to reach operators working outdoors over ambient noise, powered off the same PoE switch as the site cameras.

Honest Assessment

The C1610-VE does the job it is designed for well: delivering managed, networked outdoor audio over a single PoE cable with IP66 weatherproofing and tight integration into the Axis software ecosystem. For sites where AXIS Audio Manager or AXIS Camera Station is already deployed, adding outdoor audio zones is straightforward. SIP support is a genuine advantage for sites with existing VoIP infrastructure - it avoids duplicating communication systems. The VAPIX API also makes automated trigger-based announcements practical rather than theoretical. What this device will not do is serve as a high-fidelity sound system for large open venues requiring long-throw audio projection across hundreds of metres - sites with that requirement should look at higher-power column or horn speaker arrays. It is also not a self-contained PA system; it requires network infrastructure and a management platform to deliver its full capability. The C1610-VE is available through Security Australia as part of the broader Axis Communications audio range.

Before You Buy

Quick Fit Check

• Good match if: You are extending an existing Axis Camera Station or AXIS Audio Manager deployment and need IP66-rated outdoor audio zones powered from the same PoE switch infrastructure as the site's cameras.
• Good match if: Your site uses a SIP-capable VoIP phone system and you need staff to address outdoor zones directly from desk phones without a separate intercom or PA controller.
• You may need a different model if: You need high-throw audio coverage across large open areas such as sports grounds or event spaces - a dedicated high-power horn or column speaker array will be more appropriate for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site runs Axis cameras and you want outdoor audio zones that integrate natively into AXIS Camera Station or AXIS Audio Manager over a single PoE cable, without introducing a third-party audio platform.
• You may need a different model if: Your site needs audio coverage across very large open spaces such as sports grounds or outdoor events venues - a high-power horn speaker or column array designed for long-throw projection will be more appropriate for that application.
• Pairs well with: Axis AI-capable cameras with VAPIX event trigger support, and a PoE network switch with sufficient port budget to power both cameras and audio devices from the same infrastructure layer.

Common Questions

1. Does the C1610-VE work with a standard PoE switch, or does it need PoE+?

   Standard IEEE 802.3af PoE is sufficient. The C1610-VE does not require the higher-wattage PoE+ (802.3at) standard, so it can be powered from most existing managed or unmanaged PoE switches without an upgrade. Confirm your switch's per-port wattage budget when planning multi-device runs to avoid exceeding the switch's total PoE power budget.

2. Will this speaker work with our existing VoIP phone system?

   Yes, if your VoIP system uses SIP. The C1610-VE supports the SIP protocol, which allows it to be registered as an endpoint on most SIP-capable PBX or VoIP platforms. Staff can then call the speaker zone directly from a desk phone or softphone client to deliver live announcements without requiring a separate intercom controller or audio management server.

3. Can the C1610-VE be triggered automatically by a camera detection event?

   Yes. Via the VAPIX API, the C1610-VE can be configured to respond to action rules generated by compatible Axis cameras - for example, playing a pre-recorded deterrence message when an AI-based intrusion detection event fires. This requires the triggering camera and VMS platform to support VAPIX event-based action rules, which should be confirmed during system design.

4. What is the IP66 rating and does it mean the speaker can be mounted fully exposed?

   Yes. IP66 means the device is rated for complete dust ingress protection and protection against powerful water jets from any direction. In practice, this covers exposed eave mounts, building perimeter walls, and covered outdoor areas subject to rain and regular hosing. It is not rated for full submersion, so avoid positions where pooling water could fully submerge the unit.

5. Do I need AXIS Audio Manager to use the C1610-VE, or can it work standalone?

   No, AXIS Audio Manager is not mandatory. The C1610-VE can operate as a SIP endpoint, receive audio via VAPIX, or be configured through its onboard web interface for basic scheduled playback without requiring AXIS Audio Manager. However, for multi-zone management, scheduled content libraries, and centralised control across multiple speakers, AXIS Audio Manager adds significant operational capability and is worth specifying for larger deployments. Details on licensing and platform compatibility are available through Security Australia.

6. What is the operating temperature range and will it handle Australian summer conditions?

   Yes. The C1610-VE is rated for operation from -40°C to 50°C, which covers the upper ambient temperature range found in most Australian outdoor locations including north Queensland and inland regions during summer. For installations in direct sun on dark-coloured surfaces where radiant heat can push enclosure temperatures above ambient, provide shade where possible to extend component longevity.

7. Does the C1610-VE have a built-in microphone for two-way audio?

   No. The C1610-VE is a sound projector (output-only speaker device) and does not include a built-in microphone. It is designed for one-way audio delivery - announcements, music, and voice-down. If two-way outdoor audio communication is needed, a separate network audio input device or an Axis network horn speaker with a built-in microphone should be specified alongside it.

Downloads & Resources

No downloads available for this product.
