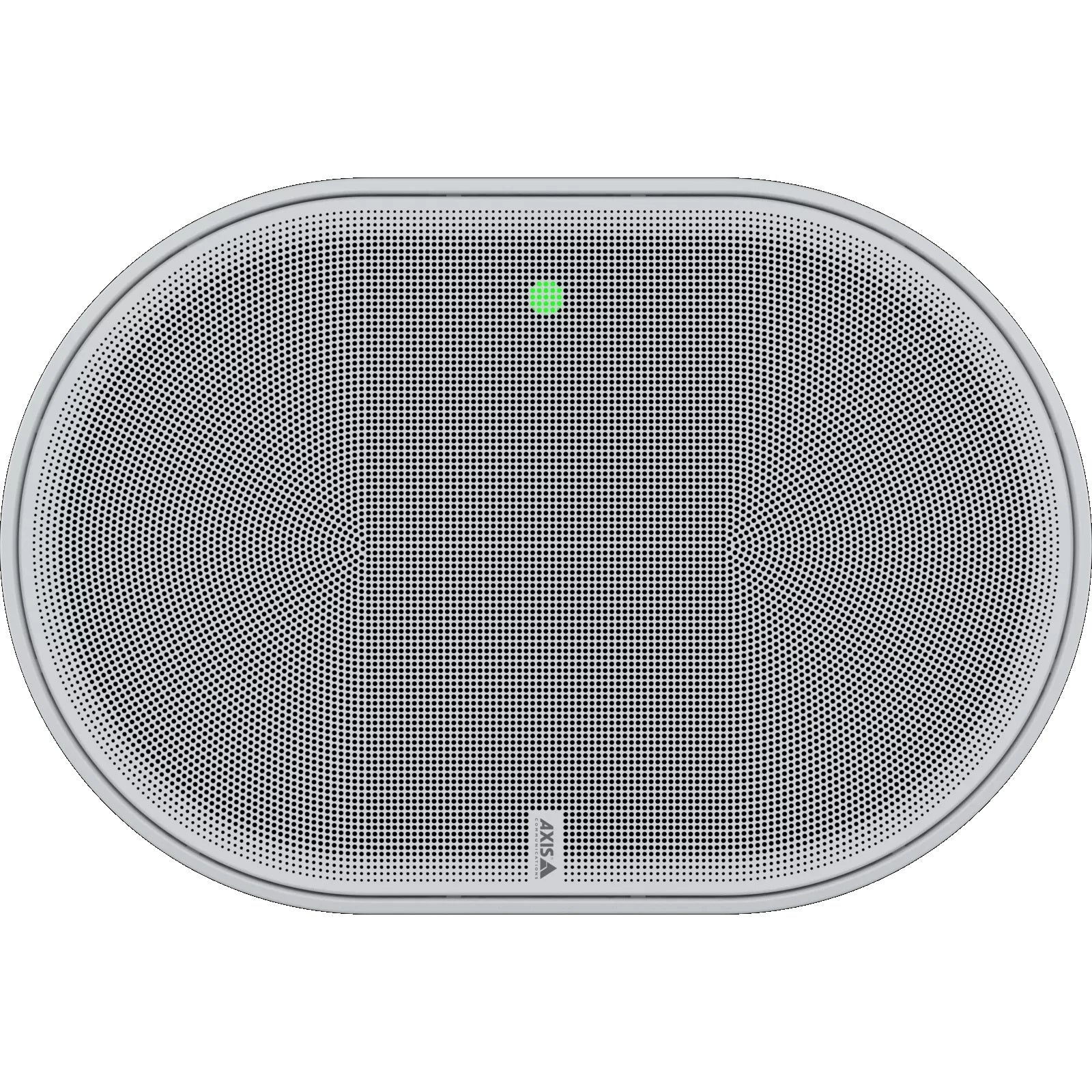

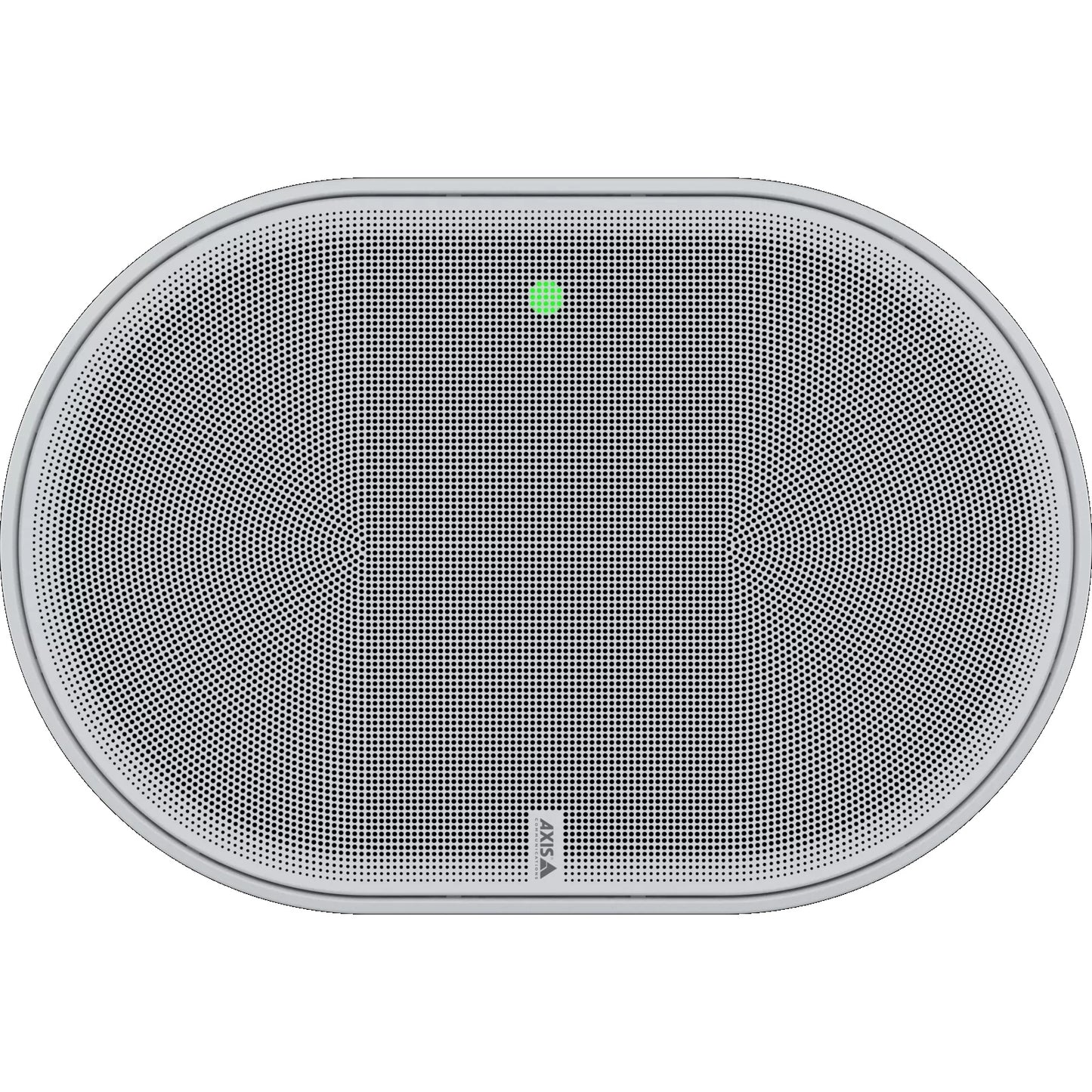

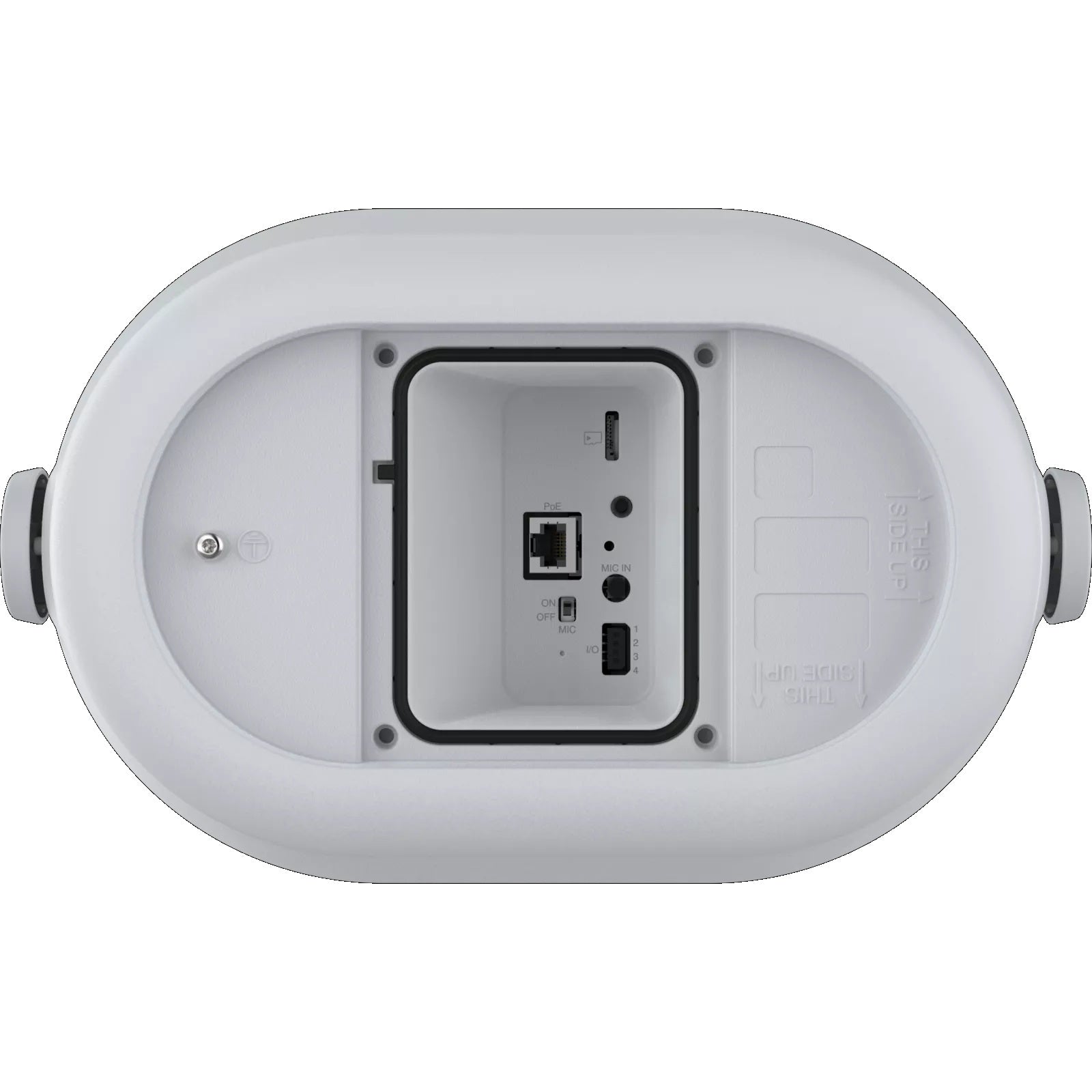

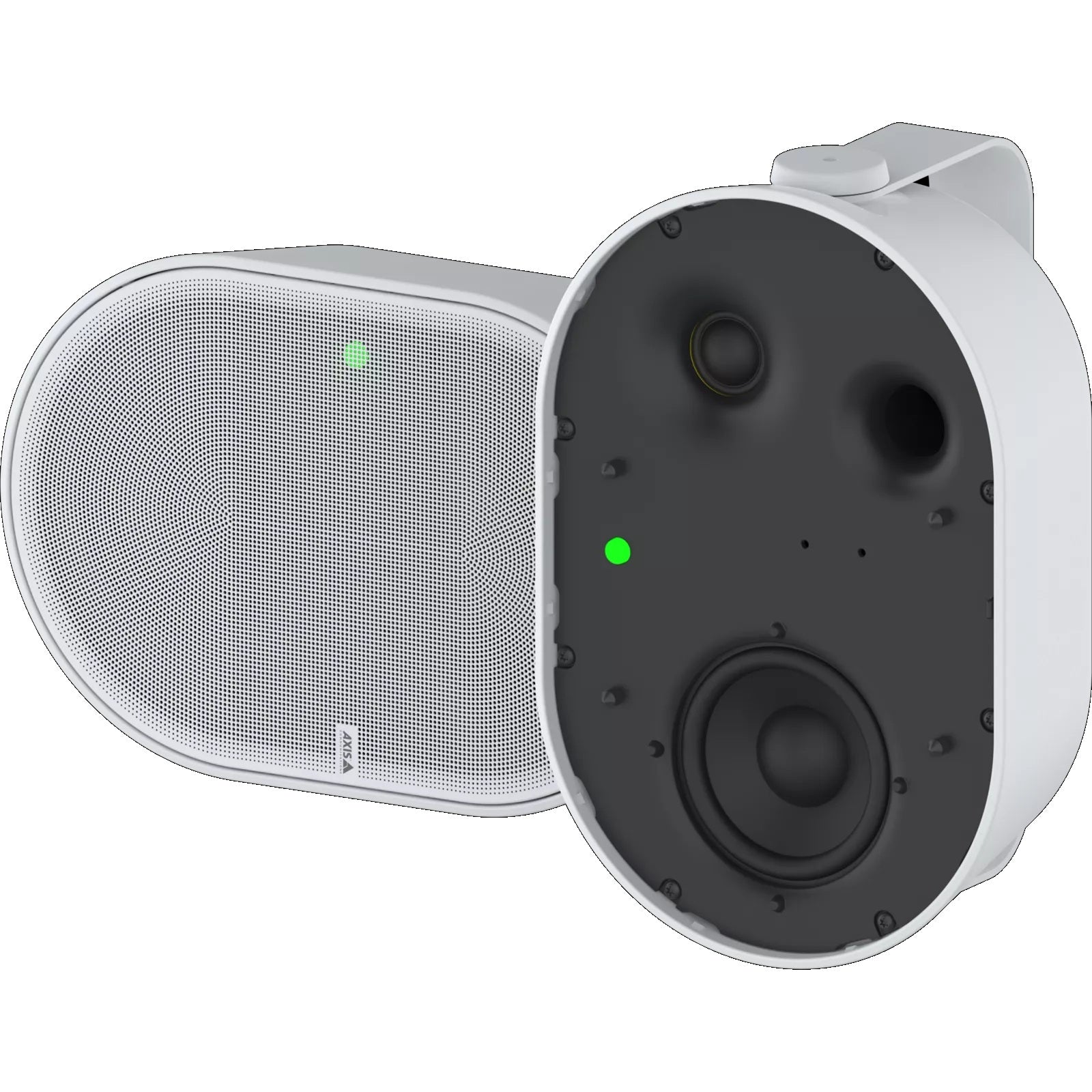

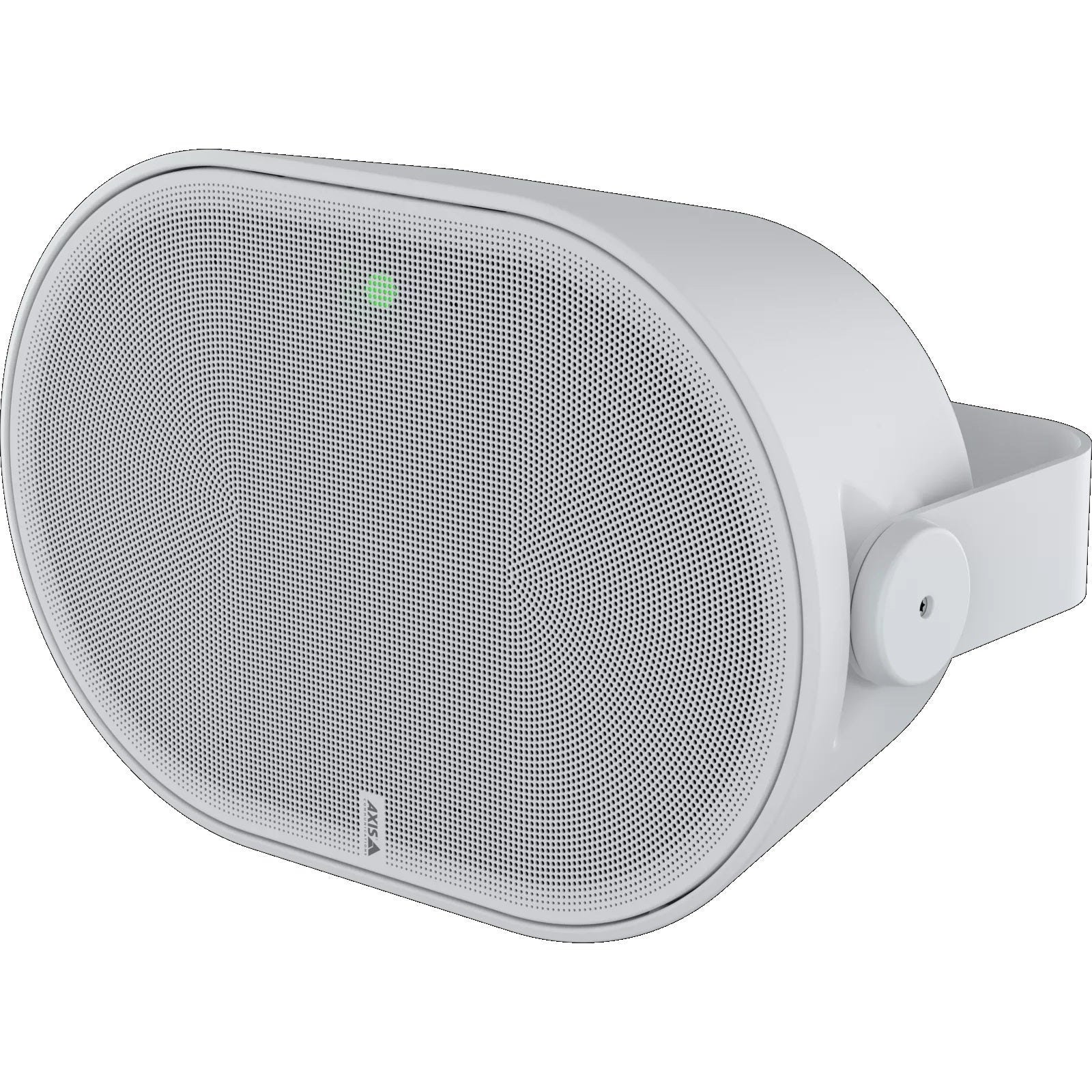

AXIS C1110-E Network Cabinet Speaker with PoE, Two-Way Audio, Remote Health Testing & Clear Voice Messaging

Model: C1110-E

Who This Is For

For facilities managers and integrators who need a single, network-connected audio point that handles both broadcast announcements and live two-way voice communication without running separate power cabling. The AXIS C1110-E is a compact outdoor-rated network cabinet speaker designed for car parks, loading areas, building entries, transit hubs, and industrial yards where voice clarity and remote system health confirmation both matter. A single Cat5e or Cat6 cable carries PoE power and network data simultaneously, which significantly reduces installation complexity in locations where 240V is impractical. Remote health testing means the speaker can be verified as operational from the management software without physically attending the site - a practical advantage for multi-site deployments or installations in elevated or restricted locations.

What This Unit Actually Does

Who Buys This Model

• Facilities managers at multi-site operations: Remote health testing lets them confirm speaker operability across all sites from a central dashboard without dispatching technicians for routine checks.
• Security integrators specifying Axis-based systems: VAPIX API and AXIS Audio Manager compatibility make the C1110-E a native fit in existing Axis camera and VMS deployments where audio and video need to operate as one system.
• Car park and logistics site operators: The IP66 outdoor rating and PoE power delivery suit exposed entry points, boom gate positions, and loading dock intercoms where a 240V run is impractical.
• Compliance-driven installations: The C1110-E supports IEC/EN 60849 life-safety audio system requirements, making it relevant for designers specifying public address in settings with regulatory obligations around emergency voice communication.
• Retail and commercial property managers: Scheduled announcements and zoned broadcast via AXIS Audio Manager replace legacy PA head-end hardware, reducing both infrastructure cost and ongoing maintenance complexity.

Honest Assessment

The C1110-E does several things genuinely well. The combination of two-way audio, remote health testing, and PoE in an IP66 housing covers a broad range of outdoor networked audio applications in a single device. Integration with AXIS Audio Manager and SIP compatibility gives it real versatility in both standalone intercom setups and large-scale managed audio networks. The remote health testing function is a standout practical benefit that reduces maintenance overhead in hard-to-reach or unmanned locations. Where the C1110-E has limits: it is a single-point speaker, not a high-output PA horn designed to project across wide-open industrial yards or large open-air venues at distance - applications needing very high SPL or wide-area outdoor projection may require a dedicated line-array or horn speaker instead. It is also not a video intercom; if visual verification at the door is required alongside audio, a combined audio-video intercom unit would be the more appropriate product type. The C1110-E is supplied by Security Australia as part of the Axis Communications range.

Before You Buy

Quick Fit Check

• Good match if: You need a networked outdoor speaker with two-way audio and PoE power at an entry point, gate, or help station where running 240V is not practical and a single Cat cable is the preferred installation method.
• Good match if: Your deployment requires documented remote health verification of audio hardware - the built-in health testing function supports compliance with IEC/EN 60849 and reduces the frequency of manual site inspections.
• You may need a different model if: Visual identification at the entry point is a requirement alongside audio - a networked video door station or video intercom unit is a more appropriate product type for combined audio-visual verification at securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single outdoor-rated network audio point that handles both broadcast announcements and two-way voice calls over a standard IP/SIP network, powered by PoE with no separate power outlet required.
• You may need a different model if: The installation requires visual identification at the door or gate alongside audio communication - a networked video door station or video intercom unit is the more appropriate product type for combined audio-visual entry management.
• Pairs well with: Axis network cameras (for camera-triggered audio events via VAPIX), a PoE network switch with adequate per-port power budget, and an IP PBX or SIP server for managed two-way call handling.

Common Questions

1. Does the C1110-E support genuine two-way audio, or is it broadcast only?

   Yes. The C1110-E has both a built-in speaker and a built-in microphone, making real-time two-way voice communication fully supported. An operator in a control room can speak to and hear a person standing at the unit. This is not a listen-only PA speaker - it functions as a full two-way audio endpoint suitable for intercom and help-point applications.

2. What does remote health testing actually mean in practice?

   It means the speaker's operational status - whether it is powered, network-connected, and producing audio output - can be verified from management software without someone physically attending the speaker location. This is particularly relevant for IEC/EN 60849 life-safety compliance, where documented confirmation that audio systems are functional is a regulatory requirement.

3. Will this camera work with a third-party VoIP or PBX system, or does it only work with Axis equipment?

   It works with third-party systems. The C1110-E supports the SIP protocol, which means it can register as a standard extension on any SIP-compatible IP PBX or VoIP platform. AXIS Audio Manager and VAPIX integration are available for Axis-native deployments, but neither is required for basic SIP intercom or announcement functionality.

4. Does this unit need a standard PoE switch, or does it require PoE+?

   A standard IEEE 802.3af PoE switch is sufficient. The C1110-E is a Class 2 device drawing approximately 6.5W, which is well within the 15.4W budget of standard 802.3af ports. PoE+ (802.3at) is not required, making it compatible with the majority of existing managed and unmanaged PoE switch infrastructure without any hardware upgrades.

5. Is the C1110-E rated for outdoor installation in Australian conditions?

   Yes. The IP66 rating confirms full protection against dust ingress and direct water jets. The operating temperature range of -40°C to 55°C covers Australian conditions from alpine winter environments through to exposed northern tropical installations. The housing is designed for permanent outdoor mounting without additional weather protection enclosures.

6. Can a camera detection event automatically trigger a voice announcement through the C1110-E?

   Yes, when integrated with Axis cameras via VAPIX. An event rule can be configured so that a camera detection - such as motion in a restricted zone or a line-crossing trigger - automatically plays a pre-recorded audio clip through the C1110-E without any manual operator action. This requires an Axis camera on the same network and the relevant event rule configuration in the camera or VMS. The C1110-E is available through Security Australia as part of the broader Axis Communications range.

7. How loud is the C1110-E - will it be audible in a noisy outdoor environment?

   The rated maximum output is 97 dB(A) at 1 metre. That is a usable level for outdoor environments with moderate background noise such as car parks, building entries, and light industrial areas. In high-noise environments such as active construction sites, heavy machinery areas, or large open yards, a higher-output horn speaker or line-array unit would project voice messages more effectively at longer distances.
