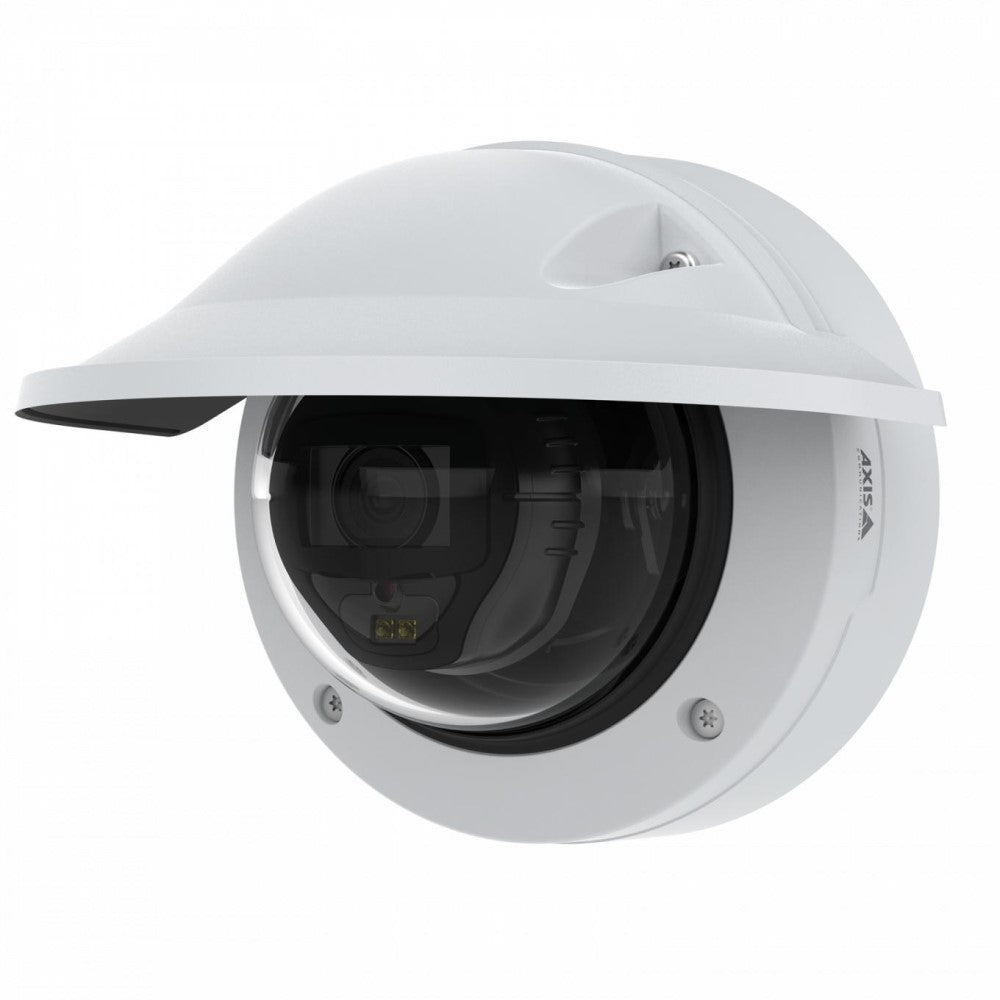

Outdoor 5 MP dome with IR and deep learning
The AXIS P3267-LVE combines advanced technologies such as Lightfinder 2.0, Forensic WDR, and OptimizedIR to deliver exceptional image quality in all lighting conditions. Powered by the latest Axis system-on-chip (SoC), it features a deep learning processing unit for sophisticated analytics and edge-based deep learning capabilities. With AXIS Object Analytics, it provides precise detection and classification of humans, vehicles, and vehicle types, customized to your requirements. The camera also supports audio and I/O connectivity, allowing for equipment integration and system enhancement. Additionally, this robust, IK10-rated, outdoor-ready camera is equipped with built-in cybersecurity to prevent unauthorized access and protect your system.
Key Features
Code/SKU: AXIS P3267-LVE
Quick Specs:
Minimum Illumination:
Camera Angle Adjustment:
| Camera Specifications | |
|---|---|
| Image Sensor | 1/2.7” progressive scan RGB CMOS |
| Lens | Varifocal, 3–8 mm, F1.3 Horizontal field of view: 104°–40° Vertical field of view: 74°–29° Minimum focus distance: 1 m (3.28 ft) IR corrected, remote zoom and focus, P-Iris control |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | With Forensic WDR and Lightfinder 2.0: Color: 0.13 lux at 50 IRE, F1.3 B/W: 0 lux at 50 IRE, F1.3 |
| Shutter Speed | 1/33500 s to 1/5 s |
| Camera Angle Adjustment | Pan ±190° Tilt -10 to +80° Rotation ±190° |
| System on Chip (SoC) | ARTPEC-8 |
| Memory | 2048 MB RAM 8192 MB Flash |
| Compute Capabilities | Deep learning processing unit (DLPU) |
| Video Specifications | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | 2592x1944 to 160x90 |
| Frame Rate | 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Multi-View Streaming | Up to 2 individually cropped out view areas in full frame rate |
| Image Settings | Saturation, contrast, brightness, sharpness Forensic WDR: up to 120 dB depending on scene White balance, day/night threshold, local contrast Tone mapping, exposure mode, exposure zones Defogging, barrel distortion correction, compression Rotation: 0°, 90°, 180°, 270° including Corridor Format Mirroring, dynamic text and image overlay, privacy masks Polygon privacy mask |
| Pan/Tilt/Zoom | Digital PTZ, preset positions |
| Audio Specifications | |
| Audio Streaming | Audio in, simplex, two-way audio via edge-to-edge technology |
| Audio Encoding | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable Bit Rate | Audio input/output |
| Audio Input/Output | External microphone input, line input, digital input with ring power Automatic gain control, network speaker pairing |
| Network Specifications | |
| Security | Password protection, IP address filtering, HTTPS encryption IEEE 802.1x (EAP-TLS) network access control Digest authentication, user access log, centralized certificate management Brute force delay protection, signed firmware, secure boot Signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified) |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour) UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| System Integration | Open API for software integration, including VAPIX® and AXIS Camera Application Platform One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T Support for SIP for integration with VoIP systems, peer to peer or integrated with SIP/PBX |
| Onscreen Controls | Day/night shift, Defogging, Wide dynamic range Video streaming indicator, IR illumination |
| Event Conditions | Analytics, external input, supervised external input, virtual inputs through API Call: state, state change Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature, IP address removed, new IP address, network lost, system ready, ring power overcurrent protection, live stream active, casing open Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input, manual trigger, virtual input MQTT: subscribe Scheduled and recurring: schedule Video: average bitrate degradation, day-night mode, live stream open, tampering |
| Event Actions | Overlay text, external output activation, zoom preset, day/night mode, flash status LED, use lights Set defog mode, set WDR mode Calls: end SIP call, make SIP call, answer call I/O: toggle I/O once, toggle I/O while the rule is active MQTT: publish Notification: email, HTTP, HTTPS, TCP, and SNMP trap Pre- and post-alarm video or image buffering for recording or upload Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email |
| Data Streaming | Event data |
| Built-in Installation Aids | Remote zoom and focus, straighten image, pixel counter, level grid |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Trigger conditions: line crossing, object in area Up to 10 scenarios Metadata visualized with color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Applications Included | AXIS Object Analytics AXIS Video Motion Detection, active tampering alarm, audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications |
| General Specifications | |
| Casing | IP66-, NEMA 4X- and IK10-rated Polycarbonate hard coated dome Polycarbonate casing and weathershield Color: white NCS S 1002-B For repainting instructions, see the product’s support page For information about the impact on warranty, visit axis.com/warranty-implication-when-repainting |
| Mounting | Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) Suitable for wall or ceiling mount |
| Sustainability | PVC free, BFR/CFR free 6.5% bioplastics |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 6.4 W, max 12.1 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised digital input and 1 digital output (12 V DC output, max. load 25 mA) Audio: 3.5 mm mic/line in |
| IR Illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach: 40 m (130 ft) or more depending on the scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations, visit axis.com |
| Operating Conditions | -40 °C to 50 °C (-40 °F to 122 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) Humidity: 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 5–95% RH (non-condensing) |
| Approvals | |
| EMC | EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2 EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4 KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A VCCI Class A |
| Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3 IEC/EN 62471, IS 13252 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6 IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X NEMA TS2 (2.2.7-2.2.9) |
| Network | NIST SP500-267 |
| Dimensions | |
| Without Weathershield | Height: 107 mm (4.21 in) Diameter: 149 mm (5.87 in) |
| With Weathershield | 900 g (2.0 lb) |
| Included Accessories | |
| Installation guide, Windows® decoder 1-user license, drill template RESISTORX® T20 screw bit, terminal block connectors, cable gaskets, connector guard, weathershield | |
| Optional Accessories | |
| AXIS TP3201-E Recessed Mount AXIS TP3103-E Pendant Kit AXIS T8355 Digital Microphone 3.5 mm AXIS TP3824-E Dome Clear/Smoked AXIS TP3821-E Casing Black/White AXIS Surveillance Cards For more accessories, see axis.com | |
| Video Management Software | |
| AXIS Companion AXIS Camera Station Video management software from Axis Application Development Partners available at axis.com/vms | |
| Languages | |
| English, German, French, Spanish, Italian, Russian Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Axis AXIS-02330-001 P3267-LVE 5MP Outdoor Dome Camera, Analytics, IR, IP66, 3-8mm VF Lens
The AXIS P3267-LVE is a high-performance network camera designed for versatile surveillance applications. This model features a 5 MP resolution sensor, providing exceptional image clarity and detail. Equipped with an advanced lens offering 2.8-8 mm varifocal capabilities, it allows for flexible adjustment to achieve the desired field of view. The camera incorporates Axis' Lightfinder technology, ensuring excellent performance in low-light conditions and delivering color images even in challenging lighting. With its WDR (Wide Dynamic Range) capability, the AXIS P3267-LVE excels in high-contrast environments, capturing clear and balanced images. The camera supports Axis' Zipstream technology, which reduces bandwidth and storage requirements while maintaining high image quality. It is built with a robust design, featuring an IK10-rated vandal-resistant housing and an IP66/IP67 rating for weatherproofing, making it suitable for both indoor and outdoor installations. The integrated IR illumination extends the camera's functionality in total darkness, providing visibility up to 30 meters. This model supports various analytics features, including motion detection, tampering alarm, and line crossing detection, enhancing its security capabilities. The AXIS P3267-LVE is equipped with multiple streaming options, including H.264 and H.265, ensuring efficient video compression. Its ease of installation is facilitated by Power over Ethernet (PoE) support, which simplifies cabling requirements. Additionally, the camera includes an SD card slot for local storage, offering flexibility in recording and backup solutions. The AXIS P3267-LVE also features built-in audio capabilities for two-way communication. With its high-performance specifications and robust build, the AXIS P3267-LVE is a versatile solution for comprehensive security monitoring.
Excellent image quality
AXIS P3268-LV delivers outstanding image quality and forensic details in brilliant 4K. Including a varifocal 9 mm lens for wide-area surveillance, it offers a field of view of 100-53 degrees. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And, with OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Deep learning analytics on the edge
Based on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Versatile and high performance
This easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and auto focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this powerful dome camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Features
| General Specifications | |
|---|---|
| Casing | IP66-, NEMA 4X- and IK10-rated Polycarbonate hard coated dome Polycarbonate casing and weathershield Color: white NCS S 1002-B For repainting instructions, see the product’s support page For information about the impact on warranty, visit axis.com/warranty-implication-when-repainting |
| Mounting | Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) Suitable for wall or ceiling mount |
| Sustainability | PVC free, BFR/CFR free 6.5% bioplastics |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 6.4 W, max 12.1 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised digital input and 1 digital output (12 V DC output, max. load 25 mA) Audio: 3.5 mm mic/line in |
| IR Illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach: 40 m (130 ft) or more depending on the scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations, visit axis.com |
| Operating Conditions | -40 °C to 50 °C (-40 °F to 122 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) Humidity: 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 5–95% RH (non-condensing) |
