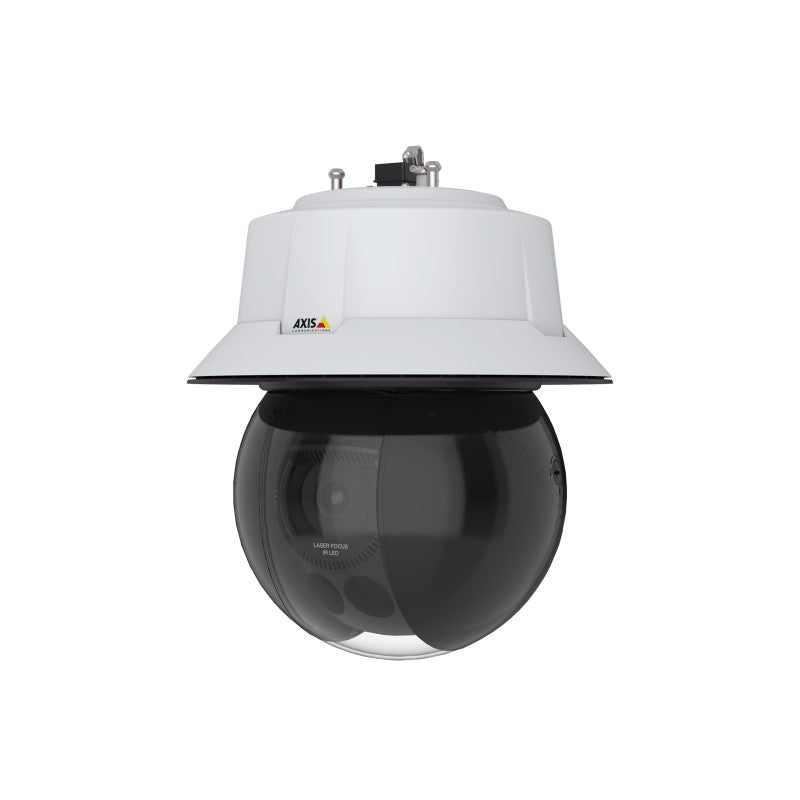

High-end outdoor-ready HDTV 1080p PTZ camera with quick-zoom and laser focus
The AXIS Q6315-LE is a high-speed PTZ camera that delivers exceptional HDTV 1080p resolution and is designed for comprehensive surveillance even in complete darkness, thanks to its IR illumination and day/night functionality. Equipped with a 31x optical zoom and laser focus, it provides precise focus and quick zoom capabilities, making it easy to track fast-moving objects. The camera also features orientation aid and AutoTracking 2 with click-and-track functionality for enhanced tracking accuracy. Privacy masking is advanced with mosaic and chameleon masking options, which allow for pixelation of specific areas and automatic color adjustment based on the background.
Key Features
Code/SKU: AXIS Q6315-LE
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | |
| Type | 1/2” progressive scan CMOS |
| Lens | |
| Focal Length | 6.91 – 214.64 mm, F1.36 – F4.6 |
| Horizontal Field of View | 60.6°– 2.0° |
| Vertical Field of View | 36.5°– 1.1° |
| Features | Laser focus, autofocus, P-iris |
| Zoom Speed | <1 sec between any zoom value |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | |
| Color (30 IRE, F1.36) | 0.06 lux |
| B/W (30 IRE, F1.36) | 0.001 lux, 0 lux with IR illumination on |
| Color (50 IRE, F1.36) | 0.09 lux |
| B/W (50 IRE, F1.36) | 0.008 lux, 0 lux with IR illumination on |
| Shutter Speed | |
| 50 Hz | 1/111000 s to 1/2 s |
| 60 Hz | 1/111000 s to 1/2 s |
| Pan/Tilt/Zoom | |
| Pan | 360° endless, 0.05°– 550°/s |
| Tilt | +20 to -90°, 0.05°– 500°/s |
| Zoom | 31x optical, 12x digital, Total 372x zoom |
| Features | Quick-zoom, nadir flip, 300 preset positions, tour recording (max 10, max duration 16 minutes each), guard tour (max 100), control queue, on-screen directional indicator, set new pan 0°, adjustable zoom speed, speed dry |
| System on Chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | |
| RAM | 1024 MB |
| Flash | 512 MB |
| Compute Capabilities | |
| Machine Learning Processing Unit (MLPU) | Yes |
| Video | |
| Video Compression | |
| H.264 (MPEG-4 Part 10/AVC) | Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) | Main Profile |
| Motion JPEG | Yes |
| Resolution | |
| Range | 1920x1080 (HDTV 1080p) to 320x180 |
| Frame Rate | |
| Range | Up to 50/60 fps (50/60 Hz) in all resolutions |
| Video Streaming | |
| Streams | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG |
| Axis Zipstream Technology | In H.264 and H.265 |
| Controllable Frame Rate and Bandwidth | VBR/ABR/MBR H.264/H.265 |
| Low Latency Mode | Yes |
| Video Streaming Indicator | Yes |
| Image Settings | |
| Adjustments | Compression, color, brightness, sharpness, white balance, exposure control, exposure zones, image freeze on PTZ, scene profiles, rotation, electronic image stabilization (EIS), defogging, contrast, local contrast, autofocus, Forensic WDR: Up to 120 dB depending on scene, 32 individual polygon privacy masks including mosaic and chameleon privacy masks |
| Audio | |
| Audio Input | Input through portcast technology |
| Audio Output | Output through portcast technology |
| Network | |
| Security | |
| Features | Multi-level user, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS), network access control, user access log, centralized certificate management, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified) |
| Network Protocols | |
| Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| System Integration | |
| Application Programming Interface | |
| Open API | For software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com |
| One-Click Cloud Connection | Yes |
| ONVIF® | Profile G, Profile M, Profile S, and Profile T, specification at onvif.org |
| Onscreen Controls | |
| Features | IR illumination, Quick-zoom, Enable/disable all privacy masks, Speed dry |
| Event Conditions | |
| Device Status | Above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, shock detected, storage failure, system ready, within operating temperature |
| Edge Storage | Recording ongoing, storage disruption |
| I/O | Manual trigger, virtual input |
| MQTT Subscribe | Yes |
| PTZ | PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready |
| Scheduled and Recurring | Scheduled event |
| Video | Average bitrate degradation, day-night mode, live stream open |
| Event Actions | |
| Record Video | SD card and network share |
| Upload of Images or Video Clips | FTP, SFTP, HTTP, HTTPS, network share and email |
| Pre- and Post-alarm Video or Image Buffering | For recording or upload |
| Notification | Email, HTTP, HTTPS, TCP and SNMP trap |
| PTZ | PTZ preset, start/stop guard tour |
| Overlay Text | Day/night mode |
| WDR Mode | Yes |
| IR Illumination | Yes |
| MQTT Publish | Yes |
| Analytics | |
| Applications Included | |
| Included | AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, AXIS OSDI Zone, Orientation Aid PTZ, advanced gatekeeper, autotracking 2 |
| Supported | AXIS Perimeter Defender, AXIS License Plate Verifier |
| AXIS Camera Application Platform | Support for third-party applications, see axis.com/acap |
| AXIS Object Analytics | |
| Object Classes | Humans, vehicles |
| Scenarios | Line crossing, object in area, crossline counting, time in area |
| Other Features | Triggered objects visualized with trajectories, color-coded bounding boxes and tables, Polygon include/exclude areas, Perspective configuration, ONVIF Motion Alarm event |
| AXIS Scene Metadata | |
| Object Classes | Humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
| Object Attributes | Confidence, position |
| Approvals | |
| EMC | EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4, Australia/New Zealand: RCM AS/NZS CISPR 32 Class A, Canada: ICES-3(A)/NMB-3(A), Japan: VCCI Class A, Korea: KC KN32 Class A, KC KN35, USA: FCC Part 15 Subpart B Class A, Railway: IEC 62236-4 |
| Safety | IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1, IS 13252 |
| Environment | IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250, Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B) |
| Network | NIST SP500-267 |
| Cybersecurity | |
| Cybersecurity | ETSI EN 303 645, FIPS 140 |
| Edge Security | |
| Software | Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware | Secure boot, Axis Edge Vault with secure keystore (CC EAL4+, FIPS 140-2 level 2 certified hardware protection of cryptographic operations and keys) |
| Network Security | |
| Features | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| Documentation | |
| Resources | AXIS OS Hardening Guide, Axis Vulnerability Management Policy, Axis Security Development Model, AXIS OS Software Bill of Material (SBOM) |
| Download Documents | Go to axis.com/support/cybersecurity/resources |
| Read More About Axis Cybersecurity Support | Go to axis.com/cybersecurity |
| General | |
| Casing | IP66-, IP67, NEMA 4X- and IK10-rated, Color: white NCS S 1002-B, Repaintable metal casing (aluminum), hard coated Polycarbonate (PC) clear dome with Sharpdome technology |
| Sustainability | PVC free |
| Power | Axis High PoE 60 W SFP midspan 1-port: 100–240 V AC, max 1.5 A, IEEE802.3bt Type 3 Class 6 |
| Power Consumption | Full power: typical 15 W (no IR), max 51 W; Low power: typical 15 W (no IR), max 30 W. With IR: 44 W |
| Connectors | RJ45 10BASE-T/100BASE-TX/1000BASE-T, RJ45 Push-pull Connector (IP66), Audio: Audio and I/O connectivity via portcast technology |
| IR Illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs, Range of reach 300 m (984 ft) or more depending on the scene |
| Storage | Support for SD/SDHC/SDXC card, Support for SD card encryption (AES-XTS-Plain64 256bit), Support for recording to network-attached storage (NAS), For SD card and NAS recommendations see axis.com |
| Operating Conditions | |
| Full Power | -50 °C to 50 °C (-58 °F to 122 °F) |
| Low Power | -5 °C to 50 °C (23 °F to 122 °F) |
| Maximum Temperature | According to NEMA TS 2 (2.2.7): 74 °C (165 °F) |
| Arctic Temperature Control | Start-up as low as -40 °C (-40 °F) |
| Humidity | 10–100% RH (condensing) |
| Storage Conditions | |
| Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity | 5-95% RH (non-condensing) |
| Dimensions | |
| Height | 261 mm (10.3 in) |
| With Weather Shield | ø 239 mm (9.4 in) |
| Without Weather Shield | ø 192 mm (7.6 in) |
| Weight | 4 800 g (10.6 lb) |
| Included Accessories | |
| Accessories | Installation guide, Windows® decoder 1-user license, 60 W Midspan (including power cable), IP66 rated network connector, repaint template, paint paper |
| Optional Accessories | |
| Accessories | AXIS T91/T94 Mounting Accessories, AXIS T8415 Wireless Installation Tool, AXIS Surveillance Cards, For more accessories, see axis.com |
| Video Management Software | |
| Software | AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners available at axis.com/vms |
| Languages | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Axis AXIS-01924-006 Q6315-LE PTZ Camera, 1080p, 31x Zoom, PoE, IP66, IK10, 6.91-214.64mm VF Lens
The AXIS Q6315-LE PTZ Network Camera is a high-performance surveillance solution designed for demanding environments, offering exceptional image quality and versatility. With a 30x optical zoom lens, it allows for detailed monitoring from a considerable distance, ensuring no important detail is missed. The camera is equipped with advanced pan, tilt, and zoom (PTZ) capabilities, enabling precise control and expansive coverage. Its high-resolution imaging, supported by the latest sensor technology, provides crystal-clear visuals even in challenging lighting conditions. The AXIS Q6315-LE features built-in IR illumination with a range of up to 200 meters, making it ideal for low-light and nighttime surveillance. The camera’s robust design ensures durability and reliability in harsh weather conditions, with an IP66 rating for water and dust resistance. Additionally, the AXIS Q6315-LE incorporates Axis' Zipstream technology, which optimizes bandwidth and storage by reducing the amount of data required without compromising image quality. The camera also supports advanced analytics, including object detection and line crossing, enhancing security and situational awareness. Its easy integration with existing security systems is facilitated by ONVIF compliance and compatibility with various VMS platforms. The AXIS Q6315-LE is equipped with secure, encrypted communications to protect against unauthorized access and tampering. Its user-friendly interface allows for straightforward configuration and operation, while remote access capabilities provide flexibility in monitoring from anywhere. With its comprehensive feature set and robust performance, the AXIS Q6315-LE is a reliable choice for critical surveillance applications in both urban and remote settings.
Super surveillance- day and night
AXIS Q6315-LE features very light-sensitive ½” inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it’s perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus– every time. It’s possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
Built-in advanced analytics
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.
Keeping you secure
AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.
Features
| Video | |
| Video Compression | |
| H.264 (MPEG-4 Part 10/AVC) | Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) | Main Profile |
| Motion JPEG | Yes |
| Resolution | |
| Range | 1920x1080 (HDTV 1080p) to 320x180 |
| Frame Rate | |
| Range | Up to 50/60 fps (50/60 Hz) in all resolutions |
| Video Streaming | |
| Streams | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG |
| Axis Zipstream Technology | In H.264 and H.265 |
| Controllable Frame Rate and Bandwidth | VBR/ABR/MBR H.264/H.265 |
| Low Latency Mode | Yes |
| Video Streaming Indicator | Yes |
| Image Settings | |
| Adjustments | Compression, color, brightness, sharpness, white balance, exposure control, exposure zones, image freeze on PTZ, scene profiles, rotation, electronic image stabilization (EIS), defogging, contrast, local contrast, autofocus, Forensic WDR: Up to 120 dB depending on scene, 32 individual polygon privacy masks including mosaic and chameleon privacy masks |
| Audio | |
| Audio Input | Input through portcast technology |
| Audio Output | Output through portcast technology |
