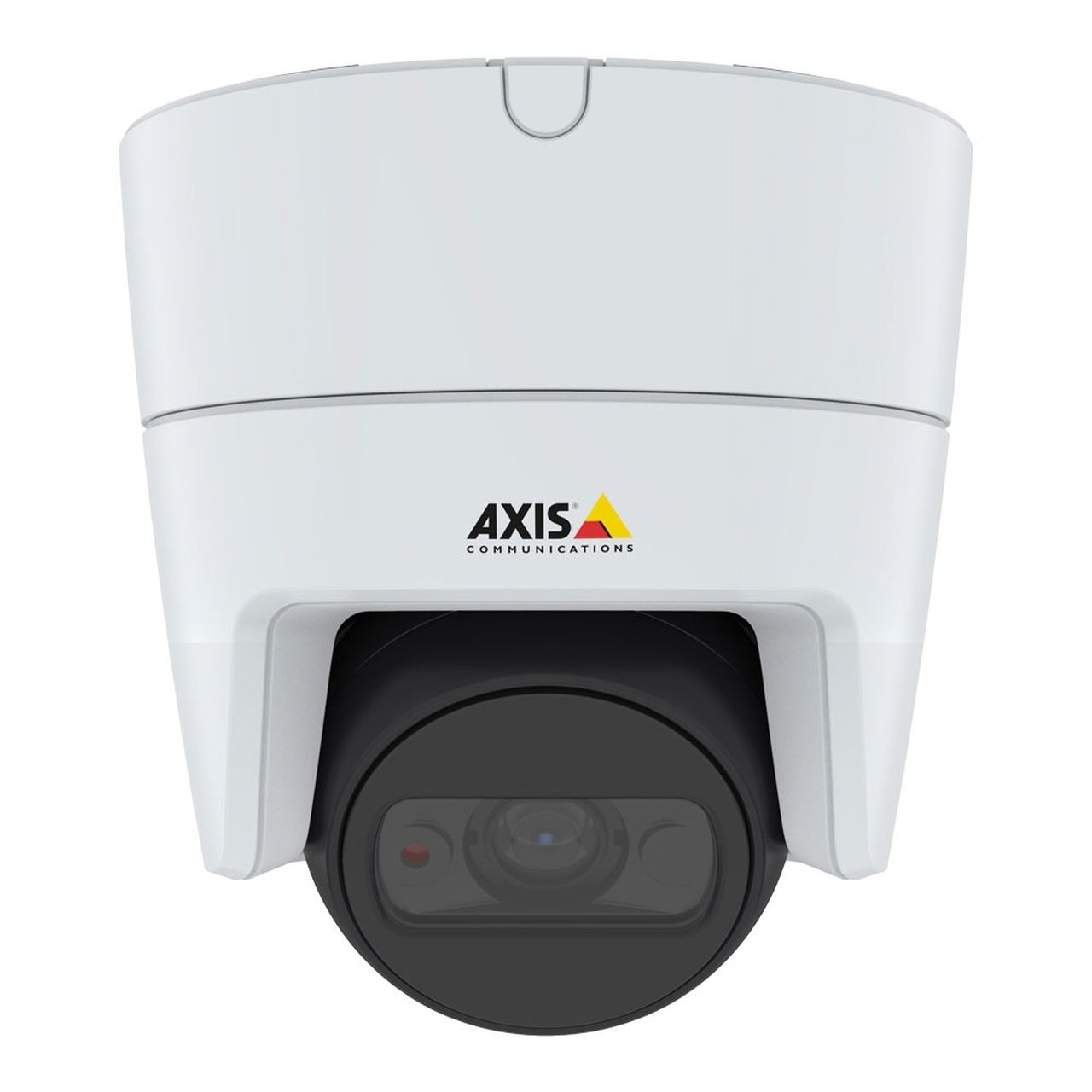

Flat-faced 4 MP dome with IR
The AXIS M3116-LVE is an affordable, compact, and durable flat-faced dome camera designed to minimize light reflections and provide superior surveillance capabilities. With a robust IK08 rating, this camera offers a wide-angle 4 MP video view, enhanced by Forensic WDR, Lightfinder, and built-in IR illumination, ensuring sharp and color-accurate footage even in low light or complete darkness. Its flexible design allows for easy installation in both indoor and outdoor environments, while the 3-axis camera-angle adjustment ensures precise leveling and direction. The AXIS M3116-LVE also includes advanced security features and utilizes Axis Zipstream technology with H.264/H.265 support to significantly reduce bandwidth and storage needs without sacrificing image quality.
Key Features
Code/SKU: AXIS M3116-LVE
Quick Specs:
| Camera | |
| Image Sensor | 1/2.7" progressive scan RGB CMOS |
| Lens | 2.4 mm, F2.1 |
| Field of View | Horizontal: 130° Vertical: 72° |
| Lens Characteristics | Fixed iris, Fixed focus, IR corrected |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | Color: 0.19 lux at 50 IRE, F2.1 B/W: 0.04 lux at 50 IRE, F2.1 0 lux with IR illumination on |
| Shutter Speed | 1/33500 s to 1/5 s |
| Camera Angle Adjustment | Pan: ±180° Tilt: 0° to 60° Rotation: ±95° Can be directed in any direction and see the wall/ceiling |
| System on Chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | 2688x1512 to 320x240 |
| Frame Rate | Up to 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Multi-view Streaming | Up to 2 individually cropped out view areas in full frame rate |
| Image Settings | Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, defogging, dynamic text and image overlay, privacy masks, mirroring, rotation: 0°, 90°, 180°, 270° including Corridor Format |
| Pan/Tilt/Zoom | Digital PTZ |
| Audio | |
| Audio Input/Output | Two-way audio connectivity via the optional AXIS T61 Audio and I/O Interfaces with portcast technology |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS) network access control, Digest authentication, User access log, Centralized Certificate Management, brute force delay protection, signed firmware, secure boot |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| System Integration | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-Click Cloud Connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. |
| Event Triggers | Analytics, Edge storage events, Virtual inputs through API MQTT subscribe |
| Event Actions | Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP, and SNMP trap MQTT publish |
| Overlay Text | Built-in |
| Installation Aids | Pixel counter, adjustable IR-illumination intensity |
| Analytics | |
| Metadata | Event data: Producer reference, scenarios, trigger conditions |
| Applications Included | AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| General | |
| Casing | IP66/IP67- and NEMA 4X-rated, IK08 impact-resistant casing Encapsulated electronics and captive screws (Torx 10) Color: white NCS S 1002-B For repainting instructions and impact on warranty, contact your Axis partner |
| Sustainability | PVC free |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical: 4.6 W, Max.: 8.7 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE Audio and I/O connectivity via the optional AXIS T61 Audio and I/O Interfaces with portcast technology |
| IR Illumination | Power-efficient, long-life 850 nm IR LED. Range of reach 20 m (65 ft) or more depending on the scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com |
| Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F) Start-up temperature: -20 °C to 50 °C (-4 °F to 122 °F) Humidity: 10–100% RH (condensing) |
| Storage Conditions | -40°C to 65°C (-40°F to 149 °F) Humidity: 5-95% RH (non-condensing) |
| Approvals | |
| EMC | EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14, IEC 60068-2-6, IEC 60068-2-27 IEC/EN 62262 IK08, IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X |
| Safety | IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471, IS 13252 |
| Network | NIST SP500-267, IPv6 USGv6 |
| Dimensions | |
| Height | 94 mm (3.7 in) |
| Diameter | ø 101 mm (4.0 in) |
| Weight | |
| 390 g (0.85 lb) | |
| Included Accessories | |
| Installation Guide, Windows decoder 1-user license, Torx® L-key, Connector guard, Cable gasket | |
| Optional Accessories | |
| AXIS T94B02D Pendant kit, AXIS T94B01P Conduit Back Box, AXIS T94B02M J-Box/Gang Box Plate, AXIS TM3807 Black Casing, Axis Mounts, AXIS Surveillance microSDXC™ Card, AXIS Weathershield Kit C, AXIS T61 Audio and I/O Interface Series For more accessories, see axis.com | |
| Video Management Software | |
| AXIS Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners available on axis.com/vms | |
| Languages | |
| English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Axis AXIS-01605-001 M3116-LVE 4MP Outdoor Flateye Camera, H.265, IR, Zipstream, IK08, 2.4mm Lens
The AXIS M3116-LVE Network Camera is a versatile surveillance solution designed to deliver high-quality video in various lighting conditions. With a resolution of 4 MP, it provides sharp and detailed images for effective monitoring. The camera features a 2.8 mm fixed lens, offering a wide field of view to cover larger areas. Its built-in IR illumination ensures clear video capture even in complete darkness, making it ideal for low-light environments. The AXIS M3116-LVE is equipped with WDR (Wide Dynamic Range) technology, which enhances visibility in scenes with both bright and dark areas. Its compact, discreet design allows for flexible installation in various indoor settings. The camera supports Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power supplies. With its H.265 video compression, it efficiently reduces bandwidth and storage requirements without compromising image quality. The AXIS M3116-LVE includes advanced security features, such as HTTPS and password protection, to safeguard video feeds against unauthorized access. It also supports two-way audio, allowing for interactive communication through the camera. The camera is designed to withstand tampering attempts with its robust construction and built-in tamper detection. It offers easy integration with existing security systems through ONVIF compliance. The AXIS M3116-LVE can be managed through the intuitive AXIS Companion or other VMS (Video Management Software) platforms for streamlined operation. Its remote access capabilities enable users to view live and recorded footage from anywhere using a web browser or mobile app. This camera is an excellent choice for enhancing security in retail stores, offices, and other indoor environments.
Smooth, sharp video
AXIS M3116-LVE offers excellent 4 MP resolution at up to 30 fps to deliver clear, sharp video of moving objects. It features Axis Forensic WDR which preserves forensic detail when there are both light and dark areas in a scene. And Axis Lightfinder technology for increased light sensitivity and clear colors in low light. It’s perfect for monitoring inside and outside of various premises where there’s often poor light conditions.
Light up the night
This flat-faced dome is designed to suppress light reflections and deliver excellent image quality and usability. It offers a wide-angle view of 130°, and with built-in IR illumination you’ll enjoy clear, reflection-free footage in low light or complete darkness and vibrant colors during the day. So, there’s no need for extra lighting- you get unobtrusive surveillance both day and night.
Fits in anywhere
AXIS M3116-LVE offers flexible and reliable installation. It’s suitable for both indoor and outdoor surveillance and can be mounted on walls or ceilings. Kits are also available for mounting on pendants or on junction boxes. And, with a 3-axis camera angle adjustment, this compact and discreet flat-faced dome can be easily leveled and directed. Furthermore, the impact-resistant, IK08-rated casing can be re-painted in any color to blend in with specific surroundings.
It offers enhanced security features to prevent unauthorized access and safeguard your system. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements. Furthermore, thanks to edge storage you can record directly to an onboard memory card, helping reduce installation and maintenance costs.
Features
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | 2688x1512 to 320x240 |
| Frame Rate | Up to 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Multi-view Streaming | Up to 2 individually cropped out view areas in full frame rate |
| Image Settings | Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, defogging, dynamic text and image overlay, privacy masks, mirroring, rotation: 0°, 90°, 180°, 270° including Corridor Format |
| Pan/Tilt/Zoom | Digital PTZ |
| Audio | |
| Audio Input/Output | Two-way audio connectivity via the optional AXIS T61 Audio and I/O Interfaces with portcast technology |
