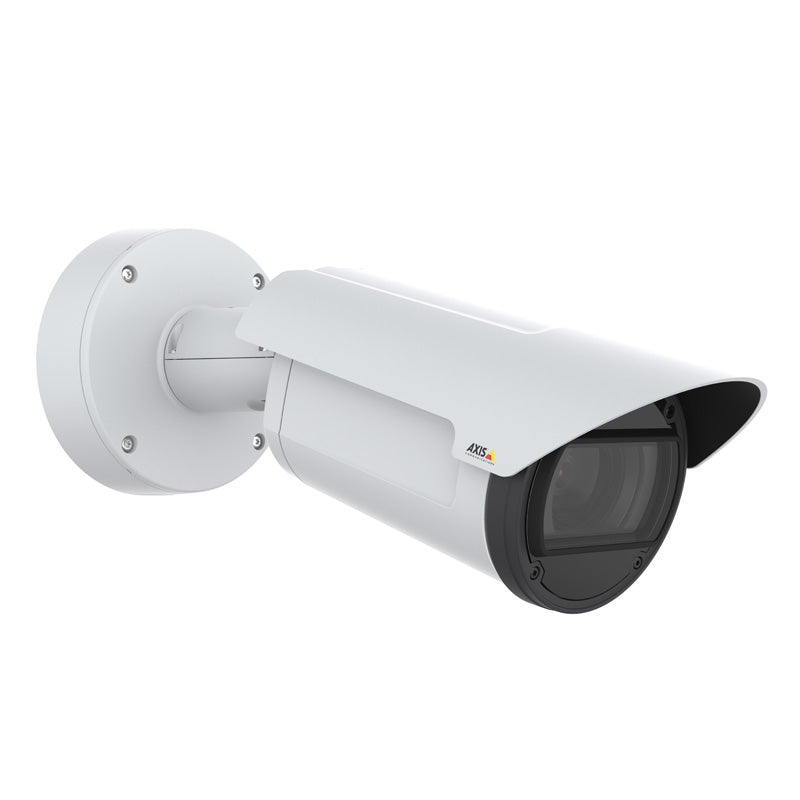

Axis AXIS-01161-001 Q1785-LE Network Camera, HDTV 1080p, 80m IR, Zipstream, WDR, PoE, 4.3 - 137mm

Model: AXIS-01161-001

Who This Is For

Property managers specifying surveillance for large outdoor sites - parking stations, stadiums, industrial compounds, or public precincts - where a single camera must cover both wide-area context and close-up detail without repositioning. The Axis Q1785-LE is built for exactly that task. Its 32x optical zoom spans a 4.3 to 137mm focal range, so one unit can monitor a full car park entry at wide angle and then zoom to read a number plate or identify a face at distance within the same installation. The IK10 vandal-resistant housing, IP66/67 and NEMA 4X weatherproofing, and -40°C to 60°C operating range mean it handles Australian coastal, tropical, and outback environments without compromise. This is a camera for sites where the monitoring demand is high, the environment is tough, and cutting corners on optical performance is not an option.

What This Camera Actually Does

Who Buys This Model

• Local councils and traffic management operators: Deploying on arterial roads, intersections, and public precincts where the 32x optical zoom and pixel density at 250 metres enable monitoring across wide distances from elevated poles without running multiple cameras.
• Stadium and venue security managers: Needing a single camera that covers concourse-wide overviews at wide angle, then zooms to identify individuals or incidents at the far end of a stand without physically repositioning.
• Industrial site and port security teams: Requiring IK10 vandal resistance and -40°C to 60°C operation for exposed installations near machinery, loading docks, or coastal perimeters where standard cameras deteriorate quickly.
• Car park and transport hub operators: Relying on Forensic WDR at 120 dB to manage entry points where sunlight, headlights, and shadowed structures create extreme contrast in a single scene throughout the day.
• Security integrators specifying high-value fixed camera positions: Where replacing multiple fixed-lens cameras with one optically versatile unit reduces pole count, cabling, and NVR channel usage while maintaining evidence-grade pixel density at distance.

Honest Assessment

The Axis Q1785-LE does several things genuinely well. The 32x optical zoom with confirmed pixel density figures gives integrators real data to plan recognition distances rather than guessing. Forensic WDR at 120 dB is among the strongest in its class for high-contrast outdoor scenes, and the combination of Lightfinder, 80m IR, and EIS makes it a credible option for demanding low-light and exposed outdoor positions. The -40°C to 60°C range and NEMA 4X rating are genuine differentiators for harsh Australian environments where budget cameras fail prematurely.

What it will not do: this is a fixed-mount motorised zoom camera, not a full PTZ. It does not have mechanical pan and tilt, so it cannot sweep a scene or track a moving subject across a wide horizontal arc. Sites needing active operator-controlled pan and tilt should look at a full PTZ unit from the range available through Security Australia. Audio output is not confirmed, so two-way audio applications are not supported by this model.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a long approach road, large car park, or open perimeter from a single fixed mounting point and require optical zoom for recognition-grade detail at 50 metres or beyond - confirmed at 956 px/m at 50m.
• Good match if: Your installation is in an exposed outdoor environment with extreme temperature variation, coastal conditions, or vandal risk - the IK10, IP66/67, NEMA 4X housing and -40°C to 60°C operating range are confirmed for this model.
• You may need a different model if: Your site requires active pan and tilt sweep or subject tracking across a wide horizontal field - this camera has no mechanical pan/tilt axis, so a full PTZ camera would be the appropriate product type for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 32x optical zoom with evidence-grade pixel density at distance, extreme temperature tolerance, and IK10 vandal resistance in a fixed-mount outdoor housing - particularly for large open areas where a single camera must serve both wide-area and close-up monitoring roles.
• You may need a different model if: Your application requires active horizontal pan and tilt sweep, auto-tracking of moving subjects across a wide arc, or operator-driven camera steering - a full PTZ camera with pan/tilt mechanics would be the correct product type for that use case.
• Pairs well with: A compatible Axis or third-party NVR/VMS with multi-stream support, a PoE switch with sufficient per-port power budget, and edge storage cards for local redundancy where network reliability is variable.

Common Questions

1. Does this camera support two-way audio?

   No. The Q1785-LE has audio input only, in simplex configuration. A microphone can be connected to capture ambient audio, but there is no confirmed built-in speaker. This model is not suited to intercom or speaker-announcement applications.

2. Will this camera record locally if the network goes down?

   Yes. The Q1785-LE has an onboard memory card slot that supports local edge storage. If the network connection to the NVR is interrupted, the camera can continue recording to a locally installed card, reducing the risk of footage gaps during outages or network disruptions.

3. What is the optical zoom ratio and what focal range does it cover?

   The Q1785-LE has a 32x optical zoom covering 4.3mm to 137mm. This means the camera can shift from a very wide field of view - suitable for full compound or car park overview - all the way to a narrow telephoto position for close-up detail at extended distances. At 50 metres, pixel density is confirmed at 956 pixels per metre, and at 25 metres it reaches 1912 pixels per metre, both sufficient for recognition-grade identification depending on subject size and lighting conditions. All zoom adjustment is optical, meaning image quality is not degraded as the lens extends.

4. Does enabling WDR reduce the frame rate?

   Yes. When Forensic WDR is active, maximum frame rate is capped at 25fps (50Hz systems) or 30fps (60Hz systems). Without WDR enabled, the camera reaches 50fps or 60fps respectively across all resolutions. For most fixed monitoring applications this is not a practical limitation, but integrators configuring streams for fast-moving vehicle capture or high-frame-rate evidence recording should plan stream profiles with this in mind - typically by configuring a secondary stream without WDR where frame rate is the priority.

5. Will this camera work in an outdoor environment with extreme temperatures?

   Yes. The Q1785-LE is confirmed operational from -40°C to 60°C. Combined with IP66, IP67, and NEMA 4X ingress protection ratings, it is suited to harsh Australian environments including far-north Queensland humidity, alpine conditions, outback heat, and coastal salt-air installations. This temperature range exceeds the operating limits of most standard IP cameras.

6. Does this camera have pan and tilt functionality?

   No. The Q1785-LE is a fixed-mount motorised zoom camera, not a full PTZ. The optical zoom lens adjusts focal length between 4.3mm and 137mm, but the camera housing does not mechanically pan or tilt. Preset zoom positions are supported, but horizontal or vertical sweep and auto-tracking of moving subjects are not capabilities of this model. Stocked by Security Australia, full PTZ units with pan/tilt mechanics are available for applications that require active camera steering.

7. What compression formats does the Q1785-LE support and does it include Zipstream?

   Yes. The camera supports H.264 in Baseline, Main, and High Profiles, as well as Motion JPEG. Axis Zipstream is included within H.264 streams. Zipstream dynamically allocates bitrate - reducing it on static background areas and maintaining full detail on regions of interest - which lowers overall storage consumption and network load for a 24/7 outdoor camera running at 1080p resolution. Multiple individually configurable streams can run simultaneously.
