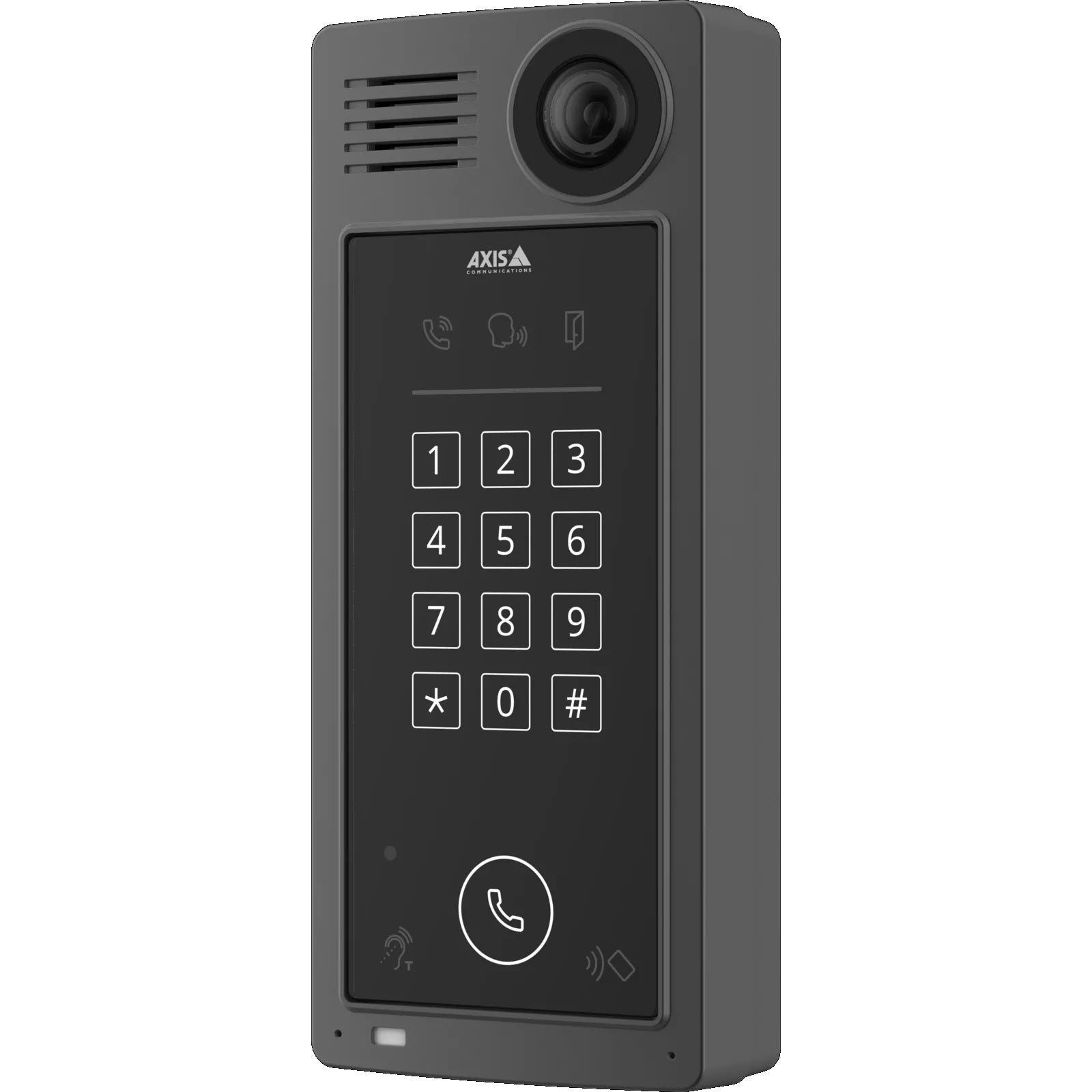

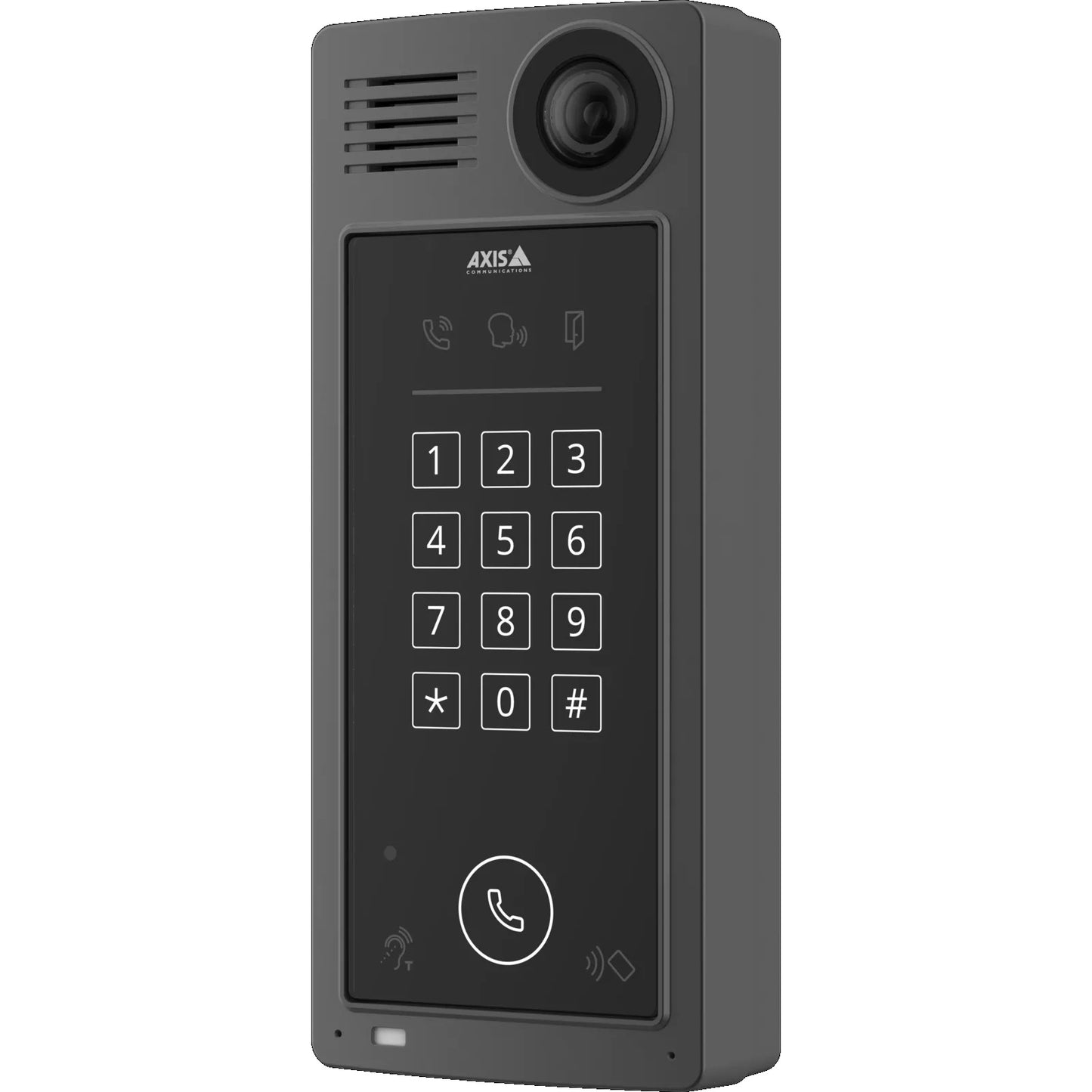

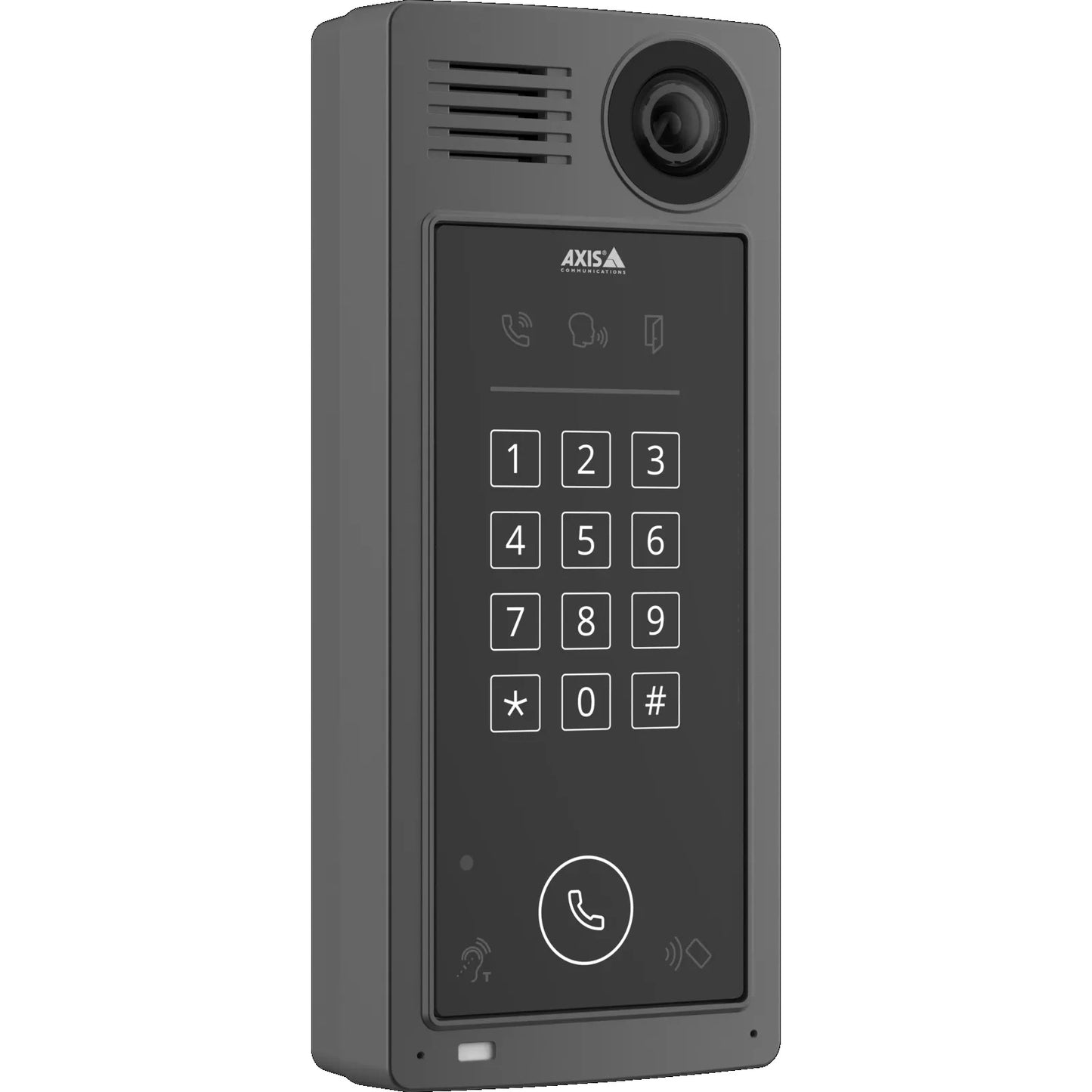

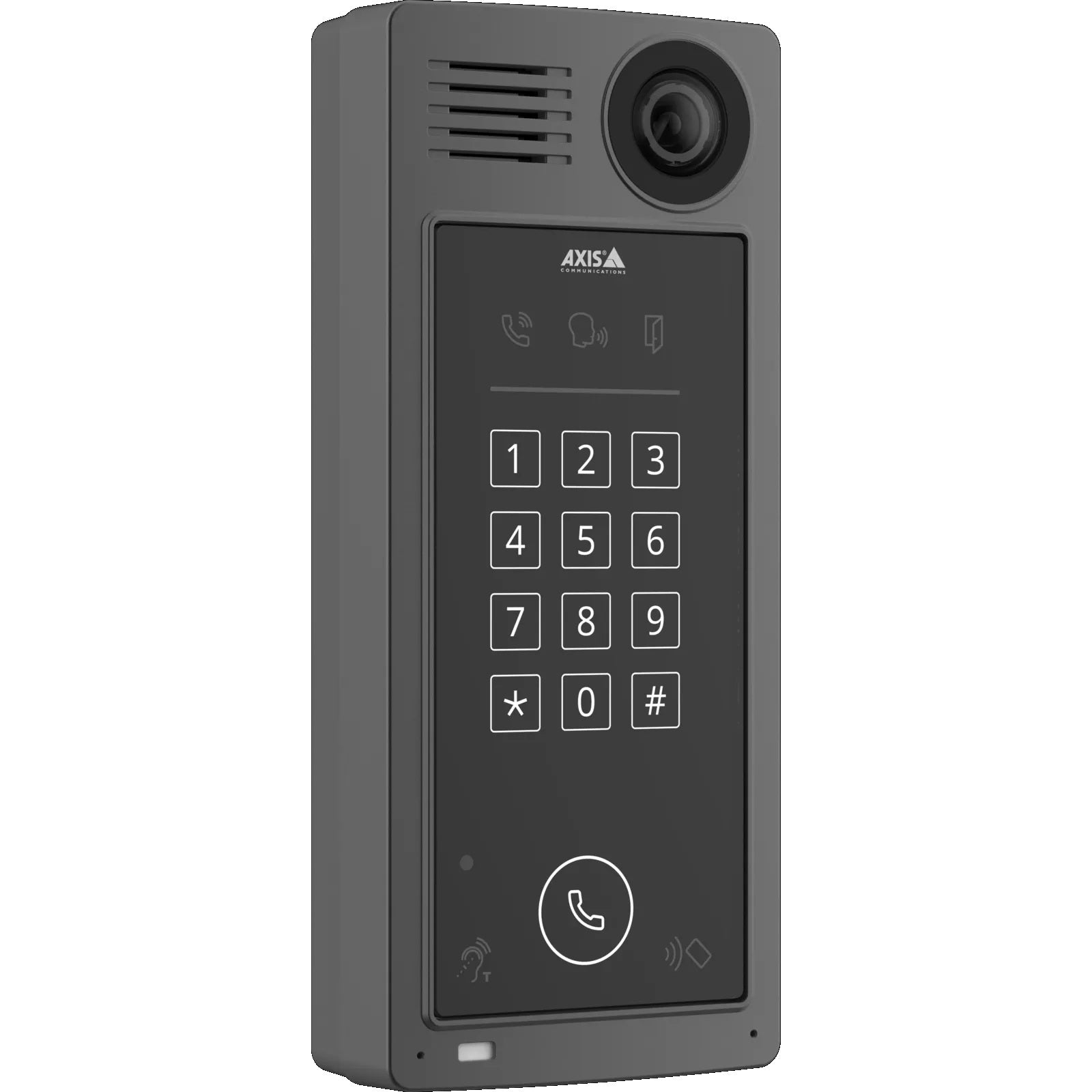

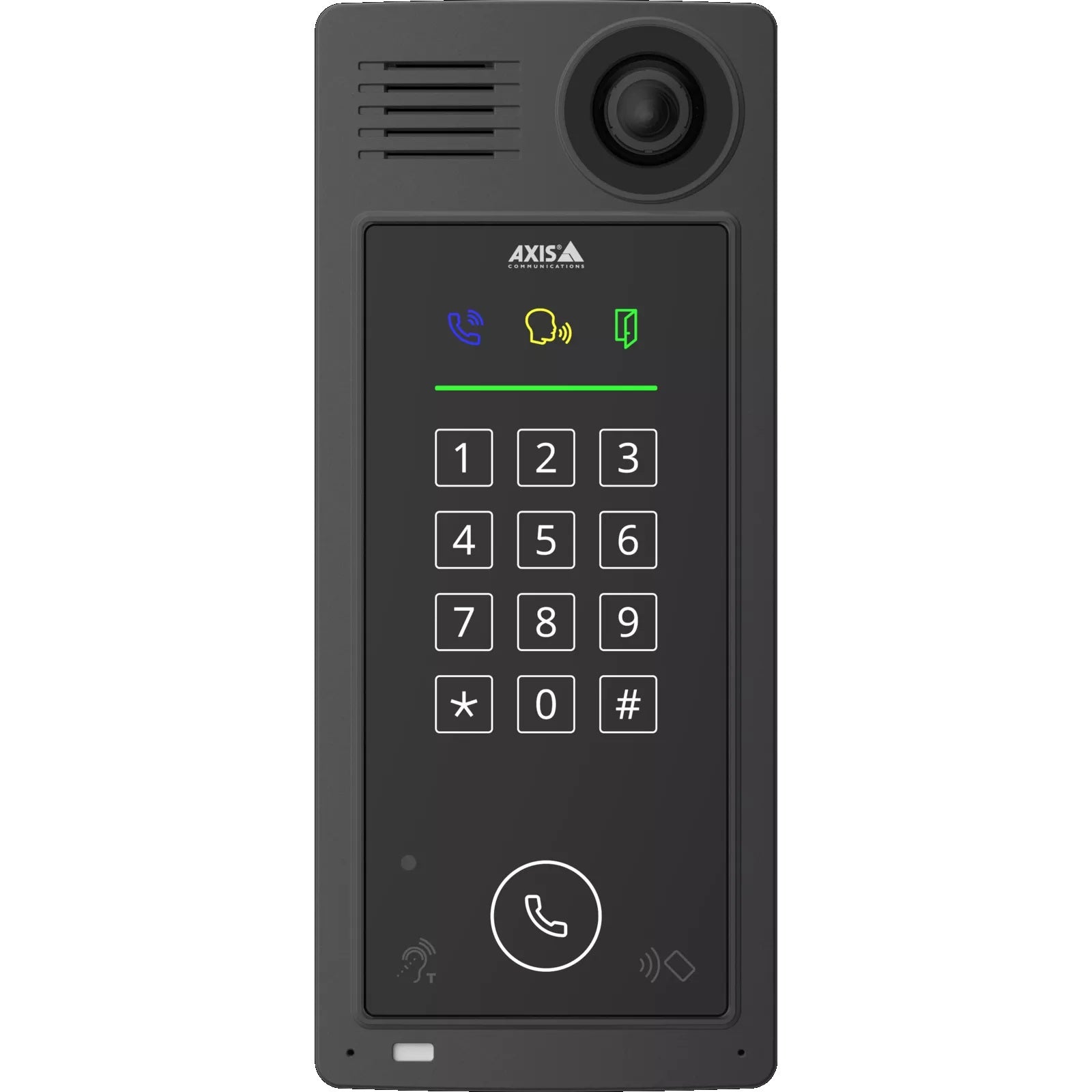

AXIS A8207-VE Mk II Network Video Door Station with 6MP Camera, RFID Keypad & Two-Way Audio

Model: A8207-VE

Who This Is For

When consolidating access control, video verification, and visitor management into a single outdoor unit is the priority, the AXIS A8207-VE Mk II is built for exactly that challenge. Facilities managers, integrators working on commercial premises, and property developers specifying multi-tenancy entry points will find this door station designed around the demands of professional installation. It combines a 6MP network camera, built-in RFID keypad, and two-way audio in a weatherproof housing suited to exposed building entrances, gated facilities, and secure lobbies. Rather than layering separate intercom, reader, and camera hardware at a single entry point, this unit handles all three functions over a single network connection, which simplifies both the installation and the ongoing management of who enters and when.

What This Intercom Actually Does

Who Buys This Model

• Commercial Building Managers: Specifying a single-unit solution for main entry points where they need video verification, credential access, and intercom without mounting multiple devices side by side.
• Security Integrators: Installing access control systems that need to tie video and entry events together in one platform - particularly sites already running AXIS Camera Station or AXIS Entry Manager.
• Aged Care and Medical Facility Operators: Managing controlled entry to secured wards or facility perimeters where staff use RFID cards and remote unlocking from a nurses station or reception is required.
• Multi-Tenancy Property Developers: Fitting out residential or commercial buildings with a door station that handles visitor calls, card access, and video recording at a single entry point without complex third-party integration.
• Industrial Site Supervisors: Controlling access to gated yards, server rooms, or secure storage areas where a camera record of every entry event is operationally necessary.

Honest Assessment

The AXIS A8207-VE Mk II genuinely consolidates what would otherwise be 3 separate devices - a door camera, an intercom, and an RFID reader - into a single PoE-powered unit with a coherent software integration path. The 6MP sensor gives the resolution needed for proper face identification at close range, and the IP66/IK08 ratings mean it handles Australian outdoor conditions without sheltering. SIP audio routing is a practical feature for sites where staff answer calls from existing network phones rather than a proprietary handset. Where this unit has limits: it is not a standalone access controller - it requires integration with a compatible door controller or AXIS door station software to actually release a door strike or magnetic lock. Sites needing high-speed vehicle access control or licence plate recognition at entry points will need a different product type. The A8207-VE Mk II is available through Security Australia as part of a broader Axis Communications range.

Before You Buy

Quick Fit Check

• Good match if: You need a single outdoor unit that combines a 6MP camera, RFID card reader, PIN keypad, and two-way SIP audio at a building entrance - and you are running AXIS software at the site.
• Good match if: Your site already uses AXIS Camera Station or AXIS Entry Manager and you want entry events, credential logs, and video footage managed from one platform without layering separate systems.
• You may need a different model if: Your primary requirement is high-volume vehicle access control with licence plate recognition at a gate or boom barrier - a dedicated ANPR camera paired with a gate controller will serve that application more directly.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need one outdoor unit that combines a 6MP camera, RFID reader, PIN keypad, and two-way SIP audio with native integration into AXIS software - particularly for managed commercial or institutional entry points.
• You may need a different model if: Your site requires high-volume pedestrian throughput with multi-door access controller hardware managing dozens of readers - a dedicated networked access control panel paired with separate reader hardware will scale better for that application.
• Pairs well with: A PoE network switch at the IDF closest to the entry point, a compatible door controller for lock release, and AXIS Camera Station or AXIS Entry Manager software for credential and video management.

Common Questions

1. Does the A8207-VE Mk II directly control a door lock or strike?

   Not on its own. The door station handles video, audio, and credential reading, but releasing a lock requires a compatible external door controller connected to the unit. The relay output for the lock must be wired through the controller, so confirm your lock interface hardware before finalising the installation design.

2. Will this door station work with non-Axis video management software?

   Yes, with limitations. The camera component is ONVIF-compatible, so the video stream can be pulled into third-party VMS platforms. However, the full integration of access events, credential management, and video correlation works natively with AXIS Camera Station and AXIS Entry Manager - some features will not be available in non-Axis software environments.

3. Does this door station support two-way audio over a standard SIP phone system?

   Yes. The A8207-VE Mk II is SIP-compatible, meaning visitor calls can be routed to any SIP-registered device on the network - including desk phones, softphone apps, and mobile SIP clients. This removes the need for a proprietary handset or dedicated intercom screen at the answering end.

4. What RFID card formats does the built-in reader support?

   The built-in reader supports standard proximity card formats compatible with the AXIS A series door station platform. For specific card technology compatibility - particularly if your site uses a proprietary credential format - confirm the supported card types with Security Australia prior to ordering to avoid compatibility issues with existing cards on site.

5. Is the A8207-VE Mk II weatherproof enough for an exposed outdoor installation?

   Yes. The IP66 rating means the unit is fully protected against water ingress from direct rain and driving weather conditions. The IK08 impact rating provides resistance to deliberate interference or accidental impact at the mounting point. Both ratings make it suitable for building exteriors without a protective canopy, though avoiding direct western sun exposure will extend the life of the unit in hotter Australian climates.

6. How many users or credentials can the system manage?

   Credential capacity is managed at the software level through AXIS Entry Manager rather than being a fixed hardware limit on the door station itself. AXIS Entry Manager supports a substantial number of cardholders, access schedules, and door groups depending on the licence configuration - the door station is not the bottleneck in a scaled deployment.

7. Does the 6MP camera include night vision or IR illumination?

   The A8207-VE Mk II is designed for well-lit entry points such as building frontages, lobbies, and gated entries that have external lighting. If the installation location has no ambient lighting at night, ensure that the entry point itself is illuminated before relying on the camera for identification-quality images in darkness.

Cabling Considerations

• Cable Type: Cat5e or Cat6 for the network and PoE connection to the door station.
• Max Cable Run: 100m from PoE switch to door station over Cat5e/Cat6 - standard Ethernet distance limit applies.
• PoE Notes: Requires PoE from the supplying switch (IEEE 802.3af/at). Confirm the switch port delivers adequate power before installation.
• Door Controller Wiring: A separate cable run is required from the door station or controller to the lock strike or magnetic lock hardware. This is independent of the network cable and must be planned as part of the installation.
• Wiring Tips: Where possible, run the Cat5e/Cat6 cable inside conduit or through the wall cavity at the entry point to protect it from weather ingress and to maintain the IP66 integrity of the installation. Seal all cable entry points at the back of the unit housing.
