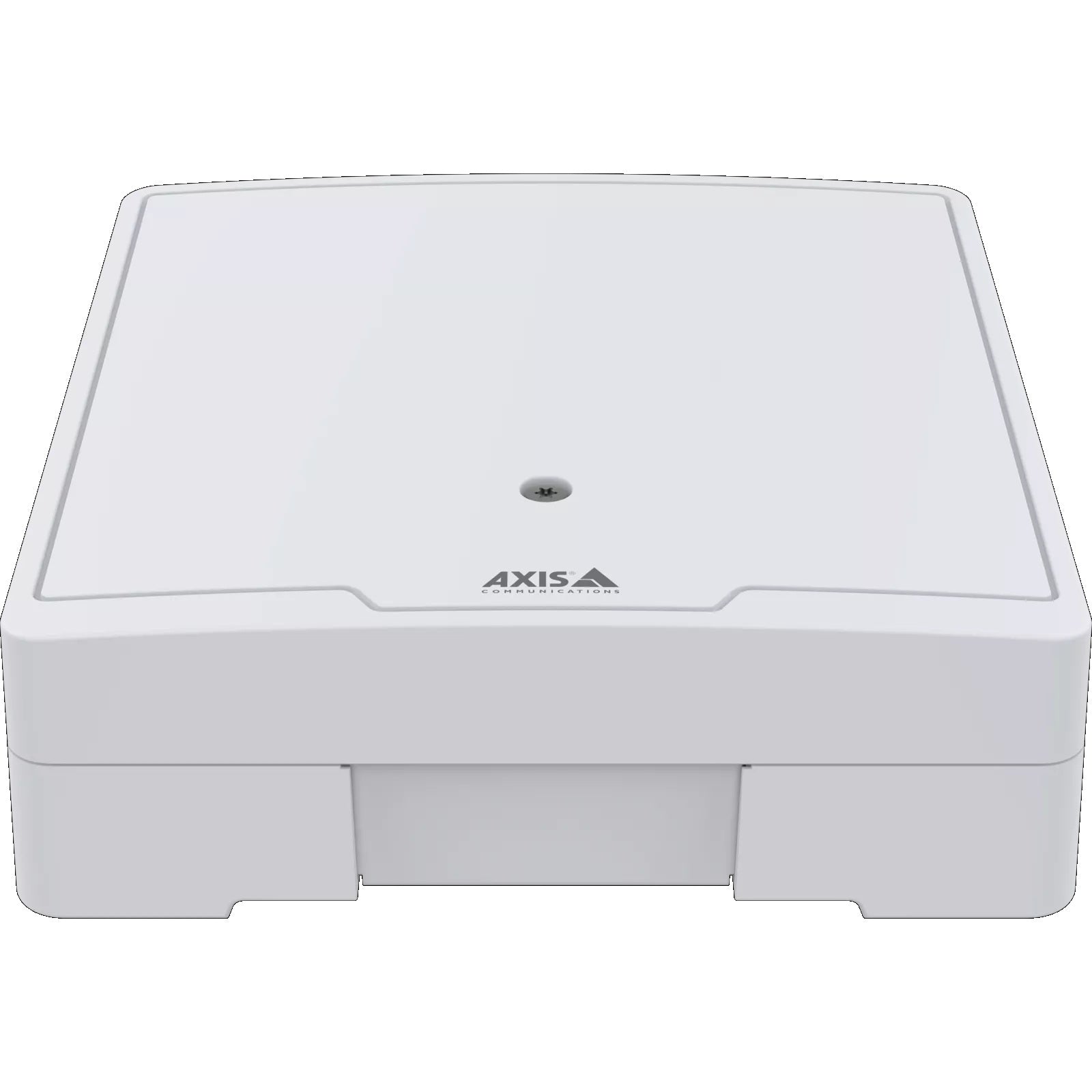

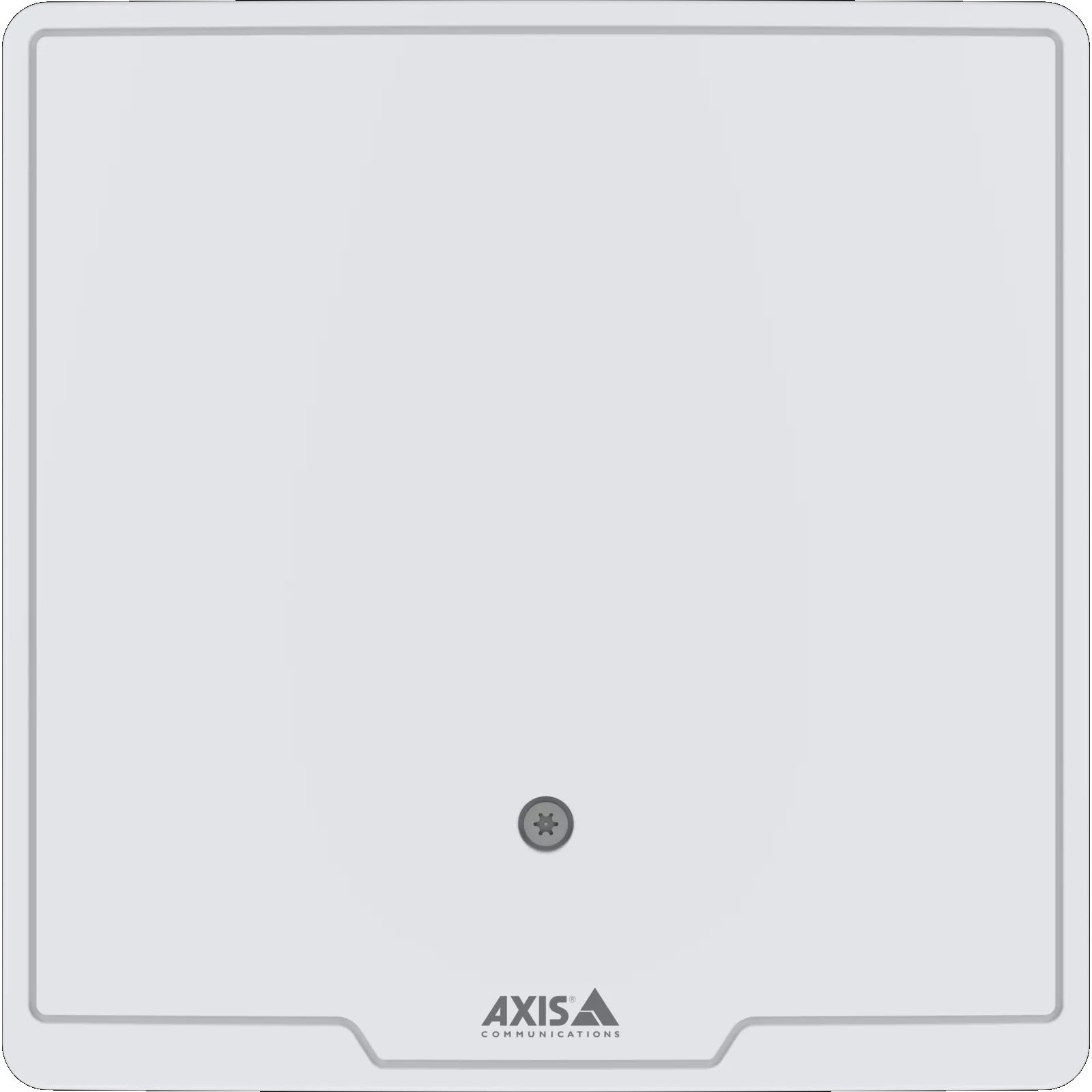

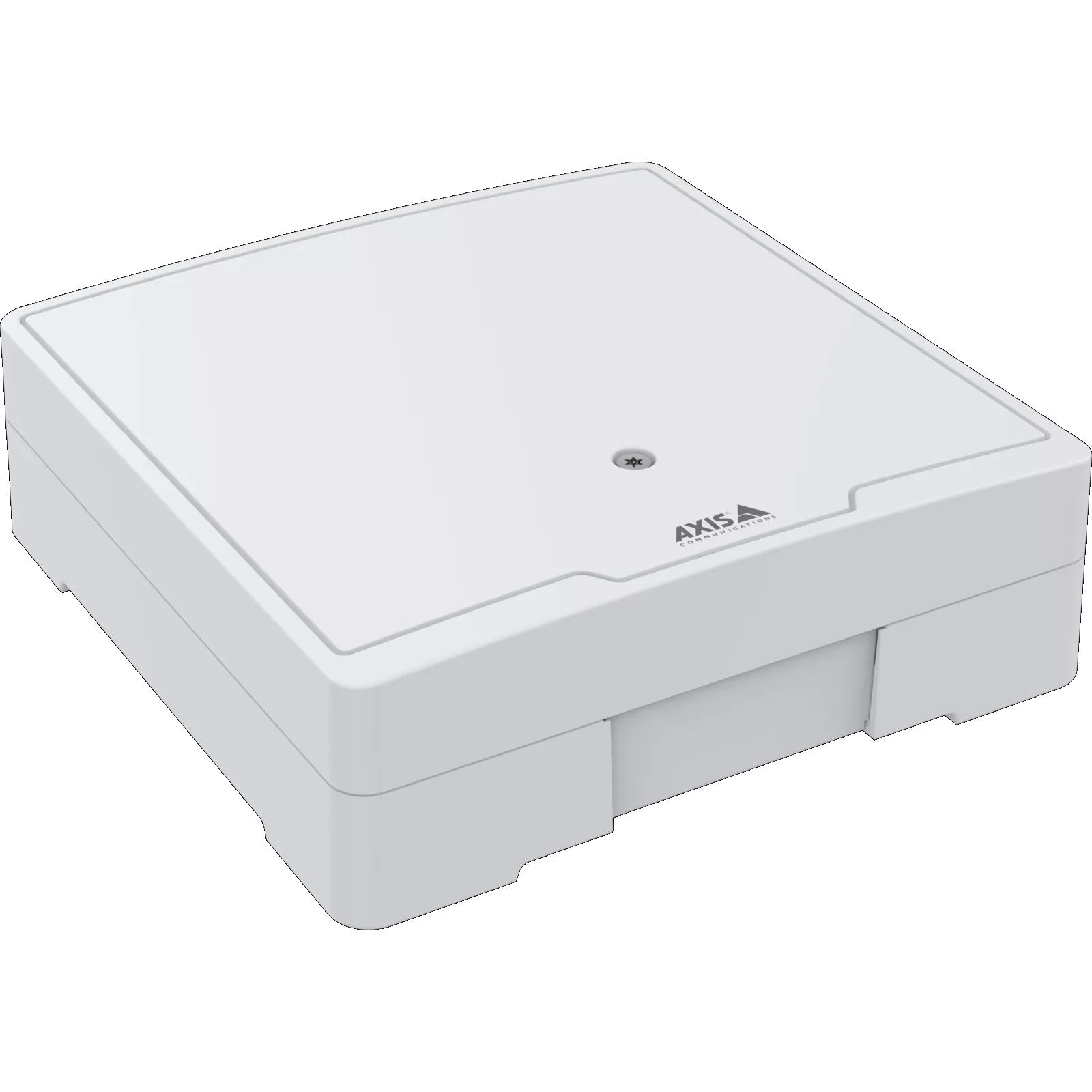

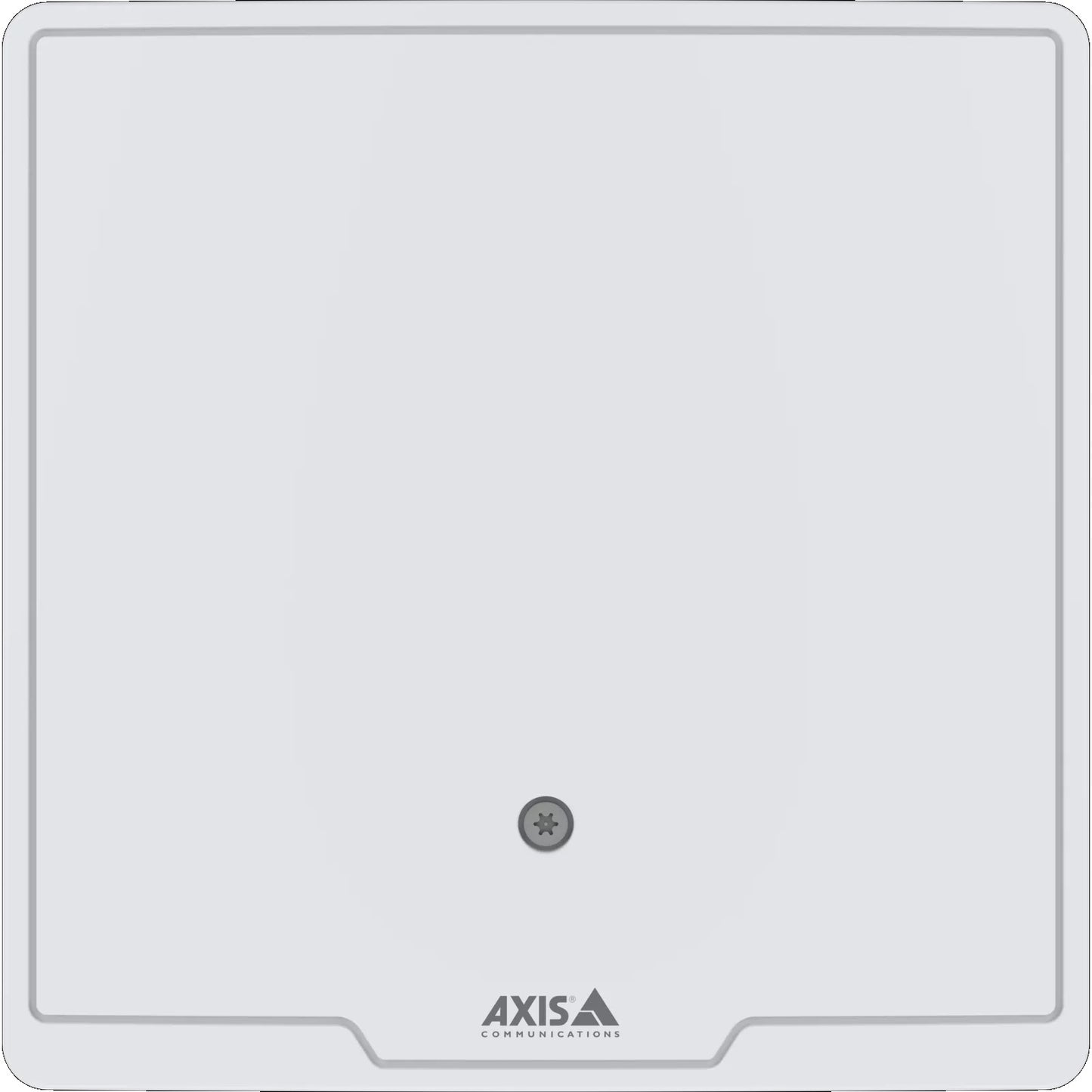

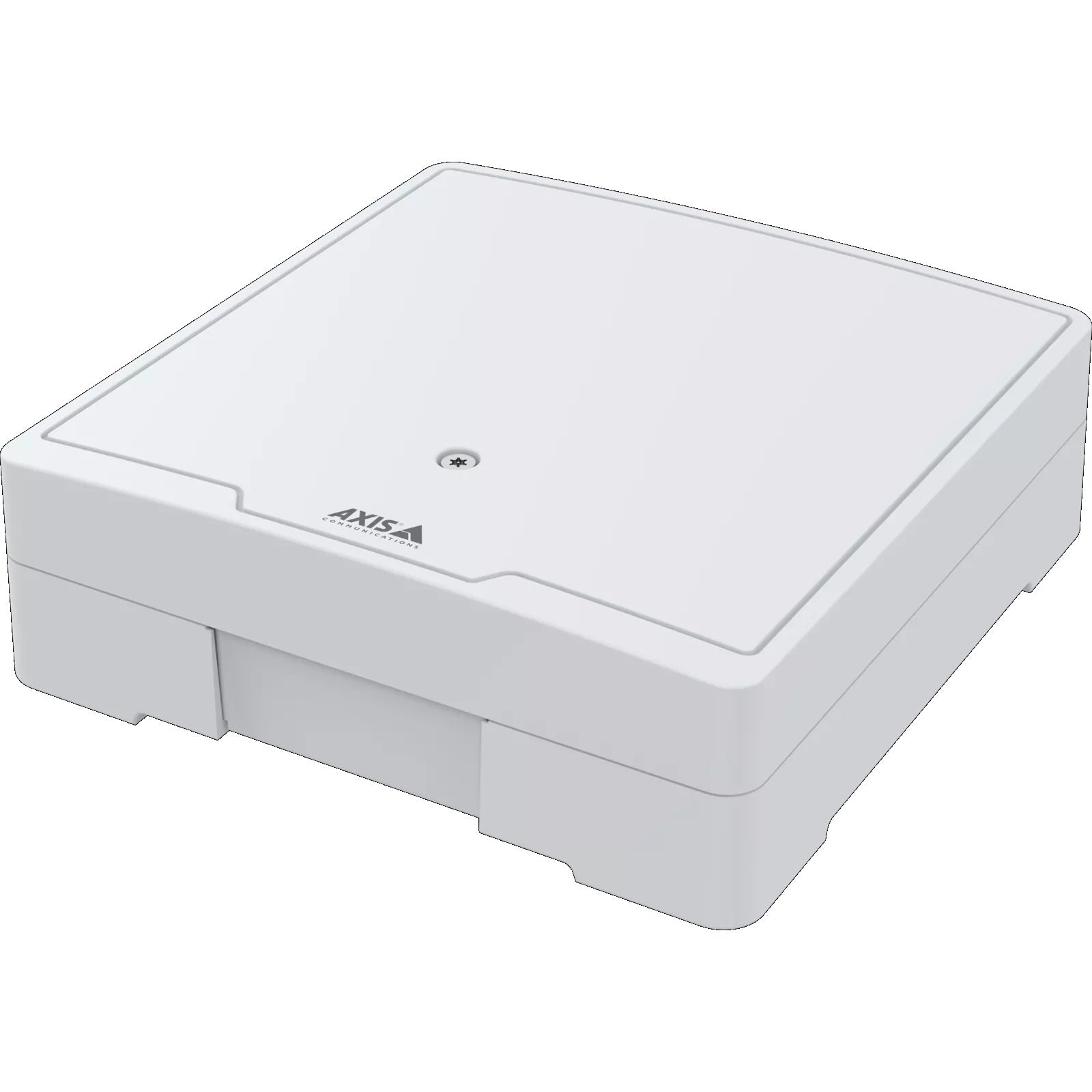

AXIS A1610 Network Door Controller with PoE+, OSDP Verified & Two-Door Control

Model: A1610

Who This Is For

When integrating access control into an IP network without pulling separate power infrastructure is the priority, the AXIS A1610 Network Door Controller is the unit installers reach for. Designed for commercial and institutional environments where verified, tamper-resistant reader communication matters, this controller manages up to 2 doors over a single PoE+ network connection - eliminating the need for a dedicated power supply at the controller. OSDP Verified certification means the A1610 meets independently tested standards for secure, bidirectional reader communication, which is a real requirement on government, healthcare, and education projects. System integrators specifying scalable, software-managed access control for office buildings, schools, data centres, or multi-tenancy facilities will find the A1610 sits cleanly inside the AXIS ecosystem, supporting central management through compatible access control software while keeping the panel footprint compact and the cabling straightforward.

What This Controller Actually Does

Who Buys This Model

• Security system integrators: Specifying IP-based access control for commercial builds where PoE+ infrastructure is already in place and a compact, network-native controller avoids local power supply costs.
• Government and education facility managers: Requiring OSDP Verified reader communication to meet procurement security standards or departmental ICT policies that mandate encrypted, supervised reader protocols.
• IT-managed corporate environments: Where access control needs to sit on the same managed network as cameras and other IP devices, with centralised logging and software-based administration rather than standalone panel programming.
• Healthcare and data centre operators: Controlling 2 high-security doors per controller unit, particularly in server rooms, dispensary entries, or restricted clinical zones where tamper detection at the reader is a compliance requirement.
• Installers managing phased upgrades: Retaining existing Wiegand readers at some doors while moving new doors to OSDP, using the A1610 to support both protocols during a staged migration away from legacy hardware.

Honest Assessment

The AXIS A1610 does two things particularly well: it simplifies installation by drawing power from the network via PoE+, and it supports OSDP Verified communication - a protocol level that genuinely improves reader security over Wiegand for projects where tamper detection and encrypted signalling are required. The local credential storage is a sensible design choice that keeps doors operational during network interruptions. Within the AXIS ecosystem, the integration between access events and camera footage is coherent and well-managed through AXIS Camera Station. Where the A1610 is not the right fit: it controls only 2 doors per unit, so high-door-count sites will need multiple controllers and corresponding structured cabling planning. It is also a controller only - readers, locks, power supplies for strikes, and REX devices are not included and need to be specified separately. The A1610 is available through Security Australia for integrators building out AXIS-native access control systems.

Before You Buy

Quick Fit Check

• Good match if: You are installing access control on 2 doors per zone and your network infrastructure already delivers PoE+ - the A1610 eliminates the local power supply and keeps the riser cabling to a single Cat cable per controller.
• Good match if: Your project specification requires OSDP Verified reader communication for compliance with government or institutional security standards, and you are building within the AXIS Camera Station management environment.
• You may need a different model if: Your site requires control of 4, 8, or more doors from a single controller location - a higher-capacity network door controller or multi-door access panel would be more appropriate for reducing the number of controller units and cable home-runs on large sites.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 2-door, PoE+-powered, IP-native controller with OSDP Verified certification, particularly for projects integrating access control events directly into AXIS Camera Station.
• You may need a different model if: Your site requires a higher door count per controller - a multi-door network access controller capable of managing 4 or more doors from a single unit would reduce the number of controller locations and simplify structured cabling on larger facilities.
• Pairs well with: OSDP Verified card readers, PoE+ managed network switches with adequate power budgets, electric strikes or magnetic locks on appropriate 12V or 24V power supplies, and AXIS IP cameras managed through the same AXIS Camera Station deployment.

Common Questions

1. Does the AXIS A1610 require a dedicated power supply at the door controller?

   No. The A1610 is powered entirely via IEEE 802.3at PoE+ from a compatible network switch or PoE+ injector. A single Cat5e or Cat6 cable carries both data and power to the controller, removing the need for a 12V or 24V power supply enclosure at the controller location. Note that door hardware such as electric strikes or magnetic locks will still require their own appropriately rated power supply.

2. What is OSDP Verified and why does it matter on the A1610?

   OSDP Verified is an independent certification confirming a device meets the SIA OSDP v2 interoperability standard. On the A1610, it means the controller-to-reader link supports encrypted, bidirectional, supervised communication - detecting tamper and line-cut conditions that Wiegand cannot report. For government, healthcare, and education projects where the specification explicitly requires OSDP Verified, the A1610 satisfies that requirement at the controller end.

3. Will this controller work with existing Wiegand readers?

   Yes. The A1610 supports both OSDP v2 and Wiegand reader inputs. Existing Wiegand readers can be connected during a staged upgrade without requiring immediate hardware replacement. New doors can use OSDP Verified readers on the same controller, allowing both protocols to operate simultaneously during a phased migration to fully supervised reader communication.

4. What happens to door access if the network connection drops?

   Doors continue operating normally. The A1610 stores credentials and access rules locally on the controller, so a network outage, server restart, or WAN interruption does not affect door operation. When connectivity is restored, events that occurred offline are synchronised back to the management software.

5. Does the A1610 integrate with AXIS Camera Station?

   Yes. The A1610 runs AXIS OS and integrates natively with AXIS Camera Station. Access events from the controller - door open, credential denied, door held open, tamper alerts - can be correlated directly with camera footage from the same site within the AXIS Camera Station interface. This is managed through Security Australia for integrators building unified AXIS deployments.

6. How many doors can one AXIS A1610 control?

   2 doors. Each door has a dedicated reader input (OSDP or Wiegand), relay output for the lock, door position monitor input, and REX input. For sites requiring more than 2 doors per controller location, multiple A1610 units need to be deployed, or a higher-capacity multi-door controller should be evaluated to reduce the number of units and cable home-runs.

7. Does the A1610 support both fail-safe and fail-secure lock configurations?

   Yes, through the relay outputs. The A1610 provides a relay output per door that can drive either fail-safe (unlocks on power loss) or fail-secure (stays locked on power loss) hardware, depending on the lock and power supply configuration selected for the project. The correct fail-mode for each door should be determined based on fire egress requirements and the building's occupancy classification before lock hardware is ordered.

Cabling Considerations

• Controller Network Cable: Cat5e minimum, Cat6 recommended - carries PoE+ power and data to the A1610. Terminate at a PoE+ capable switch port or PoE+ injector. Standard maximum run of 100m applies.
• Reader Cable (OSDP): Shielded 4-core cable (STP) recommended for OSDP reader connections. Maximum OSDP cable run varies by reader manufacturer - confirm with the specific reader datasheet, typically up to 1.2 km at lower baud rates.
• Reader Cable (Wiegand): 6-core or 8-core shielded cable for Wiegand readers. Wiegand is susceptible to interference on longer runs - keep runs as short as practical and use shielded cable with the shield grounded at one end only.
• Lock Power Wiring: Door locks (electric strikes, magnetic locks) require a separate power supply run. Do not draw lock power from the A1610 itself. Use appropriately rated 12V or 24V DC cable sized for the lock's current draw, particularly for magnetic locks which can draw 500 mA or more per door continuously.
• REX and Door Monitor: Standard 2-core cable for REX (request to exit) buttons and door position switches. Keep cable runs to the door frame tidy and use concealed conduit where possible to reduce tamper exposure on the monitored loop.
