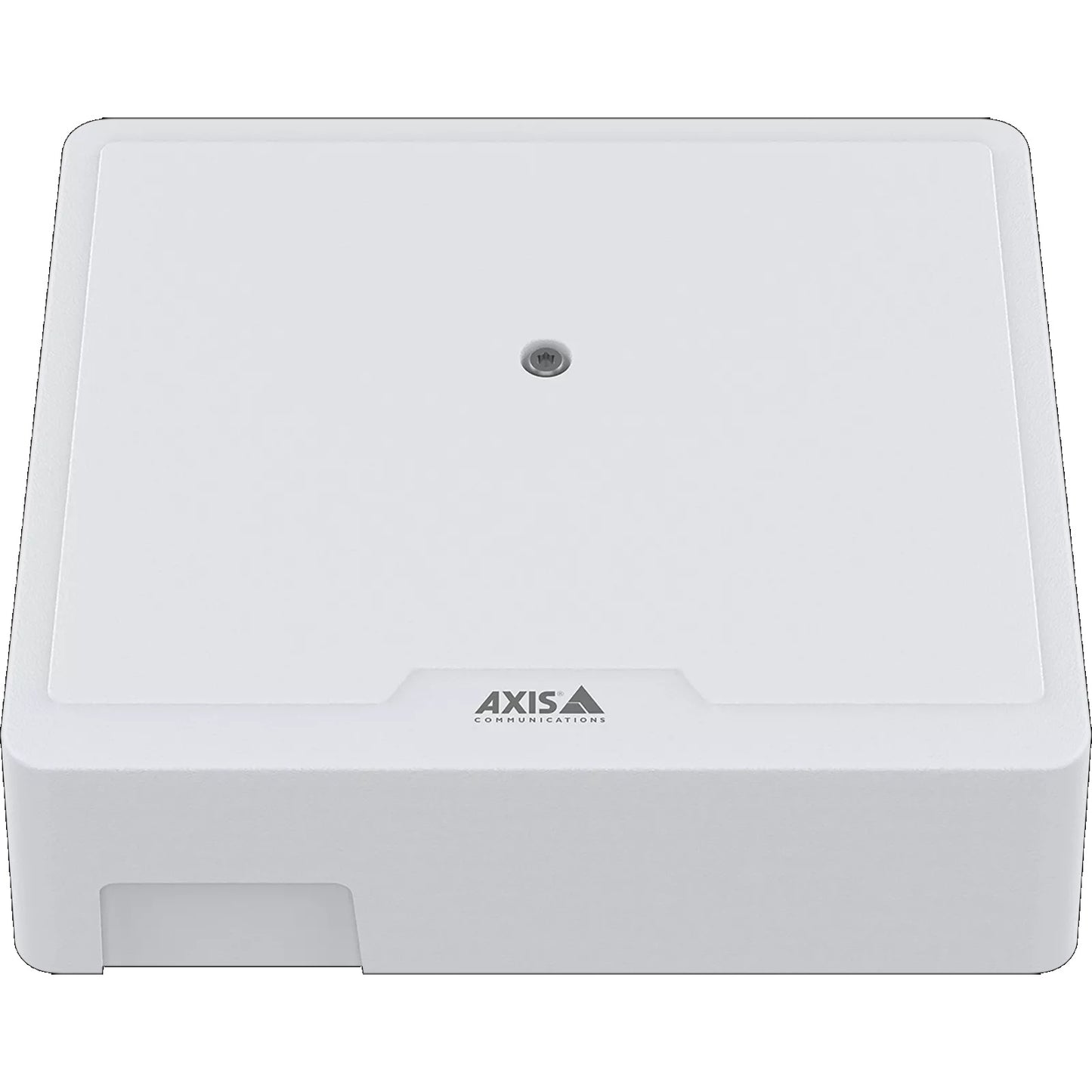

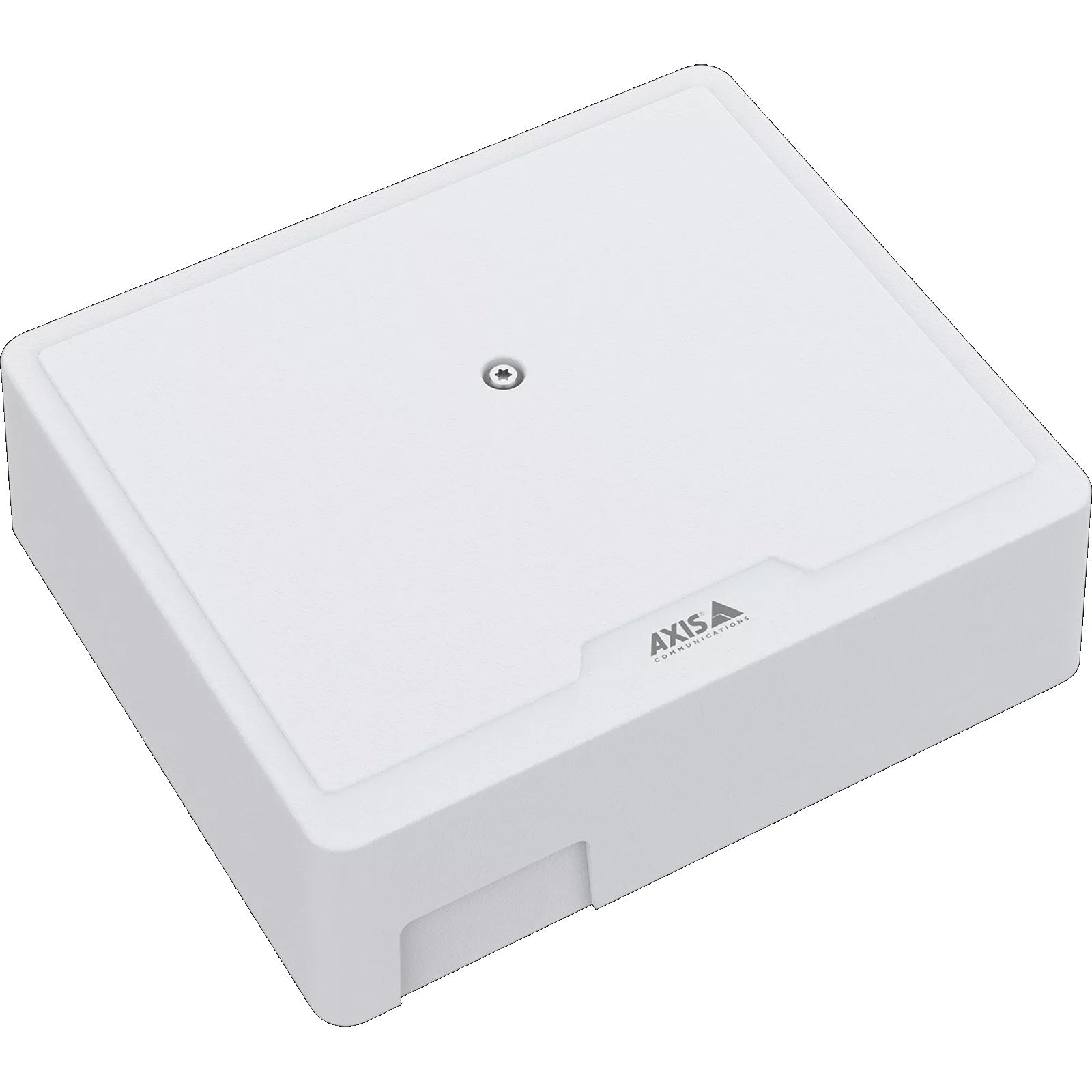

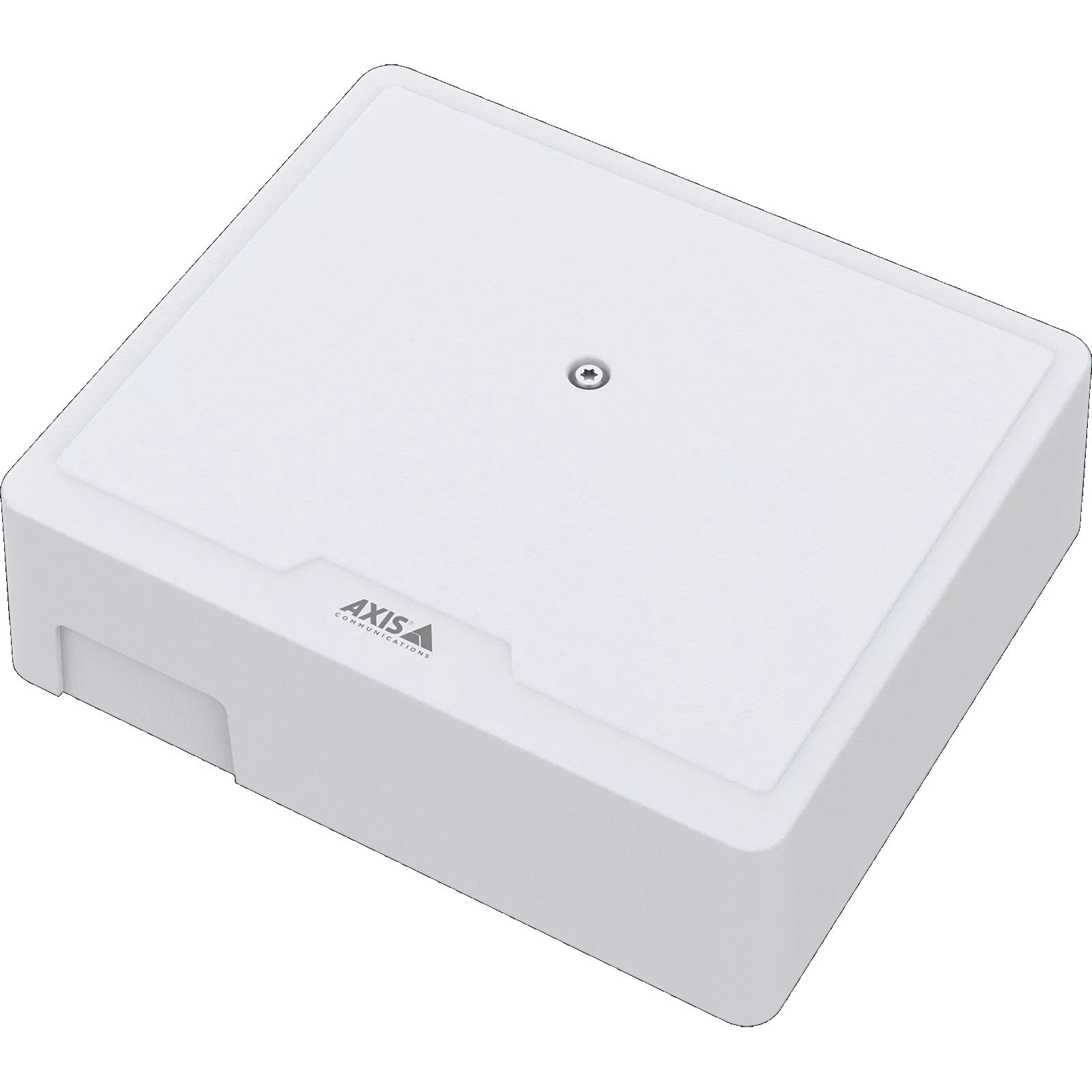

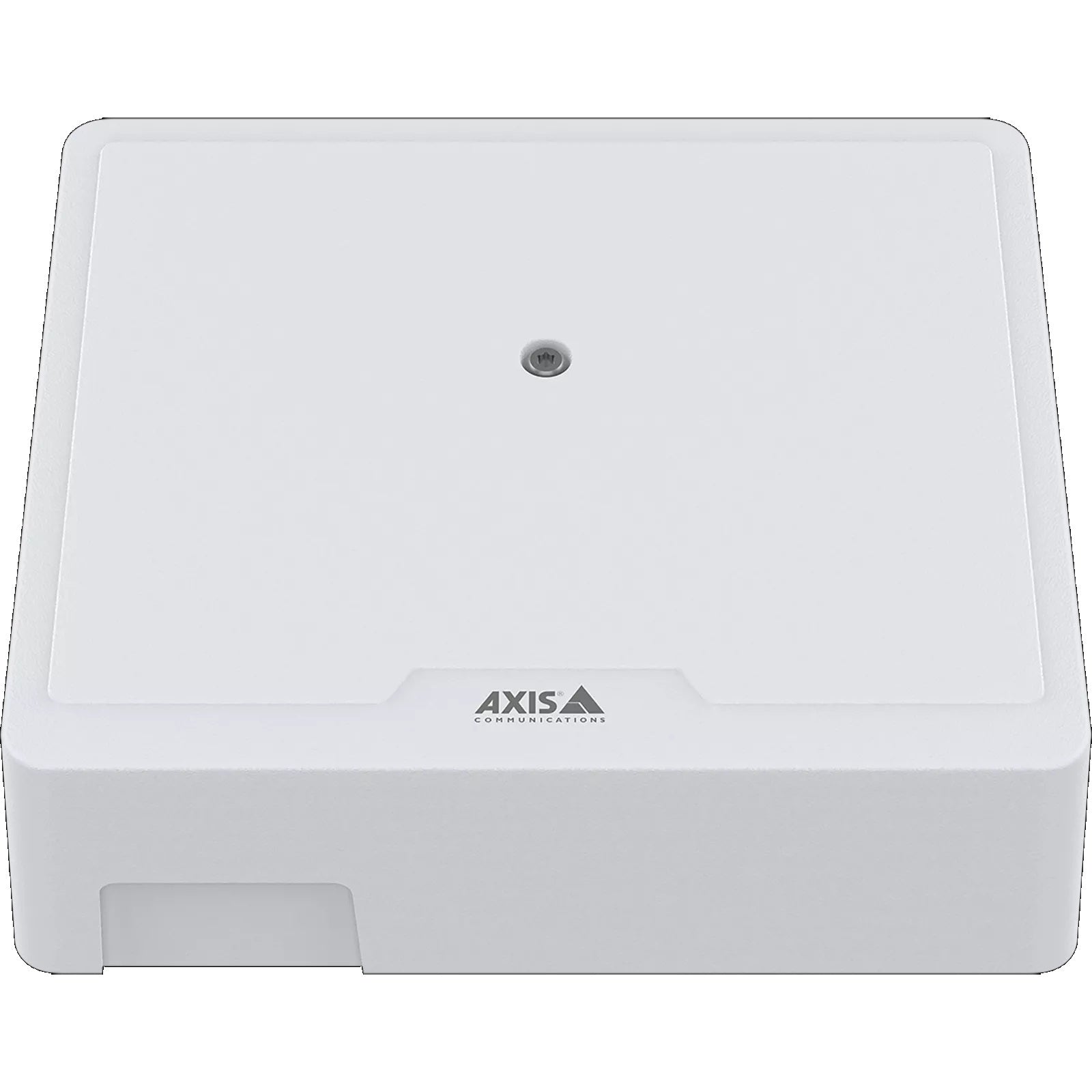

AXIS A1210 Network Door Controller with PoE, OSDP & Secure Access Control

Model: A1210

Who This Is For

For security integrators and facilities managers who need a network-based door controller that handles a single door with modern credential and protocol support. The AXIS A1210 Network Door Controller is built for sites where IP-based access control is the architecture of choice - think commercial offices, education campuses, healthcare facilities, and multi-tenancy buildings where scalable, centrally managed access is essential. It supports both OSDP and Wiegand readers, accepts PoE power from the network switch, and integrates directly with AXIS Camera Station and AXIS Entry Manager. If you are specifying a system where physical access control needs to sit on the same IP infrastructure as your video surveillance, or where OSDP's encrypted, supervised reader communication is a compliance or security requirement, the A1210 is built around exactly that use case.

What This Product Actually Does

Who Buys This Model

• Security Integrators Specifying IP Access Control: Installers building fully networked access systems who need a controller that sits on the same IP infrastructure as cameras, managed via AXIS Camera Station without a separate access control server.
• Facilities Managers at Commercial Offices: Sites with multiple controlled entry points where centrally managed cardholder databases, door schedules, and access event logs are a day-to-day operational requirement.
• Education and Healthcare Campuses: Environments where OSDP's supervised, encrypted reader line meets internal security policy or compliance requirements that Wiegand alone cannot satisfy.
• Upgrade Projects Retaining Legacy Readers: Sites transitioning from older standalone access control to a networked system where existing Wiegand readers are being kept and the A1210's dual-protocol support avoids a full reader replacement cost.
• IT-Managed Security Environments: Organisations where IT governs network security and requires IEEE 802.1X authentication and HTTPS encryption on all networked devices, including physical access control hardware.

Honest Assessment

The AXIS A1210 does the core job of a single-door network controller well. OSDP support with supervised reader communication, PoE powering, and tight integration with AXIS Camera Station are genuine strengths that make it a practical fit for IP-unified security systems. The cybersecurity architecture - HTTPS, 802.1X, AXIS OS with signed firmware - is more mature than what you typically see in budget access control hardware. For organisations already in the AXIS ecosystem, the unified management of doors and cameras in one platform is a real operational benefit. Where the A1210 is not the right answer: if you need to control more than 1 door from a single controller unit, you will need to look at multi-door controller options within the AXIS range, available through Security Australia. It is also not a standalone solution - it requires AXIS Entry Manager or AXIS Camera Station for full configuration and cardholder management.

Before You Buy

Quick Fit Check

• Good match if: You are building or expanding an IP-networked access control system on AXIS infrastructure and need a single-door controller with OSDP reader support and integrated software management via AXIS Camera Station or AXIS Entry Manager.
• Good match if: Your site has a mix of new OSDP readers and existing Wiegand readers to retain - the A1210 supports both protocols simultaneously, protecting the existing reader investment during a staged upgrade.
• You may need a different model if: You need to control 2 or more doors from a single controller unit - a multi-door network controller will be more cost-effective and reduce the number of network devices and PoE ports required across the installation.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single-door IP access controller with OSDP support, PoE powering, and native integration into the AXIS Camera Station or AXIS Entry Manager platform - particularly where cybersecurity requirements demand HTTPS and 802.1X compliance on every networked device.
• You may need a different model if: Your project involves controlling 2 or more doors per controller unit - a multi-door network controller will reduce device count, PoE port usage, and total installation cost across larger sites.
• Pairs well with: OSDP-capable card readers, PoE network switches with sufficient port budget, electric strikes or magnetic locks compatible with the relay output voltage, and an AXIS Camera Station server for unified access and video management.

Common Questions

1. Does the AXIS A1210 work with my existing Wiegand card readers?

   Yes. The A1210 supports Wiegand readers directly, so you do not need to replace existing Wiegand-format readers to use this controller. This makes it a practical option for staged upgrade projects where the access control back-end is being modernised but reader hardware is being retained to manage upfront costs.

2. What is OSDP and why does it matter compared to Wiegand?

   OSDP is a modern, bidirectional reader communication protocol that Wiegand cannot match for security. OSDP provides encrypted data transmission between the reader and controller, supervised line monitoring that detects cable tampering or reader removal, and support for smart card applications. Wiegand transmits credential data in clear text and provides no feedback if the reader line is cut or spoofed. For sites with compliance requirements or higher physical security standards, OSDP is the preferred choice.

3. Will this controller work without AXIS Camera Station - can I use it as a standalone unit?

   No, not for full access management. The A1210 requires AXIS Entry Manager or AXIS Camera Station to configure cardholders, access rules, and schedules. It is not designed to operate as a fully autonomous standalone controller with its own local configuration interface. If a standalone, server-independent controller is needed, a different product type would be more appropriate.

4. Does the A1210 support IEEE 802.1X for network authentication?

   Yes. The A1210 supports IEEE 802.1X, allowing it to authenticate against a RADIUS server before being granted network access. This satisfies network admission control policies in corporate or government environments where all connected devices must authenticate before communicating on the network - a requirement that many access control devices from other vendors cannot meet natively.

5. How many doors can one AXIS A1210 control?

   One door only. The A1210 is a single-door controller. For installations requiring 2 or more controlled doors, you would need one A1210 per door, or a multi-door controller variant stocked by Security Australia. For high door-count sites, a multi-door controller reduces device count and simplifies PoE infrastructure planning considerably.

6. Does the A1210 support mobile credentials or only physical cards?

   Mobile credential support depends on the reader connected to the A1210, not the controller itself. If you connect a reader that supports mobile credentials (such as Bluetooth or NFC-based mobile access), the A1210 processes the credential data passed from that reader. The controller handles the decision logic; the reader handles the credential capture method.

7. Will this controller detect if someone tampers with the reader or holds the door open?

   Yes, with conditions. Tamper detection on the controller housing is built in. Reader-line tampering detection requires an OSDP reader - OSDP's supervised communication alerts the controller if the reader line is cut or the reader is removed. Door hold-open detection uses the dedicated door monitor input, which triggers an event in AXIS Entry Manager when a door remains open beyond the configured time threshold.
