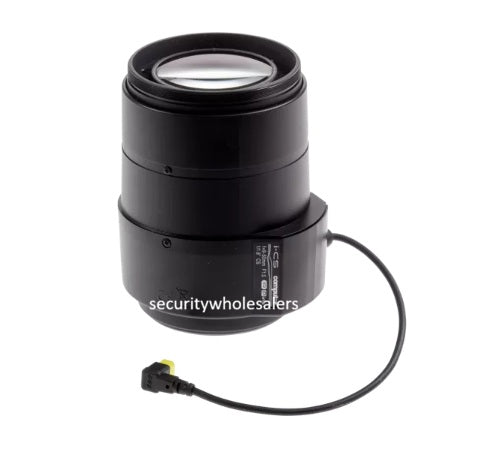

AXIS 9–50mm I-CS Lens 8MP | 01727-001

Model: AXIS 9-50mm I-CS Lens 8MP | 01727-001

Who This Is For

When matching focal length precisely to a scene is the priority - and a fixed lens simply will not cover the range required - the AXIS 9-50mm I-CS Lens 8MP gives integrators and system designers the reach to handle everything from a medium-width corridor view at 9mm through to a narrow, long-distance approach at 50mm, all from a single lens. It is designed specifically for AXIS cameras equipped with an I-CS mount, providing motorised remote zoom and focus adjustment without requiring physical access to the camera head after installation. This makes it a practical choice for cameras mounted high on poles, gantries, or building facades where ladder access after commissioning is costly or disruptive. The 8MP optimisation ensures the full resolution of a compatible high-megapixel AXIS sensor is maintained across the focal range, avoiding the softness that can result from pairing a lower-spec lens with a high-resolution imager.

What This Lens Actually Does

Who Buys This Model

• CCTV Integrators Commissioning High-Mounted Cameras: When cameras are positioned on poles, building parapets, or gantries where access after installation is difficult, the I-CS remote zoom and focus capability removes the need for return site visits just to dial in the image.
• System Designers Specifying 8MP AXIS Builds: Projects using AXIS cameras with I-CS mounts and 8MP sensors need a lens that matches the imager resolution. This lens is built specifically for that sensor class, avoiding the resolution mismatch common when repurposing lower-grade glass.
• Critical Infrastructure and Perimeter Teams: Sites requiring variable focal coverage - such as ports, utilities, and logistics yards - benefit from the 9-50mm range to cover both wide-area zone monitoring and narrow, long-distance approaches with a single camera position.
• Integrators Replacing or Upgrading Existing Lenses: When an existing I-CS compatible AXIS camera body is being retained but the original lens no longer meets the scene requirement, this lens provides a direct, compatible upgrade path without replacing the whole camera unit.

Honest Assessment

The AXIS 9-50mm I-CS Lens 8MP does a specific job well: it provides a wide varifocal range with motorised remote control through the I-CS interface, matched optically to 8MP sensors. For integrators who regularly deal with hard-to-access camera positions or uncertain scene requirements at commissioning time, the ability to adjust zoom and focus remotely is a genuine operational advantage. The 8MP optical optimisation also means this lens will not become the bottleneck in a high-resolution build. What it will not do is function with cameras that use a standard CS-mount or C-mount without I-CS electronic control - the motorised features require an I-CS compatible host camera. It is also not a standalone product; it only delivers value as part of a compatible AXIS camera system. Buyers unsure whether their existing AXIS camera body supports I-CS lenses should confirm compatibility before ordering. This lens is available through Security Australia as part of the AXIS accessories range.

Before You Buy

Quick Fit Check

• Good match if: You are specifying an 8MP AXIS camera with an I-CS mount for a position where post-installation access is costly - the motorised remote zoom and focus means commissioning and any future adjustments are handled via software, not a site visit.
• Good match if: Your scene requirement sits anywhere in the 9-50mm range and you want a single lens that can be adjusted to the final field of view on commissioning day rather than committing to a fixed focal length up front.
• You may need a different model if: Your camera uses a standard CS-mount without I-CS support - a conventional varifocal CS-mount lens would be the appropriate product type for that host camera.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your AXIS camera has an I-CS mount, you are working with an 8MP sensor, and you need motorised remote zoom and focus control across a wide 9-50mm varifocal range from a single lens.
• You may need a different model if: Your camera uses a standard CS-mount without I-CS electronic control - a conventional motorised CS varifocal lens is the appropriate product type for that setup and will provide manual or auto-focus without requiring I-CS compatibility.
• Pairs well with: An I-CS compatible AXIS fixed-body camera (box or bullet housing style) with an 8MP sensor, deployed on a pole mount or building parapet where remote commissioning access is a priority.

Common Questions

1. Will this lens fit any AXIS camera with a CS-mount?

   No - not for motorised control. The lens uses an I-CS (Integrated CS-mount) interface, which passes electronic signals through the mount to drive the motorised zoom and focus. A standard CS-mount camera body will accept the lens physically, but the motorised control functions will not operate. You need a camera that specifically lists I-CS lens support to use this lens as intended.

2. Can I adjust the zoom and focus without accessing the camera after it is installed?

   Yes. That is the primary purpose of the I-CS interface. Once the lens is fitted to a compatible AXIS camera, both zoom position and focus are controlled remotely through the camera's software interface - no physical access to the lens is needed. This is particularly useful for cameras installed at height or in locations where access is restricted after commissioning.

3. Does the 8MP optimisation matter if my camera is only 4MP or 5MP?

   It does not cause compatibility problems, but you will not gain any practical benefit. The 8MP optical optimisation means the lens resolves detail at a level that matches an 8MP imager. On a lower-resolution sensor, the lens will work fine but the optical quality advantage is not utilised. If you are running a 4MP or lower camera, a lens optimised for that sensor class is a more cost-efficient match.

4. What field of view does this lens produce at each end of the range?

   The exact field of view depends on the specific sensor size of your AXIS camera. At 9mm the view is relatively wide, suitable for areas 10-20 metres across at moderate distance. At 50mm the view narrows significantly, providing reach for long-distance scenes of 60-100 metres or more where detail is required. Use AXIS's lens calculator or a standard FOV tool with your camera's sensor dimensions to confirm the exact angles for your installation.

5. Is this lens suitable for use inside an existing AXIS camera housing?

   Yes, provided the housing accommodates I-CS lens formats and the camera body inside supports I-CS control. AXIS box-style cameras are the most common host for I-CS lenses and are typically designed to accept external lenses within compatible enclosures. Confirm the internal dimensions of your housing and the camera body's I-CS support before ordering.

6. Does the lens include IR cut filter control or is that handled by the camera?

   IR cut filter switching is handled by the camera body, not by this lens. The AXIS 9-50mm I-CS Lens 8MP provides the optics and motorised zoom and focus control through the I-CS interface. Day/night switching, IR cut filter actuation, and image processing functions remain with the host camera as they do with any lens and camera combination.

7. Where can I confirm which AXIS cameras are compatible with this lens?

   AXIS publishes compatibility data for I-CS lenses against specific camera models on the AXIS website, and the team at Security Australia can assist with confirming whether your target camera body supports I-CS lens control before you commit to an order. Checking compatibility before purchase is strongly recommended - the lens SKU is 01727-001.
