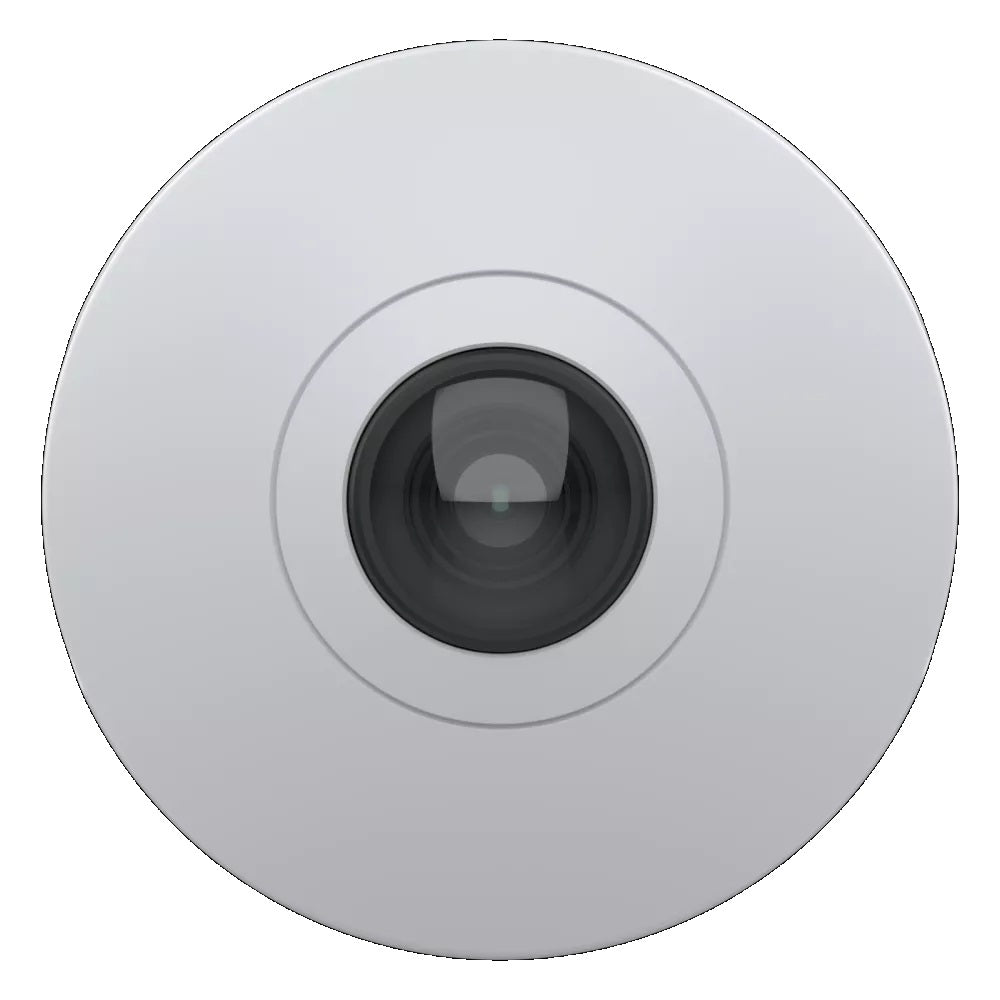

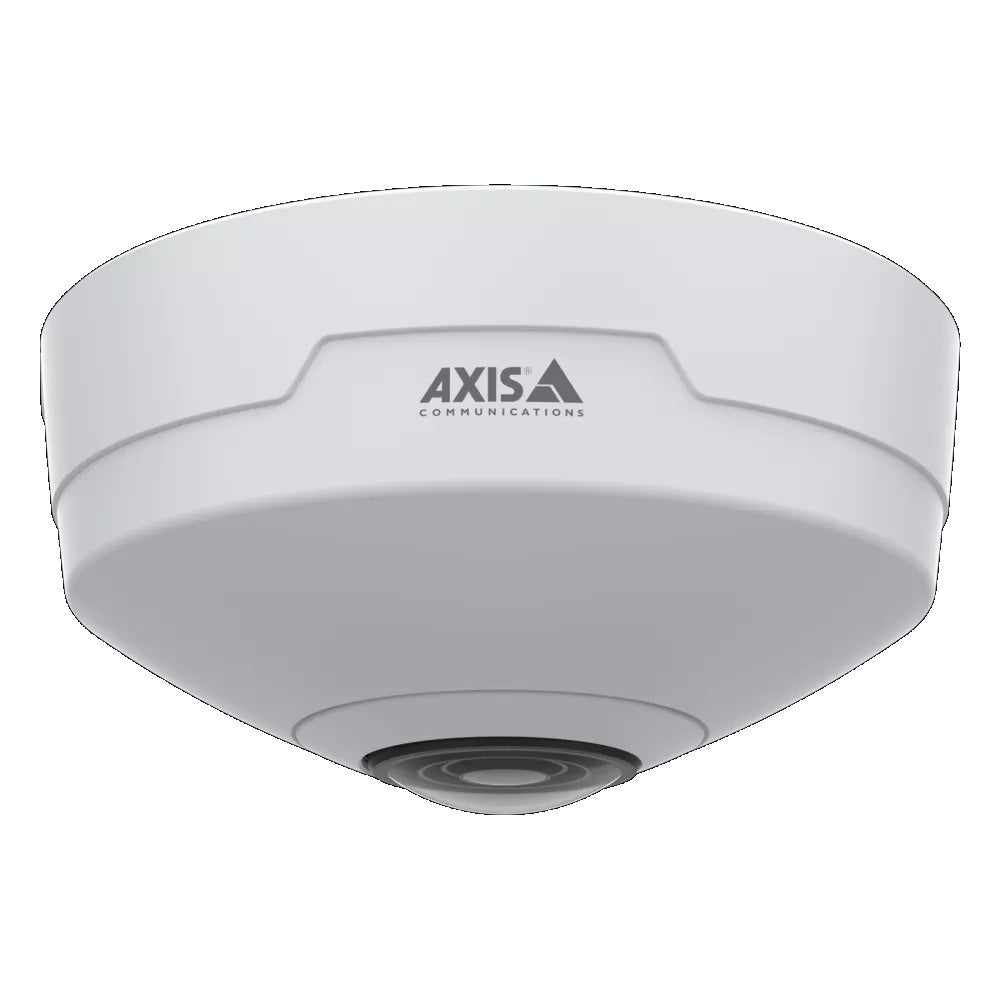

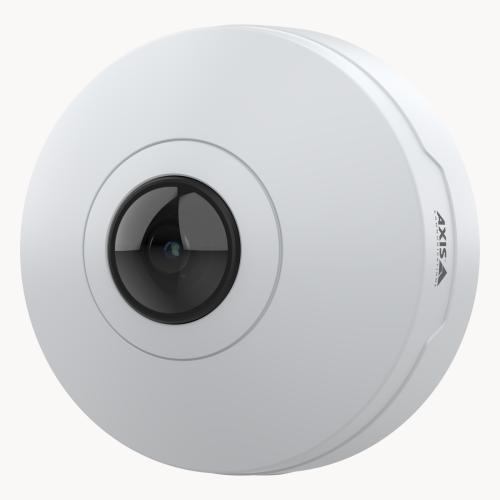

Axis 6MP M43 Series AXIS M4327-P Indoor Panoramic Camera with Deep Learning Analytics, 1.1mm Fisheye Lens, 180°/360° View

Model: M4327-P

Who This Is For

For facility managers and security integrators who need to eliminate blind spots across large open floor plans with a single ceiling-mounted device, the Axis M4327-P delivers 6MP 180° or 360° panoramic coverage from a 1.1mm fisheye lens. It is purpose-built for lobbies, open-plan offices, retail floors, and transit waiting areas where running multiple cameras to cover the same space is impractical or cost-prohibitive. The M4327-P pairs its wide-area coverage with an on-board deep learning processing unit, enabling AXIS Object Analytics to classify people and vehicles directly on the camera without leaning on server-side processing. The result is a device that handles both the coverage geometry and the analytics workload at the edge, making it a practical choice for installations where reducing camera count, simplifying cabling, and maintaining AI-driven event detection are all priorities at once.

What This Camera Actually Does

Who Buys This Model

• Retail loss prevention teams: A single ceiling-mounted M4327-P covers an entire aisle bay or checkout zone in 360°, removing the angular gaps that standard dome cameras leave at the edges of their field of view.
• Corporate facilities teams: Open-plan office floors, reception areas, and foyers where the brief is to monitor the whole space without a grid of cameras on the ceiling that interrupt the interior aesthetic.
• Healthcare and aged care security coordinators: Common rooms, waiting areas, and corridors where comprehensive coverage is required but camera count and cabling cost are tightly controlled by site infrastructure limitations.
• Security integrators deploying edge-analytics systems: Installers specifying VMS architectures where AI processing should sit at the camera rather than on a central server - the on-board DLPU handles object classification without adding load to the recording system.
• Transport and education facility managers: Station waiting areas, university foyers, and transit hubs where a single wide-area device covers passenger or student flow patterns, and the ACAP platform allows occupancy analytics to run locally.

Honest Assessment

The M4327-P does two things genuinely well: it eliminates the multi-camera overhead of covering an open indoor space, and it puts serious analytics capability directly on the device. The 6MP sensor gives the fisheye frame enough resolution to extract usable detail from cropped zones when reviewing footage, and the on-board deep learning unit makes AXIS Object Analytics practical as a primary detection method rather than a supplementary one. For indoor open-plan environments, the camera-count and cabling savings are real and quantifiable. What the M4327-P will not do is deliver long-range identification quality down a corridor or across a carpark - pixel density per metre drops sharply as distance increases in any wide-angle design. It also has no IR illumination, so it is dependent on the building's ambient lighting after hours. If your brief includes low-light outdoor coverage or requires identification-quality footage at distances beyond 5-6 metres on a specific target, a dedicated fixed or varifocal camera will serve that requirement better. The M4327-P is available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are covering a single open indoor space - a retail floor, office common area, or waiting room - and want complete 360° situational awareness from one ceiling point with deep learning object detection running at the edge.
• Good match if: Your VMS or analytics architecture is built around edge processing, and the AXIS Camera Application Platform allows you to run occupancy counting, line crossing, or queue detection apps directly on the device without a dedicated analytics server.
• You may need a different model if: Your site has low ambient light after hours with no supplementary lighting - the M4327-P has no IR illumination, and a fixed or varifocal camera with built-in IR or a full-colour low-light sensor will be better suited to that environment.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full 360° or 180° indoor area coverage from a single ceiling point, with on-board deep learning analytics that classify objects without server-side processing overhead.
• You may need a different model if: Your coverage requirement is a specific long corridor, entrance gate, or zone where identification-quality footage at distance matters more than panoramic area coverage - a fixed varifocal or bullet camera will deliver significantly more detail per metre in that scenario.
• Pairs well with: A network video recorder with ONVIF Profile G support and client-side fisheye dewarping capability, or an Axis-compatible VMS with native M43 Series dewarping profiles for full multi-view operator display.

Common Questions

1. Does this camera work for outdoor installations?

   No. The M4327-P carries an IP42 ingress protection rating, which covers minor dust and drip water from a fixed angle - it is not rated for outdoor use, rain exposure, or condensation from temperature cycling. It is designed specifically for indoor ceiling or wall installation in climate-controlled environments. For outdoor panoramic coverage, a camera with at least IP66 rating and an outdoor-rated housing is required.

2. Will this camera work without a PoE switch - can I power it from a standard power outlet?

   Yes, with an additional adapter. The M4327-P is natively powered by IEEE 802.3af PoE via its RJ45 port. If you do not have a PoE switch or PoE injector, you can use a separate PoE injector inline between the camera and a standard switch - the camera does not have a separate DC power input. A PoE switch is the recommended approach for multi-camera installations to simplify cabling.

3. What is the difference between 180° and 360° mode on the M4327-P?

   The difference is determined by the mount position. Ceiling-mounted horizontally, the fisheye lens captures a full 360° bird's-eye view of the floor area below. Wall-mounted vertically, the same lens delivers a 180° panoramic sweep across the space in front of the camera. The lens and sensor do not change between modes - the geometry of coverage changes based on how the camera is oriented at install.

4. How does the fisheye dewarping work - does my NVR or VMS need specific software?

   It depends on your configuration. The M4327-P can output dewarped streams natively on the camera, meaning your NVR receives a corrected panoramic or quad view directly. Alternatively, the raw fisheye stream can be sent to your VMS for client-side dewarping, which gives the operator more flexibility in how zones are arranged but requires the VMS to have a confirmed dewarping driver for this model. Check your VMS vendor's compatibility list for the Axis M4327-P or the M43 Series before finalising your architecture. The team at Security Australia can assist with VMS compatibility queries.

5. What does the deep learning processing unit actually do differently from standard motion detection?

   It classifies objects in the scene rather than just detecting pixel-level movement. Standard motion detection triggers on any change in the frame - a light flicker, a shadow shift, or an HVAC vent disturbing a paper document. The M4327-P's on-board DLPU runs AXIS Object Analytics, which identifies whether the detected object is a human or a vehicle before generating an event. This means your VMS or alarm output only triggers on confirmed object classes, which substantially reduces the volume of false alerts in busy indoor environments with variable lighting.

6. What are the DORI distances for this camera - can it identify a person's face at the other end of a room?

   No. Fisheye cameras are not designed for identification-level detail at range. The 6MP sensor distributes resolution across the entire 360° or 180° frame, so while the camera delivers strong situational awareness across the whole space, the pixel density per metre at distances beyond 4-6 metres is insufficient for facial identification. The M4327-P is suited to detection and observation across an open area - confirming a person is present, their general location, and their direction of movement. For identification-quality footage at a specific point, a dedicated fixed camera covering that zone should be included in the design alongside the panoramic unit.

7. Can third-party analytics apps run on this camera?

   Yes. The M4327-P supports the AXIS Camera Application Platform (ACAP), which allows compatible third-party applications to be installed and run directly on the camera's processor. This includes applications for people counting, queue detection, and occupancy management from Axis-approved developers. The on-board deep learning processing unit supports ACAP applications that use deep learning inference, though the available processing headroom will depend on how many analytics tasks are running simultaneously.
